Toyota Lexus gs series GWL10 ACCELERATOR LINK

GWL10L-BEXQBW (2012)

Toyota Lexus Gs Series

Production Mar 2012 - Oct 2015

Engine 2GRFXE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

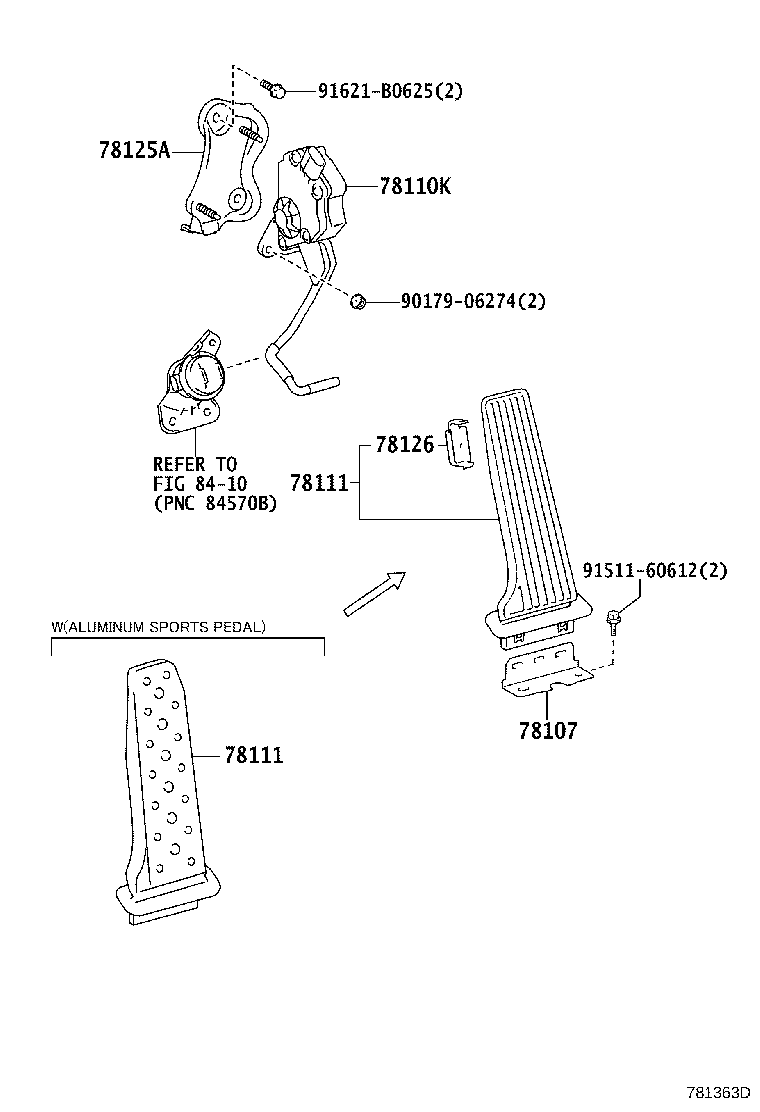

Click highlighted areas on diagram

Part #	Description	Period	Qty
78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD
78108-30130	GRL11,GWL10	03/2012 - 09/2013	1
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-30150	GRL11,GWL10..LHD	03/2012 - 06/2013	1
78110-30151	AWL10,GRL11,GWL10..LHD	07/2013 - 09/2015	1
78111 - PEDAL, ACCELERATOR
78101-53040	AWL10,GRL11,GWL10..STD F SPORT	09/2013 - 06/2015	1
78111-30200	GRL11,GWL10	03/2012 - 09/2013	1
78101-53050	AWL10,GRL11,GWL10	09/2013 - 06/2015	1
78101-53041	AWL10,GRL11,GWL10..STD F SPORT	07/2015 - 10/2015	1
78101-30080	GRL11,GWL10..STD F SPORT	03/2012 - 09/2013	1
78101-53040	GRL11,GWL10..LHD..STD THE CRAFTED LINE	09/2014 - 06/2015	1
78101-53041	GRL11,GWL10..LHD..STD THE CRAFTED LINE	07/2015 - 10/2015	1
78101-53051	AWL10,GRL11,GWL10	07/2015 - 10/2015	1
78111 - PEDAL, ACCELERATOR
78101-53040	AWL10,GRL11,GWL10..STD F SPORT	09/2013 - 06/2015	1
78111-30200	GRL11,GWL10	03/2012 - 09/2013	1
78101-53050	AWL10,GRL11,GWL10	09/2013 - 06/2015	1
78101-53041	AWL10,GRL11,GWL10..STD F SPORT	07/2015 - 10/2015	1
78101-30080	GRL11,GWL10..STD F SPORT	03/2012 - 09/2013	1
78101-53040	GRL11,GWL10..LHD..STD THE CRAFTED LINE	09/2014 - 06/2015	1
78101-53041	GRL11,GWL10..LHD..STD THE CRAFTED LINE	07/2015 - 10/2015	1
78101-53051	AWL10,GRL11,GWL10	07/2015 - 10/2015	1
78125A - BRACKET, ACCELERATOR PEDAL ROD, NO.2
78125-30080	GRL11,GWL10..LHD	03/2012 - 08/2012	1
78125-30081	AWL10,GRL11,GWL10..LHD	09/2012 - 10/2015	1
78126 - BRACKET, ACCELERATOR PEDAL ROD
78126-30060	GRL11,GWL10	03/2012 - 09/2013	1
Common parts
90179-06274
91511-60612
91621-B0625
Linked diagrams
8410

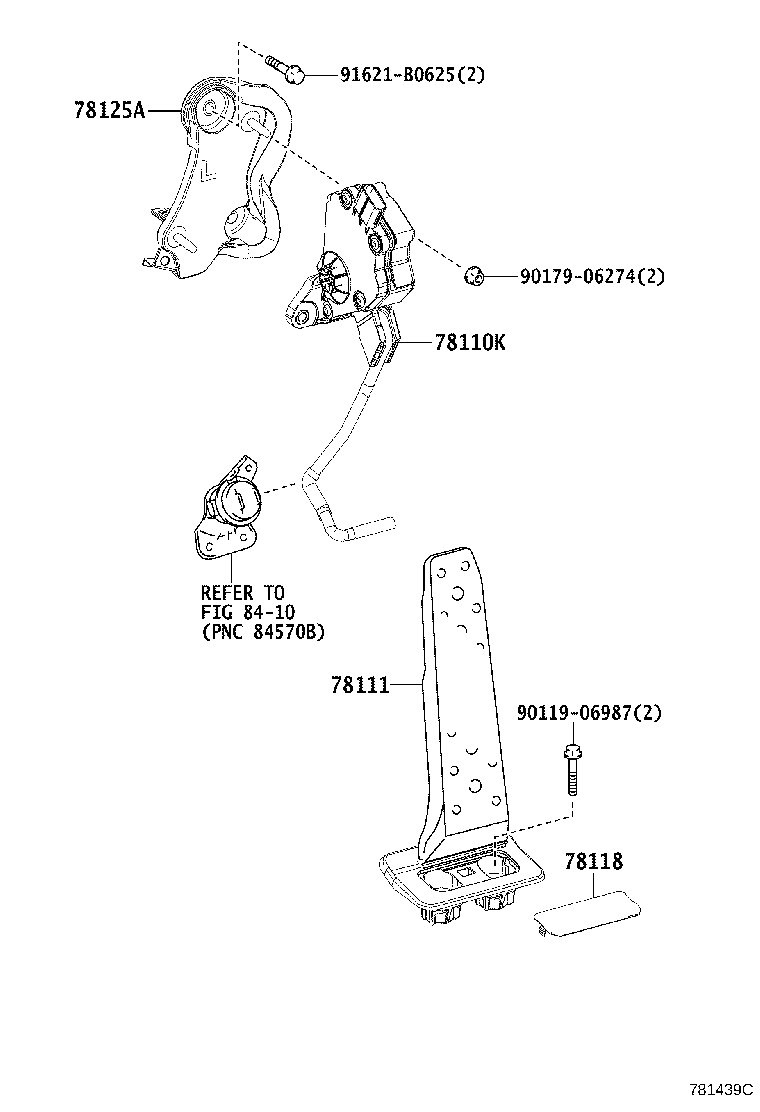

Click highlighted areas on diagram

Part #	Description	Period	Qty
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-30150	GRL11,GWL10..LHD	03/2012 - 06/2013	1
78110-30151	AWL10,GRL11,GWL10..LHD	07/2013 - 09/2015	1
78111 - PEDAL, ACCELERATOR
78101-53040	AWL10,GRL11,GWL10..STD F SPORT	09/2013 - 06/2015	1
78111-30200	GRL11,GWL10	03/2012 - 09/2013	1
78101-53050	AWL10,GRL11,GWL10	09/2013 - 06/2015	1
78101-53041	AWL10,GRL11,GWL10..STD F SPORT	07/2015 - 10/2015	1
78101-30080	GRL11,GWL10..STD F SPORT	03/2012 - 09/2013	1
78101-53040	GRL11,GWL10..LHD..STD THE CRAFTED LINE	09/2014 - 06/2015	1
78101-53041	GRL11,GWL10..LHD..STD THE CRAFTED LINE	07/2015 - 10/2015	1
78101-53051	AWL10,GRL11,GWL10	07/2015 - 10/2015	1
78118 - PAD, ACCELERATOR PEDAL
78117-30030	AWL10,GRL11,GWL10	09/2013 - 10/2015	1
78125A - BRACKET, ACCELERATOR PEDAL ROD, NO.2
78125-30080	GRL11,GWL10..LHD	03/2012 - 08/2012	1
78125-30081	AWL10,GRL11,GWL10..LHD	09/2012 - 10/2015	1
Common parts
90119-06987
90179-06274
91621-B0625
Linked diagrams
8410
