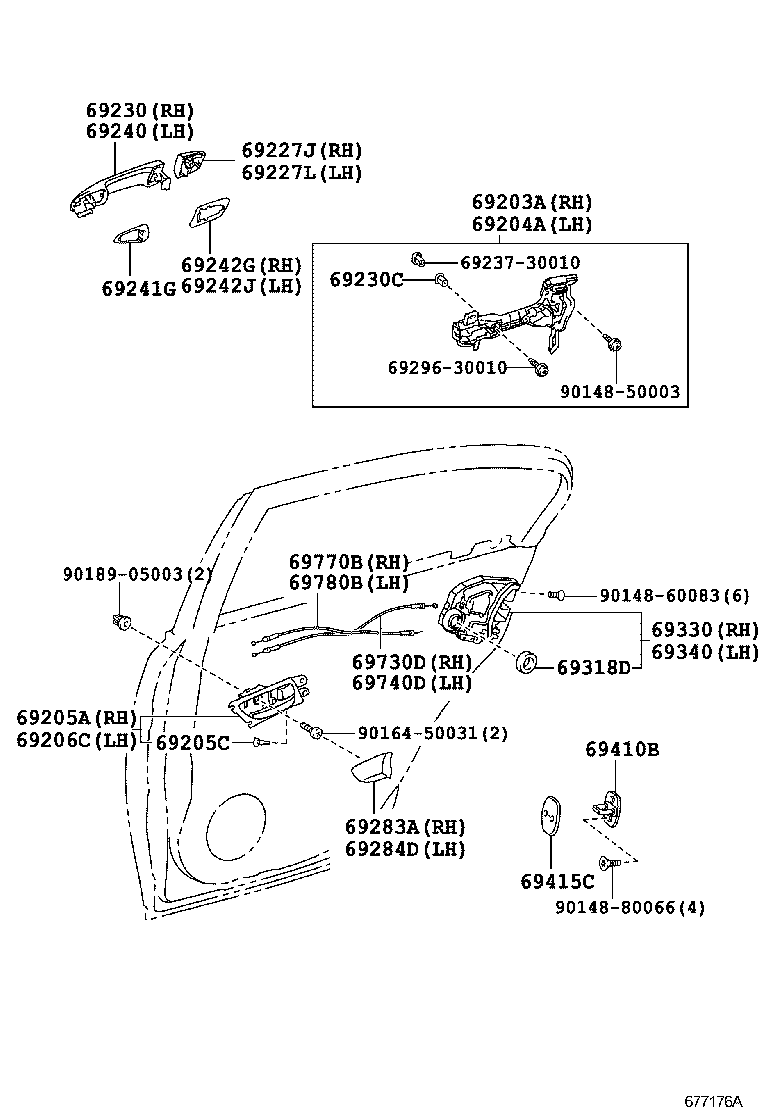

GRL15L-BETQHW (2012)
Toyota Lexus Gs Series
(1201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-30070 |
GRL1#,GWL10 |
1 | ||
| 69203-30071 |
AWL10,GRL1#,GWL10 |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-30070 |
GRL1#,GWL10 |
1 | ||
| 69204-30071 |
AWL10,GRL1#,GWL10 |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69270-30030C0 |
AWL10,GRL1#,GWL10..STD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
AWL10,GRL1#,GWL10 |
2 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69280-30050C0 |
AWL10,GRL1#,GWL10..STD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69227-48010C1 |
AWL10,GRL1#,GWL10 BLACK OPAL MC.,214 |
1 | ||
| 69227-48010E3 |
GRL1#,GWL10 SLEEK ECRU ME.,4U7 |
1 | ||
| 69227-48010D1 |
AWL10,GRL1#,GWL10 CRIMSON CS. GF.,3S8 |
1 | ||
| 69227-48010C0 |
GRL1#,GWL10..LHD..STD BLACK,212 ,2MH |
1 | ||
| 69227-48010A0 |
AWL10,GRL1#,GWL10 WHITE PEARL CS.,077 |
1 | ||
| 69227-48010B5 |
AWL10,GRL1#,GWL10 SONIC SILVER,1J2 |
1 | ||
| 69227-48010C2 |
AWL10,GRL1#,GWL10 STARLIGHT BLACK GF.,217 |
1 | ||
| 69227-48010E2 |
AWL10,GRL1#,GWL10 FIRE AGATE M.M.,4V3 |
1 | ||
| 69227-48010B4 |
AWL10,GRL1#,GWL10 MERCURY GRAY MC.,1H9 |
1 | ||
| 69227-48010J3 |
AWL10,GRL1#,GWL10 LAPIS LAZULI MC.,8V3 |
1 | ||
| 69227-48010J4 |
AWL10,GRL1#,GWL10 METEOR BLUE M.M.,8W3 |
1 | ||
| 69227-48010A2 |
AWL10,GRL1#,GWL10..STD WHITE NOVA GF.,083 |
1 | ||
| 69227-48010B7 |
AWL10,GRL1#,GWL10 SONIC TITANIUM,1J7 |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69228-48010C1 |
AWL10,GRL1#,GWL10 BLACK OPAL MC.,214 |
1 | ||
| 69228-48010E3 |
GRL1#,GWL10 SLEEK ECRU ME.,4U7 |
1 | ||
| 69228-48010B4 |
AWL10,GRL1#,GWL10 MERCURY GRAY MC.,1H9 |
1 | ||
| 69228-48010D1 |
AWL10,GRL1#,GWL10 CRIMSON CS. GF.,3S8 |
1 | ||
| 69228-48010C0 |
GRL1#,GWL10..LHD..STD BLACK,212 ,2MH |
1 | ||
| 69228-48010E2 |
AWL10,GRL1#,GWL10 FIRE AGATE M.M.,4V3 |
1 | ||
| 69228-48010C2 |
AWL10,GRL1#,GWL10 STARLIGHT BLACK GF.,217 |
1 | ||
| 69228-48010A0 |
AWL10,GRL1#,GWL10 WHITE PEARL CS.,077 |
1 | ||
| 69228-48010B5 |
AWL10,GRL1#,GWL10 SONIC SILVER,1J2 |
1 | ||
| 69228-48010J3 |
AWL10,GRL1#,GWL10 LAPIS LAZULI MC.,8V3 |
1 | ||
| 69228-48010B7 |
AWL10,GRL1#,GWL10 SONIC TITANIUM,1J7 |
1 | ||
| 69228-48010J4 |
AWL10,GRL1#,GWL10 METEOR BLUE M.M.,8W3 |
1 | ||
| 69228-48010A2 |
AWL10,GRL1#,GWL10..STD WHITE NOVA GF.,083 |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-76010C1 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),BLACK OPAL MC.,214 |
1 | ||
| 69210-48040E3 |
GRL1#,GWL10 SLEEK ECRU ME.,4U7 |
1 | ||
| 69210-48040C1 |
AWL10,GRL1#,GWL10 BLACK OPAL MC.,214 |
1 | ||
| 69210-48040E2 |
AWL10,GRL1#,GWL10 FIRE AGATE M.M.,4V3 |
1 | ||
| 69210-48040A0 |
AWL10,GRL1#,GWL10 WHITE PEARL CS.,077 |
1 | ||
| 69210-48040C0 |
GRL1#,GWL10..LHD..STD BLACK,212 ,2MH |
1 | ||
| 69210-48040C2 |
AWL10,GRL1#,GWL10 STARLIGHT BLACK GF.,217 |
1 | ||
| 69210-76010A0 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),WHITE PEARL CS.,077 |
1 | ||
| 69210-48040B5 |
AWL10,GRL1#,GWL10 SONIC SILVER,1J2 |
1 | ||
| 69210-48040J3 |
AWL10,GRL1#,GWL10 LAPIS LAZULI MC.,8V3 |
1 | ||
| 69210-76010A0 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),WHITE PEARL CS.,077 |
1 | ||
| 69210-76010A2 |
AWL10,GRL1#,GWL10..STD DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),WHITE NOVA GF.,083 |
1 | ||
| 69210-48040D1 |
AWL10,GRL1#,GWL10 CRIMSON CS. GF.,3S8 |
1 | ||
| 69210-76010B6 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),SONIC SILVER,1J2 |
1 | ||
| 69210-76010A2 |
AWL10,GRL1#,GWL10..STD DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),WHITE NOVA GF.,083 |
1 | ||
| 69210-76010B6 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),SONIC SILVER,1J2 |
1 | ||
| 69210-76010C1 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),BLACK OPAL MC.,214 |
1 | ||
| 69210-48040A2 |
AWL10,GRL1#,GWL10..STD WHITE NOVA GF.,083 |
1 | ||
| 69210-48040B4 |
AWL10,GRL1#,GWL10 MERCURY GRAY MC.,1H9 |
1 | ||
| 69210-76010C0 |
GRL1#,GWL10..LHD..STD DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),BLACK,212 ,2MH |
1 | ||
| 69210-76010B1 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),MERCURY GRAY MC.,1H9 |
1 | ||
| 69210-76010C2 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),STARLIGHT BLACK GF.,217 |
1 | ||
| 69210-76010C0 |
GRL1#,GWL10..LHD..STD DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),BLACK,212 ,2MH |
1 | ||
| 69210-76010E0 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),FIRE AGATE M.M.,4V3 |
1 | ||
| 69210-76010B1 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),MERCURY GRAY MC.,1H9 |
1 | ||
| 69210-76010D4 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),CRIMSON CS. GF.,3S8 |
1 | ||
| 69210-48040J4 |
AWL10,GRL1#,GWL10 METEOR BLUE M.M.,8W3 |
1 | ||
| 69210-76010B5 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),SONIC TITANIUM,1J7 |
1 | ||
| 69210-76010J2 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),LAPIS LAZULI MC.,8V3 |
1 | ||
| 69210-76010C2 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),STARLIGHT BLACK GF.,217 |
1 | ||
| 69210-76010E0 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),FIRE AGATE M.M.,4V3 |
1 | ||
| 69210-76010J2 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),LAPIS LAZULI MC.,8V3 |
1 | ||
| 69210-76010B5 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),SONIC TITANIUM,1J7 |
1 | ||
| 69210-76010J4 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),METEOR BLUE M.M.,8W3 |
1 | ||
| 69210-76010D4 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),CRIMSON CS. GF.,3S8 |
1 | ||
| 69210-48040B7 |
AWL10,GRL1#,GWL10 SONIC TITANIUM,1J7 |
1 | ||
| 69210-76010J4 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),METEOR BLUE M.M.,8W3 |
1 | ||
| 69230C - BUSH(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 69239-30010 |
AWL10,GRL1#,GWL10 |
2 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69220-48040C1 |
AWL10,GRL1#,GWL10 BLACK OPAL MC.,214 |
1 | ||
| 69220-48040E3 |
GRL1#,GWL10 SLEEK ECRU ME.,4U7 |
1 | ||
| 69220-76010C1 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),BLACK OPAL MC.,214 |
1 | ||
| 69220-48040B4 |
AWL10,GRL1#,GWL10 MERCURY GRAY MC.,1H9 |
1 | ||
| 69220-48040J3 |
AWL10,GRL1#,GWL10 LAPIS LAZULI MC.,8V3 |
1 | ||
| 69220-48040A0 |
AWL10,GRL1#,GWL10 WHITE PEARL CS.,077 |
1 | ||
| 69220-48040C0 |
GRL1#,GWL10..LHD..STD BLACK,212 ,2MH |
1 | ||
| 69220-76010B1 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),MERCURY GRAY MC.,1H9 |
1 | ||
| 69220-48040C2 |
AWL10,GRL1#,GWL10 STARLIGHT BLACK GF.,217 |
1 | ||
| 69220-48040A2 |
AWL10,GRL1#,GWL10..STD WHITE NOVA GF.,083 |
1 | ||
| 69220-76010B1 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),MERCURY GRAY MC.,1H9 |
1 | ||
| 69220-48040B5 |
AWL10,GRL1#,GWL10 SONIC SILVER,1J2 |
1 | ||
| 69220-48040J4 |
AWL10,GRL1#,GWL10 METEOR BLUE M.M.,8W3 |
1 | ||
| 69220-76010A2 |
AWL10,GRL1#,GWL10..STD DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),WHITE NOVA GF.,083 |
1 | ||
| 69220-76010A0 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),WHITE PEARL CS.,077 |
1 | ||
| 69220-76010C1 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),BLACK OPAL MC.,214 |
1 | ||
| 69220-48040E2 |
AWL10,GRL1#,GWL10 FIRE AGATE M.M.,4V3 |
1 | ||
| 69220-76010B6 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),SONIC SILVER,1J2 |
1 | ||
| 69220-76010B6 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),SONIC SILVER,1J2 |
1 | ||
| 69220-48040D1 |
AWL10,GRL1#,GWL10 CRIMSON CS. GF.,3S8 |
1 | ||
| 69220-76010C0 |
GRL1#,GWL10..LHD..STD DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),BLACK,212 ,2MH |
1 | ||
| 69220-76010C0 |
GRL1#,GWL10..LHD..STD DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),BLACK,212 ,2MH |
1 | ||
| 69220-76010A2 |
AWL10,GRL1#,GWL10..STD DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),WHITE NOVA GF.,083 |
1 | ||
| 69220-76010C2 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),STARLIGHT BLACK GF.,217 |
1 | ||
| 69220-76010D4 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),CRIMSON CS. GF.,3S8 |
1 | ||
| 69220-76010E0 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),FIRE AGATE M.M.,4V3 |
1 | ||
| 69220-76010E0 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),FIRE AGATE M.M.,4V3 |
1 | ||
| 69220-76010J4 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),METEOR BLUE M.M.,8W3 |
1 | ||
| 69220-76010J2 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),LAPIS LAZULI MC.,8V3 |
1 | ||
| 69220-76010D4 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),CRIMSON CS. GF.,3S8 |
1 | ||
| 69220-48040B7 |
AWL10,GRL1#,GWL10 SONIC TITANIUM,1J7 |
1 | ||
| 69220-76010J4 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),METEOR BLUE M.M.,8W3 |
1 | ||
| 69220-76010B5 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),SONIC TITANIUM,1J7 |
1 | ||
| 69220-76010A0 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),WHITE PEARL CS.,077 |
1 | ||
| 69220-76010J2 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),LAPIS LAZULI MC.,8V3 |
1 | ||
| 69220-76010C2 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),STARLIGHT BLACK GF.,217 |
1 | ||
| 69220-76010B5 |
AWL10,GRL1#,GWL10 DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),SONIC TITANIUM,1J7 |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-48030 |
AWL10,GRL1#,GWL10 RH |
1 | ||
| 69242-48030 |
AWL10,GRL1#,GWL10 LH |
1 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69241-48041 |
GRL1#,GWL10 |
1 | ||
| 69241-48050 |
AWL10,GRL1#,GWL10 |
1 | ||
| 69242J - PAD, REAR DOOR OUTSIDE HANDLE, REAR LH | ||||
| 69242-48041 |
GRL1#,GWL10 |
1 | ||
| 69242-48050 |
AWL10,GRL1#,GWL10 |
1 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30050C0 |
AWL10,GRL1#,GWL10..STD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30050C0 |
AWL10,GRL1#,GWL10..STD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
AWL10,GRL1#,GWL10 |
2 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69050-12410 |
AWL10,GRL1#,GWL10 |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69060-12410 |
AWL10,GRL1#,GWL10 |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-30060 |
AWL10,GRL1#,GWL10 |
2 | ||
| 69415C - COVER, DOOR LOCK STRIKER, REAR | ||||
| 69415-33010 |
GRL1#,GWL10 |
2 | ||
| 69415-60020 |
AWL10,GRL1#,GWL10 |
2 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-30180 |
AWL10,GRL1#,GWL10 |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-30180 |
AWL10,GRL1#,GWL10 |
1 | ||
| 69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-30320 |
AWL10,GRL1#,GWL10 |
1 | ||
| 69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69770-30320 |
AWL10,GRL1#,GWL10 |
1 | ||
| Common parts | ||||
| 69237-30010 | ||||
| 69296-30010 | ||||
| 90148-50003 | ||||
| 90148-60083 | ||||
| 90148-80066 | ||||
| 90164-50031 | ||||
| 90189-05003 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
