GRL15L-BETQHW (2012)
Toyota Lexus Gs Series
ILLUST NO. 2 OF 2(1201- )
FLOOR UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-30110 |
AWL10,GRL1#,GWL10 |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-30060 |
GRL1# |
1 | ||
| 58398H - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-30030 |
GRL1# TYPE A:REFER ILLUST. |
1 | ||
| 58398-30080 |
GRL15 TOWING PACKAGE-1000KG,TYPE B:REFER ILLUST. |
1 | ||
| 58398H - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-30030 |
GRL1# TYPE A:REFER ILLUST. |
1 | ||
| 58398-30080 |
GRL15 TOWING PACKAGE-1000KG,TYPE B:REFER ILLUST. |
1 | ||
| 58401K - BOARD SUB-ASSY, REAR FLOOR, NO.1 | ||||
| 58401-30011 |
AWL10,GRL1#,GWL10 |
1 | ||
| 58402A - BOARD SUB-ASSY, REAR FLOOR, NO.2 | ||||
| 58402-30011 |
AWL10,GRL1#,GWL10 |
1 | ||
| Common parts | ||||
| 90159-50270 | ||||
| 90467-07215 | ||||
| 90467-14053 | ||||
| 90467-17026A0 | ||||
| 90467-17027C0 | ||||
| 90480-10024 | ||||
| 90561-10021 | ||||
| 90561-11011 | ||||
| 90561-13003 | ||||

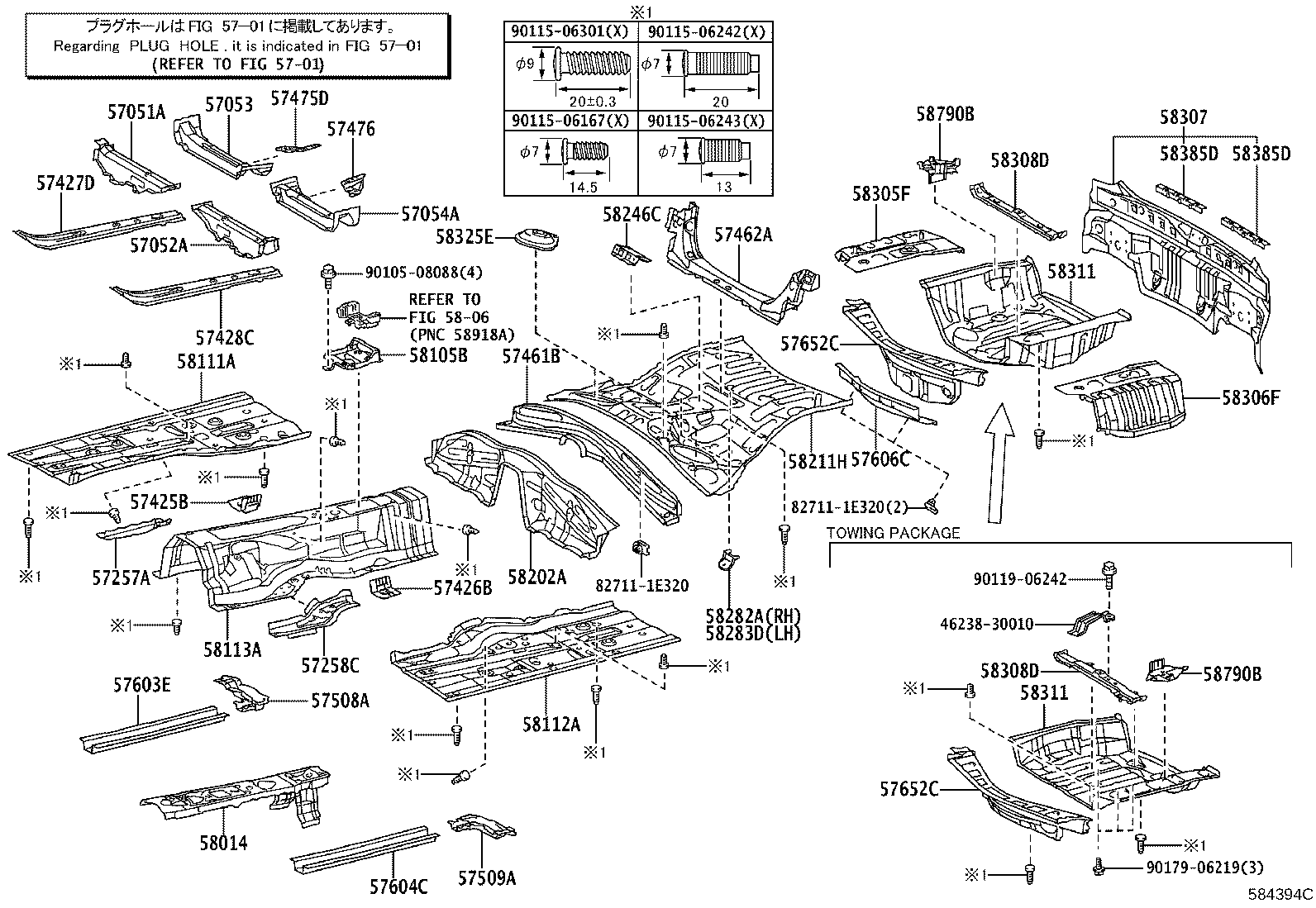

ILLUST NO. 1 OF 2(1201- )GRL15,16
FLOOR PANEL & LOWER BACK PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-30100 |
AWL10,GRL1#,GWL10 |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-30110 |
GRL15 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-30080 |
AWL10,GRL1#,GWL10 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-30080 |
AWL10,GRL1#,GWL10 |
1 | ||
| 57257A - BRACKET, ENGINE REAR MOUNTING MEMBER, RH | ||||
| 57257-30070 |
GRL15 |
1 | ||
| 57257-30050 |
GRL15 |
1 | ||
| 57258C - BRACKET, ENGINE REAR MOUNTING MEMBER, LH | ||||
| 57208-30020 |
GRL15 |
1 | ||
| 57208-30030 |
GRL15 |
1 | ||
| 57425B - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-30030 |
AWL10,GRL1#,GWL10 |
1 | ||
| 57426B - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57426-30030 |
AWL10,GRL1#,GWL10 |
1 | ||
| 57427D - REINFORCEMENT, FRONT FLOOR, NO.3 RH | ||||
| 57427-30040 |
GRL15 |
1 | ||
| 57427-30041 |
AWL10,GRL1#,GWL10 |
1 | ||
| 57428C - REINFORCEMENT, FRONT FLOOR, NO.3 LH | ||||
| 57427-30040 |
AWL10,GRL1#,GWL10 |
1 | ||
| 57427-30041 |
AWL10,GRL1#,GWL10 |
1 | ||
| 57461B - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 | ||||
| 57461-30121 |
AWL10,GRL1#,GWL10 |
1 | ||
| 57462A - MEMBER, CENTER FLOOR CROSS, NO.2 | ||||
| 57405-53020 |
AWL10,GRL1#,GWL10 |
1 | ||
| 57405-30070 |
GRL1#,GWL10 |
1 | ||
| 57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH | ||||
| 57455-30060 |
AWL10,GRL1#,GWL10 |
1 | ||
| 57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH | ||||
| 57456-30040 |
AWL10,GRL1#,GWL10 |
1 | ||
| 57508A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH | ||||
| 57508-30031 |
AWL10,GRL1#,GWL10 |
1 | ||
| 57508-30030 |
GRL1#,GWL10 |
1 | ||
| 57509A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH | ||||
| 57509-30030 |
GRL1#,GWL10 |
1 | ||
| 57509-30031 |
AWL10,GRL1#,GWL10 |
1 | ||
| 57603E - EXTENSION SUB-ASSY, REAR SIDE MEMBER, RH | ||||
| 57603-30070 |
AWL10,GRL1#,GWL10 |
1 | ||
| 57604C - EXTENSION SUB-ASSY, REAR SIDE MEMBER, LH | ||||
| 57603-30070 |
AWL10,GRL1#,GWL10 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57653-30150 |
AWL10,GRL1#,GWL10 |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-30130 |
GRL1# |
1 | ||
| 57652-30140 |
GRL15 TOWING PACKAGE-1000KG |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-30130 |
GRL1# |
1 | ||
| 57652-30140 |
GRL15 TOWING PACKAGE-1000KG |
1 | ||
| 58014 - PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER | ||||
| 58014-30132 |
GRL15 |
1 | ||
| 58014-30130 |
GRL15 |
1 | ||
| 58014-30131 |
GRL15 |
1 | ||
| 58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB | ||||
| 58105-30050 |
AWL10,GRL1#,GWL10 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-30450 |
GRL1#,GWL10 |
1 | ||
| 58111-30460 |
GRL15 |
1 | ||
| 58111-30451 |
GRL15 |
1 | ||
| 58112A - PANEL, FRONT FLOOR, LH | ||||
| 58112-30170 |
GRL15 |
1 | ||
| 58112-30171 |
GRL15 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-30200 |
GRL15 |
1 | ||
| 58202A - PAN SUB-ASSY, CENTER FLOOR, FRONT | ||||
| 58202-30131 |
GRL1#,GWL10 |
1 | ||
| 58202-53010 |
AWL10,GRL1#,GWL10 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-30400 |
GRL1# |
1 | ||
| 58246C - BRACKET, REAR SEAT HINGE, CENTER NO.2 | ||||
| 58246-30020 |
AWL10,GRL1#,GWL10 |
1 | ||
| 58282A - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH | ||||
| 58282-30040 |
AWL10,GRL1#,GWL10 |
1 | ||
| 58283D - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH | ||||
| 58283-30030 |
AWL10,GRL1#,GWL10 |
1 | ||
| 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 58305-30230 |
AWL10,GRL1#,GWL10 |
1 | ||
| 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 58306-30220 |
GRL1# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-30800 |
AWL10,GRL1#,GWL10 |
1 | ||
| 58308D - BRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER | ||||
| 58308-30020 |
GRL1# |
1 | ||
| 58308-30030 |
GRL15 TOWING PACKAGE-1000KG |
1 | ||
| 58308D - BRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER | ||||
| 58308-30020 |
GRL1# |
1 | ||
| 58308-30030 |
GRL15 TOWING PACKAGE-1000KG |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-30350 |
GRL1# |
1 | ||
| 58311-30381 |
GRL15 TOWING PACKAGE-1000KG |
1 | ||
| 58311-30380 |
GRL15 TOWING PACKAGE-1000KG |
1 | ||
| 58311-30351 |
GRL1# |
1 | ||
| 58311-30382 |
GRL15 TOWING PACKAGE-1000KG |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-30350 |
GRL1# |
1 | ||
| 58311-30381 |
GRL15 TOWING PACKAGE-1000KG |
1 | ||
| 58311-30380 |
GRL15 TOWING PACKAGE-1000KG |
1 | ||
| 58311-30351 |
GRL1# |
1 | ||
| 58311-30382 |
GRL15 TOWING PACKAGE-1000KG |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-30030 |
AWL10,GRL1#,GWL10 |
2 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-30080 |
AWL10,GRL1#,GWL10 |
2 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-30080 |
AWL10,GRL1#,GWL10 |
2 | ||
| 58790B - CARRIER ASSY, JACK | ||||
| 58790-30040 |
GRL1# |
1 | ||
| 58790-30030 |
GRL15 TOWING PACKAGE-1000KG |
1 | ||
| 58790B - CARRIER ASSY, JACK | ||||
| 58790-30040 |
GRL1# |
1 | ||
| 58790-30030 |
GRL15 TOWING PACKAGE-1000KG |
1 | ||
| Common parts | ||||
| 46238-30010 | ||||
| 82711-1E320 | ||||
| 90105-08088 | ||||
| 90115-06167 | ||||
| 90115-06242 | ||||
| 90115-06243 | ||||
| 90115-06301 | ||||
| 90119-06242 | ||||
| 90179-06219 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 5806 | ||||
