ARL10L-BEZQTW (2015)

Toyota Lexus Gs Series

Production Oct 2015 - Sep 2018
Engine 8ARFTS
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )ARL10

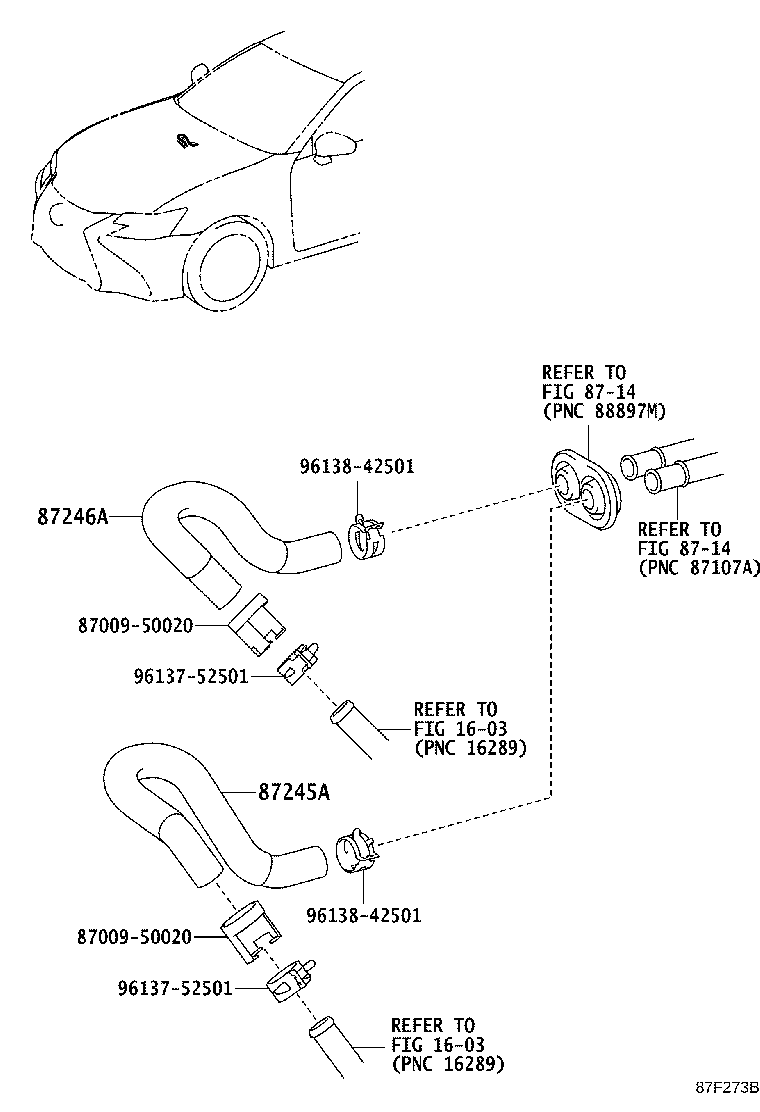

Click highlighted areas on diagram

diagram 1603 1603 8700950020 8700950020 8714 8714 87245A 87246A 9613752501 9613752501 9613842501 9613842501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-53200

ARL10

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-53210

ARL10

 1
Common parts
87009-50020
96137-52501
96138-42501
Linked diagrams
1603
8714
