URL10L-FEZRHW (2015)

Toyota Lexus Gs F

Production Oct 2015 - Apr 2018
Engine 2URGSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )LHD

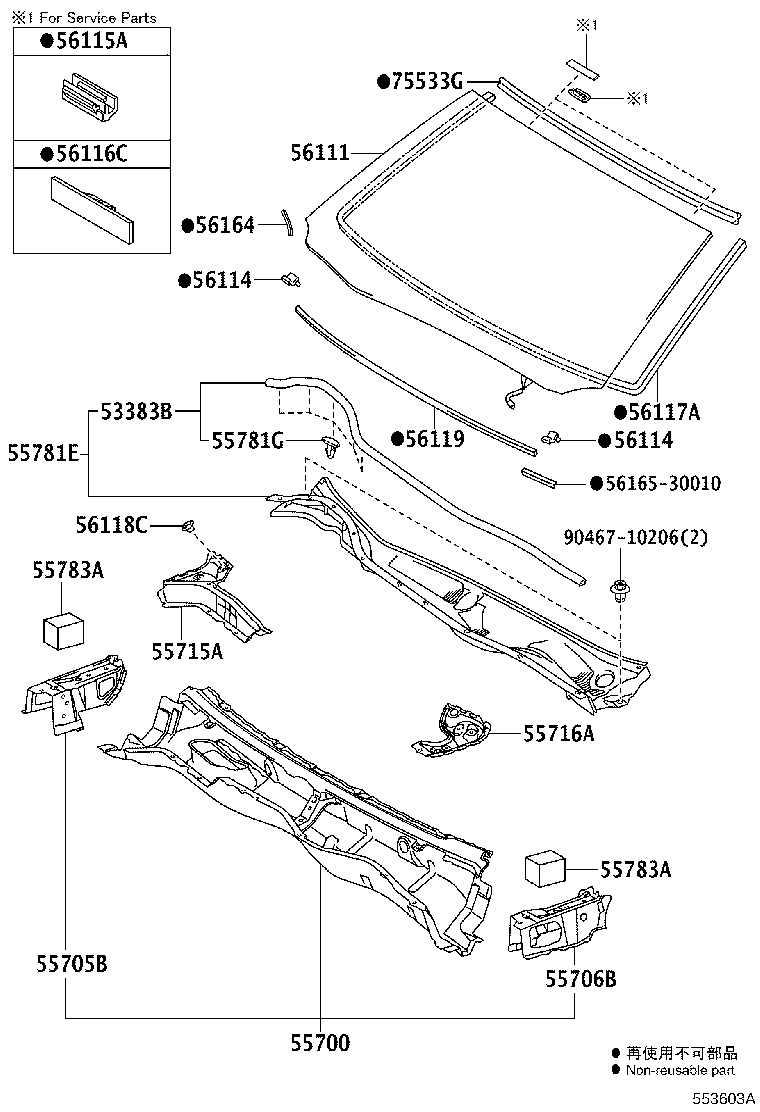

Click highlighted areas on diagram

LHD

diagram 53383B 55700 55705B 55706B 55715A 55716A 55781E 55781G 55783A 55783A 56111 56114 56114 56115A 56116C 56117A 56118C 56119 56164 5616530010 75533G 9046710206
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-30250

URL10..LHD

 1
55700 - PANEL ASSY, FRONT
55700-30A61

URL10..LHD

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-30100

URL10

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-30100

URL10

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-30150

URL10..LHD

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-30170

URL10..LHD

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-30191

URL10..LHD

COLD AREA SPEC

 1
55708-30181

URL10..LHD

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-08108

URL10

 5
55783A - PAD, COWL TOP SILENCER
55783-30110

URL10

 2
55783A - PAD, COWL TOP SILENCER
55783-30110

URL10

 2
56111 - GLASS, WINDSHIELD
56101-3A939

URL10..LHD

PRE-COLLISION SYSTEM-WITH(GSP)&WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
56101-3A937

URL10..LHD

PRE-COLLISION SYSTEM-WITH(GSP)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
56101-3A930

URL10..LHD

 1
56101-3A933

URL10..LHD

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
56101-3A930

URL10..LHD

HEAD UP DISPLAY-WITH

 1
56101-3A935

URL10..LHD

WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
56101-3A954

URL10..LHD

PRE-COLLISION SYSTEM-WITH(GSP)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
56101-3A956

URL10..LHD

PRE-COLLISION SYSTEM-WITH(GSP)&WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-50020

URL10

 2
56114-50020

URL10

HEAD UP DISPLAY-WITH

 2
56114 - RETAINER, WINDSHIELD GLASS
56114-50020

URL10

 2
56114-50020

URL10

HEAD UP DISPLAY-WITH

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30120

URL10

HEAD UP DISPLAY-WITH

 1
56115-30120

URL10

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

URL10

 1
56116-22050

URL10

HEAD UP DISPLAY-WITH

 1
56117A - DAM, WINDOW GLASS ADHESIVE
56117-64010

URL10..LHD

*D,L=2919,PRE-COLLISION SYSTEM-WITH(GSP)&WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
56117-64010

URL10

*D,L=2919,PRE-COLLISION SYSTEM-WITH(GSP)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
56117-64010

URL10..LHD

*D,L=2919,WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
56117-64010

URL10

*D,L=2919

 1
56117-64010

URL10

*D,L=2919,INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
56117-64010

URL10

*D,L=2919,HEAD UP DISPLAY-WITH

 1
56118C - RETAINER, WINDSHIELD GLASS, NO.2
56118-30120

URL10

 1
56119 - SEAL, WINDSHIELD GLASS
56119-30020

URL10

 1
56119-30020

URL10

HEAD UP DISPLAY-WITH

 1
56164 - COVER, FRONT WINDOW INNER MOULDING, RH
56164-30010

URL10..LHD

HEAD UP DISPLAY-WITH

 1
56164-30010

URL10..LHD

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75533-30410

URL10

HEAD UP DISPLAY-WITH

 1
75533-30410

URL10

 1
Common parts
56165-30010
90467-10206
