Toyota Lexus gs450h GWS191 BATTERY & BATTERY CABLE

GWS191R-BEXQHW (2006)

Toyota Lexus Gs450h

Production Feb 2006 - Sep 2007

Engine 2GRFSE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

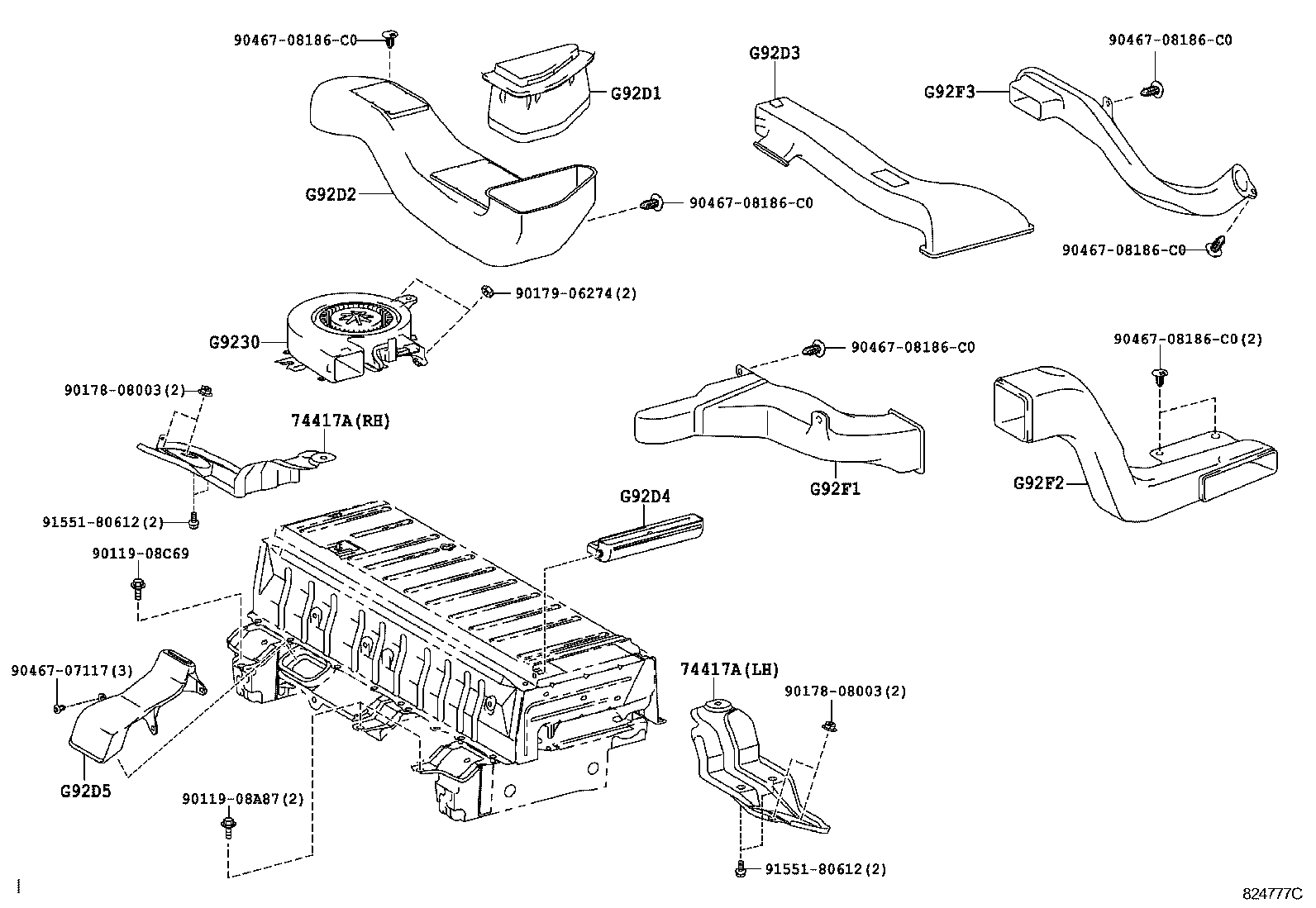

HV BATTERY

Part #	Description	Period	Qty
74417A - BRACKET, BATTERY CARRIER
74417-30110	GWS191 RH	02/2006 - 09/2007	1
74419-30010	GWS191 LH	02/2006 - 09/2007	1
74417A - BRACKET, BATTERY CARRIER
74417-30110	GWS191 RH	02/2006 - 09/2007	1
74419-30010	GWS191 LH	02/2006 - 09/2007	1
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-30010	GWS191	02/2006 - 09/2007	1
G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1
G92D1-30010	GWS191	02/2006 - 09/2007	1
G92D2 - DUCT, HYBRID BATTERY INTAKE, NO.2
G92D2-30010	GWS191	02/2006 - 09/2007	1
G92D3 - DUCT, HYBRID BATTERY INTAKE, NO.3
G92D3-30010	GWS191	02/2006 - 09/2007	1
G92D4 - DUCT, HYBRID BATTERY INTAKE, NO.4
G92D4-30010	GWS191	02/2006 - 09/2007	1
G92D5 - DUCT, HYBRID BATTERY INTAKE, NO.5
G92D5-30010	GWS191	02/2006 - 09/2007	1
G92F1 - DUCT, HYBRID BATTERY EXHAUST, NO.1
G92F1-30010	GWS191	02/2006 - 09/2007	1
G92F2 - DUCT, HYBRID BATTERY EXHAUST, NO.2
G92F2-30010	GWS191	02/2006 - 09/2007	1
G92F3 - DUCT, HYBRID BATTERY EXHAUST, NO.3
G92F3-30010	GWS191	02/2006 - 09/2007	1
Common parts
90119-08A87
90119-08C69
90178-08003
90179-06274
90467-07117
90467-08186C0
91551-80612

Click highlighted areas on diagram

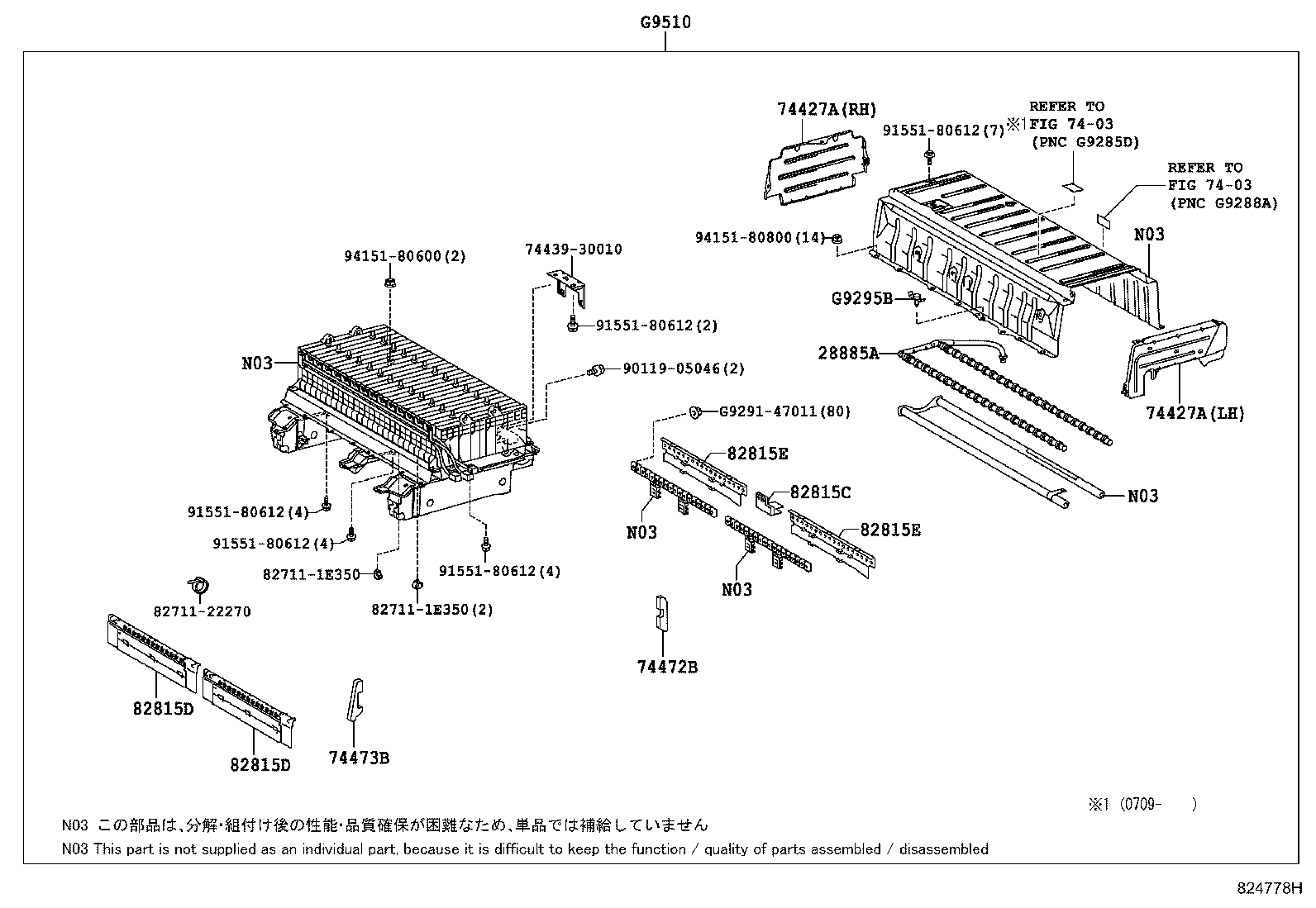

HV BATTERY

Part #	Description	Period	Qty
28885A - HOSE, BATTERY ROOM VENTILATION
28885-31020	2GRFSE..GWS191	02/2006 - 09/2007	1
74427A - BRACKET, BATTERY CARRIER CATCH, NO.1
74428-30010	GWS191 LH	02/2006 - 09/2007	1
74427-30010	GWS191 RH	02/2006 - 09/2007	1
74427A - BRACKET, BATTERY CARRIER CATCH, NO.1
74428-30010	GWS191 LH	02/2006 - 09/2007	1
74427-30010	GWS191 RH	02/2006 - 09/2007	1
74472B - PAD, BATTERY CARRIER
74471-30090	GWS191	02/2006 - 09/2007	1
74473B - CUSHION, BATTERY CARRIER, NO.3
74473-30020	GWS191	02/2006 - 09/2007	1
82815C - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-47120	GWS191	02/2006 - 09/2007	1
82815D - COVER, WIRING HARNESS PROTECTOR, NO.2
82815-47130	GWS191	02/2006 - 09/2007	2
82815D - COVER, WIRING HARNESS PROTECTOR, NO.2
82815-47130	GWS191	02/2006 - 09/2007	2
82815E - COVER, WIRING HARNESS PROTECTOR, NO.3
82815-47140	GWS191	02/2006 - 09/2007	2
82815E - COVER, WIRING HARNESS PROTECTOR, NO.3
82815-47140	GWS191	02/2006 - 09/2007	2
G9295B - STRIKER, BATTERY COVER LOCK
G9295-30020	GWS191	02/2006 - 09/2007	1
G9510 - BATTERY ASSY, HV SUPPLY
G9510-30010	GWS191	02/2006 - 09/2007	1
Common parts
74439-30010
82711-1E350
82711-22270
90119-05046
91551-80612
94151-80600
94151-80800
G9291-47011
Linked diagrams
7403

Click highlighted areas on diagram

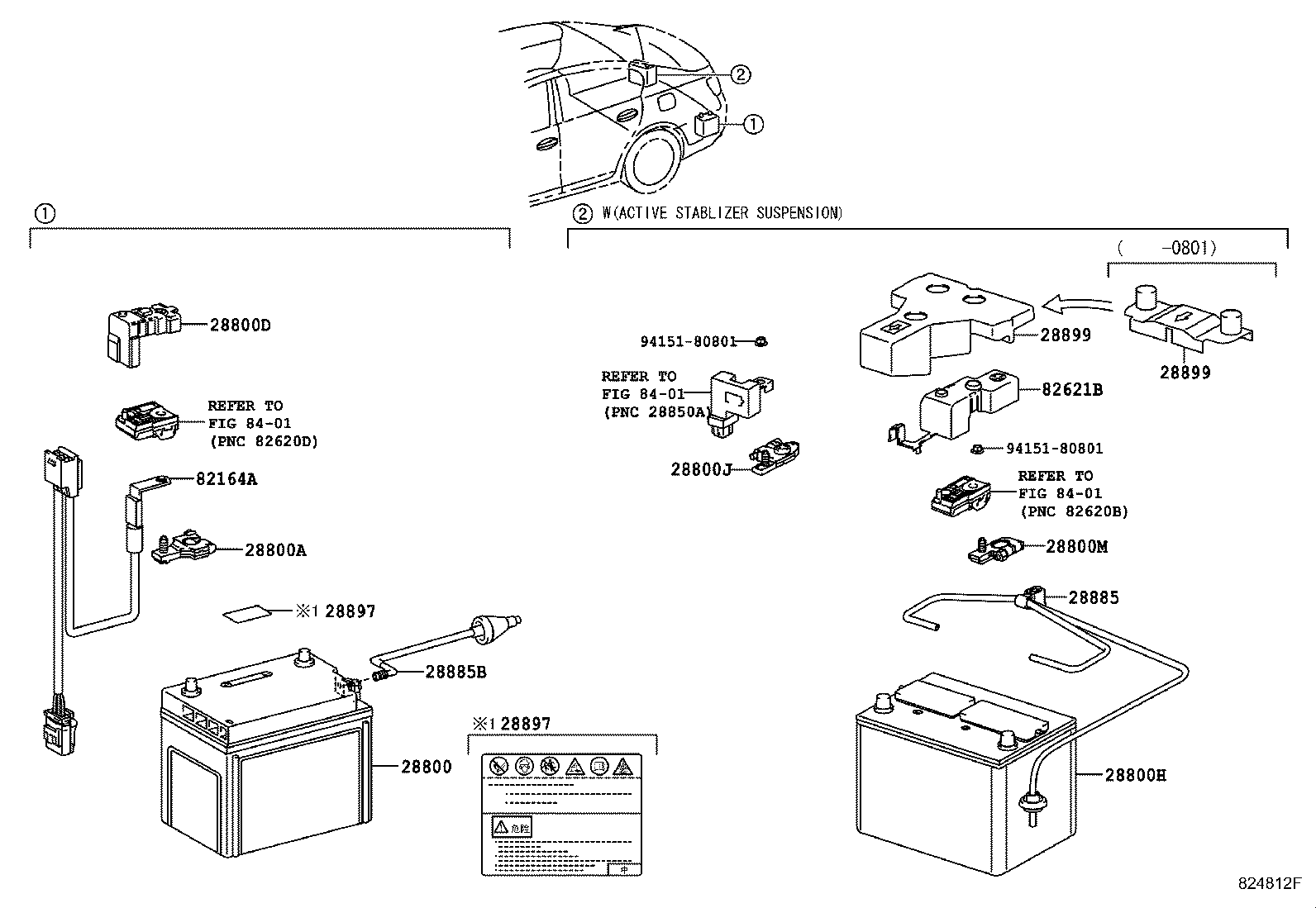

12V BATTERY

Part #	Description	Period	Qty
28800 - BATTERY
28800-31330	2GRFSE..GWS191 S65D26L	02/2006 - 09/2007	1
28800A - TERMINAL, BATTERY POSITIVE
90982-05056	2GRFSE..GWS191	02/2006 - 09/2007	1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82621-30020	2GRFSE..GWS191	02/2006 - 09/2007	1
28800H - BATTERY, NO.2
28800-31340	2GRFSE..GWS191 STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)	02/2006 - 09/2007	1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06056	2GRFSE..GWS191 STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)	02/2006 - 09/2007	1
28800M - TERMINAL, BATTERY POSITIVE
90982-05065	2GRFSE..GWS191 STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)	02/2006 - 09/2007	1
28885 - HOSE, BATTERY ROOM VENTILATION
28885-31010	2GRFSE..GWS191 STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)	02/2006 - 09/2007	1
28885B - HOSE, BATTERY
28885-31030	2GRFSE..GWS191	02/2006 - 09/2007	1
28899 - INSULATOR, BATTERY
28899-31050	2GRFSE..GWS191 STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)	02/2006 - 09/2007	1
28899 - INSULATOR, BATTERY
28899-31050	2GRFSE..GWS191 STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)	02/2006 - 09/2007	1
82164A - WIRE, FLOOR, NO.4
82163-30090	GWS191	02/2006 - 09/2007	1
82621B - COVER, FUSIBLE LINK
82621-30010	GWS191 STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)	02/2006 - 09/2007	1
Common parts
94151-80801
Linked diagrams
8401

Click highlighted areas on diagram

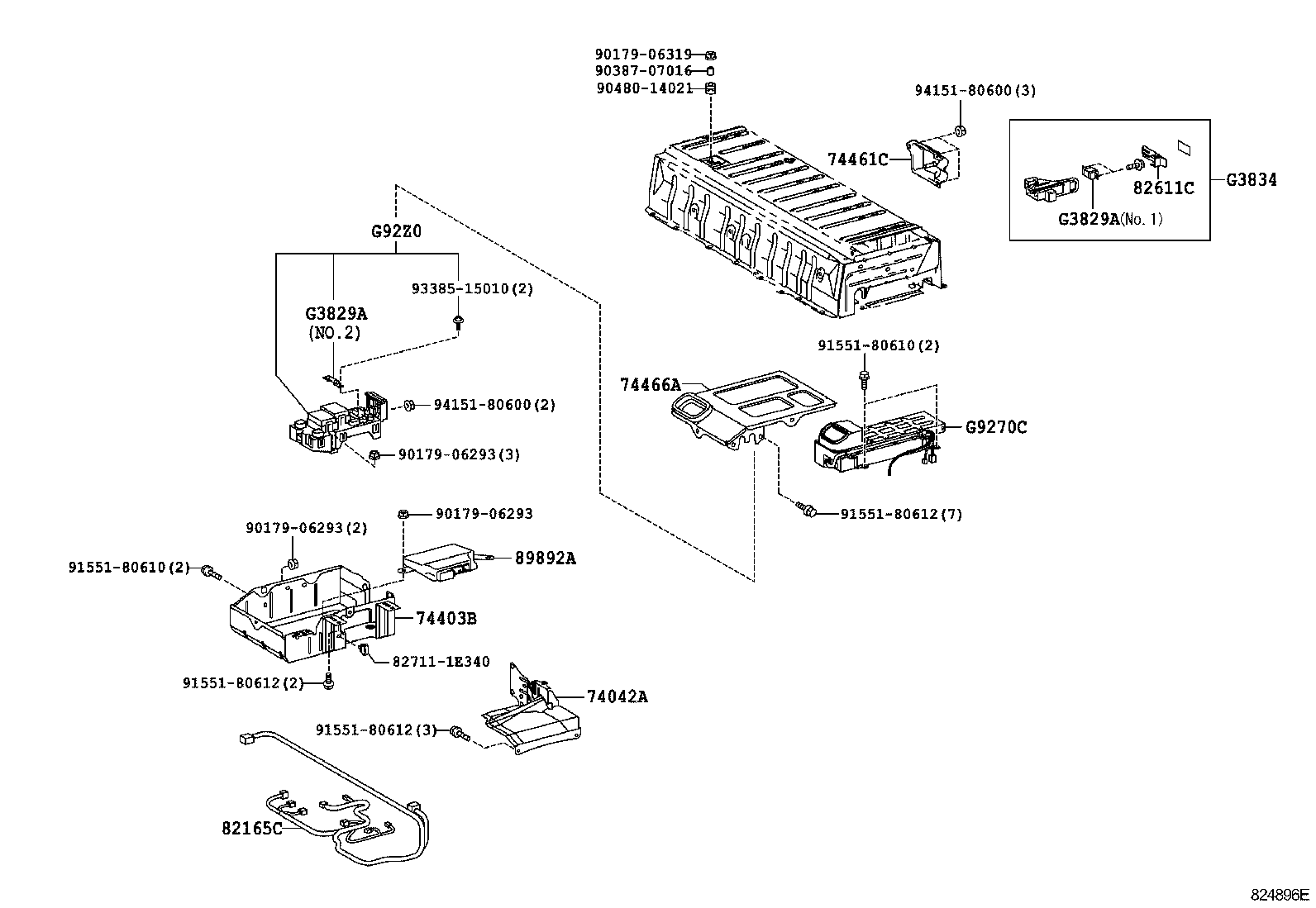

HV BATTERY

Part #	Description	Period	Qty
74042A - BRACKET SUB-ASSY, BATTERY
74042-30010	GWS191	02/2006 - 09/2007	1
74403B - CARRIER SUB-ASSY, BATTERY
G920E-30010	GWS191	02/2006 - 09/2007	1
74461C - COVER, BATTERY
74409-30010	GWS191	02/2006 - 09/2007	1
74466A - PANEL, BATTERY CARRIER, NO.6
G92H9-30010	GWS191	02/2006 - 09/2007	1
82165C - WIRE, FRAME, NO.2
82167-30590	GWS191	02/2006 - 09/2007	1
82611C - COVER, FUSE BLOCK
82611-47050	GWS191	02/2006 - 09/2007	1
89892A - SENSOR, BATTERY VOLTAGE
89892-30010	GWS191	02/2006 - 09/2007	1
G3829A - FUSE, ELECTRIC VEHICLE
90982-11049	GWS191 125A,MARK90982-11049,NO.1	02/2006 - 09/2007	1
90982-11051	GWS191 15A,NO.2	02/2006 - 09/2007	1
G3829A - FUSE, ELECTRIC VEHICLE
90982-11049	GWS191 125A,MARK90982-11049,NO.1	02/2006 - 09/2007	1
90982-11051	GWS191 15A,NO.2	02/2006 - 09/2007	1
G3834 - GRIP, SERVICE PLUG
G9530-30020	GWS191	02/2006 - 09/2007	1
G9270C - CONVERTER, HV
G9270-30020	GWS191	02/2006 - 09/2007	1
G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION
G92Z0-30010	GWS191	02/2006 - 09/2007	1
Common parts
82711-1E340
90179-06293
90179-06319
90387-07016
90480-14021
91551-80610
91551-80612
93385-15010
94151-80600
