Toyota Lexus gs450h GWS191 INTERIOR LAMP

GWS191L-BEXQHW (2006)

Toyota Lexus Gs450h

Production Feb 2006 - Sep 2007

Engine 2GRFSE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

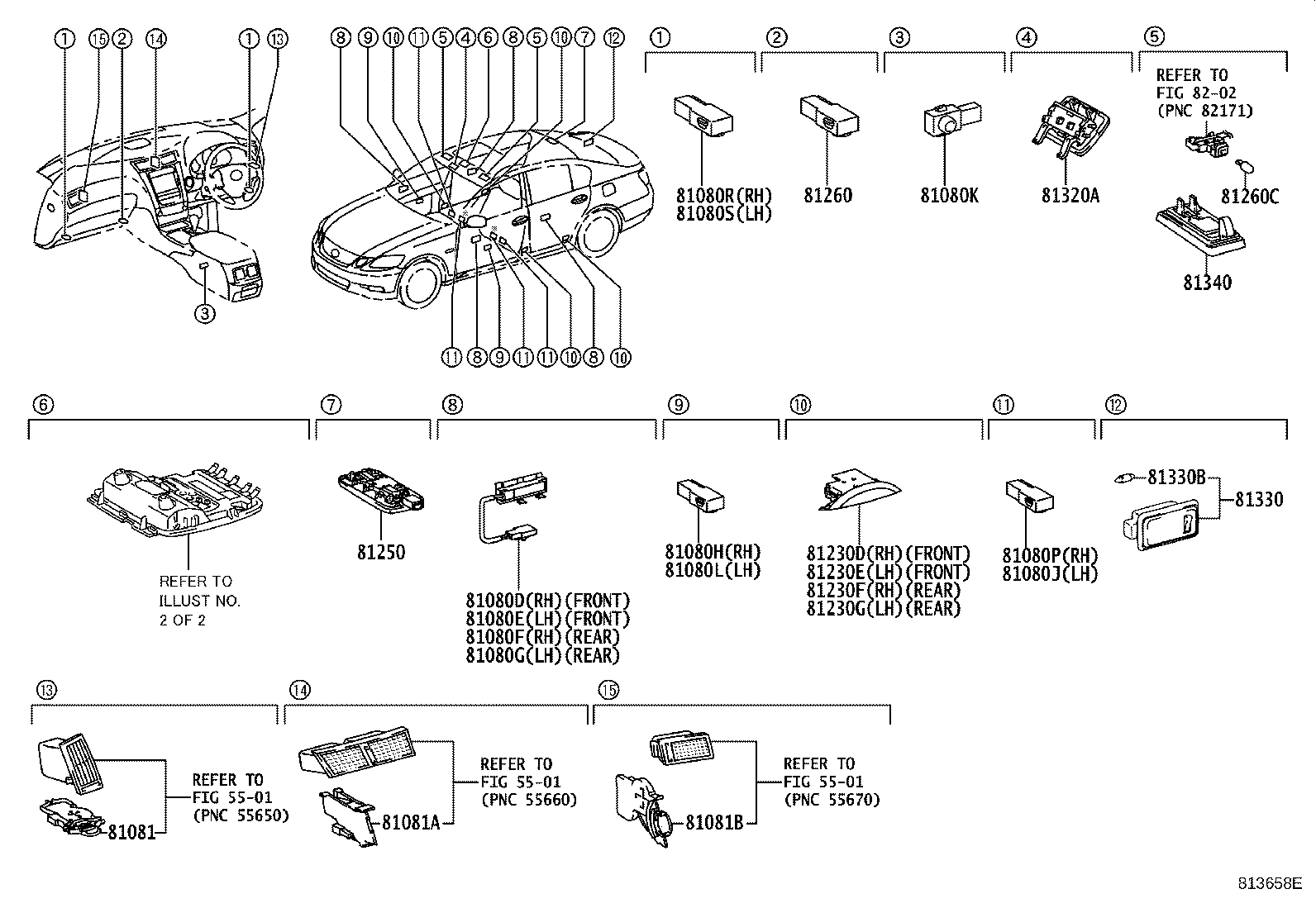

ILLUST NO. 1 OF 2(0602- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81080D - LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080-30050	GWS191	02/2006 - 09/2007	1
81080E - LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080-30060	GWS191	02/2006 - 09/2007	1
81080F - LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080-30050	GWS191	02/2006 - 09/2007	1
81080G - LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81080-30060	GWS191	02/2006 - 09/2007	1
81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080-22040	GWS191	02/2006 - 09/2007	1
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-30010	GWS191	02/2006 - 09/2007	1
81080K - LAMP ASSY, CONSOLE BOX ILLUMINATION
81080-30010	GWS191	02/2006 - 09/2007	1
81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080-22040	GWS191	02/2006 - 09/2007	1
81080P - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080-30010	GWS191	02/2006 - 09/2007	1
81080R - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080-30010	GWS191	02/2006 - 09/2007	1
81080S - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080-30010	GWS191	02/2006 - 09/2007	1
81081 - LAMP SUB-ASSY, INTERIOR ILLUMINATION
81081-30010	GWS191..LHD	02/2006 - 09/2007	1
81081A - LAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2
81081-30020	GWS191	02/2006 - 09/2007	1
81081B - LAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.3
81081-30030	GWS191..LHD	02/2006 - 09/2007	1
81230D - LAMP ASSY, FRONT DOOR COURTESY, RH
81230-30180	GWS191	02/2006 - 09/2007	1
81230E - LAMP ASSY, FRONT DOOR COURTESY, LH
81310-30010	GWS191	02/2006 - 09/2007	1
81230F - LAMP ASSY, REAR DOOR COURTESY, RH
81230-30180	GWS191	02/2006 - 09/2007	1
81230G - LAMP ASSY, REAR DOOR COURTESY, LH
81310-30010	GWS191	02/2006 - 09/2007	1
81250 - LAMP ASSY, ROOM, NO.2
81250-30200B0	GWS191 GRAY,TRIM1#,2#	02/2006 - 09/2007	1
81250-30200A0	GWS191 IVORY,TRIM0#	02/2006 - 09/2007	1
81260 - LAMP ASSY, GLOVE BOX
81080-30010	GWS191	02/2006 - 09/2007	1
81260C - BULB(FOR MAP LAMP)
90981-11062	GWS191 12V 8W	02/2006 - 09/2007	2
81320A - LAMP ASSY, STEERING SPOT
81320-30010A0	GWS191 IVORY,TRIM0#	02/2006 - 09/2007	1
81320-30010B0	GWS191 GRAY,TRIM1#,2#	02/2006 - 09/2007	1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81250-48010	GWS191	02/2006 - 09/2007	1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-13050	GWS191 12V 5W	02/2006 - 09/2007	1
81340 - LAMP ASSY, VANITY
81340-30100A0	GWS191 IVORY,TRIM0#	02/2006 - 09/2007	2
81340-30100B1	GWS191 GRAY,TRIM1#,2#	02/2006 - 09/2007	2
Linked diagrams
5501
8202

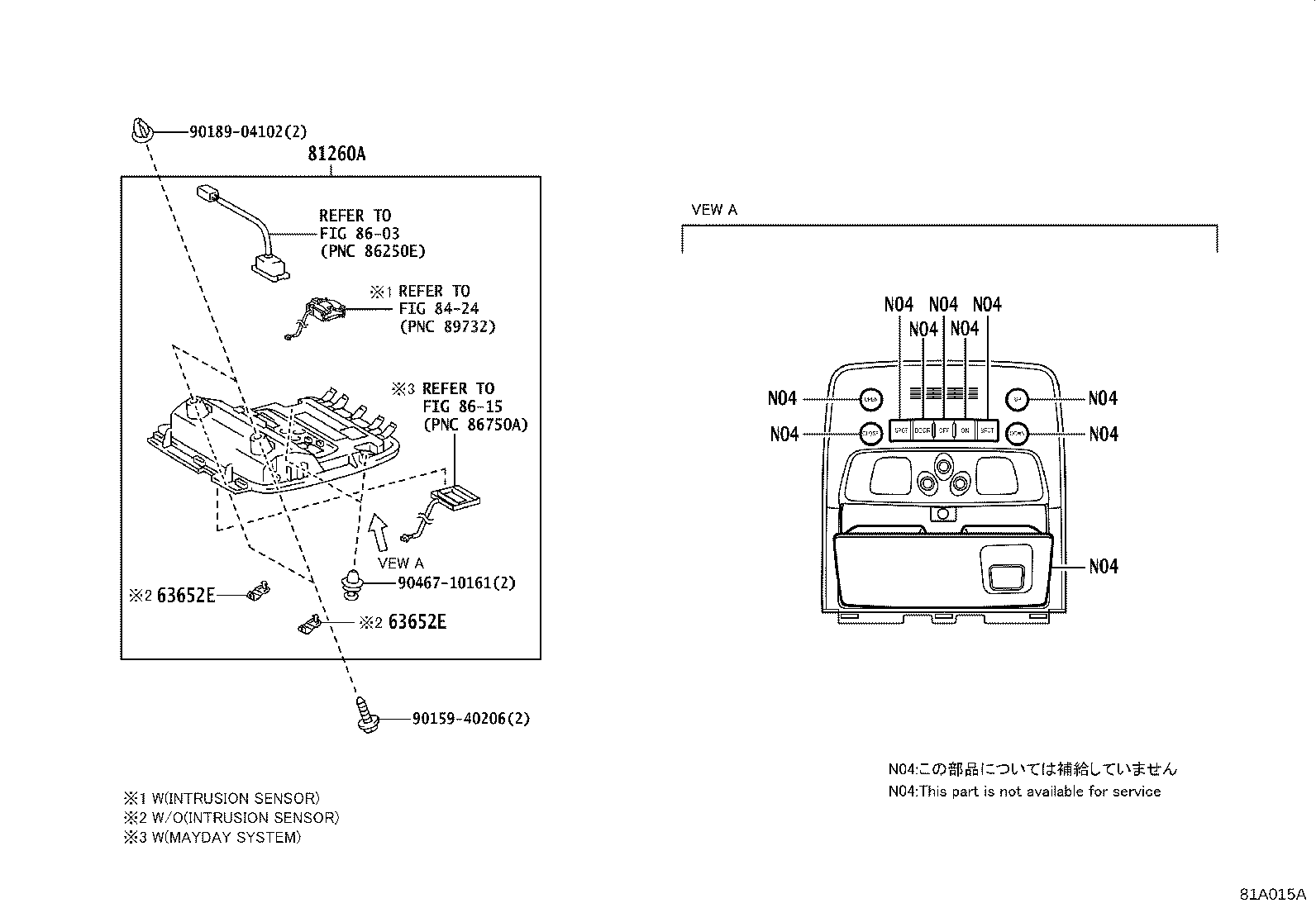

ILLUST NO. 2 OF 2(0602- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
63652E - COVER, ROOF CONSOLE BOX, NO.1
63652-30010A0	GWS191..LHD RUSSIA SPEC,IVORY,TRIM0#	02/2006 - 09/2007	2
63652-30010A0	GWS191..LHD RUSSIA SPEC&MOON ROOF-WITH,IVORY,TRIM0#	02/2006 - 09/2007	2
63652-30010B0	GWS191..LHD RUSSIA SPEC,GRAY,TRIM1#,2#	02/2006 - 09/2007	2
63652-30010B0	GWS191..LHD RUSSIA SPEC&MOON ROOF-WITH,GRAY,TRIM1#,2#	02/2006 - 09/2007	2
63652E - COVER, ROOF CONSOLE BOX, NO.1
63652-30010A0	GWS191..LHD RUSSIA SPEC,IVORY,TRIM0#	02/2006 - 09/2007	2
63652-30010A0	GWS191..LHD RUSSIA SPEC&MOON ROOF-WITH,IVORY,TRIM0#	02/2006 - 09/2007	2
63652-30010B0	GWS191..LHD RUSSIA SPEC,GRAY,TRIM1#,2#	02/2006 - 09/2007	2
63652-30010B0	GWS191..LHD RUSSIA SPEC&MOON ROOF-WITH,GRAY,TRIM1#,2#	02/2006 - 09/2007	2
81260A - LAMP ASSY, MAP
81260-30841A0	GWS191..LHD IVORY,TRIM0#	02/2006 - 04/2006	1
81260-30851A0	GWS191..LHD MOON ROOF-WITH,IVORY,TRIM0#	02/2006 - 04/2006	1
81260-30841B0	GWS191..LHD GRAY,TRIM1#,2#	02/2006 - 04/2006	1
81260-30831B0	GWS191..LHD RUSSIA SPEC&MOON ROOF-WITH,GRAY,TRIM1#,2#	02/2006 - 07/2006	1
81260-30851B0	GWS191..LHD MOON ROOF-WITH,GRAY,TRIM1#,2#	02/2006 - 04/2006	1
81260-30842A0	GWS191..LHD IVORY,TRIM0#	05/2006 - 07/2006	1
81260-30852B0	GWS191..LHD MOON ROOF-WITH,GRAY,TRIM1#,2#	05/2006 - 07/2006	1
81260-30821B0	GWS191..LHD RUSSIA SPEC,GRAY,TRIM1#,2#	02/2006 - 07/2006	1
81260-30842B0	GWS191..LHD GRAY,TRIM1#,2#	05/2006 - 07/2006	1
81260-30821A0	GWS191..LHD RUSSIA SPEC,IVORY,TRIM0#	02/2006 - 07/2006	1
81260-30852A0	GWS191..LHD MOON ROOF-WITH,IVORY,TRIM0#	05/2006 - 07/2006	1
81260-30822A0	GWS191..LHD RUSSIA SPEC,IVORY,TRIM0#	07/2006 - 09/2007	1
81260-30831A0	GWS191..LHD RUSSIA SPEC&MOON ROOF-WITH,IVORY,TRIM0#	02/2006 - 07/2006	1
81260-30832A0	GWS191..LHD RUSSIA SPEC&MOON ROOF-WITH,IVORY,TRIM0#	07/2006 - 09/2007	1
81260-30843A0	GWS191..LHD IVORY,TRIM0#	07/2006 - 09/2007	1
81260-30822B0	GWS191..LHD RUSSIA SPEC,GRAY,TRIM1#,2#	07/2006 - 09/2007	1
81260-30843B0	GWS191..LHD GRAY,TRIM1#,2#	07/2006 - 09/2007	1
81260-30832B0	GWS191..LHD RUSSIA SPEC&MOON ROOF-WITH,GRAY,TRIM1#,2#	07/2006 - 09/2007	1
81260-30853A0	GWS191..LHD MOON ROOF-WITH,IVORY,TRIM0#	07/2006 - 09/2007	1
81260-30853B0	GWS191..LHD MOON ROOF-WITH,GRAY,TRIM1#,2#	07/2006 - 09/2007	1
Common parts
90159-40206
90189-04102
90467-10161
Linked diagrams
8424
8603
8615
