JZS147R-BEPQFW (1993)

Toyota Lexus Gs300

Production Aug 1993 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9303-9708)

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(9308-9708)2JZGE..EUR

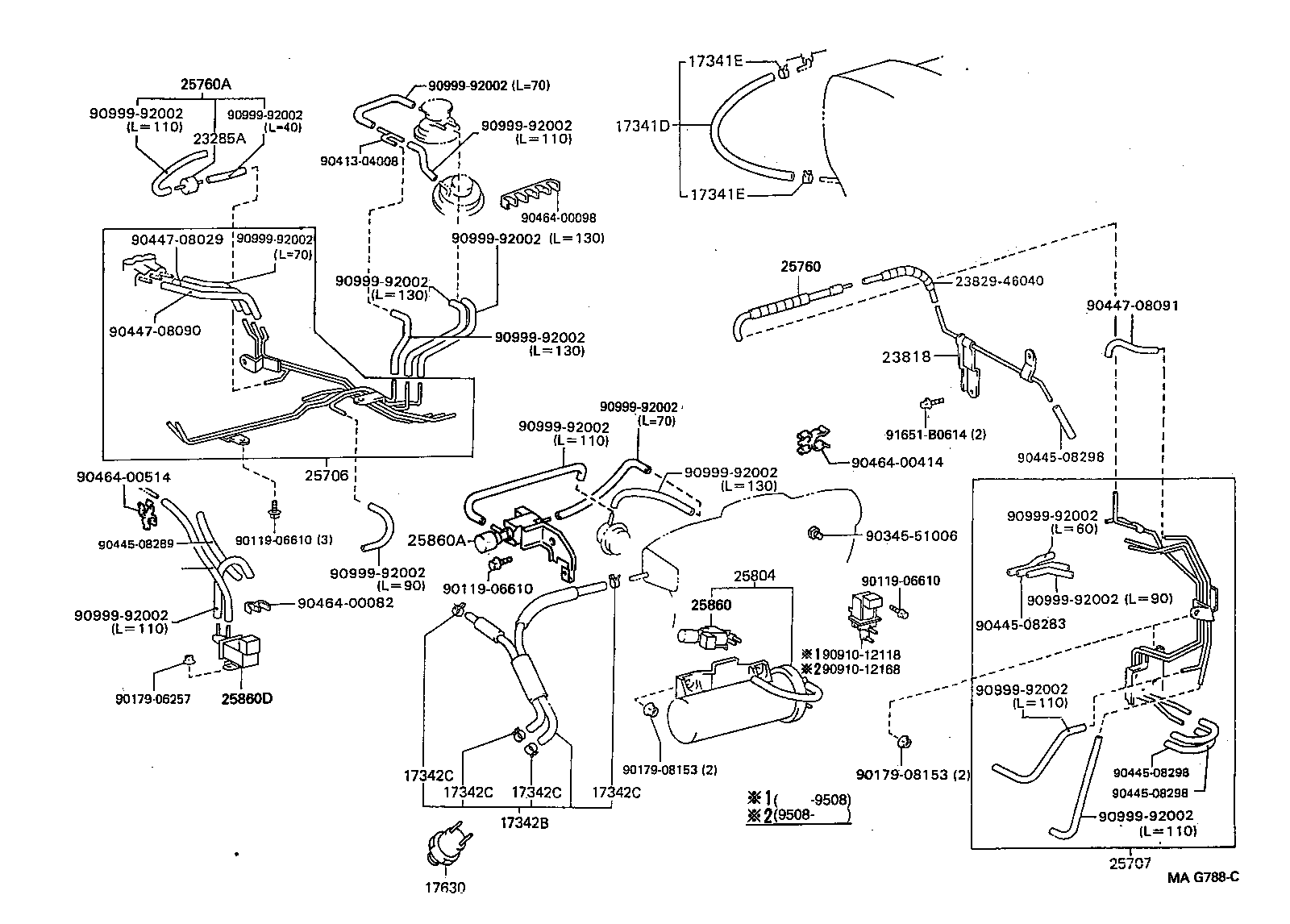

Click highlighted areas on diagram

diagram 17341D 17341E 17341E 17342B 17342C 17342C 17342C 17342C 17630 23285A 23818 2382946040 25706 25707 25760 25760A 25804 25860 25860A 25860D 9011906610 9011906610 9011906610 9017906257 9017908153 9017908153 9034551006 9041304008 9044508283 9044508289 9044508298 9044508298 9044508298 9044708029 9044708090 9044708091 9046400082 9046400098 9046400414 9046400514 9091012118 9091012168 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 91651B0614
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-46090

2JZGE..JZS147

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS147

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS147

 2
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-46090

2JZGE..JZS147

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS147

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS147

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS147

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10106

2JZGE..JZS147

 4
17630 - VALVE ASSY, AIR CONTROL
17630-70020

2JZGE..JZS147

 1
23285A - VALVE, CHECK, NO.1
90917-10080

2JZGE..JZS147..EUR

 1
23818 - PIPE, FUEL VAPOR FEED
23818-46030

2JZGE..JZS147..EUR

 1
23818-46030

2JZGE..JZS147..RHD

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-46042

2JZGE..JZS147..EUR

 1
25706-46041

2JZGE..JZS147..EUR

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-46080

2JZGE..JZS147..EUR

 1
25707-46081

2JZGE..JZS147..EUR

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-46011

2JZGE..JZS147..RHD

 1
25760-46070

2JZGE..JZS147..RHD

 1
25760A - HOSE ASSY, VACUUM TRANSMITTING
25760-46020

2JZGE..JZS147..EUR

 1
25804 - VALVE SET, VACUUM CONTROL
25804-46060

2JZGE..JZS147

 1
25804-46020

2JZGE..JZS147

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
90910-12124

2JZGE..JZS147

 1
25860-46010

2JZGE..JZS147

AISIN

 1
25860A - VALVE, VACUUM SWITCHING, NO.1
25860-46110

2JZGE..JZS147..EUR

 1
25860D - VALVE ASSY, VACUUM SWITCHING, NO.2
90910-12125

2JZGE..JZS147..EUR

 1
Common parts
23829-46040
90119-06610
90179-06257
90179-08153
90345-51006
90413-04008
90445-08283
90445-08289
90445-08298
90447-08029
90447-08090
90447-08091
90464-00082
90464-00098
90464-00414
90464-00514
90910-12118
90910-12168
90999-92002
91651-B0614
