JZS147L-BEPQFW (1993)
Toyota Lexus Gs300
Production
Aug 1993
-
Aug 1997
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9303-9508)

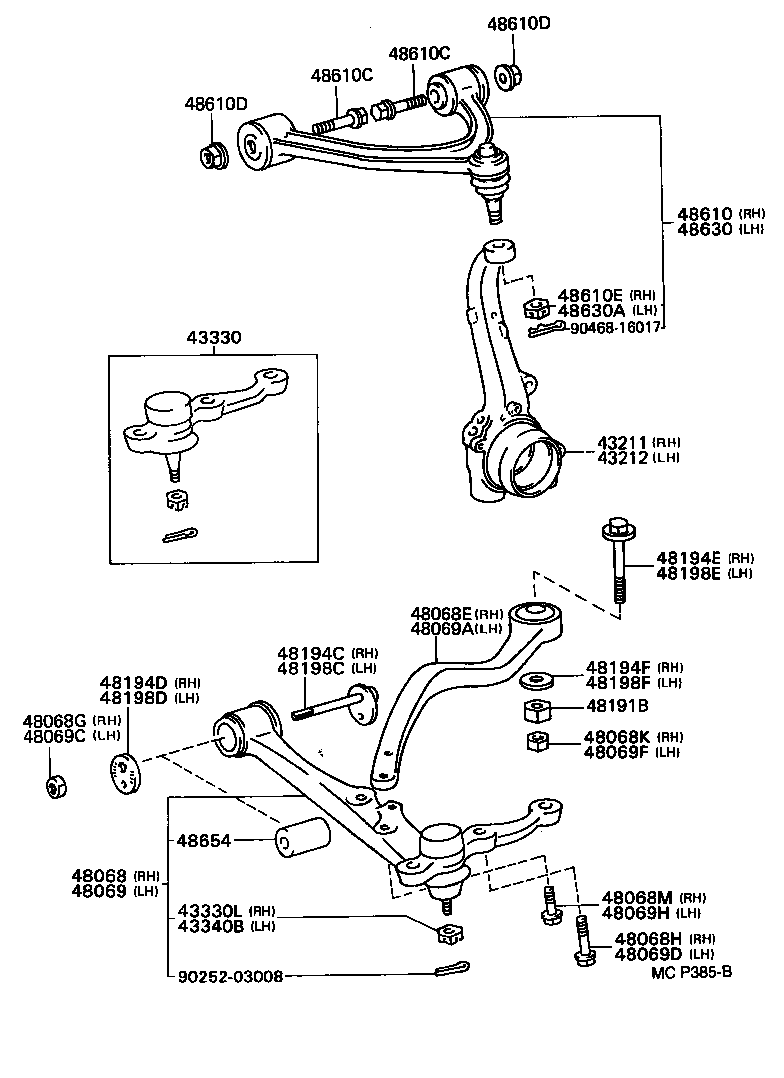

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-30160 |
JZS147 |
1 | ||
| 43211-30210 |
JZS147 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-30110 |
JZS147 |
1 | ||
| 43212-30210 |
JZS147 |
1 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43340-39255 |
JZS147 LH |
1 | ||
| 43340-39305 |
JZS147 LH |
1 | ||
| 43330-39395 |
JZS147 RH |
1 | ||
| 43330-39325 |
JZS147 RH |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14002 |
JZS147 |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14002 |
JZS147 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48620-30110 |
JZS147 |
1 | ||
| 48068-30260 |
JZS147 |
1 | ||
| 48068E - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 RH | ||||
| 48660-30150 |
JZS147 |
1 | ||
| 48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90179-14019 |
JZS147 |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90105-12141 |
JZS147 |
2 | ||
| 48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90170-16020 |
JZS147 |
1 | ||
| 48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90105-14088 |
JZS147 |
2 | ||
| 90105-14116 |
JZS147 |
2 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-30260 |
JZS147 |
1 | ||
| 48640-30110 |
JZS147 |
1 | ||
| 48069A - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 LH | ||||
| 48670-30150 |
JZS147 |
1 | ||
| 48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90179-14019 |
JZS147 |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90105-12141 |
JZS147 |
2 | ||
| 48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90170-16020 |
JZS147 |
1 | ||
| 48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90105-14088 |
JZS147 |
2 | ||
| 90105-14116 |
JZS147 |
2 | ||
| 48191B - PLATE, CASTER ADJUST | ||||
| 48191-30010 |
JZS147 |
2 | ||
| 48194C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH | ||||
| 48190-30010 |
JZS147 |
1 | ||
| 48194D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH | ||||
| 48198-30030 |
JZS147 |
1 | ||
| 48194E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH | ||||
| 48190-30020 |
JZS147 |
1 | ||
| 48194F - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.4 RH | ||||
| 48198-30040 |
JZS147 |
1 | ||
| 48198C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH | ||||
| 48190-30010 |
JZS147 |
1 | ||
| 48198D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH | ||||
| 48198-30030 |
JZS147 |
1 | ||
| 48198E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH | ||||
| 48190-30020 |
JZS147 |
1 | ||
| 48198F - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.4 LH | ||||
| 48198-30040 |
JZS147 |
1 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-39015 |
JZS147 |
1 | ||
| 48610C - BOLT(FOR SUSPENSION UPPER ARM) | ||||
| 90901-14002 |
JZS147 |
4 | ||
| 90105-10289 |
JZS147 |
4 | ||
| 48610C - BOLT(FOR SUSPENSION UPPER ARM) | ||||
| 90901-14002 |
JZS147 |
4 | ||
| 90105-10289 |
JZS147 |
4 | ||
| 48610D - NUT(FOR SUSPENSION UPPER ARM) | ||||
| 90173-10010 |
JZS147 |
4 | ||
| 48610D - NUT(FOR SUSPENSION UPPER ARM) | ||||
| 90173-10010 |
JZS147 |
4 | ||
| 48610E - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90171-12002 |
JZS147 |
1 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-39015 |
JZS147 |
1 | ||
| 48630A - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90171-12002 |
JZS147 |
1 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48654-30050 |
JZS147 |
2 | ||
| Common parts | ||||
| 90252-03008 | ||||
| 90468-16017 | ||||
(9508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-30160 |
JZS147 |
1 | ||
| 43211-30210 |
JZS147 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-30110 |
JZS147 |
1 | ||
| 43212-30210 |
JZS147 |
1 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43340-39255 |
JZS147 LH |
1 | ||
| 43340-39305 |
JZS147 LH |
1 | ||
| 43330-39395 |
JZS147 RH |
1 | ||
| 43330-39325 |
JZS147 RH |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14002 |
JZS147 |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14002 |
JZS147 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48620-30110 |
JZS147 |
1 | ||
| 48068-30260 |
JZS147 |
1 | ||
| 48068E - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 RH | ||||
| 48660-30150 |
JZS147 |
1 | ||
| 48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90179-14019 |
JZS147 |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90105-12141 |
JZS147 |
2 | ||
| 48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90170-16020 |
JZS147 |
1 | ||
| 48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90105-14088 |
JZS147 |
2 | ||
| 90105-14116 |
JZS147 |
2 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-30260 |
JZS147 |
1 | ||
| 48640-30110 |
JZS147 |
1 | ||
| 48069A - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 LH | ||||
| 48670-30150 |
JZS147 |
1 | ||
| 48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90179-14019 |
JZS147 |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90105-12141 |
JZS147 |
2 | ||
| 48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90170-16020 |
JZS147 |
1 | ||
| 48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90105-14088 |
JZS147 |
2 | ||
| 90105-14116 |
JZS147 |
2 | ||
| 48191B - PLATE, CASTER ADJUST | ||||
| 48191-30010 |
JZS147 |
2 | ||
| 48194C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH | ||||
| 48190-30010 |
JZS147 |
1 | ||
| 48194D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH | ||||
| 48198-30030 |
JZS147 |
1 | ||
| 48194E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH | ||||
| 48190-30020 |
JZS147 |
1 | ||
| 48194F - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.4 RH | ||||
| 48198-30040 |
JZS147 |
1 | ||
| 48198C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH | ||||
| 48190-30010 |
JZS147 |
1 | ||
| 48198D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH | ||||
| 48198-30030 |
JZS147 |
1 | ||
| 48198E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH | ||||
| 48190-30020 |
JZS147 |
1 | ||
| 48198F - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.4 LH | ||||
| 48198-30040 |
JZS147 |
1 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-39015 |
JZS147 |
1 | ||
| 48610C - BOLT(FOR SUSPENSION UPPER ARM) | ||||
| 90901-14002 |
JZS147 |
4 | ||
| 90105-10289 |
JZS147 |
4 | ||
| 48610C - BOLT(FOR SUSPENSION UPPER ARM) | ||||
| 90901-14002 |
JZS147 |
4 | ||
| 90105-10289 |
JZS147 |
4 | ||
| 48610D - NUT(FOR SUSPENSION UPPER ARM) | ||||
| 90173-10010 |
JZS147 |
4 | ||
| 48610D - NUT(FOR SUSPENSION UPPER ARM) | ||||
| 90173-10010 |
JZS147 |
4 | ||
| 48610E - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90171-12002 |
JZS147 |
1 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-39015 |
JZS147 |
1 | ||
| 48630A - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90171-12002 |
JZS147 |
1 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48654-30050 |
JZS147 |
2 | ||
| Common parts | ||||
| 90252-03008 | ||||
| 90468-16017 | ||||
