Toyota Lexus gs300 JZS147 AIR CLEANER

JZS147L-BEPQFW (1993)

Toyota Lexus Gs300

Production Aug 1993 - Aug 1997

Engine 2JZGE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

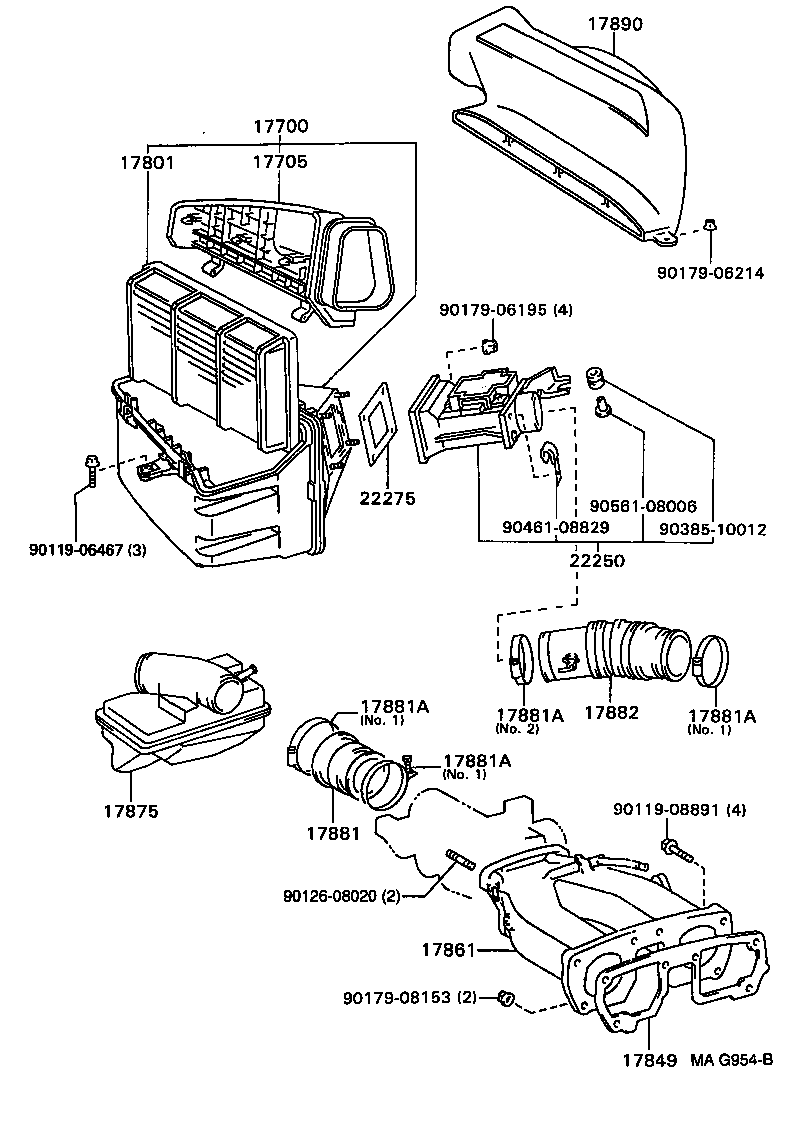

(9308-9508)2JZGE..EUR

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-46170	2JZGE..JZS147..EUR	08/1993 - 08/1995	1
17700-46270	2JZGE..JZS147..EUR	08/1995 - 08/1997	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-50030	2JZGE..JZS147	03/1993 - 08/1997	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-50020	2JZGE..JZS147	03/1993 - 08/1997	1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-46020	2JZGE..JZS147	08/1996 - 08/1997	1
17849-46010	2JZGE..JZS147	03/1993 - 08/1996	1
17861 - CONNECTOR, INTAKE AIR
17860-46040	2JZGE..JZS147..EUR	12/1995 - 08/1997	1
17860-46040	2JZGE..JZS147	03/1993 - 12/1995	1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-46060	2JZGE..JZS147..LHD	03/1993 - 08/1997	1
17881 - HOSE, AIR CLEANER, NO.1
17881-46120	2JZGE..JZS147	03/1993 - 08/1997	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-88006	2JZGE..JZS147..EUR NO.1	08/1993 - 02/1995	3
96111-10880	2JZGE..JZS147	08/1995 - 08/1997	4
96111-10880	2JZGE..JZS147..EUR NO.1	02/1995 - 08/1995	3
96111-10900	2JZGE..JZS147..EUR NO.2	08/1993 - 08/1995	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-88006	2JZGE..JZS147..EUR NO.1	08/1993 - 02/1995	3
96111-10880	2JZGE..JZS147	08/1995 - 08/1997	4
96111-10880	2JZGE..JZS147..EUR NO.1	02/1995 - 08/1995	3
96111-10900	2JZGE..JZS147..EUR NO.2	08/1993 - 08/1995	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-88006	2JZGE..JZS147..EUR NO.1	08/1993 - 02/1995	3
96111-10880	2JZGE..JZS147	08/1995 - 08/1997	4
96111-10880	2JZGE..JZS147..EUR NO.1	02/1995 - 08/1995	3
96111-10900	2JZGE..JZS147..EUR NO.2	08/1993 - 08/1995	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-88006	2JZGE..JZS147..EUR NO.1	08/1993 - 02/1995	3
96111-10880	2JZGE..JZS147	08/1995 - 08/1997	4
96111-10880	2JZGE..JZS147..EUR NO.1	02/1995 - 08/1995	3
96111-10900	2JZGE..JZS147..EUR NO.2	08/1993 - 08/1995	1
17882 - HOSE, AIR CLEANER, NO.2
17882-46100	2JZGE..JZS147	08/1995 - 08/1997	1
17882-46130	2JZGE..JZS147..EUR	08/1993 - 08/1995	1
17890 - HOSE ASSY, AIR CLEANER, NO.2
17890-46030	2JZGE..JZS147	03/1993 - 08/1997	1
22250 - METER ASSY, INTAKE AIR FLOW
22250-46020	2JZGE..JZS147..EUR	08/1993 - 08/1995	1
22250-46040	2JZGE..JZS147..EUR	08/1995 - 08/1997	1
22275 - GASKET, AIR FLOW METER
22275-50020	2JZGE..JZS147..EUR	08/1993 - 08/1995	1
Common parts
90119-06467
90119-08891
90126-08020
90179-06195
90179-06214
90179-08153
90385-10012
90461-08829
90561-08006

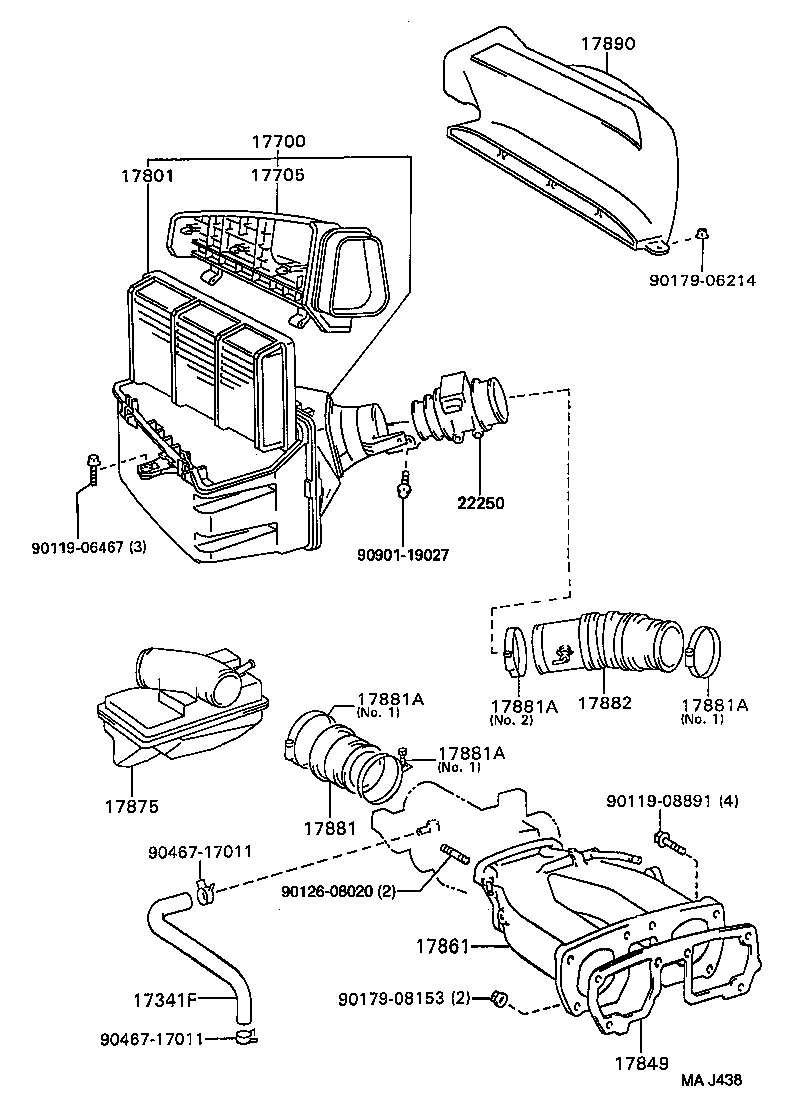

(9508-9708)2JZGE..EUR

Click highlighted areas on diagram

Part #	Description	Period	Qty
17341F - HOSE, AIR, NO.1
17341-46120	2JZGE..JZS147..EUR	08/1995 - 08/1997	1
17700 - CLEANER ASSY, AIR
17700-46170	2JZGE..JZS147..EUR	08/1993 - 08/1995	1
17700-46270	2JZGE..JZS147..EUR	08/1995 - 08/1997	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-50030	2JZGE..JZS147	03/1993 - 08/1997	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-50020	2JZGE..JZS147	03/1993 - 08/1997	1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-46020	2JZGE..JZS147	08/1996 - 08/1997	1
17849-46010	2JZGE..JZS147	03/1993 - 08/1996	1
17861 - CONNECTOR, INTAKE AIR
17860-46040	2JZGE..JZS147..EUR	12/1995 - 08/1997	1
17860-46040	2JZGE..JZS147	03/1993 - 12/1995	1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-46060	2JZGE..JZS147..LHD	03/1993 - 08/1997	1
17881 - HOSE, AIR CLEANER, NO.1
17881-46120	2JZGE..JZS147	03/1993 - 08/1997	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-88006	2JZGE..JZS147..EUR NO.1	08/1993 - 02/1995	3
96111-10880	2JZGE..JZS147	08/1995 - 08/1997	4
96111-10880	2JZGE..JZS147..EUR NO.1	02/1995 - 08/1995	3
96111-10900	2JZGE..JZS147..EUR NO.2	08/1993 - 08/1995	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-88006	2JZGE..JZS147..EUR NO.1	08/1993 - 02/1995	3
96111-10880	2JZGE..JZS147	08/1995 - 08/1997	4
96111-10880	2JZGE..JZS147..EUR NO.1	02/1995 - 08/1995	3
96111-10900	2JZGE..JZS147..EUR NO.2	08/1993 - 08/1995	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-88006	2JZGE..JZS147..EUR NO.1	08/1993 - 02/1995	3
96111-10880	2JZGE..JZS147	08/1995 - 08/1997	4
96111-10880	2JZGE..JZS147..EUR NO.1	02/1995 - 08/1995	3
96111-10900	2JZGE..JZS147..EUR NO.2	08/1993 - 08/1995	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-88006	2JZGE..JZS147..EUR NO.1	08/1993 - 02/1995	3
96111-10880	2JZGE..JZS147	08/1995 - 08/1997	4
96111-10880	2JZGE..JZS147..EUR NO.1	02/1995 - 08/1995	3
96111-10900	2JZGE..JZS147..EUR NO.2	08/1993 - 08/1995	1
17882 - HOSE, AIR CLEANER, NO.2
17882-46100	2JZGE..JZS147	08/1995 - 08/1997	1
17882-46130	2JZGE..JZS147..EUR	08/1993 - 08/1995	1
17890 - HOSE ASSY, AIR CLEANER, NO.2
17890-46030	2JZGE..JZS147	03/1993 - 08/1997	1
22250 - METER ASSY, INTAKE AIR FLOW
22250-46020	2JZGE..JZS147..EUR	08/1993 - 08/1995	1
22250-46040	2JZGE..JZS147..EUR	08/1995 - 08/1997	1
Common parts
90119-06467
90119-08891
90126-08020
90179-06214
90179-08153
90467-17011
90901-19027
