JZS147L-BEPQFV (1993)

Toyota Lexus Gs300

Production Mar 1993 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9303-9708)

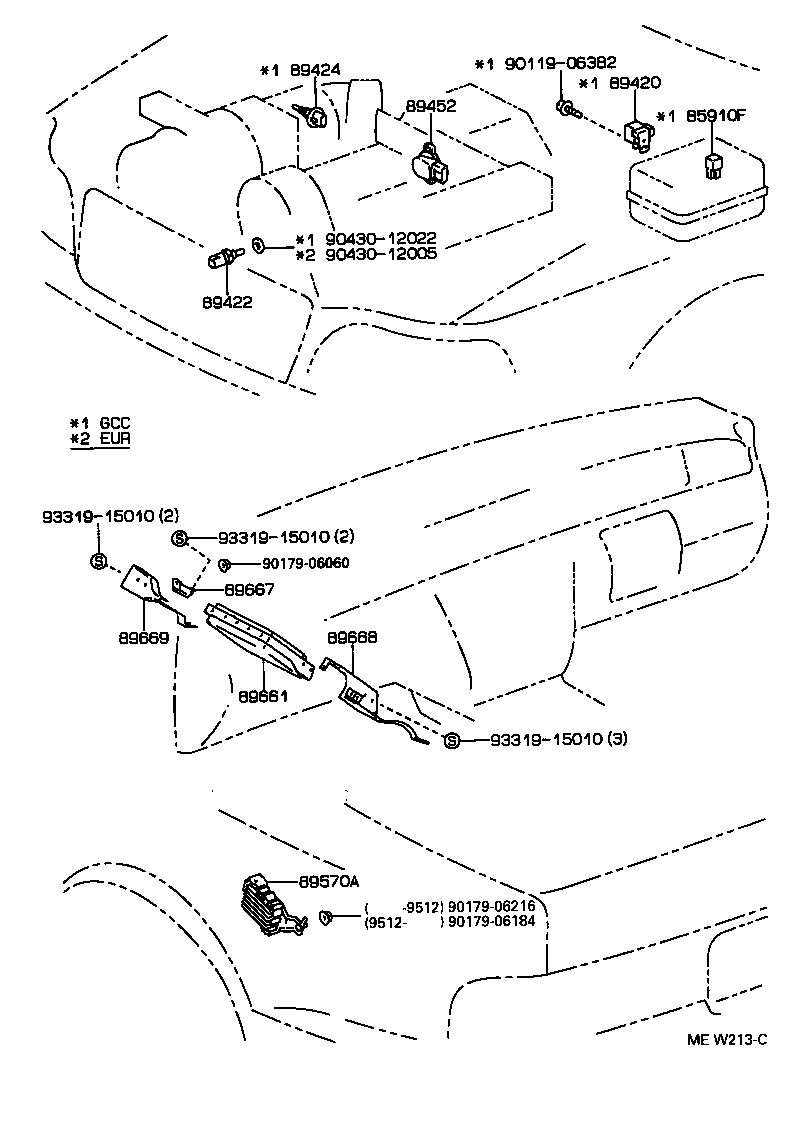

Click highlighted areas on diagram

diagram 85910F 89420 89422 89424 89452 89570A 89661 89667 89668 89669 9011906382 9017906060 9017906184 9017906216 9043012005 9043012022 9331915010 9331915010 9331915010
Part # Description Qty Price
85910F - RELAY, COMPUTER (FOR EFI)
90987-02009

JZS147

 1
89420 - SENSOR ASSY, VACUUM
89420-30110

JZS147..GCC

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

JZS147

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

JZS147..GCC

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-33010

JZS147

 1
89452-22090

JZS147

 1
89570A - COMPUTER ASSY, FUEL PUMP CONTROL
89570-30170

JZS147

 1
89661 - COMPUTER, ENGINE CONTROL
89661-3A030

JZS147..GCC

 1
89661-30701

JZS147..GCC

 1
89661-30700

JZS147

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-30160

JZS147..LHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-30150

JZS147..LHD

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-30120

JZS147..LHD

 1
Common parts
90119-06382
90179-06060
90179-06184
90179-06216
90430-12005
90430-12022
93319-15010
