JZS147L-BEPQFV (1993)
Toyota Lexus Gs300
Production
Mar 1993
-
Aug 1997
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9303- )LHD

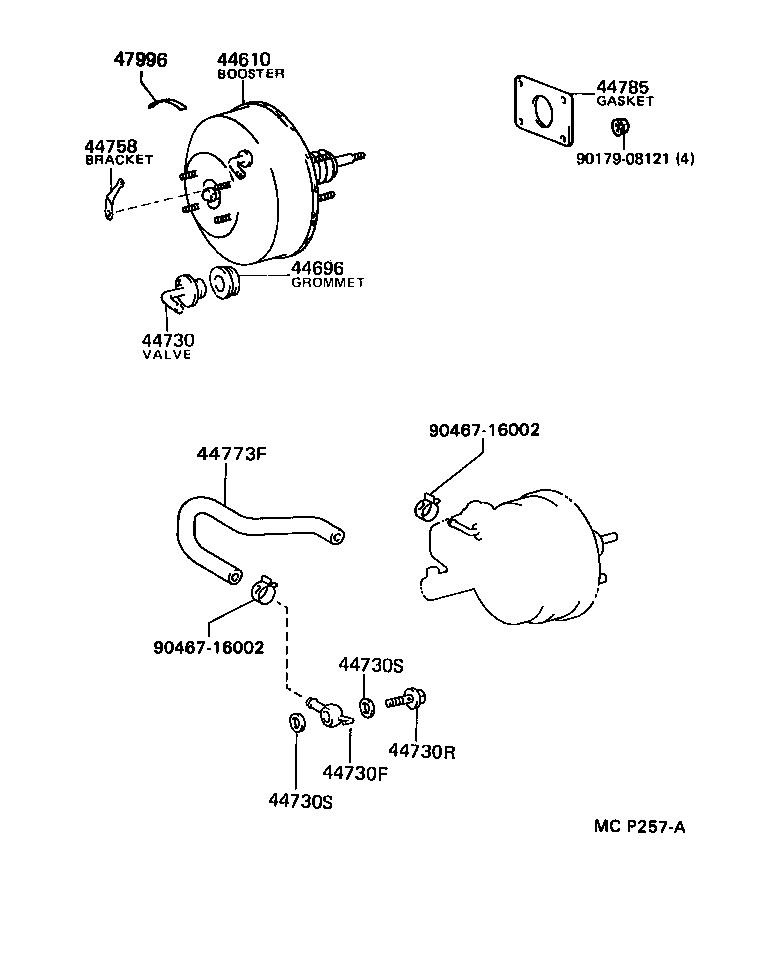

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-3A020 |
JZS147..GCC |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24015 |
JZS147..GCC |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-30050 |
JZS147..GCC |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90405-09160 |
JZS147 |
1 | ||
| 90405-09160 |
JZS147 |
1 | ||
| 44730R - BOLT, UNION(FOR VACUUM HOSE UNION) | ||||
| 90401-12012 |
JZS147 |
1 | ||
| 90401-12012 |
JZS147 |
1 | ||
| 44730S - GASKET(FOR VACUUM HOSE UNION) | ||||
| 90430-12005 |
JZS147 |
2 | ||
| 90430-12005 |
JZS147 |
2 | ||
| 44730S - GASKET(FOR VACUUM HOSE UNION) | ||||
| 90430-12005 |
JZS147 |
2 | ||
| 90430-12005 |
JZS147 |
2 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-30170 |
JZS147..LHD |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-30530 |
JZS147..LHD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30030 |
JZS147 |
1 | ||
| Common parts | ||||
| 90179-08121 | ||||
| 90467-16002 | ||||
