JZS147L-BEPQFV (1993)

Toyota Lexus Gs300

Production Mar 1993 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9303-9708)2JZGE..GCC

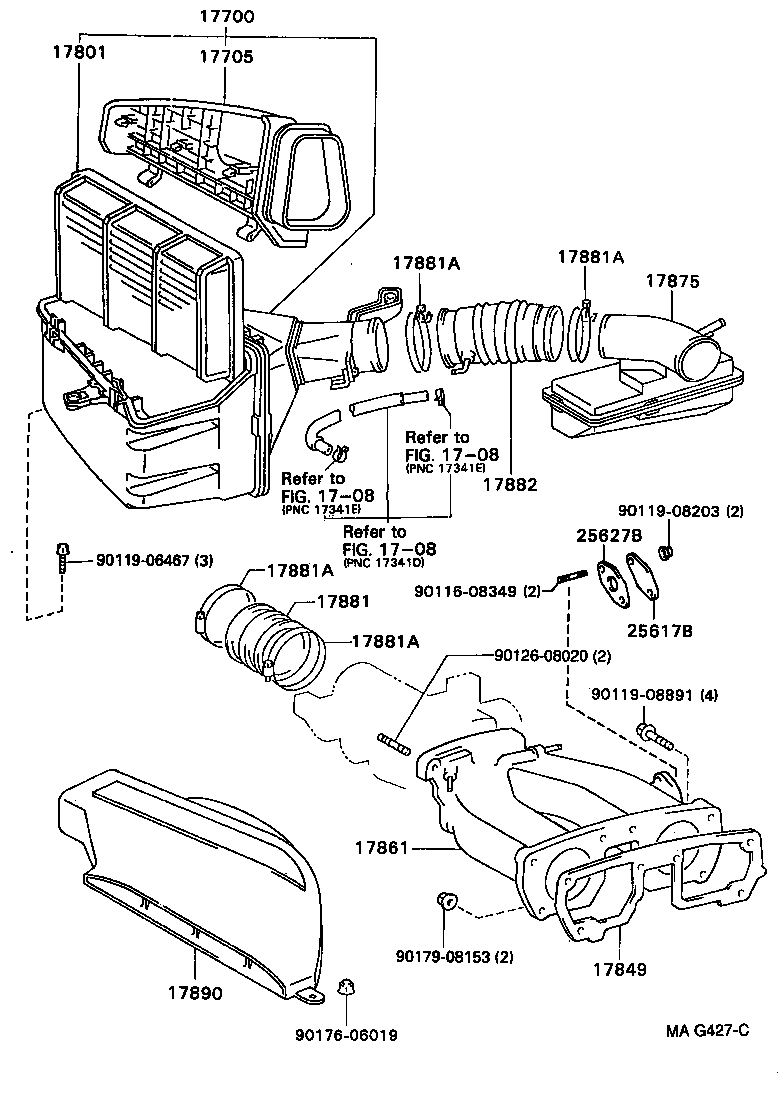

Click highlighted areas on diagram

diagram 1708 1708 1708 17700 17705 17801 17849 17861 17875 17881 17881A 17881A 17881A 17881A 17882 17890 25617B 25627B 9011608349 9011906467 9011908203 9011908891 9012608020 9017606019 9017908153
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-46130

2JZGE..JZS147..GCC

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-50030

2JZGE..JZS147

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-50020

2JZGE..JZS147

 1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-46020

2JZGE..JZS147

 1
17849-46010

2JZGE..JZS147

 1
17861 - CONNECTOR, INTAKE AIR
17860-46031

2JZGE..JZS147..GCC

 1
17860-46040

2JZGE..JZS147

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-46060

2JZGE..JZS147..LHD

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-46120

2JZGE..JZS147

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-88006

2JZGE..JZS147..GCC

 4
96111-10880

2JZGE..JZS147..GCC

 4
96111-10880

2JZGE..JZS147

 4
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-88006

2JZGE..JZS147..GCC

 4
96111-10880

2JZGE..JZS147..GCC

 4
96111-10880

2JZGE..JZS147

 4
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-88006

2JZGE..JZS147..GCC

 4
96111-10880

2JZGE..JZS147..GCC

 4
96111-10880

2JZGE..JZS147

 4
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-88006

2JZGE..JZS147..GCC

 4
96111-10880

2JZGE..JZS147..GCC

 4
96111-10880

2JZGE..JZS147

 4
17882 - HOSE, AIR CLEANER, NO.2
17882-46100

2JZGE..JZS147..GCC

 1
17882-46100

2JZGE..JZS147

 1
17890 - HOSE ASSY, AIR CLEANER, NO.2
17890-46030

2JZGE..JZS147

 1
25617B - PLATE, EGR HOLE COVER
25617-46010

2JZGE..JZS147..GCC

 1
25627B - GASKET, EGR VALVE
25627-46010

2JZGE..JZS147..GCC

 1
Common parts
90116-08349
90119-06467
90119-08203
90119-08891
90126-08020
90176-06019
90179-08153
Linked diagrams
1708
