JZS147L-BEPQFV (1993)
Toyota Lexus Gs300
Production
Mar 1993
-
Aug 1997
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9303- )

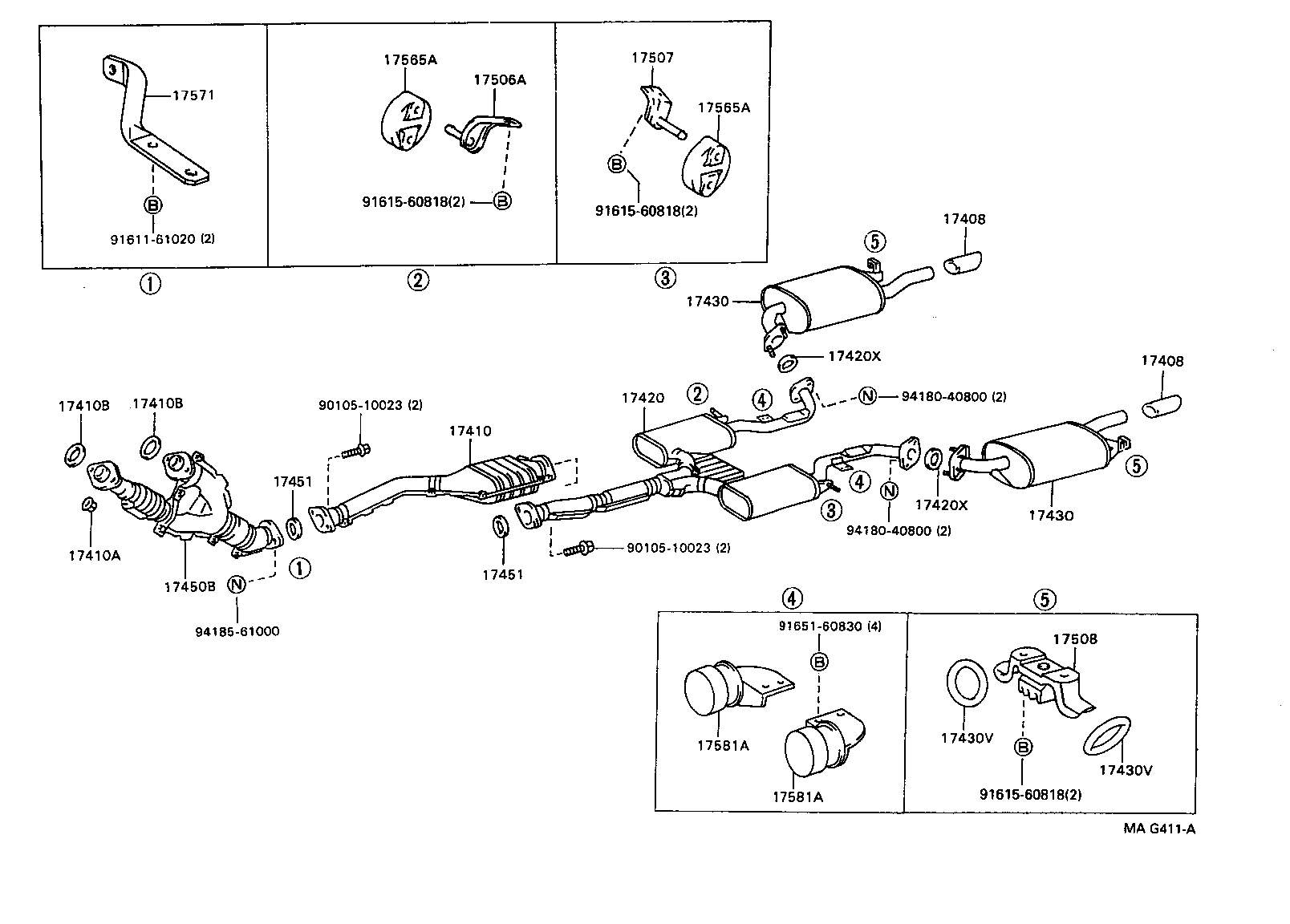

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE | ||||
| 17408-74040 |
2JZGE..JZS147 |
2 | ||
| 17408-50010 |
2JZGE..JZS147 |
2 | ||
| 17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE | ||||
| 17408-74040 |
2JZGE..JZS147 |
2 | ||
| 17408-50010 |
2JZGE..JZS147 |
2 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-46230 |
2JZGE..JZS147..GCC |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2JZGE..JZS147 |
4 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06045 |
2JZGE..JZS147 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06045 |
2JZGE..JZS147 |
2 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-46200 |
2JZGE..JZS147 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06045 |
2JZGE..JZS147 |
2 | ||
| 90917-06062 |
2JZGE..JZS147 |
2 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06045 |
2JZGE..JZS147 |
2 | ||
| 90917-06062 |
2JZGE..JZS147 |
2 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17440-46060 |
2JZGE..JZS147 LH |
1 | ||
| 17430-46170 |
2JZGE..JZS147 RH |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17440-46060 |
2JZGE..JZS147 LH |
1 | ||
| 17430-46170 |
2JZGE..JZS147 RH |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-36001 |
2JZGE..JZS147 |
4 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-36001 |
2JZGE..JZS147 |
4 | ||
| 17450B - PIPE ASSY, EXHAUST, FRONT NO.2 | ||||
| 17450-46180 |
2JZGE..JZS147..GCC |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06056 |
2JZGE..JZS147 RR |
1 | ||
| 90917-06070 |
2JZGE..JZS147 FR |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06056 |
2JZGE..JZS147 RR |
1 | ||
| 90917-06070 |
2JZGE..JZS147 FR |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-50060 |
2JZGE..JZS147 |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17507-50020 |
2JZGE..JZS147 |
1 | ||
| 17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3 | ||||
| 17508-50010 |
2JZGE..JZS147 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-46040 |
2JZGE..JZS147 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-46040 |
2JZGE..JZS147 |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-46180 |
2JZGE..JZS147 |
1 | ||
| 17581A - DAMPER, EXHAUST PIPE | ||||
| 17581-46020 |
2JZGE..JZS147 |
2 | ||
| 17581A - DAMPER, EXHAUST PIPE | ||||
| 17581-46020 |
2JZGE..JZS147 |
2 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 91611-61020 | ||||
| 91615-60818 | ||||
| 91651-60830 | ||||
| 94180-40800 | ||||
| 94185-61000 | ||||
