Toyota Lexus gs300/430 UZS161 NAVIGATION & FRONT MONITOR DISPLAY

UZS161R-BEAQKW (2000)

Toyota Lexus Gs300/430

Production Jul 2000 - Jan 2005

Engine 3UZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

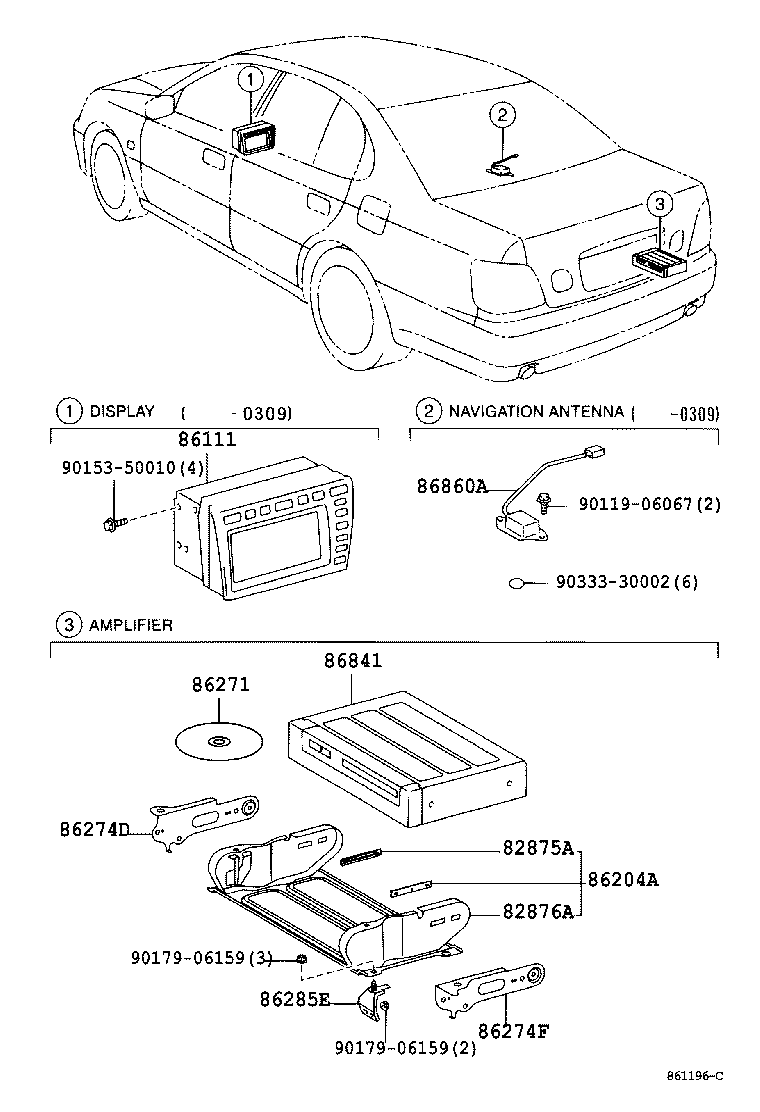

Click highlighted areas on diagram

Part #	Description	Period	Qty
82875A - GUIDE, COMPUTER INTEGRATION BRACKET, NO.5
82875-22010	JZS160,UZS161..EUR	07/2000 - 08/2002	1
82876A - GUIDE, COMPUTER INTEGRATION BRACKET, NO.6
82876-22010	JZS160,UZS161..EUR	07/2000 - 08/2002	1
86111 - MULTI-DISPLAY
86111-30220	JZS160,UZS161..RHD..EUR DENSO	07/2000 - 07/2001	1
86111-30221	JZS160,UZS161..RHD DENSO	07/2001 - 01/2005	1
86204A - BRACKET SUB-ASSY, DISC PLAYER
86204-30010	JZS160,UZS161..EUR	07/2000 - 08/2002	1
86271 - DISC, DISC PLAYER
86271-24121	JZS160,UZS161..EUR	10/2002 - 07/2003	1
86271-24122	JZS160,UZS161..EUR	07/2003 - 01/2004	1
86271-24120	JZS160,UZS161..EUR	07/2001 - 10/2002	1
86271-24123	JZS160,UZS161..EUR	01/2004 - 08/2004	1
86271-24124	JZS160,UZS161..EUR	08/2004 - 01/2005	1
86274D - BRACKET, DISC PLAYER
86274-30321	JZS160,UZS161..EUR	08/2002 - 01/2005	1
86274-50080	JZS160,UZS161..EUR	07/2000 - 08/2002	1
86274F - BRACKET, DISC PLAYER, NO.2
86274-50120	JZS160,UZS161..EUR	07/2000 - 08/2002	1
86274-30331	JZS160,UZS161..EUR	08/2002 - 01/2005	1
86285E - BRACKET, AMPLIFIER, NO.1
86285-30050	JZS160,UZS161..EUR	08/1997 - 08/2002	1
86841 - COMPUTER, NAVIGATION
86841-47030	JZS160,UZS161..EUR	07/2000 - 07/2001	1
86841-13020	JZS160,UZS161..EUR	07/2001 - 01/2005	1
86860A - ANTENNA, NAVIGATION
86860-30022	JZS160,UZS161..EUR	07/2000 - 01/2005	1
Common parts
90119-06067
90153-50010
90179-06159
90333-30002

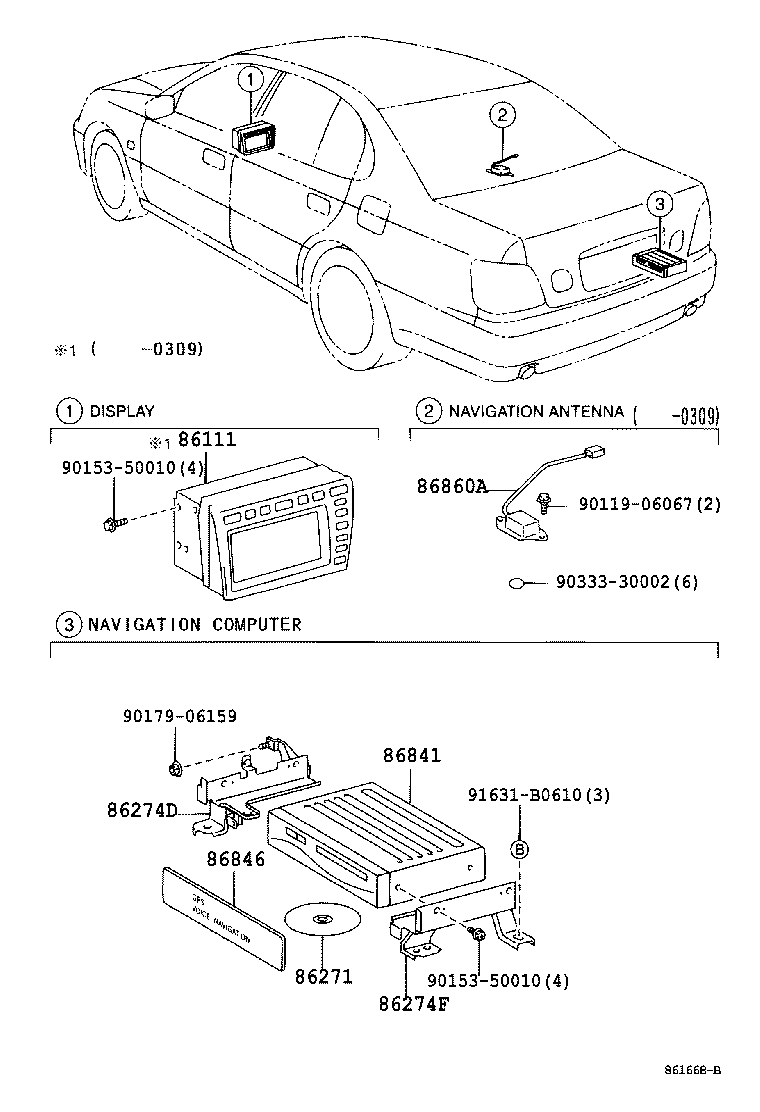

Click highlighted areas on diagram

Part #	Description	Period	Qty
86111 - MULTI-DISPLAY
86111-30220	JZS160,UZS161..RHD..EUR DENSO	07/2000 - 07/2001	1
86111-30221	JZS160,UZS161..RHD DENSO	07/2001 - 01/2005	1
86271 - DISC, DISC PLAYER
86271-24121	JZS160,UZS161..EUR	10/2002 - 07/2003	1
86271-24122	JZS160,UZS161..EUR	07/2003 - 01/2004	1
86271-24120	JZS160,UZS161..EUR	07/2001 - 10/2002	1
86271-24123	JZS160,UZS161..EUR	01/2004 - 08/2004	1
86271-24124	JZS160,UZS161..EUR	08/2004 - 01/2005	1
86274D - BRACKET, DISC PLAYER
86274-50080	JZS160,UZS161..EUR	07/2000 - 08/2002	1
86274-30321	JZS160,UZS161..EUR	08/2002 - 01/2005	1
86274F - BRACKET, DISC PLAYER, NO.2
86274-50120	JZS160,UZS161..EUR	07/2000 - 08/2002	1
86274-30331	JZS160,UZS161..EUR	08/2002 - 01/2005	1
86841 - COMPUTER, NAVIGATION
86841-47030	JZS160,UZS161..EUR	07/2000 - 07/2001	1
86841-13020	JZS160,UZS161..EUR	07/2001 - 01/2005	1
86846 - PLATE, NAVIGATION COMPUTER
86846-33020	JZS160,UZS161..EUR	08/2002 - 01/2005	1
86860A - ANTENNA, NAVIGATION
86860-30022	JZS160,UZS161..EUR	07/2000 - 01/2005	1
Common parts
90119-06067
90153-50010
90179-06159
90333-30002
91631-B0610
