UZS161R-BEAQKW (2000)

Toyota Lexus Gs300/430

Production Jul 2000 - Jan 2005
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0007- )UZS161

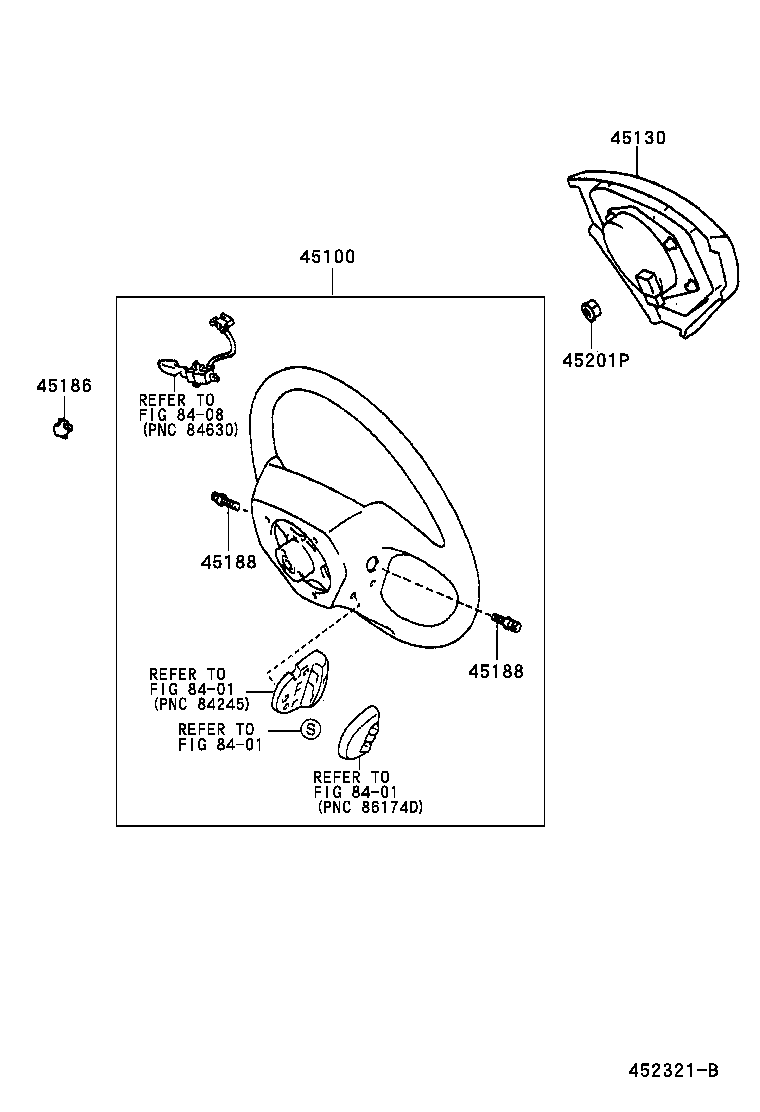

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45186 45188 45188 45201P 8401 8401 8401 8408
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-3A280C0

UZS161

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

 1
45100-3A280E0

UZS161

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

 1
45100-3A281E0

UZS161

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

 1
45100-3A280B0

UZS161

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

 1
45100-3A282B0

UZS161

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

 1
45100-3A282E0

UZS161

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

 1
45100-3A281B0

UZS161

3-SPOKE,WOOD&LEATHER,DK.CHACOAL,TRIM1#

 1
45100-3A281C0

UZS161

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

 1
45100-3A283B0

UZS161

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

 1
45100-3A220C0

UZS161..RHD

3-SPOKE,LEATHER,BLACK,TRIM2#

 1
45100-3A282C0

UZS161

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

 1
45100-3A283E0

UZS161

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

 1
45100-3A220B0

UZS161..RHD

3-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#

 1
45100-3A221C0

UZS161..RHD

3-SPOKE,LEATHER,BLACK,TRIM2#

 1
45100-3A283C0

UZS161

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

 1
45100-3A284B0

UZS161

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

 1
45100-3A221B0

UZS161..RHD

3-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#

 1
45100-3A284C0

UZS161

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

 1
45100-3A284E0

UZS161

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

 1
45130 - BUTTON ASSY, HORN
45130-30590E0

JZS160,UZS161

SANDAL WOOD,TRIM0#

 1
45130-30590C0

JZS160,UZS161

BLACK,TRIM2#

 1
45130-30590B0

JZS160,UZS161

DK.CHARCOAL,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-44010C0

UZS161;JZS160..ARL,GCC

BLACK,TRIM2#

 1
45186-44010E4

JZS160,UZS161

SANDAL WOOD,TRIM0#

 1
45186-44010B5

JZS160,UZS161

DK.CHARCOAL,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

JZS160;UZS161..RHD

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

JZS160;UZS161..RHD

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

JZS160,UZS161

 1
Linked diagrams
8401
8408
