JZS160R-BEAQFQ (1997)
Toyota Lexus Gs300/430
Production
Aug 1997
-
Jan 2005
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

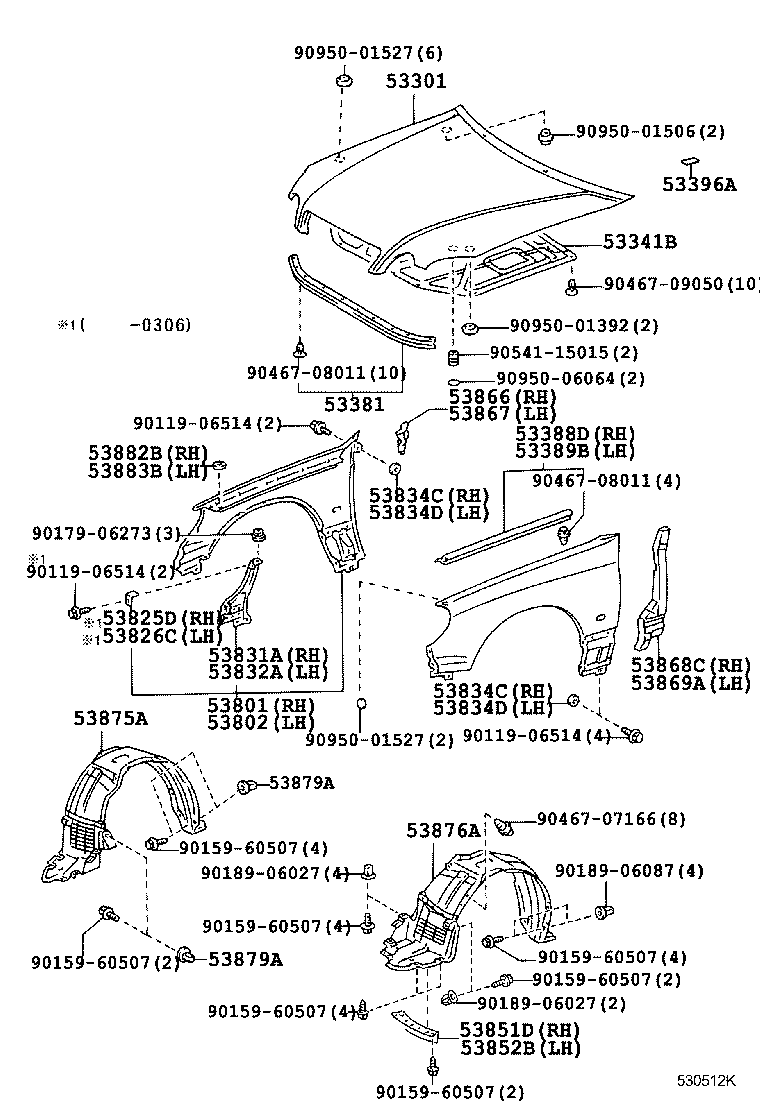

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-30380 |
JZS160,UZS161 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-30222 |
JZS160,UZS161 |
1 | ||
| 53341-30221 |
JZS160 |
1 | ||
| 53341-30220 |
JZS160 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-30170 |
JZS160,UZS161 |
1 | ||
| 53381-30171 |
JZS160,UZS161 |
1 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-30010 |
JZS160,UZS161 |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53388-30010 |
JZS160,UZS161 |
1 | ||
| 53396A - SEAL, HOOD TO FRONT END PANEL, NO.2 | ||||
| 53396-30050 |
JZS160,UZS161 |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-3F280 |
JZS160,UZS161 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-3F100 |
JZS160,UZS161 |
1 | ||
| 53825D - PATCH, FRONT FENDER, UPPER RH | ||||
| 53825-30110 |
JZS160,UZS161 |
1 | ||
| 53826C - PATCH, FRONT FENDER, UPPER LH | ||||
| 53826-30110 |
JZS160,UZS161 |
1 | ||
| 53831A - PANEL, FRONT FENDER SIDE, UPPER RH | ||||
| 53831-30170 |
JZS160,UZS161 |
1 | ||
| 53832A - PANEL, FRONT FENDER SIDE, UPPER LH | ||||
| 53832-30170 |
JZS160,UZS161 |
1 | ||
| 53834C - PLATE, FRONT FENDER SUPPORT, RH | ||||
| 53834-30090 |
JZS160,UZS161 |
2 | ||
| 53834C - PLATE, FRONT FENDER SUPPORT, RH | ||||
| 53834-30090 |
JZS160,UZS161 |
2 | ||
| 53834D - PLATE, FRONT FENDER SUPPORT, LH | ||||
| 53834-30100 |
JZS160,UZS161 |
2 | ||
| 53834D - PLATE, FRONT FENDER SUPPORT, LH | ||||
| 53834-30100 |
JZS160,UZS161 |
2 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-30020 |
JZS160,UZS161 |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-30020 |
JZS160,UZS161 |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-30090 |
JZS160,UZS161 |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-30090 |
JZS160,UZS161 |
1 | ||
| 53868C - SEAL, FRONT FENDER TO COWL SIDE, NO.2 RH | ||||
| 53868-30020 |
JZS160 |
1 | ||
| 53868-30021 |
JZS160,UZS161 |
1 | ||
| 53869A - SEAL, FRONT FENDER TO COWL SIDE, NO.2 LH | ||||
| 53869-30020 |
JZS160 |
1 | ||
| 53869-30021 |
JZS160,UZS161 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-30150 |
JZS160,UZS161 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-30110 |
JZS160,UZS161 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-50010 |
JZS160,UZS161 |
6 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-50010 |
JZS160,UZS161 |
6 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-30030 |
JZS160,UZS161 |
3 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53882-30030 |
JZS160,UZS161 |
3 | ||
| Common parts | ||||
| 90119-06514 | ||||
| 90159-60507 | ||||
| 90179-06273 | ||||
| 90189-06027 | ||||
| 90189-06087 | ||||
| 90467-07166 | ||||
| 90467-08011 | ||||
| 90467-09050 | ||||
| 90541-15015 | ||||
| 90950-01392 | ||||
| 90950-01506 | ||||
| 90950-01527 | ||||
| 90950-06064 | ||||
