JZS160R-BEAQFQ (1997)
Toyota Lexus Gs300/430

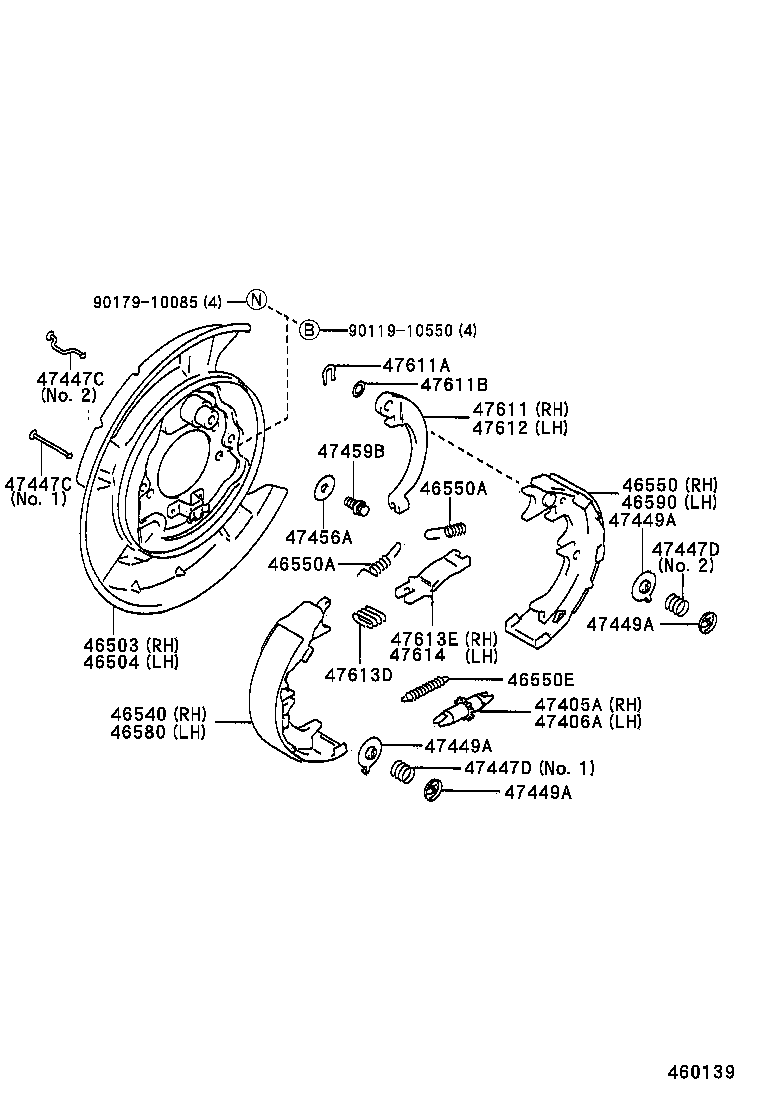

ILLUST NO. 2 OF 2(9708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-30090 |
JZS160,UZS161 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-30090 |
JZS160,UZS161 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-44010 |
JZS160,UZS161 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-44010 |
JZS160,UZS161 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
JZS160,UZS161 |
4 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
JZS160,UZS161 |
4 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12051 |
JZS160,UZS161 |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-44010 |
JZS160,UZS161 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-44010 |
JZS160,UZS161 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
JZS160,UZS161 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
JZS160,UZS161 |
1 | ||
| 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) | ||||
| 47447-30020 |
JZS160,UZS161 NO.1 |
2 | ||
| 47447-50010 |
JZS160,UZS161 NO.2 |
2 | ||
| 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) | ||||
| 47447-30020 |
JZS160,UZS161 NO.1 |
2 | ||
| 47447-50010 |
JZS160,UZS161 NO.2 |
2 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-16053 |
JZS160,UZS161 NO.1 |
2 | ||
| 90501-16118 |
JZS160,UZS161 NO.2 |
2 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-16053 |
JZS160,UZS161 NO.1 |
2 | ||
| 90501-16118 |
JZS160,UZS161 NO.2 |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-40010 |
JZS160,UZS161 INNER |
4 | ||
| 47449-30030 |
JZS160,UZS161 OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-40010 |
JZS160,UZS161 INNER |
4 | ||
| 47449-30030 |
JZS160,UZS161 OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-40010 |
JZS160,UZS161 INNER |
4 | ||
| 47449-30030 |
JZS160,UZS161 OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-40010 |
JZS160,UZS161 INNER |
4 | ||
| 47449-30030 |
JZS160,UZS161 OUTER |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-33010 |
JZS160,UZS161 |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
JZS160,UZS161 |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-50010 |
JZS160,UZS161 |
1 | ||
| 47611A - WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90213-07018 |
JZS160,UZS161 |
2 | ||
| 47611B - SHIM(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90564-09184 |
JZS160,UZS161 T=0.3 |
1 | ||
| 90564-09185 |
JZS160,UZS161 T=0.6 |
1 | ||
| 90564-09186 |
JZS160,UZS161 T=0.9 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-50010 |
JZS160,UZS161 |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
JZS160,UZS161 |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-30060 |
JZS160,UZS161 |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-30060 |
JZS160,UZS161 |
1 | ||
| Common parts | ||||
| 90119-10550 | ||||
| 90179-10085 | ||||

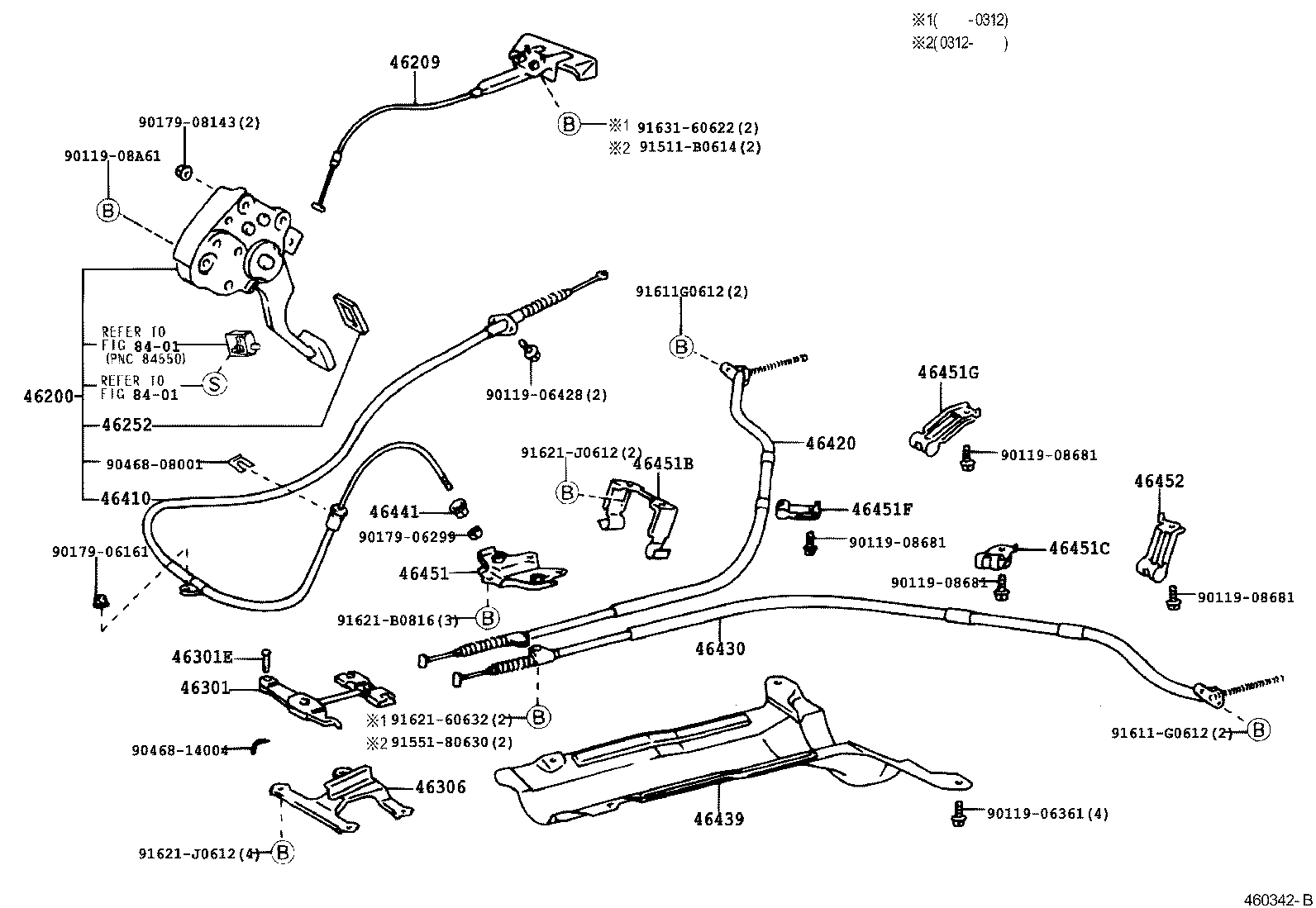

ILLUST NO. 1 OF 2(9708- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46200 - PEDAL ASSY, PARKING BRAKE CONTROL | ||||
| 46200-30341 |
JZS160..RHD |
1 | ||
| 46200-30360 |
JZS160,UZS161..RHD |
1 | ||
| 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE | ||||
| 46209-30170B0 |
JZS160,UZS161..RHD DK.CHHHARCOAL,TRIM1# |
1 | ||
| 46209-30150E0 |
JZS160..RHD SANDAL WOOD,TRIM0# |
1 | ||
| 46209-30150B0 |
JZS160..RHD DK.CHARCOAL,TRIM1# |
1 | ||
| 46209-30150C0 |
JZS160..ARL BLACK,TRIM2# |
1 | ||
| 46209-30170E0 |
JZS160,UZS161..RHD SANDAL WOOD,TRIM0# |
1 | ||
| 46209-30170C0 |
JZS160..ARL;UZS161..RHD BLACK,TRIM2# |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-50010 |
JZS160,UZS161 |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46320-30070 |
JZS160,UZS161 |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-08059 |
JZS160,UZS161 |
1 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30110 |
JZS160,UZS161 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30720 |
JZS160,UZS161..RHD |
1 | ||
| 46410-30700 |
JZS160..RHD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-30540 |
JZS160,UZS161 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-30140 |
JZS160,UZS161 |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46439-30011 |
JZS160,UZS161 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-51010 |
JZS160,UZS161 |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-30090 |
JZS160,UZS161 |
1 | ||
| 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-30120 |
JZS160,UZS161 |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-30150 |
JZS160,UZS161 |
1 | ||
| 46451F - BRACKET, CABLE SUPPORT | ||||
| 46451-30130 |
JZS160,UZS161 |
1 | ||
| 46451G - BRACKET, CABLE SUPPORT | ||||
| 46451-30140 |
JZS160,UZS161 |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46451-30160 |
JZS160,UZS161 |
1 | ||
| Common parts | ||||
| 90119-06361 | ||||
| 90119-06428 | ||||
| 90119-08681 | ||||
| 90119-08A61 | ||||
| 90179-06161 | ||||
| 90179-06299 | ||||
| 90179-08143 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 91511-B0614 | ||||
| 91551-80630 | ||||
| 91611-G0612 | ||||
| 91621-60632 | ||||
| 91621-B0816 | ||||
| 91621-J0612 | ||||
| 91631-60622 | ||||
| Linked diagrams | ||||
| 8401 | ||||
