JZS160L-BEAQFW (1997)
Toyota Lexus Gs300/430

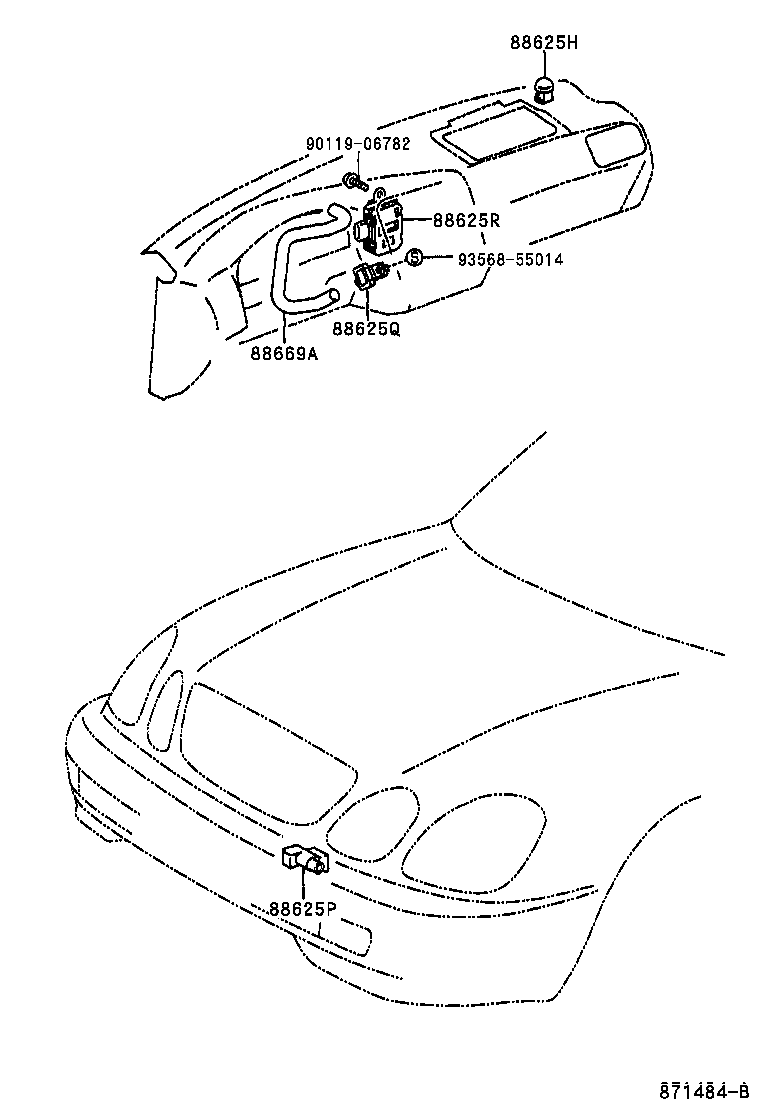

ILLUST NO. 3 OF 3(9708- )
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-50110 |
JZS160,UZS161 |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22130 |
JZS160,UZS161 |
1 | ||
| 88790-22131 |
JZS160,UZS161 |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-50120 |
JZS160,UZS161..LHD |
1 | ||
| 88625R - THERMISTOR, COOLER (SENSOR, SMOG VENTILATION) | ||||
| 88898-30010 |
JZS160,UZS161..ARL,EUR |
1 | ||
| 88669A - HOSE (FOR COOLER THERMISTOR) | ||||
| 88669-30020 |
JZS160,UZS161..LHD |
1 | ||
| Common parts | ||||
| 90119-06782 | ||||
| 93568-55014 | ||||

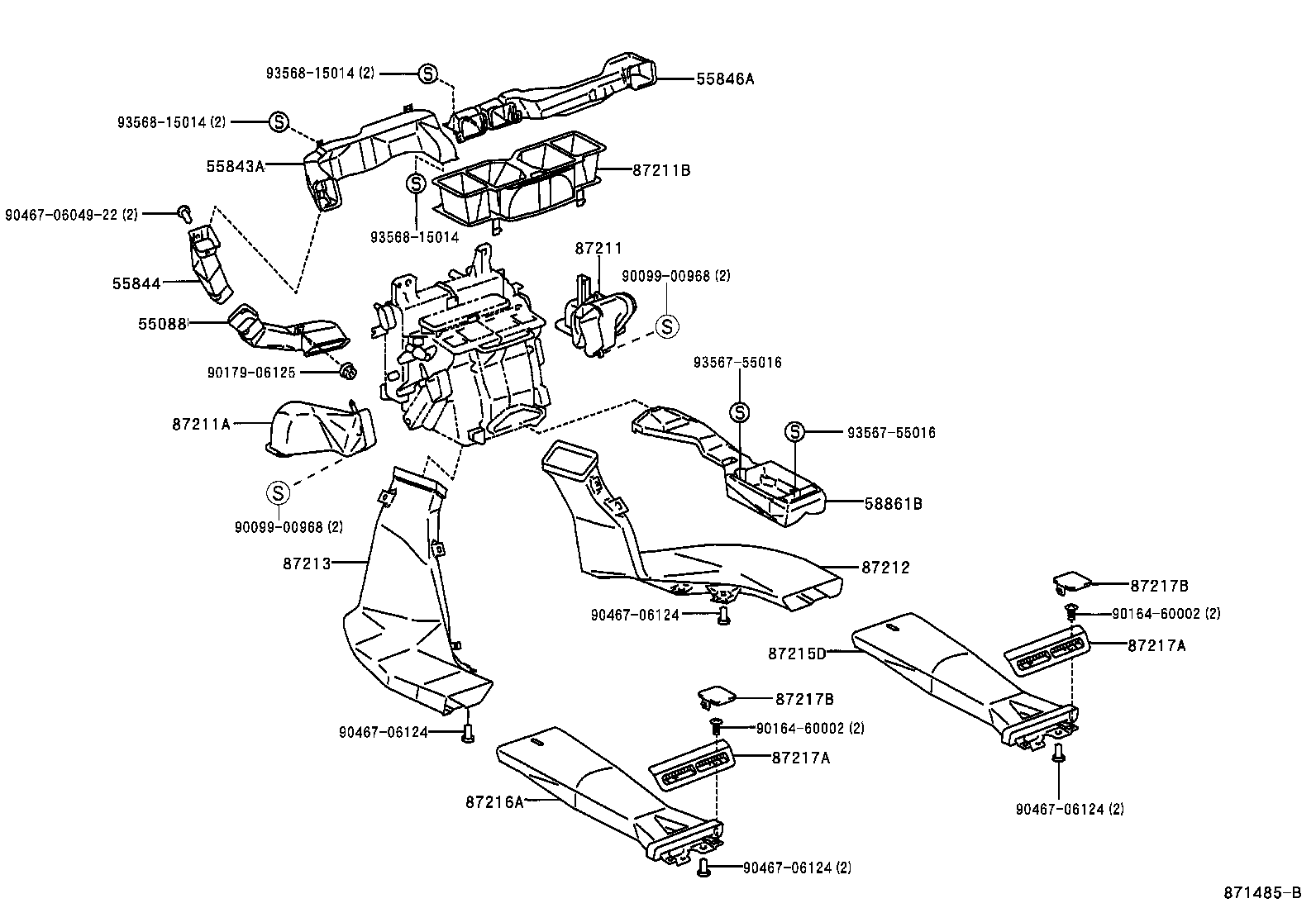

ILLUST NO. 2 OF 3(9708- )LHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55088 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.5 | ||||
| 55849-30020 |
JZS160,UZS161..LHD |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-30210 |
JZS160,UZS161..LHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-30190 |
JZS160,UZS161..LHD |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-30170 |
JZS160,UZS161..LHD |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-30080 |
JZS160,UZS161..LHD |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-30220 |
JZS160,UZS161..LHD |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-30210 |
JZS160,UZS161..LHD |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-30150 |
JZS160,UZS161 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-30400 |
JZS160,UZS161 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-30330 |
JZS160,UZS161 |
1 | ||
| 87215D - DUCT, AIR, REAR NO.4 | ||||
| 87215-30270 |
JZS160,UZS161 |
1 | ||
| 87216A - DUCT, AIR, REAR NO.5 | ||||
| 87216-30260 |
JZS160,UZS161 |
1 | ||
| 87217A - DUCT, AIR, REAR NO.6 | ||||
| 87217-50030A2 |
JZS160,UZS161 IVORY,TRIM0# |
2 | ||
| 87217-50030B3 |
JZS160,UZS161 MD.CHARCOAL,TRIM1# |
2 | ||
| 87217-50030C0 |
JZS160,UZS161 BLACK,TRIM2# |
2 | ||
| 87217-50030C0 |
JZS160..EUR BLACK,TRIM22,23,24,25,26 |
2 | ||
| 87217A - DUCT, AIR, REAR NO.6 | ||||
| 87217-50030A2 |
JZS160,UZS161 IVORY,TRIM0# |
2 | ||
| 87217-50030B3 |
JZS160,UZS161 MD.CHARCOAL,TRIM1# |
2 | ||
| 87217-50030C0 |
JZS160,UZS161 BLACK,TRIM2# |
2 | ||
| 87217-50030C0 |
JZS160..EUR BLACK,TRIM22,23,24,25,26 |
2 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693A2 |
JZS160,UZS161 IVORY,TRIM0# |
4 | ||
| 90950-0169322 |
JZS160..EUR BLACK,TRIM22,23,24,25,26 |
4 | ||
| 90950-01693B5 |
JZS160,UZS161 MD.CHARCOAL,TRIM1# |
4 | ||
| 90950-0169322 |
JZS160,UZS161 BLACK,TRIM2# |
4 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693A2 |
JZS160,UZS161 IVORY,TRIM0# |
4 | ||
| 90950-0169322 |
JZS160..EUR BLACK,TRIM22,23,24,25,26 |
4 | ||
| 90950-01693B5 |
JZS160,UZS161 MD.CHARCOAL,TRIM1# |
4 | ||
| 90950-0169322 |
JZS160,UZS161 BLACK,TRIM2# |
4 | ||
| Common parts | ||||
| 90099-00968 | ||||
| 90164-60002 | ||||
| 90179-06125 | ||||
| 90467-0604922 | ||||
| 90467-06124 | ||||
| 93567-55016 | ||||
| 93568-15014 | ||||

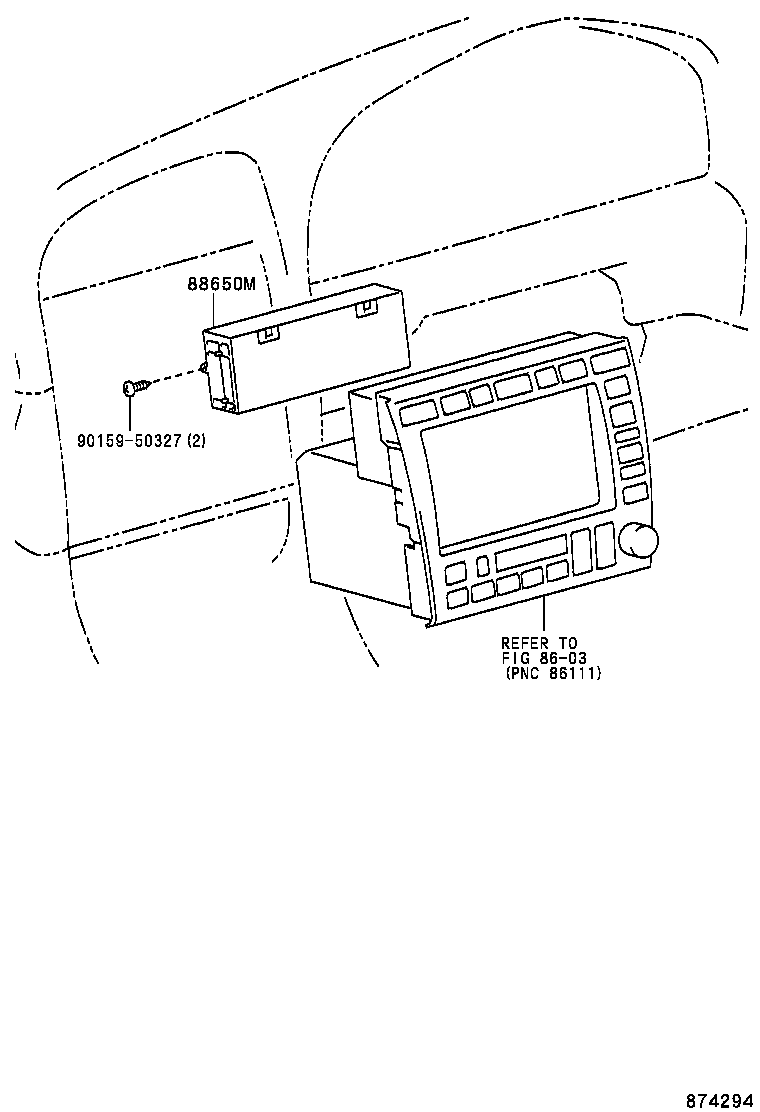

ILLUST NO. 1 OF 3(9708- )
CONTROL--W(ELECTRO MULTI VISION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88650M - COMPUTER ASSY, AIR CONDITIONER | ||||
| 88650-3A253 |
JZS160 |
1 | ||
| 88650-3A230 |
JZS160..EUR W(ELECTRO MULTI VISION) |
1 | ||
| 88650-3A300 |
JZS160,UZS161 |
1 | ||
| 88650-3A330 |
JZS160,UZS161..ARL,EUR W(ELECTRO MULTI VISION) |
1 | ||
| 88650-3A330 |
JZS160,UZS161..EUR W(ELECTRO MULTI VISION) |
1 | ||
| 88650-3A251 |
JZS160 |
1 | ||
| 88650-3A252 |
JZS160 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| Linked diagrams | ||||
| 8603 | ||||

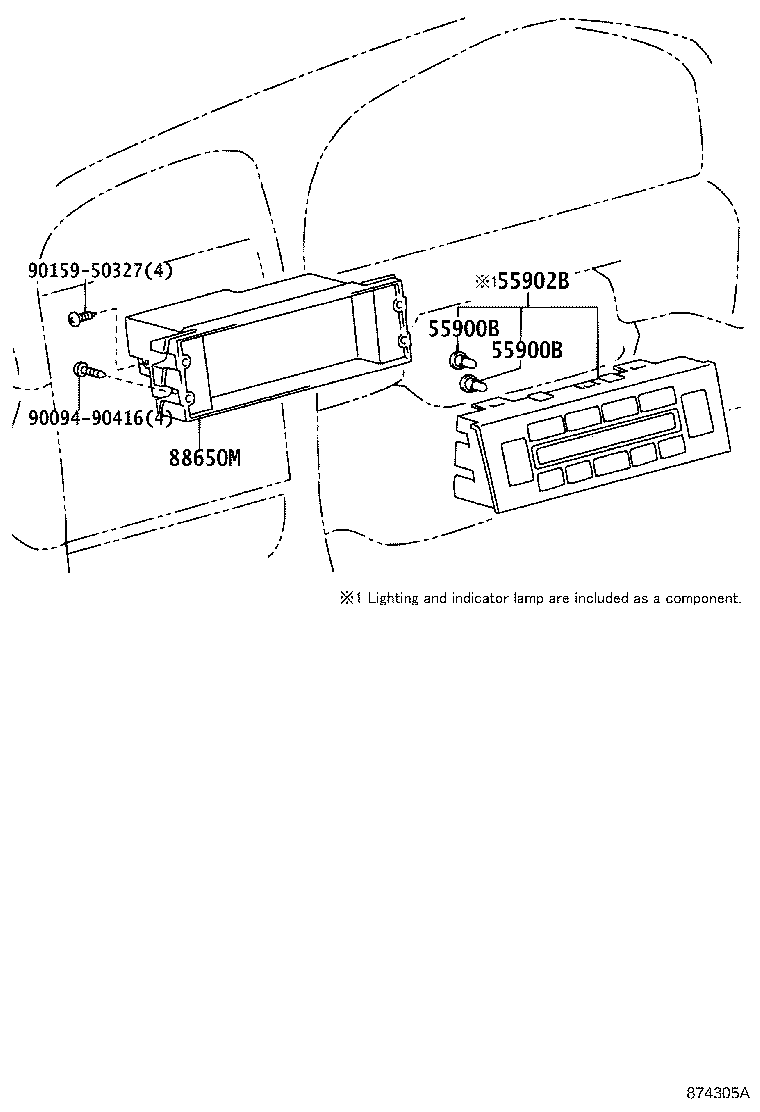

ILLUST NO. 1 OF 3(9708- )
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-03016 |
JZS160,UZS161 14V 1.12W |
5 | ||
| 90010-03015 |
JZS160,UZS161 14V 1.4W |
3 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-03016 |
JZS160,UZS161 14V 1.12W |
5 | ||
| 90010-03015 |
JZS160,UZS161 14V 1.4W |
3 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-30260 |
JZS160,UZS161..LHD..EUR |
1 | ||
| 88650M - COMPUTER ASSY, AIR CONDITIONER | ||||
| 88650-3A253 |
JZS160 |
1 | ||
| 88650-3A230 |
JZS160..EUR W(ELECTRO MULTI VISION) |
1 | ||
| 88650-3A300 |
JZS160,UZS161 |
1 | ||
| 88650-3A330 |
JZS160,UZS161..ARL,EUR W(ELECTRO MULTI VISION) |
1 | ||
| 88650-3A330 |
JZS160,UZS161..EUR W(ELECTRO MULTI VISION) |
1 | ||
| 88650-3A251 |
JZS160 |
1 | ||
| 88650-3A252 |
JZS160 |
1 | ||
| Common parts | ||||
| 90094-90416 | ||||
| 90159-50327 | ||||
