JZS160L-BEAQFV (1997)
Toyota Lexus Gs300/430
Production
Aug 1997
-
Jan 2005
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

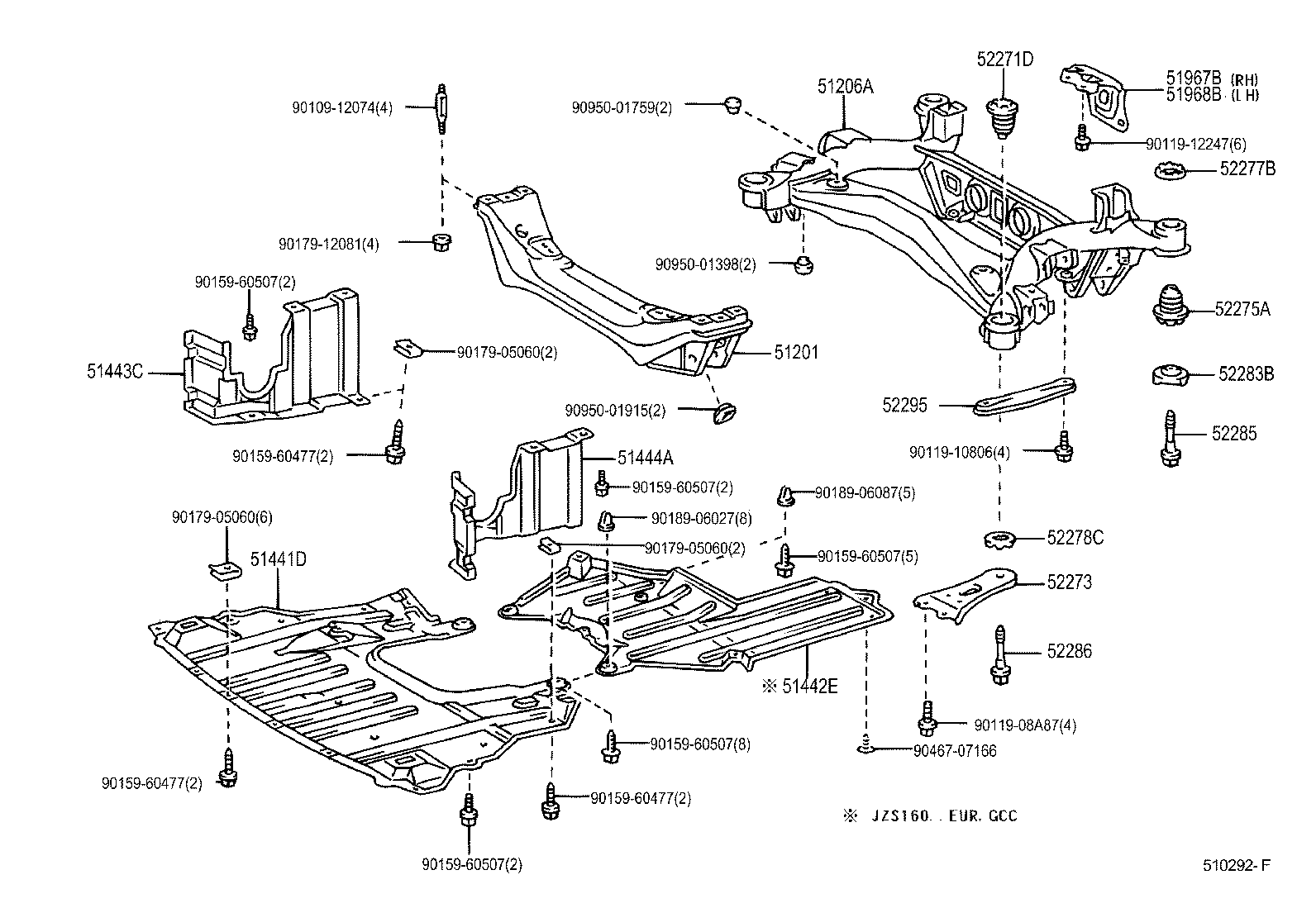

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-30110 |
JZS160,UZS161..LHD |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-30060 |
JZS160,UZS161 |
1 | ||
| 51206-30061 |
JZS160,UZS161 |
1 | ||
| 51441D - COVER, ENGINE UNDER | ||||
| 51441-30250 |
JZS160,UZS161 |
1 | ||
| 51442E - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-30090 |
JZS160..EUR,GCC |
1 | ||
| 51442-30091 |
JZS160..EUR,GCC |
1 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-30130 |
JZS160,UZS161 |
1 | ||
| 51443-30131 |
JZS160,UZS161 |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-30160 |
JZS160,UZS161 |
1 | ||
| 51444-30161 |
JZS160,UZS161 |
1 | ||
| 51967B - HOOK, TRANSPORT, REAR RH | ||||
| 51967-30030 |
JZS160,UZS161 |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51968-30050 |
JZS160,UZS161 |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-30080 |
JZS160,UZS161 |
2 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52273-30070 |
JZS160,UZS161 |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-30070 |
JZS160,UZS161 |
2 | ||
| 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52277-30010 |
JZS160,UZS161 |
2 | ||
| 52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER | ||||
| 52278-30020 |
JZS160,UZS161 |
2 | ||
| 52283B - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-30060 |
JZS160,UZS161 |
2 | ||
| 52283-30050 |
JZS160 |
2 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 52285-30021 |
JZS160,UZS161 |
2 | ||
| 52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2 | ||||
| 52286-30010 |
JZS160,UZS161 |
2 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-30020 |
JZS160,UZS161 |
2 | ||
| Common parts | ||||
| 90109-12074 | ||||
| 90119-08A87 | ||||
| 90119-10806 | ||||
| 90119-12247 | ||||
| 90159-60477 | ||||
| 90159-60507 | ||||
| 90179-05060 | ||||
| 90179-12081 | ||||
| 90189-06027 | ||||
| 90189-06087 | ||||
| 90467-07166 | ||||
| 90950-01398 | ||||
| 90950-01759 | ||||
| 90950-01915 | ||||
