UZS190R-BETQKW (2005)
Toyota Lexus Gs30/35/43/460
Production
Jan 2005
-
Sep 2007
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0501-0709)UZS190..RHD

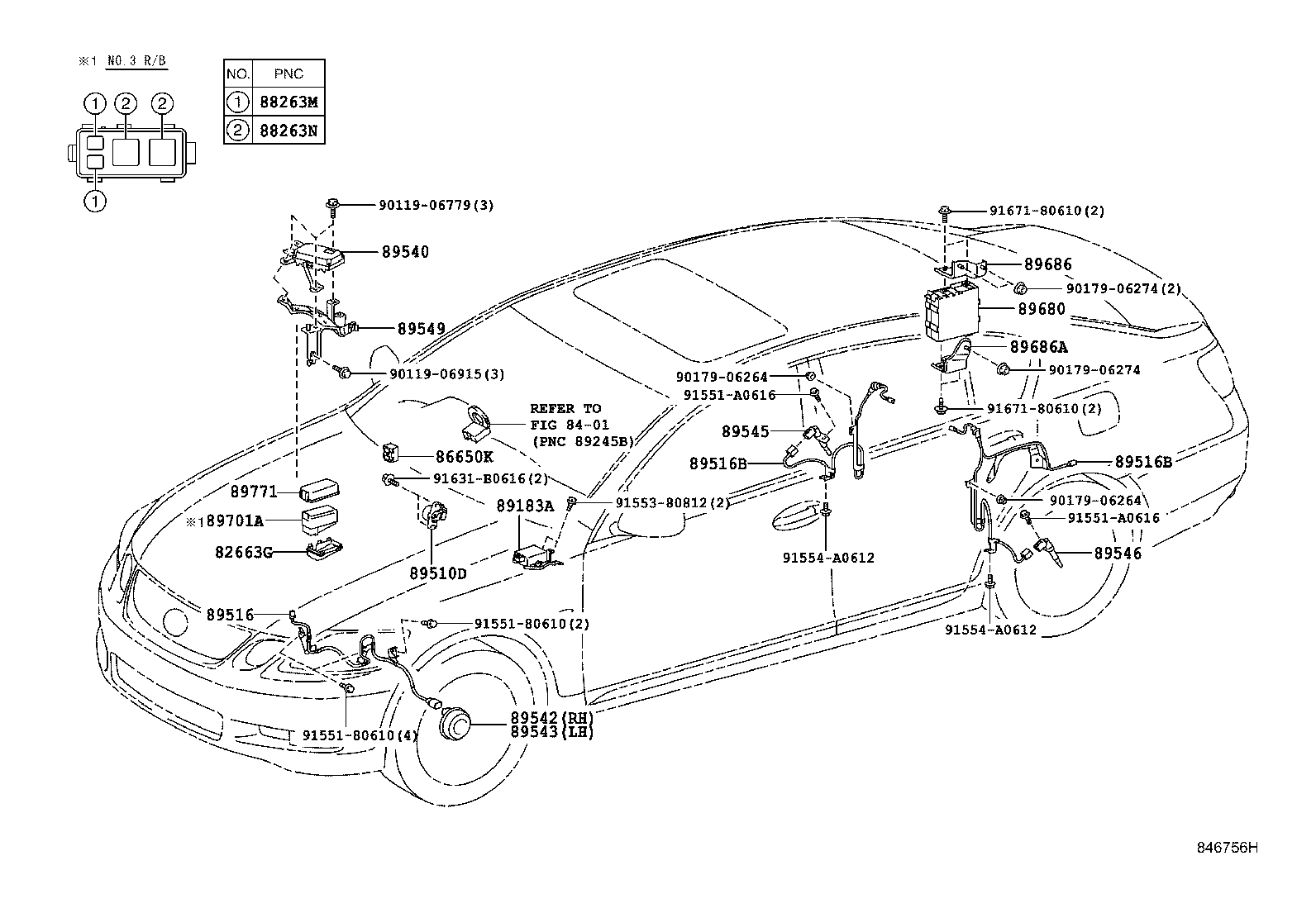

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82663G - COVER, RELAY BLOCK, LOWER | ||||
| 82663-30220 |
GRS190,UZS190..RHD |
1 | ||
| 86650K - BUZZER ASSY, SKID CONTROL | ||||
| 86652-48010 |
GRS190,UZS190 |
1 | ||
| 88263M - RELAY, ABS SOLENOID | ||||
| 88263-32070 |
UZS190 |
2 | ||
| 88263N - RELAY, ABS MOTOR | ||||
| 88263-21010 |
UZS190 |
2 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89180-30070 |
GRS190,UZS190 |
1 | ||
| 89510D - SENSOR ASSY, BRAKE PEDAL STROKE | ||||
| 89510-28010 |
UZS190..RHD |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-30030 |
GRS190,UZS190 LH |
1 | ||
| 89516-30020 |
GRS190,UZS190 RH |
1 | ||
| 89516B - WIRE, SKID CONTROL SENSOR | ||||
| 89516-30080 |
GRS190,UZS190 RH |
1 | ||
| 89516-30130 |
GRS190,UZS190 LH |
1 | ||
| 89516-22040 |
GRS190,UZS190 LH |
1 | ||
| 89516-22020 |
GRS190,UZS190 RH |
1 | ||
| 89516B - WIRE, SKID CONTROL SENSOR | ||||
| 89516-30080 |
GRS190,UZS190 RH |
1 | ||
| 89516-30130 |
GRS190,UZS190 LH |
1 | ||
| 89516-22040 |
GRS190,UZS190 LH |
1 | ||
| 89516-22020 |
GRS190,UZS190 RH |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89540-30700 |
UZS190..RHD AUSTRALIA SPEC |
1 | ||
| 89540-30640 |
UZS190..RHD |
1 | ||
| 89540-30720 |
UZS190..RHD |
1 | ||
| 89540-30700 |
UZS190..RHD |
1 | ||
| 89540-30700 |
UZS190..RHD NEW ZEALAND SPEC |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-30260 |
GRS190,UZS190 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-30260 |
GRS190,UZS190 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-30070 |
GRS190,UZS190 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-30070 |
GRS190,UZS190 |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 88269-30170 |
UZS190..RHD |
1 | ||
| 89680 - SUPPLY ASSY, BRAKE CONTROL POWER | ||||
| 89680-48010 |
UZS190 |
1 | ||
| 89680-33010 |
UZS190 |
1 | ||
| 89686 - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1 | ||||
| 89686-30050 |
UZS190 |
1 | ||
| 89686A - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1 | ||||
| 89686-30040 |
UZS190 |
1 | ||
| 89701A - BLOCK SUB-ASSY, ABS RELAY | ||||
| 82743-30030 |
UZS190..RHD |
1 | ||
| 89771 - COVER, ABS RELAY BLOCK, UPPER | ||||
| 82662-30560 |
GRS190,UZS190 |
1 | ||
| Common parts | ||||
| 90119-06779 | ||||
| 90119-06915 | ||||
| 90179-06264 | ||||
| 90179-06274 | ||||
| 91551-80610 | ||||
| 91551-A0616 | ||||
| 91553-80812 | ||||
| 91554-A0612 | ||||
| 91631-B0616 | ||||
| 91671-80610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
