URS190R-BEZQHW (2007)

Toyota Lexus Gs30/35/43/460

Production Sep 2007 - Dec 2011
Engine 1URFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )1UR#

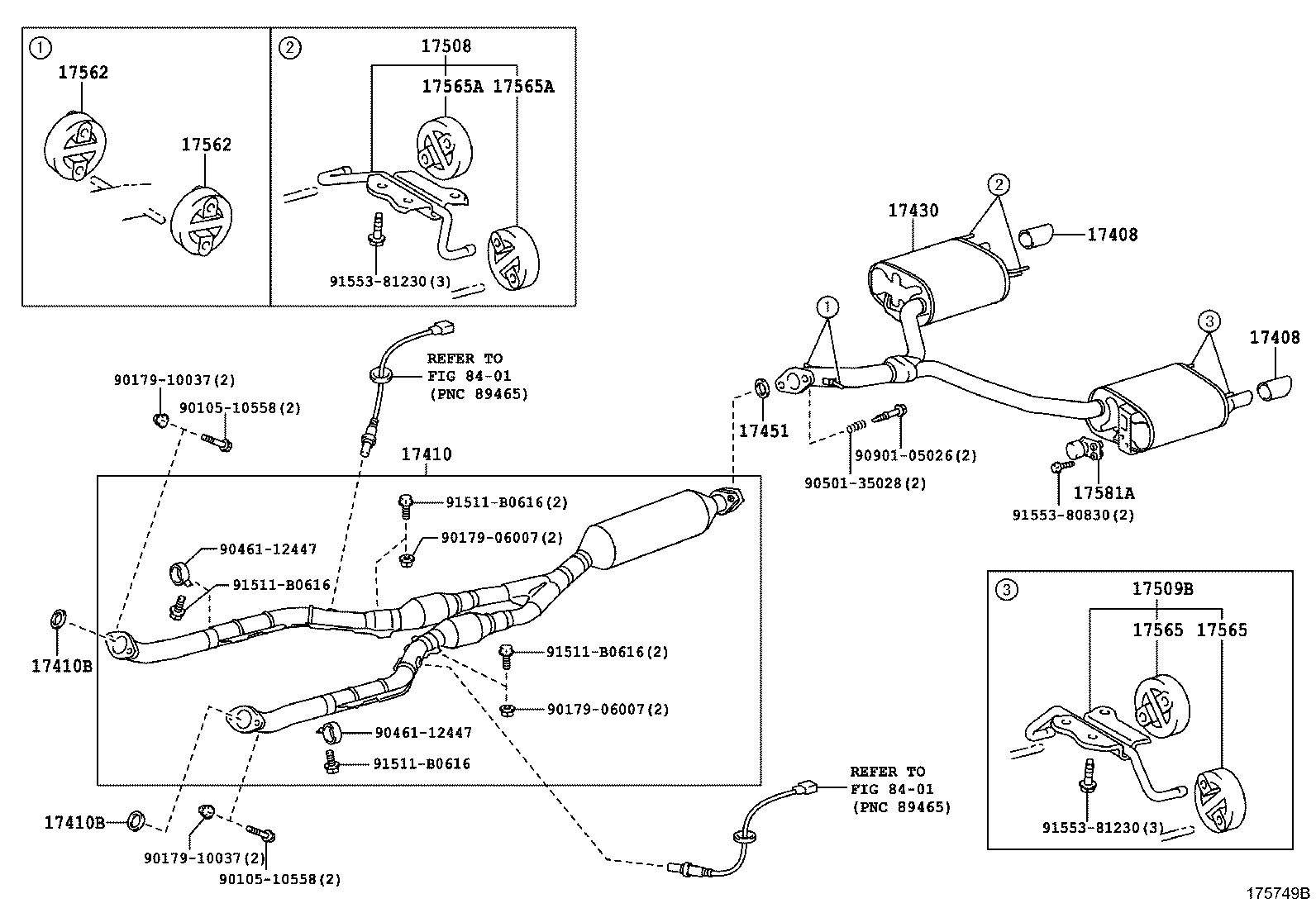

Click highlighted areas on diagram

diagram 17408 17408 17410 17410B 17410B 17430 17451 17508 17509B 17562 17562 17565 17565 17565A 17565A 17581A 8401 8401 9010510558 9010510558 9017906007 9017906007 9017910037 9017910037 9046112447 9046112447 9050135028 9090105026 91511B0616 91511B0616 91511B0616 91511B0616 9155380830 9155381230 9155381230
Part # Description Qty Price
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-31050

2GRFSE,3GR#,1UR#,3UZFE..GRS19#,URS190,UZS190

 2
17408-74080

2GRFSE,3GR#,1UR#..GRS19#,URS190

 2
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-31050

2GRFSE,3GR#,1UR#,3UZFE..GRS19#,URS190,UZS190

 2
17408-74080

2GRFSE,3GR#,1UR#..GRS19#,URS190

 2
17410 - PIPE ASSY, EXHAUST, FRONT
17410-38300

1UR#..URS190

*114=TOYOTA/PA1/Y

 1
17410-38301

1UR#..URS190

*114=TOYOTA/PA1/Y

 1
17410-38302

1UR#..URS190

*114=TOYOTA/PA1/Y

 1
17410B - GASKET, EXHAUST PIPE
90917-06078

2GRFSE,3GR#,1UR#..GRS19#,URS190

 2
17410B - GASKET, EXHAUST PIPE
90917-06078

2GRFSE,3GR#,1UR#..GRS19#,URS190

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-38590

1UR#..URS190

 1
17451 - GASKET, EXHAUST PIPE
17451-31010

3GR#,1URFSE..GRS190,URS190

 1
17451-31011

2GRFSE,3GR#,1UR#..GRS19#,URS190

 1
17451-31012

2GRFSE,3GR#,1UR#..GRS19#,URS190

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-50060

2GRFSE,3GR#,1UR#,3UZFE..GRS19#,URS190,UZS190

 1
17509B - SUPPORT, EXHAUST PIPE NO.4
17509-50030

2GRFSE,3GR#,1UR#,3UZFE..GRS19#,URS190,UZS190

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-22040

2GRFSE,3GR#,1UR#,3UZFE..GRS19#,URS190,UZS190

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-22040

2GRFSE,3GR#,1UR#,3UZFE..GRS19#,URS190,UZS190

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22030

2GRFSE,3GR#,1UR#,3UZFE..GRS19#,URS190,UZS190

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22030

2GRFSE,3GR#,1UR#,3UZFE..GRS19#,URS190,UZS190

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22030

2GRFSE,3GR#,1UR#,3UZFE..GRS19#,URS190,UZS190

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22030

2GRFSE,3GR#,1UR#,3UZFE..GRS19#,URS190,UZS190

 2
17581A - DAMPER, EXHAUST PIPE
17581-46140

2GRFSE,3GR#,1UR#,3UZFE..GRS19#,URS190,UZS190

 1
Common parts
90105-10558
90179-06007
90179-10037
90461-12447
90501-35028
90901-05026
91511-B0616
91553-80830
91553-81230
Linked diagrams
8401
