GRS196L-BETQHW (2009)

Toyota Lexus Gs30/35/43/460

Production Jul 2009 - Dec 2011
Engine 2GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

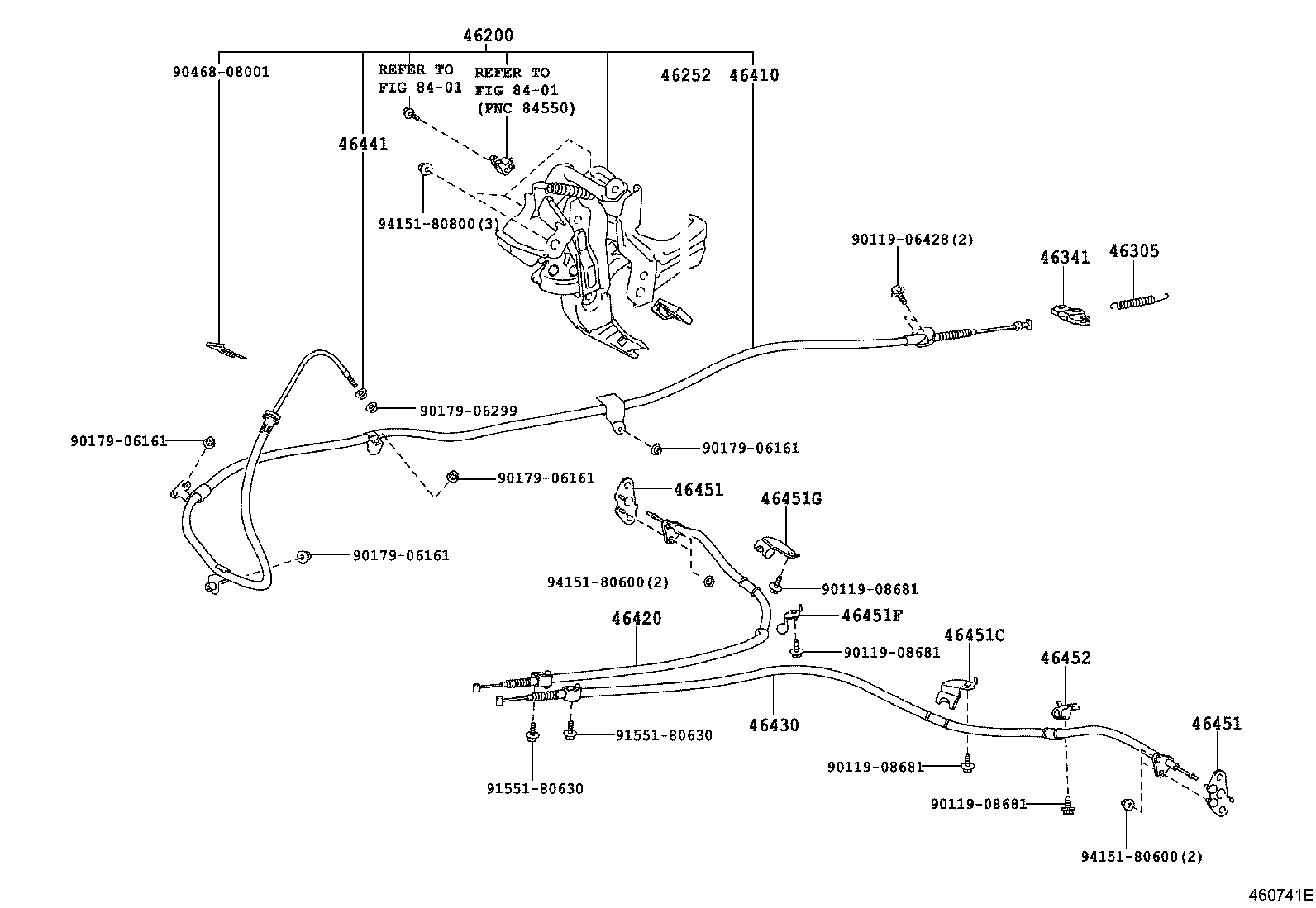

ILLUST NO. 1 OF 2(0907- )GRS196

Click highlighted areas on diagram

diagram 46200 46252 46305 46341 46410 46420 46430 46441 46451 46451 46451C 46451F 46451G 46452 8401 8401 9011906428 9011908681 9011908681 9011908681 9011908681 9017906161 9017906161 9017906161 9017906161 9017906299 9046808001 9155180630 9155180630 9415180600 9415180600 9415180800
Part # Description Qty Price
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-30430

GRS196

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-30771

GRS196

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-30581

GRS19#,URS190

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46420-30581

GRS19#,URS190

 1
Common parts
90119-06428
90119-08681
90179-06161
90179-06299
90468-08001
91551-80630
94151-80600
94151-80800
Linked diagrams
8401
