GRS190R-BETQHW (2005)

Toyota Lexus Gs30/35/43/460

Production Jan 2005 - Sep 2007
Engine 3GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )GRS190,URS190,UZS190

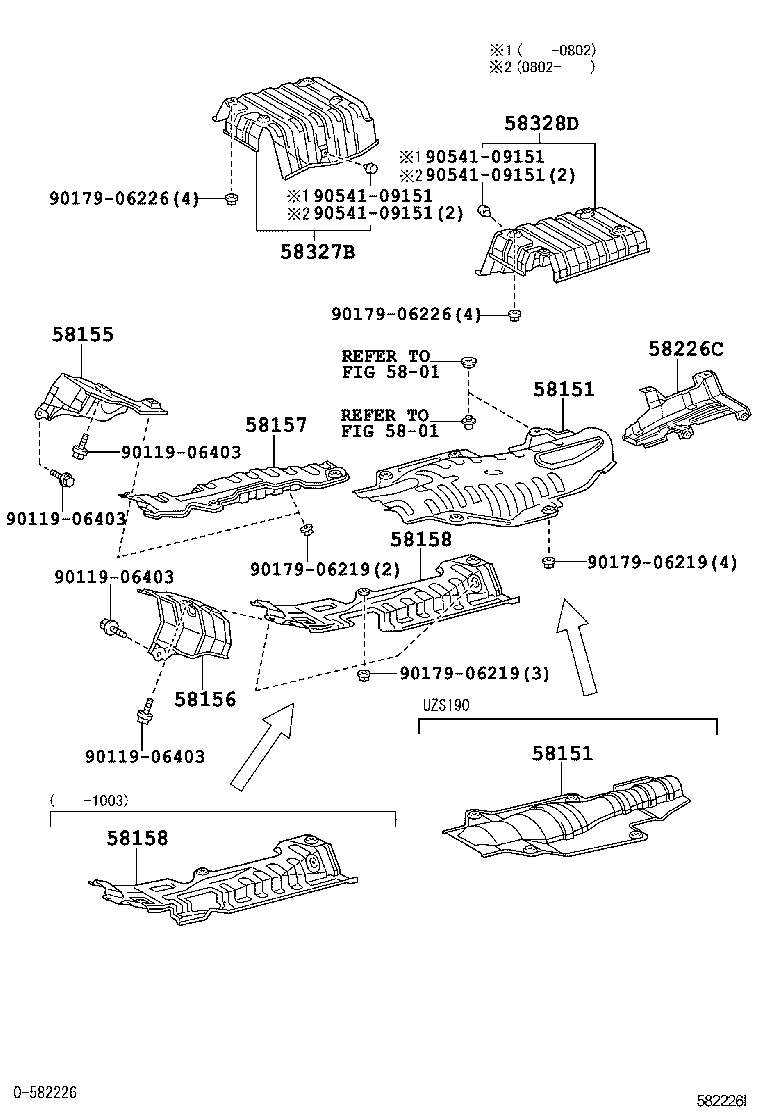

Click highlighted areas on diagram

diagram 5801 5801 58151 58151 58155 58156 58157 58158 58158 58226C 58327B 58328D 9011906403 9011906403 9011906403 9011906403 9017906219 9017906219 9017906219 9017906226 9017906226 9054109151 9054109151 9054109151 9054109151
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-30160

GRS190

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-30160

GRS190

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-30040

GRS190,UZS190

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-30080

GRS190,UZS190

 1
58157 - INSULATOR, FRONT FLOOR HEAT, NO.5
58157-30071

GRS190,UZS190

 1
58158 - INSULATOR, FRONT FLOOR HEAT, NO.6
58158-30061

GRS190,UZS190

 1
58158 - INSULATOR, FRONT FLOOR HEAT, NO.6
58158-30061

GRS190,UZS190

 1
58226C - PLATE, AIR GUIDE, OUTSIDE RH
58226-30040

GRS190,UZS190

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-30052

GRS190,UZS190

 1
58328D - INSULATOR, MAIN MUFFLER HEAT, LH
58328-30032

GRS190,UZS190

 1
58328-30033

GRS190,UZS190

 1
Common parts
90119-06403
90179-06219
90179-06226
90541-09151
Linked diagrams
5801
