GRS190R-BETQHW (2005)

Toyota Lexus Gs30/35/43/460

Production Jan 2005 - Sep 2007
Engine 3GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )GRS19#

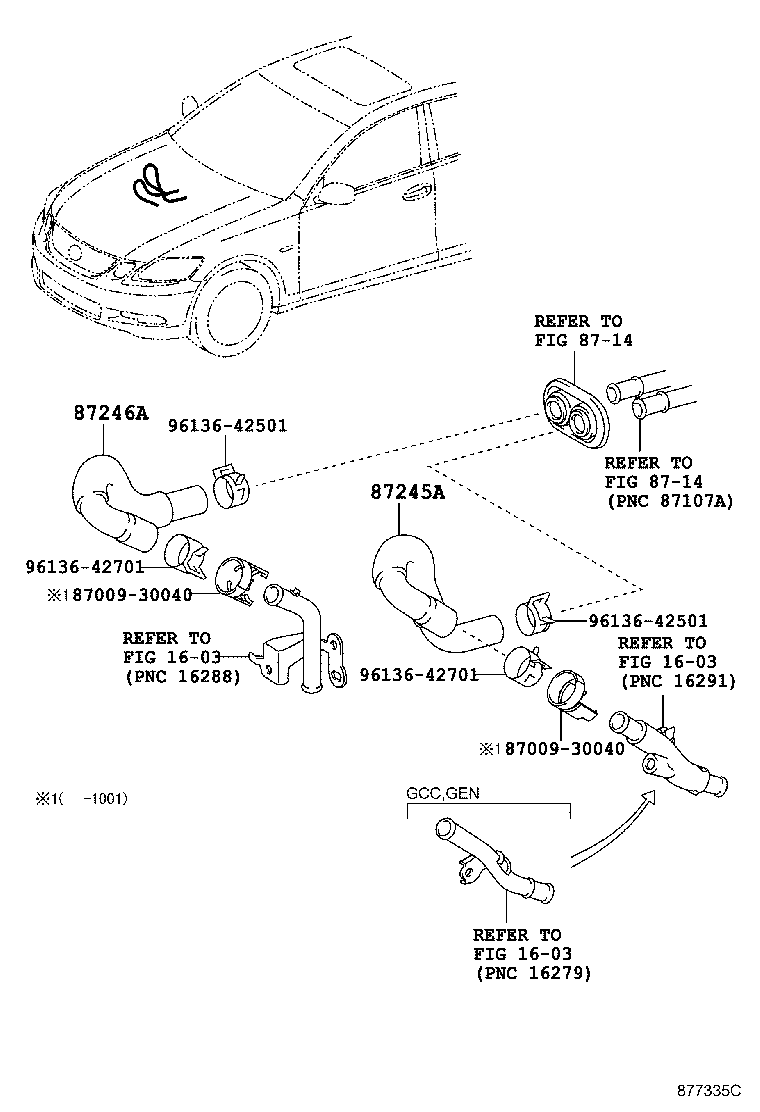

Click highlighted areas on diagram

diagram 1603 1603 1603 8700930040 8700930040 8714 8714 87245A 87246A 9613642501 9613642501 9613642701 9613642701
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-3F440

GRS190

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3F540

GRS190

 1
Common parts
87009-30040
96136-42501
96136-42701
Linked diagrams
1603
8714
