GRS190R-BETQHW (2005)
Toyota Lexus Gs30/35/43/460

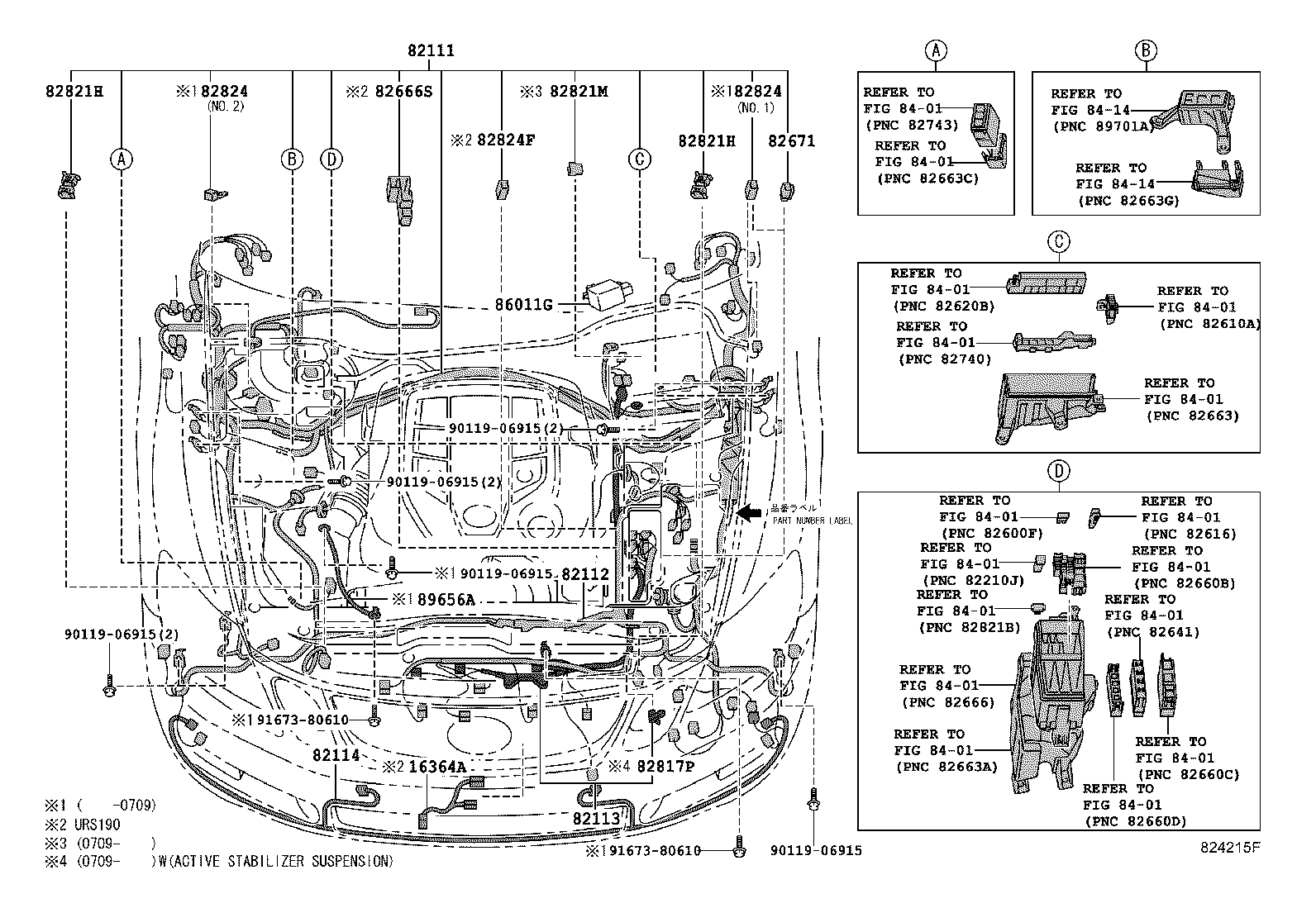

ILLUST NO. 1 OF10(0501- )RHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-30F50 |
GRS190..RHD..EUR CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82111-30F40 |
GRS190..RHD..EUR |
1 | ||
| 82111-30J60 |
GRS190..RHD..EUR AUSTRALIA SPEC |
1 | ||
| 82111-30J60 |
GRS190..RHD..EUR NEW ZEALAND SPEC |
1 | ||
| 82111-30J70 |
GRS190..RHD..EUR AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82111-30J70 |
GRS190..RHD..EUR NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82111-30R70 |
GRS190..RHD..EUR AUSTRALIA SPEC |
1 | ||
| 82111-30R80 |
GRS190..RHD..EUR AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82111-30S00 |
GRS190..RHD..EUR CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82111-30S50 |
GRS190..RHD..EUR HONG KONG SPEC |
1 | ||
| 82111-30S60 |
GRS190..RHD..EUR HONG KONG SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82111-30R80 |
GRS190..RHD..EUR NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82111-30R70 |
GRS190..RHD..EUR NEW ZEALAND SPEC |
1 | ||
| 82111-30R90 |
GRS190..RHD..EUR |
1 | ||
| 82111-30S50 |
GRS190..RHD..EUR SINGAPORE SPEC |
1 | ||
| 82111-30S60 |
GRS190..RHD..EUR SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82111-30F50 |
GRS190..RHD..EUR PART NUMBER LABEL=82111-30F50 |
1 | ||
| 82111-30F40 |
GRS190..RHD..EUR PART NUMBER LABEL=82111-30F40 |
1 | ||
| 82111-30J60 |
GRS190..RHD..EUR PART NUMBER LABEL=82111-30J60 |
1 | ||
| 82111-30J70 |
GRS190..RHD..EUR PART NUMBER LABEL=82111-30J70 |
1 | ||
| 82111-30R80 |
GRS190..RHD..EUR PART NUMBER LABEL=82111-30R80 |
1 | ||
| 82111-30S50 |
GRS190..RHD..EUR PART NUMBER LABEL=82111-30S50 |
1 | ||
| 82111-30R70 |
GRS190..RHD..EUR PART NUMBER LABEL=82111-30R70 |
1 | ||
| 82111-30S00 |
GRS190..RHD..EUR PART NUMBER LABEL=82111-30S00 |
1 | ||
| 82111-30S60 |
GRS190..RHD..EUR PART NUMBER LABEL=82111-30S60 |
1 | ||
| 82111-30R90 |
GRS190..RHD..EUR PART NUMBER LABEL=82111-30R90 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-30860 |
GRS190..EUR,GEN |
1 | ||
| 82112-30870 |
GRS190..EUR PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-30490 |
GRS190,UZS190..RHD..EUR |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-30070 |
GRS190,UZS190 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30350 |
GRS190..RHD..EUR HONG KONG SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82671-30350 |
GRS190..RHD..EUR SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82671-30350 |
GRS190..RHD..EUR SINGAPORE SPEC |
1 | ||
| 82671-30350 |
GRS190..RHD..EUR HONG KONG SPEC |
1 | ||
| 82671-30350 |
GRS190,UZS190 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-30650 |
GRS190,UZS190 |
2 | ||
| 82821-30650 |
GRS190..RHD..EUR HONG KONG SPEC |
2 | ||
| 82821-30650 |
GRS190..RHD..EUR SINGAPORE SPEC |
2 | ||
| 82821-30650 |
GRS190..RHD..EUR SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITH |
2 | ||
| 82821-30650 |
GRS190..RHD..EUR HONG KONG SPEC&CLEARANCE & BACK SONAR-WITH |
2 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-30650 |
GRS190,UZS190 |
2 | ||
| 82821-30650 |
GRS190..RHD..EUR HONG KONG SPEC |
2 | ||
| 82821-30650 |
GRS190..RHD..EUR SINGAPORE SPEC |
2 | ||
| 82821-30650 |
GRS190..RHD..EUR SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITH |
2 | ||
| 82821-30650 |
GRS190..RHD..EUR HONG KONG SPEC&CLEARANCE & BACK SONAR-WITH |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-28180 |
GRS190,UZS190 NO.1 |
2 | ||
| 82824-48020 |
GRS190,UZS190 NO.2 |
1 | ||
| 82824-28180 |
GRS190..RHD..EUR HONG KONG SPEC&CLEARANCE & BACK SONAR-WITH,NO.1 |
2 | ||
| 82824-28180 |
GRS190..RHD..EUR SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITH,NO.1 |
2 | ||
| 82824-28180 |
GRS190..RHD..EUR SINGAPORE SPEC,NO.1 |
2 | ||
| 82824-48020 |
GRS190..RHD..EUR SINGAPORE SPEC,NO.2 |
1 | ||
| 82824-48020 |
GRS190..RHD..EUR HONG KONG SPEC,NO.2 |
1 | ||
| 82824-48020 |
GRS190..RHD..EUR HONG KONG SPEC&CLEARANCE & BACK SONAR-WITH,NO.2 |
1 | ||
| 82824-48020 |
GRS190..RHD..EUR SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITH,NO.2 |
1 | ||
| 82824-28180 |
GRS190..RHD..EUR HONG KONG SPEC,NO.1 |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-28180 |
GRS190,UZS190 NO.1 |
2 | ||
| 82824-48020 |
GRS190,UZS190 NO.2 |
1 | ||
| 82824-28180 |
GRS190..RHD..EUR HONG KONG SPEC&CLEARANCE & BACK SONAR-WITH,NO.1 |
2 | ||
| 82824-28180 |
GRS190..RHD..EUR SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITH,NO.1 |
2 | ||
| 82824-28180 |
GRS190..RHD..EUR SINGAPORE SPEC,NO.1 |
2 | ||
| 82824-48020 |
GRS190..RHD..EUR SINGAPORE SPEC,NO.2 |
1 | ||
| 82824-48020 |
GRS190..RHD..EUR HONG KONG SPEC,NO.2 |
1 | ||
| 82824-48020 |
GRS190..RHD..EUR HONG KONG SPEC&CLEARANCE & BACK SONAR-WITH,NO.2 |
1 | ||
| 82824-48020 |
GRS190..RHD..EUR SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITH,NO.2 |
1 | ||
| 82824-28180 |
GRS190..RHD..EUR HONG KONG SPEC,NO.1 |
2 | ||
| 86011G - CONDENSER | ||||
| 86516-30470 |
GRS190,UZS190..RHD |
1 | ||
| 89656A - WIRE, POWER STEERING EARTH | ||||
| 89656-30010 |
GRS190,UZS190 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91673-80610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8414 | ||||

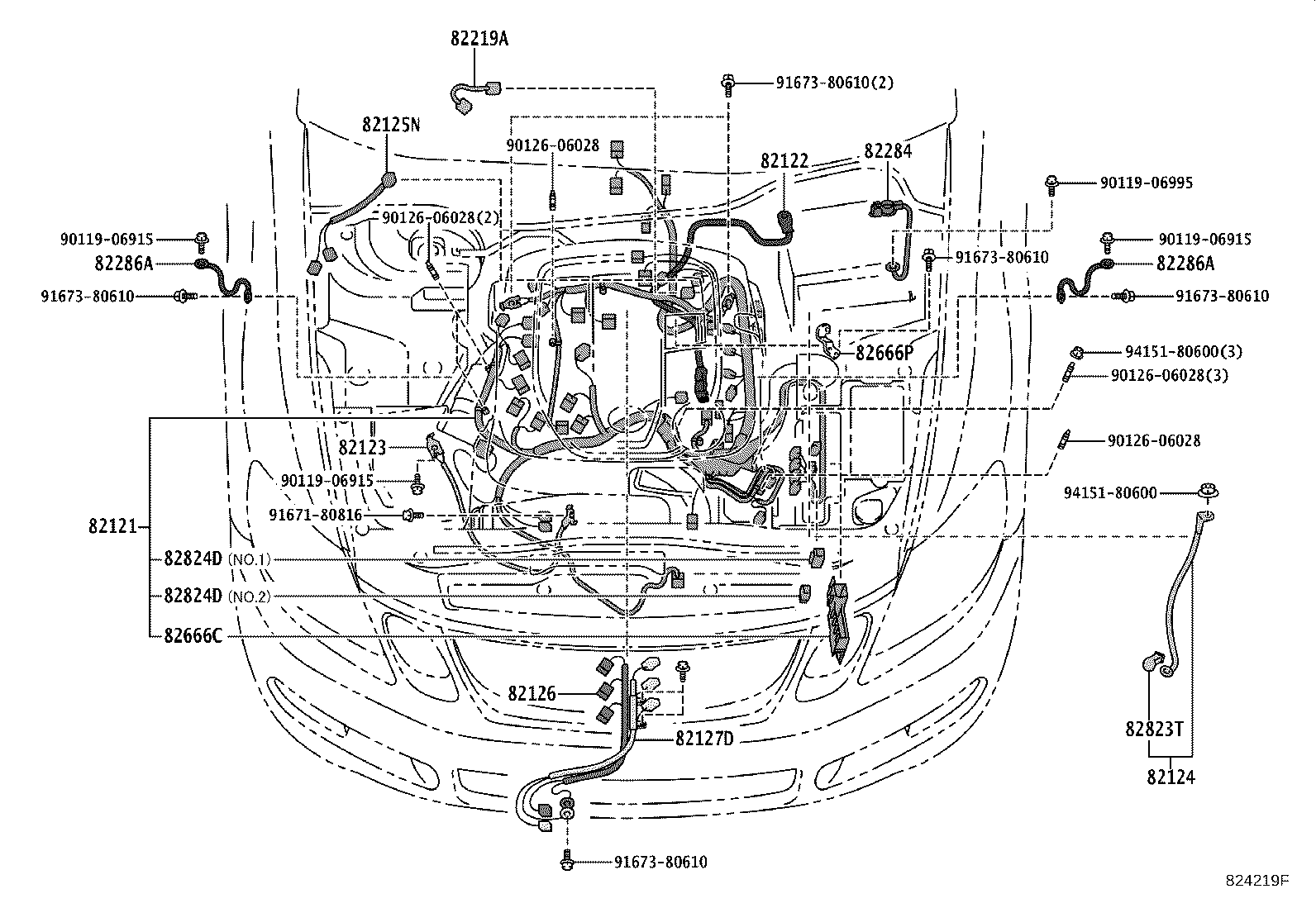

ILLUST NO. 2 OF10(0501- )GRS190..RHD
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-30B40 |
GRS190..RHD..EUR |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-30800 |
GRS190..RHD |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-30490 |
GRS190 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-30290 |
GRS190..RHD |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-30500 |
GRS190 |
1 | ||
| 82125-30530 |
GRS190 |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-30010 |
GRS190..EUR |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-30010 |
GRS190..EUR |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-30021 |
GRS190..EUR |
1 | ||
| 82219-30020 |
GRS190..EUR |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-30010 |
GRS190,UZS190..RHD |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-30010 |
GRS190 |
2 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-30010 |
GRS190 |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-30740 |
GRS190,UZS190 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-52010 |
GRS190,UZS190 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
GRS190,UZS190 NO.1 |
1 | ||
| 82824-30220 |
UZS190;GRS190..EUR NO.2 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
GRS190,UZS190 NO.1 |
1 | ||
| 82824-30220 |
UZS190;GRS190..EUR NO.2 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06995 | ||||
| 90126-06028 | ||||
| 91671-80816 | ||||
| 91673-80610 | ||||
| 94151-80600 | ||||
ILLUST NO. 3 OF10(0501- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-30J30 |
GRS190..RHD..EUR WITH(BACK MONITOR) |
1 | ||
| 82141-30J30 |
GRS190..RHD..EUR WITH(BACK GUIDE MONITOR) |
1 | ||
| 82141-30J10 |
GRS190..RHD..EUR |
1 | ||
| 82141-30J31 |
GRS190..RHD..EUR WITH(BACK GUIDE MONITOR) |
1 | ||
| 82141-30J11 |
GRS190..RHD..EUR |
1 | ||
| 82141-30J10 |
GRS190..RHD..EUR PART NUMBER LABEL=82141-30J10 |
1 | ||
| 82141-30J30 |
GRS190..RHD..EUR PART NUMBER LABEL=82141-30J30 |
1 | ||
| 82141-30J31 |
GRS190..RHD..EUR PART NUMBER LABEL=82141-30J31 |
1 | ||
| 82141-30J11 |
GRS190..RHD..EUR PART NUMBER LABEL=82141-30J11 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-30060 |
GRS190,UZS190 |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-30040 |
GRS190,UZS190 RH |
1 | ||
| 82734-30050 |
GRS190,UZS190 LH |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-30040 |
GRS190,UZS190 RH |
1 | ||
| 82734-30050 |
GRS190,UZS190 LH |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-33820 |
GRS190,UZS190 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-48110 |
GRS190,UZS190 |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-48110 |
GRS190,UZS190 |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8603 | ||||
ILLUST NO. 4 OF10(0501- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-30A90 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER |
1 | ||
| 82151-30B00 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,*MAR |
1 | ||
| 82151-30B00 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,*MAR |
1 | ||
| 82151-30A90 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER |
1 | ||
| 82151-30B20 |
GRS190,UZS190..RHD..EUR AUDIO-AM/FM/LW,CASSETTE,CD CHANGER,*MAR |
1 | ||
| 82151-30B10 |
GRS190,UZS190..RHD..EUR |
1 | ||
| 82151-30A91 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER |
1 | ||
| 82151-30B21 |
GRS190,UZS190..RHD..EUR AUDIO-AM/FM/LW,CASSETTE,CD CHANGER,*MAR |
1 | ||
| 82151-30B01 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,*MAR |
1 | ||
| 82151-30B01 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,*MAR |
1 | ||
| 82151-30A91 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER |
1 | ||
| 82151-30B01 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82151-30B01 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82151-30B21 |
GRS190,UZS190..RHD..EUR AUDIO-AM/FM/LW,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82151-30B01 |
GRS190..RHD..EUR SINGAPORE SPEC&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82151-30B11 |
GRS190,UZS190..RHD..EUR |
1 | ||
| 82151-30A91 |
GRS190..RHD..EUR HONG KONG SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER |
1 | ||
| 82151A - WIRE, FRONT DOOR, NO.2, RH | ||||
| 82155-30050 |
GRS190,UZS190..RHD |
1 | ||
| 82155-30060 |
GRS190,UZS190..RHD SEAT COVER MATERIAL-LEATHER |
1 | ||
| 82151B - WIRE, FRONT DOOR, NO.3, RH | ||||
| 82151-30B90 |
GRS190,UZS190 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-30A70 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,*MAR |
1 | ||
| 82152-30A60 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER |
1 | ||
| 82152-30A60 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER |
1 | ||
| 82152-30A70 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,*MAR |
1 | ||
| 82152-30A90 |
GRS190,UZS190..RHD..EUR AUDIO-AM/FM/LW,CASSETTE,CD CHANGER,*MAR |
1 | ||
| 82152-30A91 |
GRS190,UZS190..RHD..EUR AUDIO-AM/FM/LW,CASSETTE,CD CHANGER,*MAR |
1 | ||
| 82152-30A71 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,*MAR |
1 | ||
| 82152-30A80 |
GRS190,UZS190..RHD..EUR |
1 | ||
| 82152-30A71 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,*MAR |
1 | ||
| 82152-30A61 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER |
1 | ||
| 82152-30A81 |
GRS190,UZS190..RHD..EUR |
1 | ||
| 82152-30A61 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER |
1 | ||
| 82152-30A71 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82152-30A61 |
GRS190..RHD..EUR HONG KONG SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER |
1 | ||
| 82152-30A91 |
GRS190,UZS190..RHD..EUR AUDIO-AM/FM/LW,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82152-30A71 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82152-30A71 |
GRS190..RHD..EUR SINGAPORE SPEC&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82156-30050 |
GRS190,UZS190..RHD SEAT COVER MATERIAL-LEATHER |
1 | ||
| 82156-30040 |
GRS190,UZS190..RHD |
1 | ||
| 82152B - WIRE, FRONT DOOR, NO.3, LH | ||||
| 82151-30B90 |
GRS190,UZS190 |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-30570 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER |
1 | ||
| 82153-30570 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,*MAR |
1 | ||
| 82153-30570 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER |
1 | ||
| 82153-30570 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,*MAR |
1 | ||
| 82153-30580 |
GRS190,UZS190..RHD..EUR |
1 | ||
| 82153-30570 |
GRS190..RHD..EUR SINGAPORE SPEC |
1 | ||
| 82153-30570 |
GRS190..RHD..EUR HONG KONG SPEC |
1 | ||
| 82153-30570 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC |
1 | ||
| 82153-30570 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82157-30070 |
GRS190,UZS190 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-30490 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER |
1 | ||
| 82154-30490 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,*MAR |
1 | ||
| 82154-30490 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER |
1 | ||
| 82154-30490 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,*MAR |
1 | ||
| 82154-30490 |
GRS190..RHD..EUR HONG KONG SPEC |
1 | ||
| 82154-30500 |
GRS190,UZS190..RHD..EUR |
1 | ||
| 82154-30490 |
GRS190..RHD..EUR SINGAPORE SPEC |
1 | ||
| 82154-30490 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC |
1 | ||
| 82154-30490 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82158-30070 |
GRS190,UZS190 |
1 | ||
| Common parts | ||||
| 91671-80614 | ||||
ILLUST NO. 7 OF10(0501- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-30200 |
GRS190,UZS190 SEAT COVER MATERIAL-LEATHER |
1 | ||
| 82191-30260 |
GRS190,UZS190 SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT) |
1 | ||
| 82191-30250 |
GRS190,UZS190 |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-30180 |
GRS190,UZS190 SEAT COVER MATERIAL-LEATHER |
1 | ||
| 82192-30200 |
GRS190,UZS190 |
1 | ||
| 82192-30210 |
GRS190,UZS190 SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT) |
1 | ||
| 82671L - BLOCK, JUNCTION, NO.4 | ||||
| 82671-30350 |
GRS190,UZS190 |
1 | ||
| 82671M - BLOCK, JUNCTION, NO.5 | ||||
| 82671-30350 |
GRS190,UZS190 |
1 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-22080 |
GRS190,UZS190 SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT) |
1 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-22080 |
GRS190,UZS190 SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT) |
1 | ||
ILLUST NO. 8 OF10(0501- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 19313-38010 | ||||
| 77411-30060 | ||||
| 82711-3A460 | ||||
| 82715-22140 | ||||
| 82715-30720 | ||||
| 82715-30740 | ||||
| 82715-30A10 | ||||
| 82715-30A20 | ||||
| 82715-30B10 | ||||
| 82715-30B90 | ||||
| 82715-30D50 | ||||
| 82715-30D60 | ||||
| 82715-30D80 | ||||
| 82715-30E00 | ||||
| 82715-30E10 | ||||
| 82715-30E20 | ||||
| 82715-30E60 | ||||
| 82715-30F00 | ||||
| 82715-30G30 | ||||
| 82715-30K10 | ||||
| 82715-30K30 | ||||
| 82715-30K40 | ||||
| 82715-30L90 | ||||
| 82715-30M10 | ||||
| 82715-30N00 | ||||
| 82715-50520 | ||||
| 82715-50690 | ||||
| 82715-50700 | ||||
| 82715-50720 | ||||
| 82715-53500 | ||||
| 82729-30040 | ||||
| 90119-06375 | ||||
| 90119-06915 | ||||
| 90269-05037 | ||||
| 91553-80612 | ||||
| 91553-80614 | ||||
| 91621-B0616 | ||||
| 91621-J0612 | ||||
| 91621-J0814 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80610 | ||||
| 91674-80814 | ||||
| 93568-55014 | ||||
ILLUST NO. 9 OF10(0501- )GRS19#,UZS190
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001D - CABLE, BOND, NO.3 | ||||
| 90980-07418 |
GRS190,UZS190 |
1 | ||
| 82001D - CABLE, BOND, NO.3 | ||||
| 90980-07418 |
GRS190,UZS190 |
1 | ||
| Common parts | ||||
| 90119-10699 | ||||
| 90179-06161 | ||||
| 90179-06178 | ||||
| 91651-60816 | ||||
ILLUST NO.10 OF10(0501- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-11060 | ||||
| 90980-11399 | ||||
| 90980-11660 | ||||
| 90980-11875 | ||||
| 90980-11893 | ||||
| 90980-11917 | ||||
ILLUST NO. 5 OF10(0501- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-30E70 |
GRS190..RHD..EUR |
1 | ||
| 82161-30F50 |
GRS190..RHD..EUR NEW ZEALAND SPEC |
1 | ||
| 82161-30E71 |
GRS190..RHD..EUR |
1 | ||
| 82161-30F51 |
GRS190..RHD..EUR NEW ZEALAND SPEC |
1 | ||
| 82161-30F51 |
GRS190..RHD..EUR AUSTRALIA SPEC |
1 | ||
| 82161-30E72 |
GRS190..RHD..EUR |
1 | ||
| 82161-30F50 |
GRS190..RHD..EUR AUSTRALIA SPEC |
1 | ||
| 82161-30F52 |
GRS190..RHD..EUR NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER |
1 | ||
| 82161-30F52 |
GRS190..RHD..EUR HONG KONG SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CDCHANGER,10SPEAKER |
1 | ||
| 82161-30F51 |
GRS190..RHD..EUR SOUTH AFRICA SPEC |
1 | ||
| 82161-30L30 |
GRS190..RHD..EUR AUDIO-AM/FM/LW,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82161-30L50 |
GRS190..RHD..EUR SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/LW,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82161-30L50 |
GRS190..RHD..EUR SINGAPORE SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82161-30F52 |
GRS190..RHD..EUR AUSTRALIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CDCHANGER,10SPEAKER |
1 | ||
| 82161-30L50 |
GRS190..RHD..EUR AUSTRALIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82161-30L50 |
GRS190..RHD..EUR NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82161-30F52 |
GRS190..RHD..EUR SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT |
1 | ||
| 82161-30E70 |
GRS190..RHD..EUR PART NUMBER LABEL=82161-30E70 |
1 | ||
| 82161-30F50 |
GRS190..RHD..EUR PART NUMBER LABEL=82161-30F50 |
1 | ||
| 82161-30F51 |
GRS190..RHD..EUR PART NUMBER LABEL=82161-30F51 |
1 | ||
| 82161-30E71 |
GRS190..RHD..EUR PART NUMBER LABEL=82161-30E71 |
1 | ||
| 82161-30F51 |
GRS190..RHD..EUR PART NUMBER LABEL=82161-30F51 |
1 | ||
| 82161-30E72 |
GRS190..RHD..EUR PART NUMBER LABEL=82161-30E72 |
1 | ||
| 82161-30F52 |
GRS190..RHD..EUR PART NUMBER LABEL=82161-30F52 |
1 | ||
| 82161-30L50 |
GRS190..RHD..EUR PART NUMBER LABEL=82161-30L50 |
1 | ||
| 82161-30L30 |
GRS190..RHD..EUR PART NUMBER LABEL=82161-30L30 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-30C31 |
GRS190..RHD |
1 | ||
| 82162-30C30 |
GRS190..RHD |
1 | ||
| 82162-30C32 |
GRS190..RHD |
1 | ||
| 82162-30C30 |
GRS190..RHD PART NUMBER LABEL=82162-30C30 |
1 | ||
| 82162-30C31 |
GRS190..RHD PART NUMBER LABEL=82162-30C31 |
1 | ||
| 82162-30C32 |
GRS190..RHD PART NUMBER LABEL=82162-30C32 |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-30160 |
GRS190,UZS190 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-30B90 |
GRS190,UZS190..RHD MOON ROOF-WITH |
1 | ||
| 82171-30B80 |
GRS190,UZS190..RHD INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82171-30B70 |
GRS190,UZS190..RHD |
1 | ||
| 82171-30C00 |
GRS190,UZS190..RHD MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82171-30B80 |
GRS190,UZS190..RHD PART NUMBER LABEL=82171-30B80 |
1 | ||
| 82171-30B90 |
GRS190,UZS190..RHD PART NUMBER LABEL=82171-30B90 |
1 | ||
| 82171-30B70 |
GRS190,UZS190..RHD PART NUMBER LABEL=82171-30B70 |
1 | ||
| 82171-30C00 |
GRS190,UZS190..RHD PART NUMBER LABEL=82171-30C00 |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-30190 |
GRS190,UZS190 |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-30090 |
GRS190,UZS190 |
1 | ||
| 82182-30100 |
GRS190,UZS190 WITH(BACK MONITOR) |
1 | ||
| 82182-30100 |
GRS190,UZS190..EUR WITH(BACK GUIDE MONITOR) |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-30050 |
GRS190,UZS190 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-16030 |
GRS190..RHD..EUR SOUTH AFRICA SPEC |
1 | ||
| 82666-16030 |
GRS190,UZS190 |
1 | ||
| 82666-16030 |
GRS190..RHD..EUR HONG KONG SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CDCHANGER,10SPEAKER |
1 | ||
| 82666-16030 |
GRS190,UZS190..EUR AUDIO-AM/FM/LW,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82666-16030 |
GRS190..RHD..EUR SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT |
1 | ||
| 82666-16030 |
GRS190..RHD..EUR NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER |
1 | ||
| 82666-16030 |
GRS190..RHD..EUR NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82666-16030 |
GRS190..RHD..EUR AUSTRALIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CDCHANGER,10SPEAKER |
1 | ||
| 82666-16030 |
GRS190..RHD..EUR SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/LW,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82666-16030 |
GRS190..RHD..EUR AUSTRALIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82666-16030 |
GRS190..RHD..EUR SINGAPORE SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-30790 |
GRS190..RHD..EUR SOUTH AFRICA SPEC |
1 | ||
| 82666-30790 |
GRS190,UZS190 |
1 | ||
| 82666-30790 |
GRS190..RHD..EUR SINGAPORE SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82666-30790 |
GRS190..RHD..EUR NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER |
1 | ||
| 82666-30790 |
GRS190,UZS190..EUR AUDIO-AM/FM/LW,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82666-30790 |
GRS190..RHD..EUR SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT |
1 | ||
| 82666-30790 |
GRS190..RHD..EUR NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82666-30790 |
GRS190..RHD..EUR HONG KONG SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CDCHANGER,10SPEAKER |
1 | ||
| 82666-30790 |
GRS190..RHD..EUR AUSTRALIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CDCHANGER,10SPEAKER |
1 | ||
| 82666-30790 |
GRS190..RHD..EUR SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/LW,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82666-30790 |
GRS190..RHD..EUR AUSTRALIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-30800 |
GRS190,UZS190 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-30770 |
GRS190,UZS190 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-20270 |
GRS190,UZS190 |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-21040 |
GRS190,UZS190 |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-60220 |
GRS190,UZS190 |
1 | ||
| 82705 - SPOOL SUB-ASSY, WIRING HARNESS | ||||
| 82705-30080 |
GRS190,UZS190 WITH(BACK MONITOR) |
1 | ||
| 82705-30060 |
GRS190,UZS190 |
1 | ||
| 82705-30080 |
GRS190,UZS190..EUR WITH(BACK GUIDE MONITOR) |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-30A10 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC,COWL SIDE |
1 | ||
| 82817-30A10 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC,COWL SIDE |
1 | ||
| 82817-48230 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC,CENTER PILLAR |
1 | ||
| 82817-30A10 |
GRS190..RHD..EUR SOUTH AFRICA SPEC,COWL SIDE |
1 | ||
| 82817-30A10 |
GRS190,UZS190 COWL SIDE |
1 | ||
| 82817-48230 |
GRS190,UZS190 CENTER PILLAR |
1 | ||
| 82817-48230 |
GRS190..RHD..EUR SOUTH AFRICA SPEC,CENTER PILLAR |
1 | ||
| 82817-48230 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC,CENTER PILLAR |
1 | ||
| 82817-30A10 |
GRS190..RHD..EUR HONG KONG SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CDCHANGER,10SPEAKER,COWL SIDE |
1 | ||
| 82817-30A10 |
GRS190..RHD..EUR SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT,COWL SIDE |
1 | ||
| 82817-30A10 |
GRS190..RHD..EUR SINGAPORE SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR,COWL SIDE |
1 | ||
| 82817-30A10 |
GRS190..RHD..EUR NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER,COWL SIDE |
1 | ||
| 82817-30A10 |
GRS190,UZS190..EUR AUDIO-AM/FM/LW,CASSETTE,DVD CHANGER,*MAR,COWL SIDE |
1 | ||
| 82817-30A10 |
GRS190..RHD..EUR SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/LW,CASSETTE,DVD CHANGER,*MAR,COWL SIDE |
1 | ||
| 82817-30A10 |
GRS190..RHD..EUR AUSTRALIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CDCHANGER,10SPEAKER,COWL SIDE |
1 | ||
| 82817-48230 |
GRS190,UZS190..EUR AUDIO-AM/FM/LW,CASSETTE,DVD CHANGER,*MAR,CENTER PILLAR |
1 | ||
| 82817-48230 |
GRS190..RHD..EUR HONG KONG SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CDCHANGER,10SPEAKER,CENTER PILLAR |
1 | ||
| 82817-48230 |
GRS190..RHD..EUR SINGAPORE SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR,CENTER PILLAR |
1 | ||
| 82817-30A10 |
GRS190..RHD..EUR AUSTRALIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR,COWL SIDE |
1 | ||
| 82817-48230 |
GRS190..RHD..EUR NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR,CENTER PILLAR |
1 | ||
| 82817-48230 |
GRS190..RHD..EUR SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/LW,CASSETTE,DVD CHANGER,*MAR,CENTER PILLAR |
1 | ||
| 82817-48230 |
GRS190..RHD..EUR AUSTRALIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CDCHANGER,10SPEAKER,CENTER PILLAR |
1 | ||
| 82817-30A10 |
GRS190..RHD..EUR NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR,COWL SIDE |
1 | ||
| 82817-48230 |
GRS190..RHD..EUR SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT,CENTER PILLAR |
1 | ||
| 82817-48230 |
GRS190..RHD..EUR NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER,CENTER PILLAR |
1 | ||
| 82817-48230 |
GRS190..RHD..EUR AUSTRALIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR,CENTER PILLAR |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-30A10 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC,COWL SIDE |
1 | ||
| 82817-30A10 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC,COWL SIDE |
1 | ||
| 82817-48230 |
GRS190,UZS190..RHD..EUR NEW ZEALAND SPEC,CENTER PILLAR |
1 | ||
| 82817-30A10 |
GRS190..RHD..EUR SOUTH AFRICA SPEC,COWL SIDE |
1 | ||
| 82817-30A10 |
GRS190,UZS190 COWL SIDE |
1 | ||
| 82817-48230 |
GRS190,UZS190 CENTER PILLAR |
1 | ||
| 82817-48230 |
GRS190..RHD..EUR SOUTH AFRICA SPEC,CENTER PILLAR |
1 | ||
| 82817-48230 |
GRS190,UZS190..RHD..EUR AUSTRALIA SPEC,CENTER PILLAR |
1 | ||
| 82817-30A10 |
GRS190..RHD..EUR HONG KONG SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CDCHANGER,10SPEAKER,COWL SIDE |
1 | ||
| 82817-30A10 |
GRS190..RHD..EUR SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT,COWL SIDE |
1 | ||
| 82817-30A10 |
GRS190..RHD..EUR SINGAPORE SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR,COWL SIDE |
1 | ||
| 82817-30A10 |
GRS190..RHD..EUR NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER,COWL SIDE |
1 | ||
| 82817-30A10 |
GRS190,UZS190..EUR AUDIO-AM/FM/LW,CASSETTE,DVD CHANGER,*MAR,COWL SIDE |
1 | ||
| 82817-30A10 |
GRS190..RHD..EUR SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/LW,CASSETTE,DVD CHANGER,*MAR,COWL SIDE |
1 | ||
| 82817-30A10 |
GRS190..RHD..EUR AUSTRALIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CDCHANGER,10SPEAKER,COWL SIDE |
1 | ||
| 82817-48230 |
GRS190,UZS190..EUR AUDIO-AM/FM/LW,CASSETTE,DVD CHANGER,*MAR,CENTER PILLAR |
1 | ||
| 82817-48230 |
GRS190..RHD..EUR HONG KONG SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CDCHANGER,10SPEAKER,CENTER PILLAR |
1 | ||
| 82817-48230 |
GRS190..RHD..EUR SINGAPORE SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR,CENTER PILLAR |
1 | ||
| 82817-30A10 |
GRS190..RHD..EUR AUSTRALIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR,COWL SIDE |
1 | ||
| 82817-48230 |
GRS190..RHD..EUR NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR,CENTER PILLAR |
1 | ||
| 82817-48230 |
GRS190..RHD..EUR SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/LW,CASSETTE,DVD CHANGER,*MAR,CENTER PILLAR |
1 | ||
| 82817-48230 |
GRS190..RHD..EUR AUSTRALIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CDCHANGER,10SPEAKER,CENTER PILLAR |
1 | ||
| 82817-30A10 |
GRS190..RHD..EUR NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR,COWL SIDE |
1 | ||
| 82817-48230 |
GRS190..RHD..EUR SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT,CENTER PILLAR |
1 | ||
| 82817-48230 |
GRS190..RHD..EUR NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,CD CHANGER,10SPEAKER,CENTER PILLAR |
1 | ||
| 82817-48230 |
GRS190..RHD..EUR AUSTRALIA SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT&AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR,CENTER PILLAR |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-30A10 |
GRS190,UZS190 COWL SIDE |
1 | ||
| 82817-48230 |
GRS190,UZS190 CENTER PILLAR |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-48230 |
GRS190,UZS190 CENTER PILLAR |
1 | ||
| 82817-30A10 |
GRS190,UZS190 COWL SIDE |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50220 |
GRS190,UZS190 NO.1 |
1 | ||
| 82824-50230 |
GRS190,UZS190 SUN SHADE-WITH,NO.1 |
1 | ||
| 82824-50250 |
GRS190,UZS190 NO.2 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50220 |
GRS190,UZS190 NO.1 |
1 | ||
| 82824-50230 |
GRS190,UZS190 SUN SHADE-WITH,NO.1 |
1 | ||
| 82824-50250 |
GRS190,UZS190 NO.2 |
1 | ||
| 82825E - CONNECTOR, WIRING HARNESS | ||||
| 82817-30C30 |
GRS190,UZS190 |
1 | ||
| Common parts | ||||
| 61824-30090 | ||||
| 61824-30140 | ||||
| 90119-06915 | ||||
| 90179-06219 | ||||
| 91621-B0616 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8601 | ||||
ILLUST NO. 8 OF10(0501- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 17894-38010 | ||||
| 82715-22800 | ||||
| 82715-30A30 | ||||
| 82715-30A40 | ||||
| 82715-30A50 | ||||
| 82715-30A60 | ||||
| 82715-30A70 | ||||
| 82715-30A80 | ||||
| 82715-30A90 | ||||
| 82715-30B00 | ||||
| 82715-30B90 | ||||
| 82715-30C10 | ||||
| 82715-30C70 | ||||
| 82715-30E30 | ||||
| 82715-30E90 | ||||
| 82715-30K00 | ||||
| 82715-30L10 | ||||
| 82715-30L20 | ||||
| 82715-30L30 | ||||
| 82715-30L40 | ||||
| 82715-30L50 | ||||
| 82715-3A040 | ||||
| 82715-3A050 | ||||
| 82715-50350 | ||||
| 82715-50440 | ||||
| 82715-50510 | ||||
| 82715-50540 | ||||
| 82715-50600 | ||||
| 82715-50640 | ||||
| 82715-50660 | ||||
| 82715-50670 | ||||
| 82715-50680 | ||||
| 82715-50780 | ||||
| 82715-50790 | ||||
| 82715-50860 | ||||
| 82729-30020 | ||||
| 90119-06375 | ||||
| 91551-A0612 | ||||
| 91621-J0612 | ||||
| 91621-J0814 | ||||
| 91671-80610 | ||||
| 91671-80614 | ||||
| 91671-F0820 | ||||
| 91673-80610 | ||||
| 91673-80614 | ||||
| 91673-80820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
