GRS190R-BETQHW (2005)

Toyota Lexus Gs30/35/43/460

Production Jan 2005 - Sep 2007
Engine 3GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

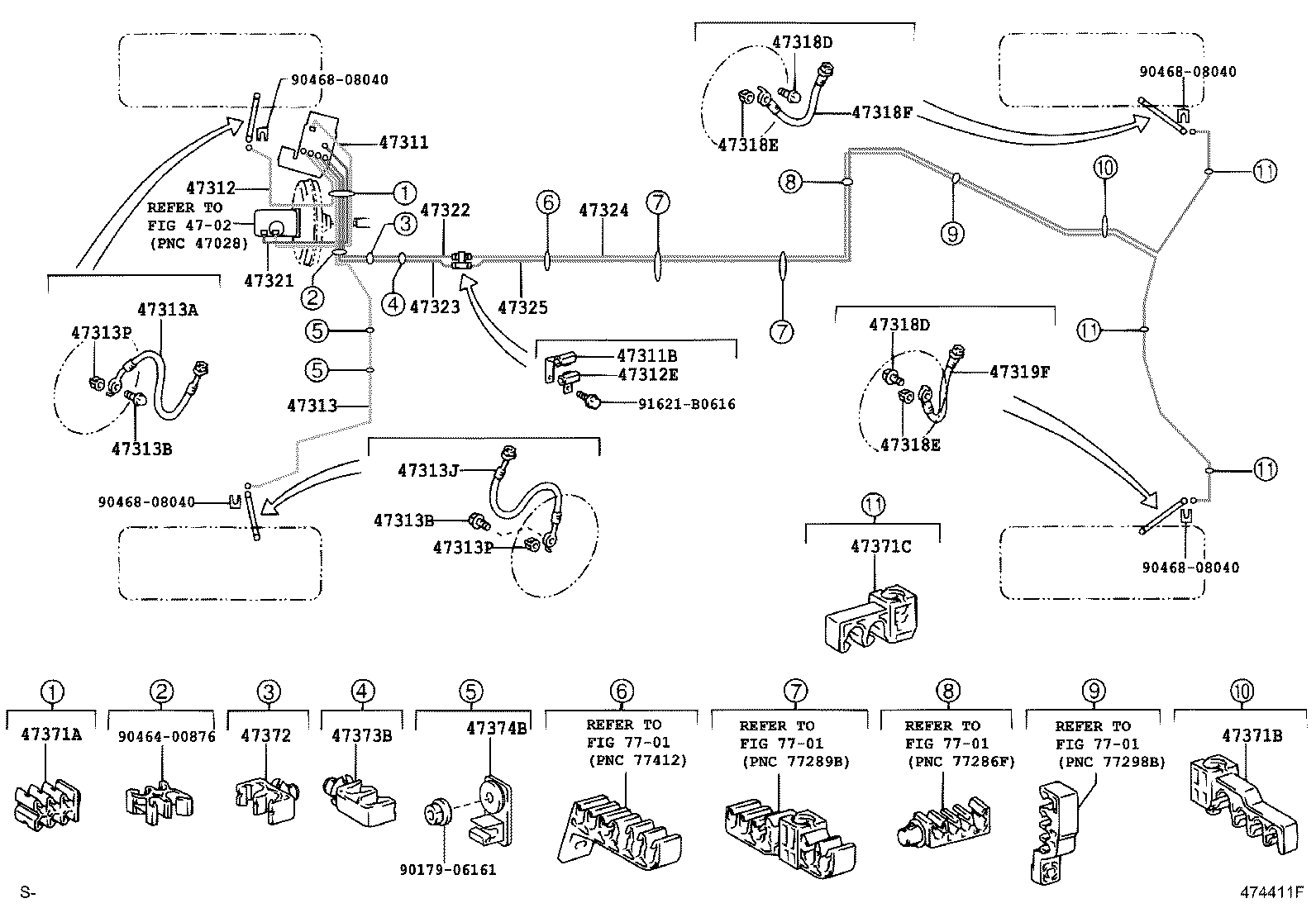

ILLUST NO. 1 OF 2(0501- )GRS190..RHD

Click highlighted areas on diagram

diagram 4702 47311 47311B 47312 47312E 47313 47313A 47313B 47313B 47313J 47313P 47313P 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47325 47371A 47371B 47371C 47372 47373B 47374B 7701 7701 7701 7701 9017906161 9046400876 9046808040 9046808040 9046808040 9046808040 91621B0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-30680

GRS190..RHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10250

GRS190,UZS190

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-30560

GRS190..RHD

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10144

GRS190,UZS190

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-30570

GRS190..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F66

GRS190,UZS190

 1
90947-02E06

GRS190,UZS190

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GRS190,UZS190

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GRS190,UZS190

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02F66

GRS190,UZS190

 1
90947-02E06

GRS190,UZS190

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GRS190,UZS190

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GRS190,UZS190

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GRS190,UZS190

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GRS190,UZS190

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

GRS190,UZS190

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

GRS190,UZS190

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02D88

GRS190,UZS190

 1
90947-02F67

GRS190,UZS190

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02F67

GRS190,UZS190

 1
90947-02D88

GRS190,UZS190

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-30390

GRS190..RHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-30330

GRS190..RHD

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-30290

GRS190..RHD

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-30310

GRS190,UZS190

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-30090

GRS190,UZS190

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01C51

GRS190

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D09

GRS190

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90949-01D11

GRS190,UZS190

 3
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D12

GRS190,UZS190

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D13

GRS190,UZS190

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-04036

GRS190,UZS190..RHD

 2
Common parts
90179-06161
90464-00876
90468-08040
91621-B0616
Linked diagrams
4702
7701

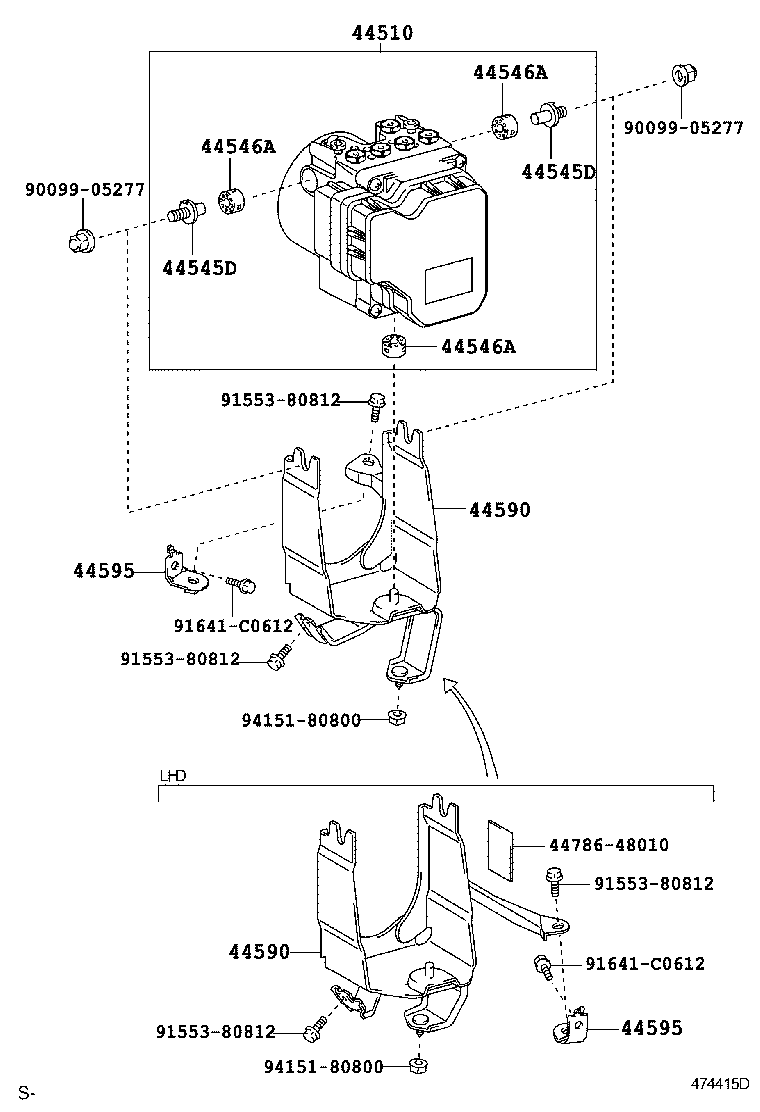

ILLUST NO. 2 OF 2(0501- )GRS19#

Click highlighted areas on diagram

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 44590 44595 44595 4478648010 9009905277 9009905277 9155380812 9155380812 9155380812 9155380812 91641C0612 91641C0612 9415180800 9415180800
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-30170

GRS190..EUR

PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE

 1
44050-30160

GRS190

 1
44050-30400

GRS190

 1
44050-30410

GRS190..EUR

PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

GRS190

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

GRS190

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GRS190

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GRS190

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GRS190

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-30100

GRS190..RHD

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-30100

GRS190..RHD

 1
44595 - BRACKET, BRAKE ACTUATOR, NO.5
44595-30010

GRS190,UZS190

 1
44595 - BRACKET, BRAKE ACTUATOR, NO.5
44595-30010

GRS190,UZS190

 1
Common parts
44786-48010
90099-05277
91553-80812
91641-C0612
94151-80800
