GRS190R-BETQHW (2005)

Toyota Lexus Gs30/35/43/460

Production Jan 2005 - Sep 2007
Engine 3GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )GRS190..EUR

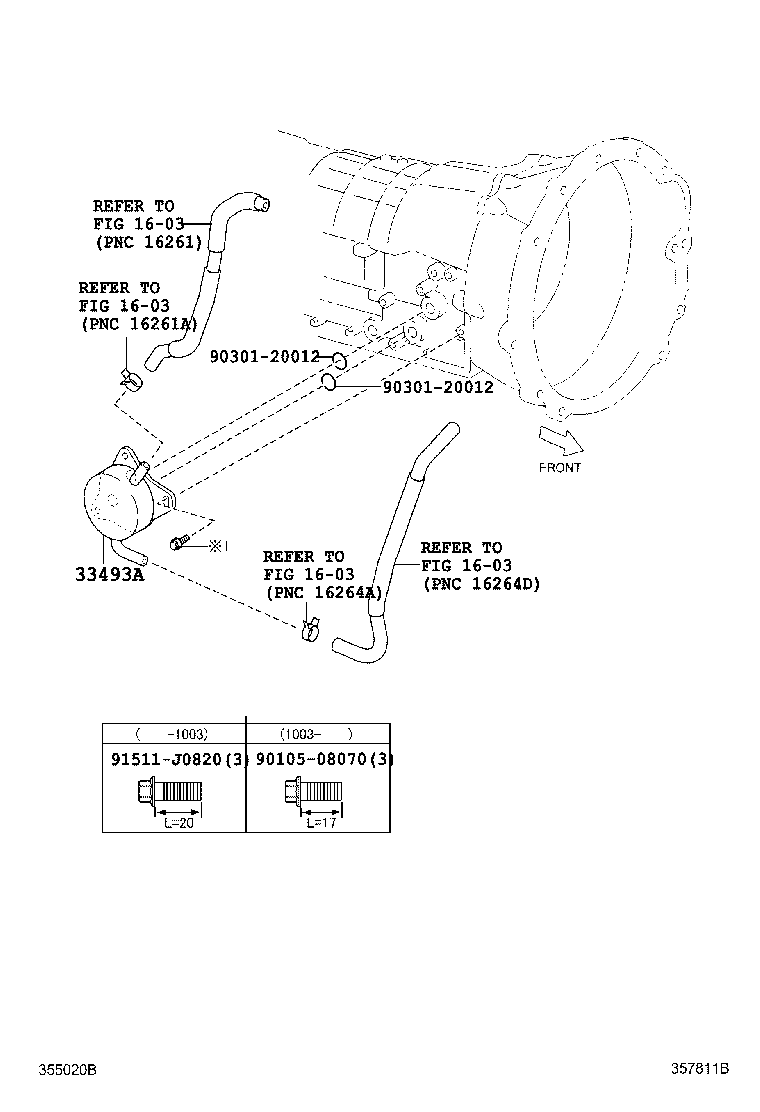

Click highlighted areas on diagram

A960E

diagram 1603 1603 1603 1603 33493A 9010508070 9030120012 9030120012 91511J0820
Part # Description Qty Price
33493A - COOLER, TRANSMISSION OIL
33493-22030

GRS190..EUR

 1
Common parts
90105-08070
90301-20012
91511-J0820
Linked diagrams
1603
