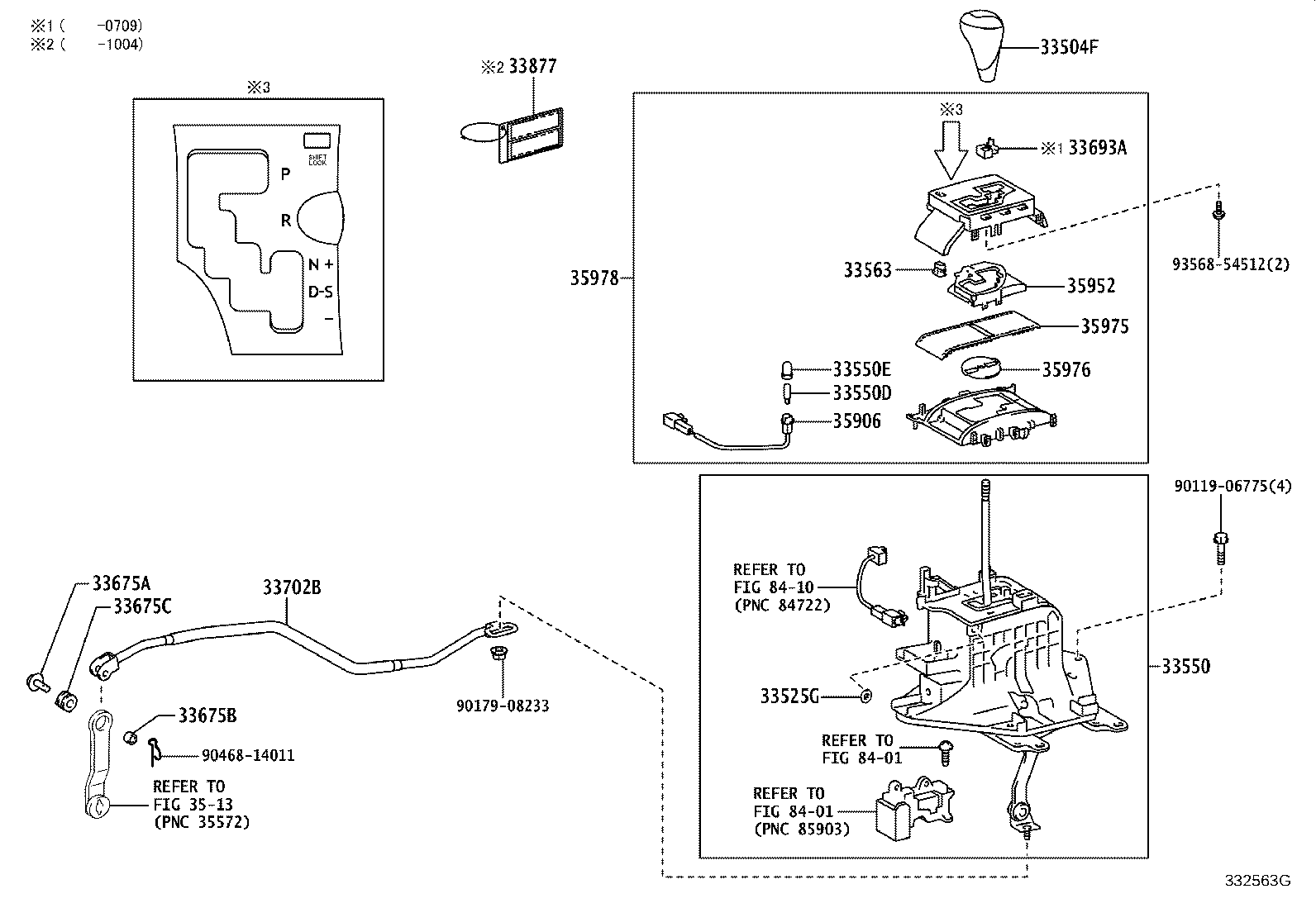

GRS190R-BETQHW (2005)
Toyota Lexus Gs30/35/43/460
(0501- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-30340C2 |
GRS190 BLACK,TRIM1#,2# |
1 | ||
| 33504-30350C1 |
GRS190 STEERING WHEEL-3-SPOKE WOOD & LEATHER,REDDISH BROWN,TRIM2# |
1 | ||
| 33504-30360E0 |
GRS190 STEERING WHEEL-3-SPOKE WOOD & LEATHER,MIDIUM BROWN,TRIM0# |
1 | ||
| 33504-30361C0 |
GRS190 STEERING WHEEL-3-SPOKE WOOD & LEATHER,BLACK & DK.GRAY,TRIM1# |
1 | ||
| 33504-30360C0 |
GRS190 STEERING WHEEL-3-SPOKE WOOD & LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 33504-30341E1 |
GRS190 ORCHID BROWN,TRIM0# |
1 | ||
| 33504-30340E1 |
GRS190 ORCHID BROWN,TRIM0# |
1 | ||
| 33504-30341C2 |
GRS190 BLACK,TRIM1#,2# |
1 | ||
| 33504-30361E0 |
GRS190 STEERING WHEEL-3-SPOKE WOOD & LEATHER,ORCHID BROWN,TRIM0# |
1 | ||
| 33504-30351C1 |
GRS190 STEERING WHEEL-3-SPOKE WOOD & LEATHER,BLACK & REDDISH BROWN,TRIM2# |
1 | ||
| 33525G - RING, SHIFT LEVER | ||||
| 33525-50020 |
GRS190,UZS190 |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-30A90 |
GRS190,UZS190..RHD |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
GRS190,UZS190 12V 1.2W W/O SOCKET |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04049 |
GRS190,UZS190 |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-30170 |
GRS190,UZS190 |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 33726-30020 |
GRS190,UZS190 |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90560-08091 |
GRS190,UZS190 |
1 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17013 |
GRS190,UZS190 |
1 | ||
| 33693A - SHIM, SHIFT LEVER ADJUSTING (FOR FLOOR SHIFT) | ||||
| 33693-30120 |
GRS190,UZS190 |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-22140 |
GRS190..EUR |
1 | ||
| 33877 - LABEL, SHIFT LOCK INFORMATION, NO.1 | ||||
| 33877-50030 |
GRS190,UZS190 |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-30160 |
GRS190,UZS190..RHD |
1 | ||
| 35952 - LENS, POSITION INDICATOR | ||||
| 35952-30110 |
GRS190,UZS190..RHD |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-30280 |
GRS190,UZS190 |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-30090 |
GRS190,UZS190 |
1 | ||
| 35978 - INDICATOR, SHIFT POSITION | ||||
| 35978-30010 |
GRS190,UZS190..RHD |
1 | ||
| Common parts | ||||
| 90119-06775 | ||||
| 90179-08233 | ||||
| 90468-14011 | ||||
| 93568-54512 | ||||
| Linked diagrams | ||||
| 3513 | ||||
| 8401 | ||||
| 8410 | ||||
