GRS190R-BETQHW (2005)

Toyota Lexus Gs30/35/43/460

Production Jan 2005 - Sep 2007
Engine 3GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )3GR#

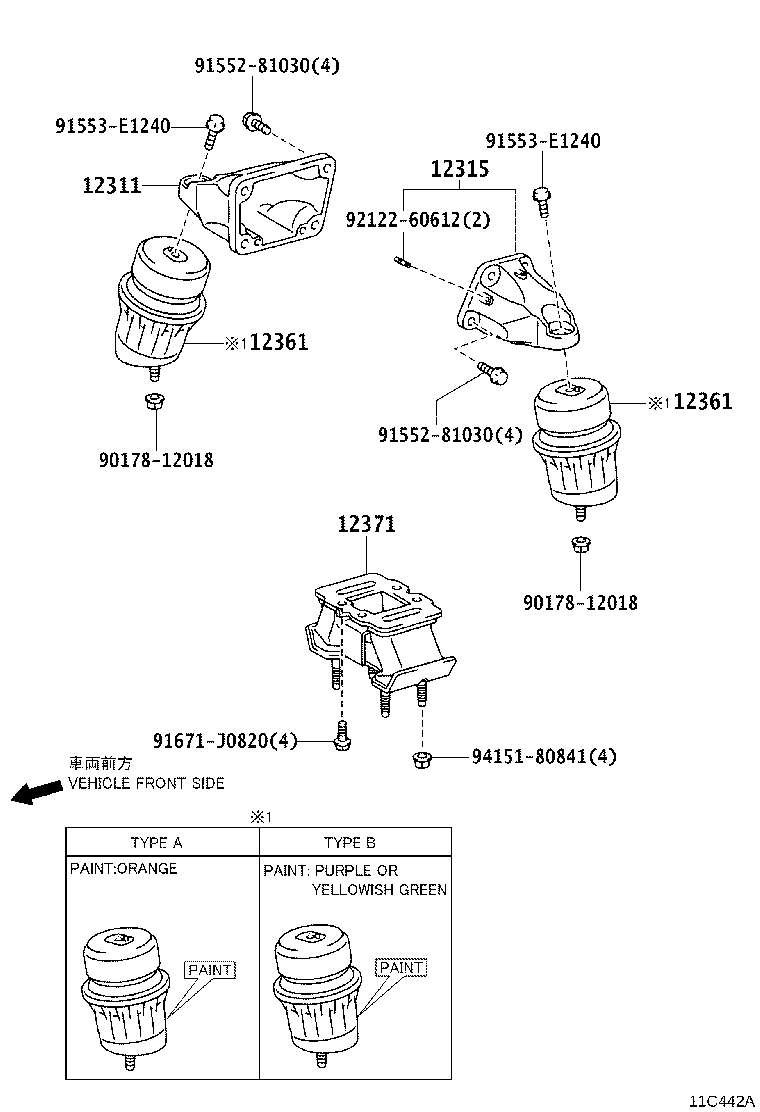

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 9017812018 9017812018 9155281030 9155281030 91553E1240 91553E1240 91671J0820 9212260612 9415180841
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-31040

3GR#..GRS190

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-31010

3GR#..GRS190

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31100

3GRFSE..GRS190

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31100

3GRFSE..GRS190

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-31070

3GR#..GRS190

 1
Common parts
90178-12018
91552-81030
91553-E1240
91671-J0820
92122-60612
94151-80841
