ZWA10R-AHXEBW (2010)

Toyota Lexus Ct200h

Production Dec 2010 - Dec 2013
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

Click highlighted areas on diagram

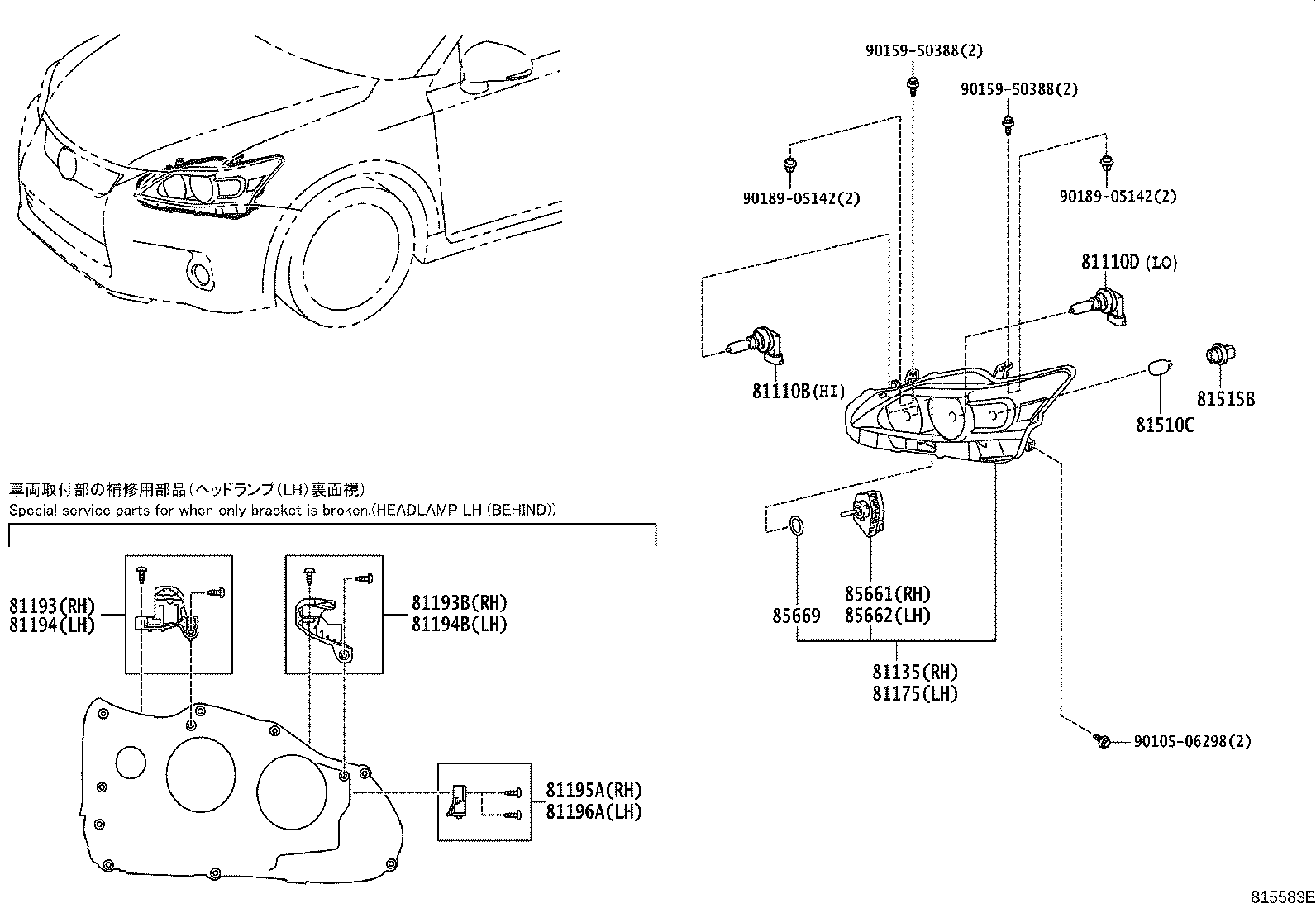

HALOGEN HEADLAMP

diagram 81110B 81110D 81135 81175 81193 81193B 81194 81194B 81195A 81196A 81510C 81515B 85661 85662 85669 9010506298 9015950388 9015950388 9018905142 9018905142
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13084

ZWA10

12V 65W,HALOGEN

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13085

ZWA10

12V 55W,HALOGEN

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-76020

ZWA10..RHD

 1
81145-76040

ZWA10..RHD

HEAD LAMP-LED

 1
81130-76021

ZWA10..RHD

 1
81145-76041

ZWA10..RHD

HEAD LAMP-LED

 1
81175 - UNIT ASSY, HEADLAMP, LH
81185-76040

ZWA10..RHD

HEAD LAMP-LED

 1
81170-76020

ZWA10..RHD

 1
81170-76021

ZWA10..RHD

 1
81185-76041

ZWA10..RHD

HEAD LAMP-LED

 1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-76010

ZWA10

 1
81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193-76020

ZWA10

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-76010

ZWA10

 1
81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194-76020

ZWA10

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-76010

ZWA10

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-76010

ZWA10

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

ZWA10

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

ZWA10

 2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-12010

ZWA10

 1
85661-12020

ZWA10

HEAD LAMP-LED

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-12020

ZWA10

HEAD LAMP-LED

 1
85661-12010

ZWA10

 1
85669 - PACKING, HEADLAMP LEVELING MOTOR BASE
90075-99120

ZWA10

 2
Common parts
90105-06298
90159-50388
90189-05142

(1012-1312)

Click highlighted areas on diagram

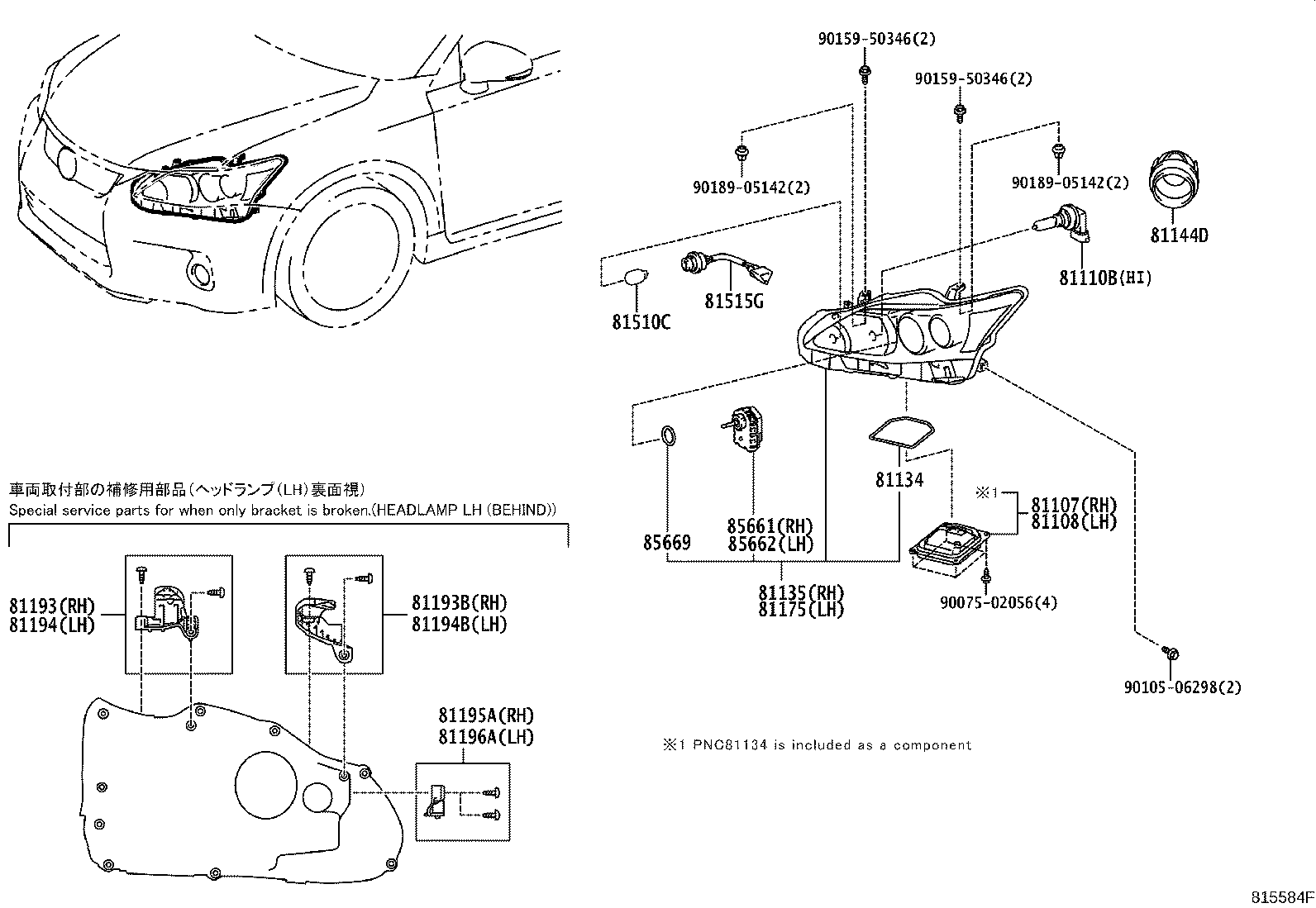

LED HEADLAMP

diagram 81107 81108 81110B 81134 81135 81144D 81175 81193 81193B 81194 81194B 81195A 81196A 81510C 81515G 85661 85662 85669 9007502056 9010506298 9015950346 9015950346 9018905142 9018905142
Part # Description Qty Price
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-47240

ZWA10

HEAD LAMP-LED

 1
81107-47290

ZWA10

HEAD LAMP-LED

 1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-47290

ZWA10

HEAD LAMP-LED

 1
81107-47240

ZWA10

HEAD LAMP-LED

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13084

ZWA10

12V 65W,HALOGEN

 2
81134 - GASKET, HEADLAMP
90075-68007

ZWA10

HEAD LAMP-LED

 1
81135 - UNIT ASSY, HEADLAMP, RH
81130-76020

ZWA10..RHD

 1
81145-76040

ZWA10..RHD

HEAD LAMP-LED

 1
81130-76021

ZWA10..RHD

 1
81145-76041

ZWA10..RHD

HEAD LAMP-LED

 1
81144D - CAP, HEADLAMP LOCKING
90075-66004

ZWA10

HEAD LAMP-LED

 2
81175 - UNIT ASSY, HEADLAMP, LH
81185-76040

ZWA10..RHD

HEAD LAMP-LED

 1
81170-76020

ZWA10..RHD

 1
81170-76021

ZWA10..RHD

 1
81185-76041

ZWA10..RHD

HEAD LAMP-LED

 1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-76010

ZWA10

 1
81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193-76020

ZWA10

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-76010

ZWA10

 1
81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194-76020

ZWA10

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-76010

ZWA10

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-76010

ZWA10

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

ZWA10

12V 21W,AMBER

 2
81515G - SOCKET & WIRE, FRONT TURN SIGNAL LAMP
81165-76100

ZWA10

HEAD LAMP-LED,LH

 1
81125-76100

ZWA10

HEAD LAMP-LED,RH

 1
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-12010

ZWA10

 1
85661-12020

ZWA10

HEAD LAMP-LED

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-12020

ZWA10

HEAD LAMP-LED

 1
85661-12010

ZWA10

 1
85669 - PACKING, HEADLAMP LEVELING MOTOR BASE
90075-99120

ZWA10

 2
Common parts
90075-02056
90105-06298
90159-50346
90189-05142
