Toyota Lexus ct200h ZWA10 HOOD & FRONT FENDER

Part #	Description	Period	Qty
53153K - GUIDE, RADIATOR GRILLE SIDE AIR, RH
53153-76010	ZWA10	07/2013 - 12/2013	1
53154L - GUIDE, RADIATOR GRILLE SIDE AIR, LH
53154-76010	ZWA10	07/2013 - 12/2013	1
53301 - HOOD SUB-ASSY
53301-76010	ZWA10	12/2010 - 12/2013	1
53341B - INSULATOR, HOOD
53341-76010	ZWA10..E FLOOR UNDER COVER-WITHOUT	12/2010 - 12/2013	1
53341-76010	ZWA10	12/2010 - 12/2013	1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09050	ZWA10	12/2010 - 12/2013	7
90467-09050	ZWA10..E FLOOR UNDER COVER-WITHOUT	12/2010 - 12/2013	7
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011	ZWA10	12/2010 - 12/2013	4
53381E - SEAL, HOOD TO RADIATOR SUPPORT
53381-76010	ZWA10	12/2010 - 12/2013	1
53388D - SEAL, HOOD TO FRONT FENDER, RH
53388-76010	ZWA10	12/2010 - 12/2013	1
53389B - SEAL, HOOD TO FRONT FENDER, LH
53389-76010	ZWA10	12/2010 - 12/2013	1
53801 - FENDER SUB-ASSY, FRONT RH
53801-76010	ZWA10	12/2010 - 12/2013	1
53802 - FENDER SUB-ASSY, FRONT LH
53802-76010	ZWA10	12/2010 - 12/2013	1
53807D - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH
53807-76010	ZWA10	12/2010 - 12/2013	1
53808D - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH
53808-76010	ZWA10	12/2010 - 12/2013	1
53823E - PROTECTOR, FRONT SIDE PANEL, NO.2 RH
53823-76010	ZWA10	12/2010 - 12/2013	1
53824B - PROTECTOR, FRONT SIDE PANEL, NO.2 LH
53824-76010	ZWA10	12/2010 - 12/2013	1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-76010	ZWA10	12/2010 - 12/2013	1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-76010	ZWA10	12/2010 - 12/2013	1
53882F - SEAL, FRONT FENDER
53882-26010	ZWA10	12/2010 - 12/2013	2
53882N - CLIP(FOR FRONT FENDER SEAL)
53857-47011	ZWA10	12/2010 - 12/2013	6
55783D - PAD, COWL TOP SILENCER
55783-30110	ZWA10	12/2012 - 12/2013	2
Common parts
55799-28030
65487-60010
90467-10161
91631-J0612

Part #	Description	Period	Qty
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-76020	ZWA10	12/2010 - 12/2013	1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-76020	ZWA10	12/2010 - 12/2013	1
53875A - LINER, FRONT FENDER, RH
53805-76010	ZWA10	12/2010 - 12/2013	1
53875P - SCREW, NO.1
90159-60488	ZWA10	12/2010 - 12/2013	2
53876A - LINER, FRONT FENDER, LH
53806-76010	ZWA10	12/2010 - 12/2013	1
53888C - SPACER, FRONT FENDER
90467-07214	ZWA10	04/2011 - 12/2013	10
53888-48010	ZWA10	12/2010 - 03/2011	10
Common parts
90159-60422
90159-60488
90159-60496
90189-06067
90189-06145
90189-06150
90467-07220
Linked diagrams
5102
5201

ZWA10R-AHXEBW (2010)

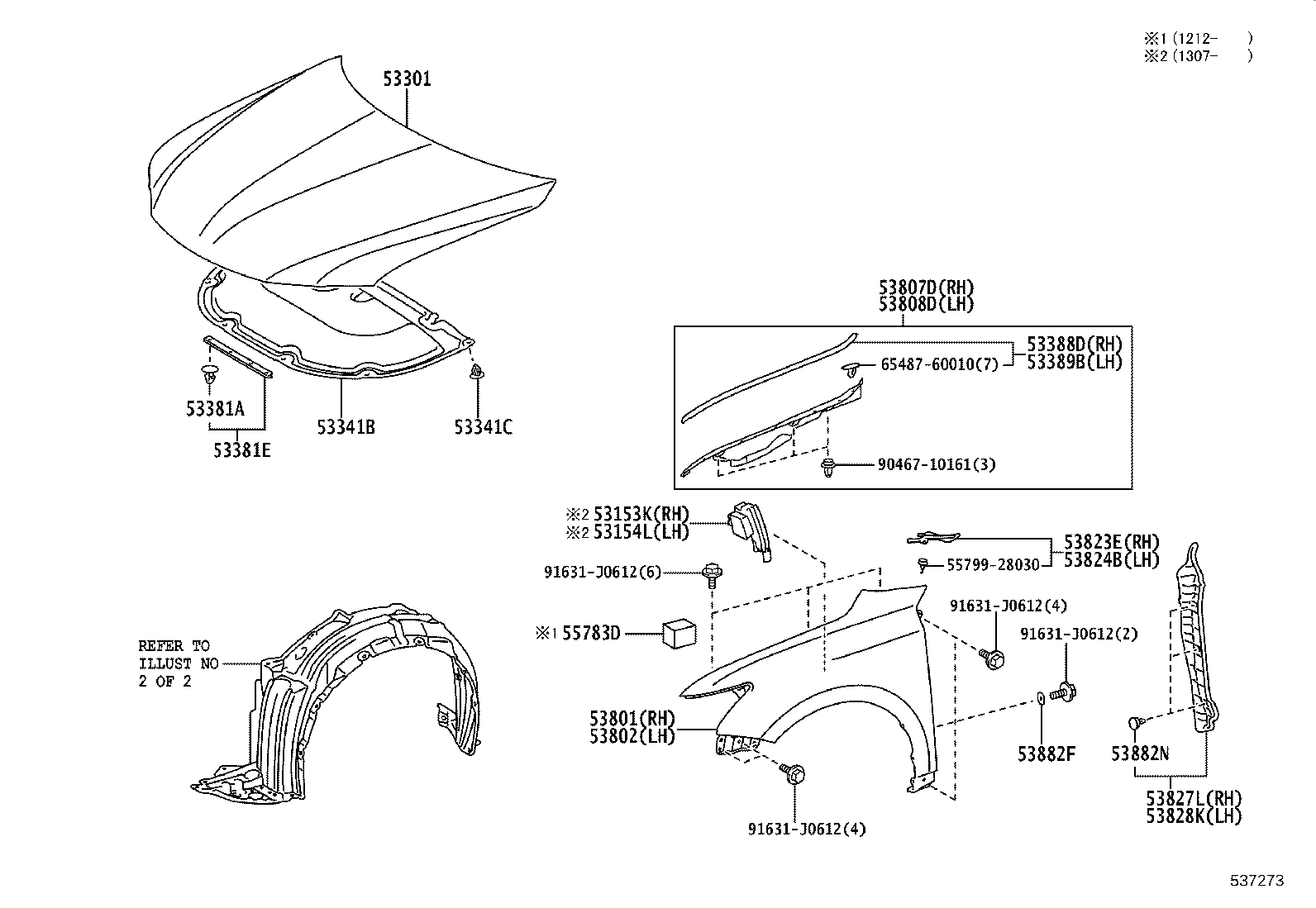

ILLUST NO. 1 OF 2(1012- )

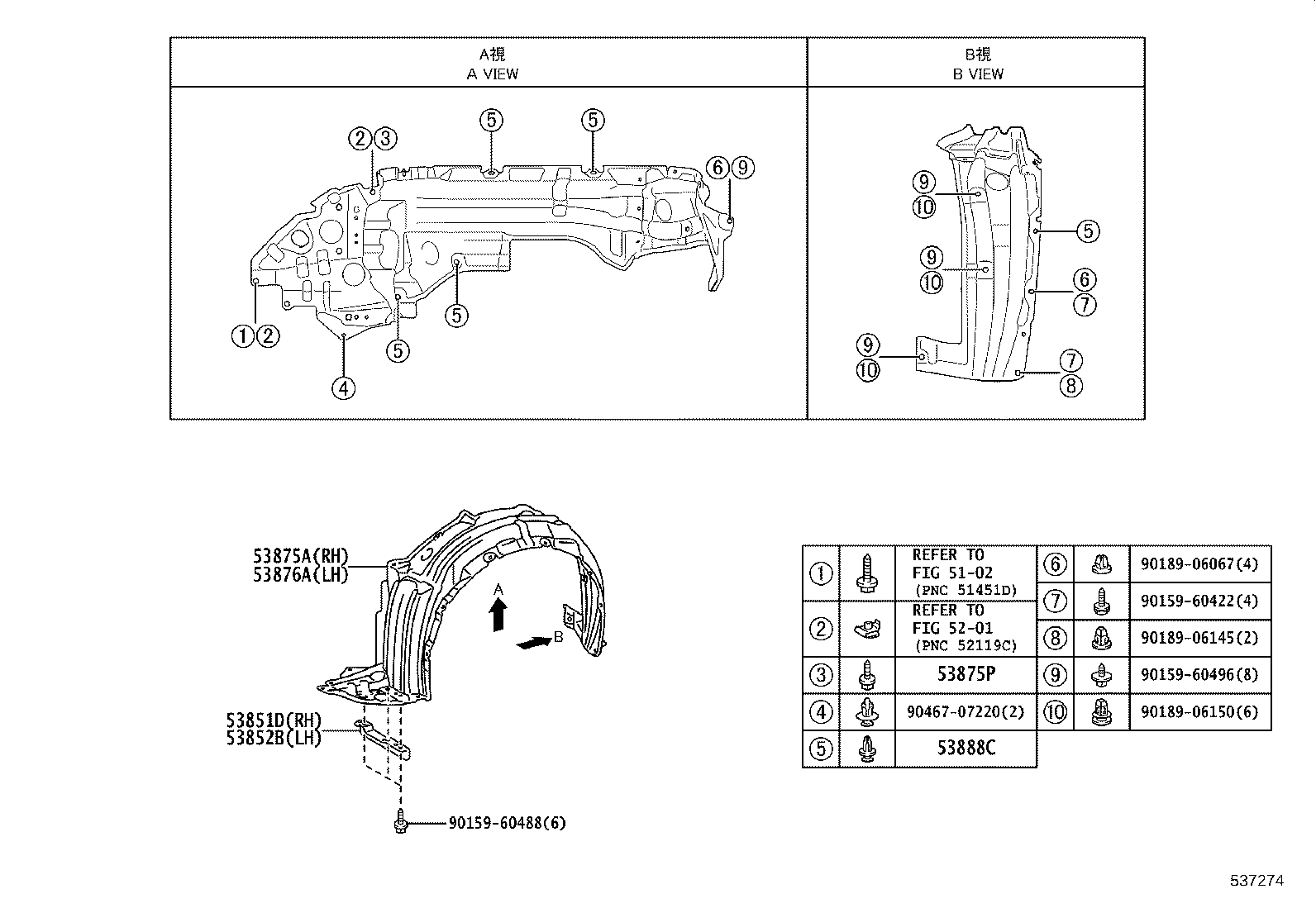

ILLUST NO. 2 OF 2(1012- )
