ZWA10R-AHXEBW (2010)

Toyota Lexus Ct200h

Production Dec 2010 - Dec 2013
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

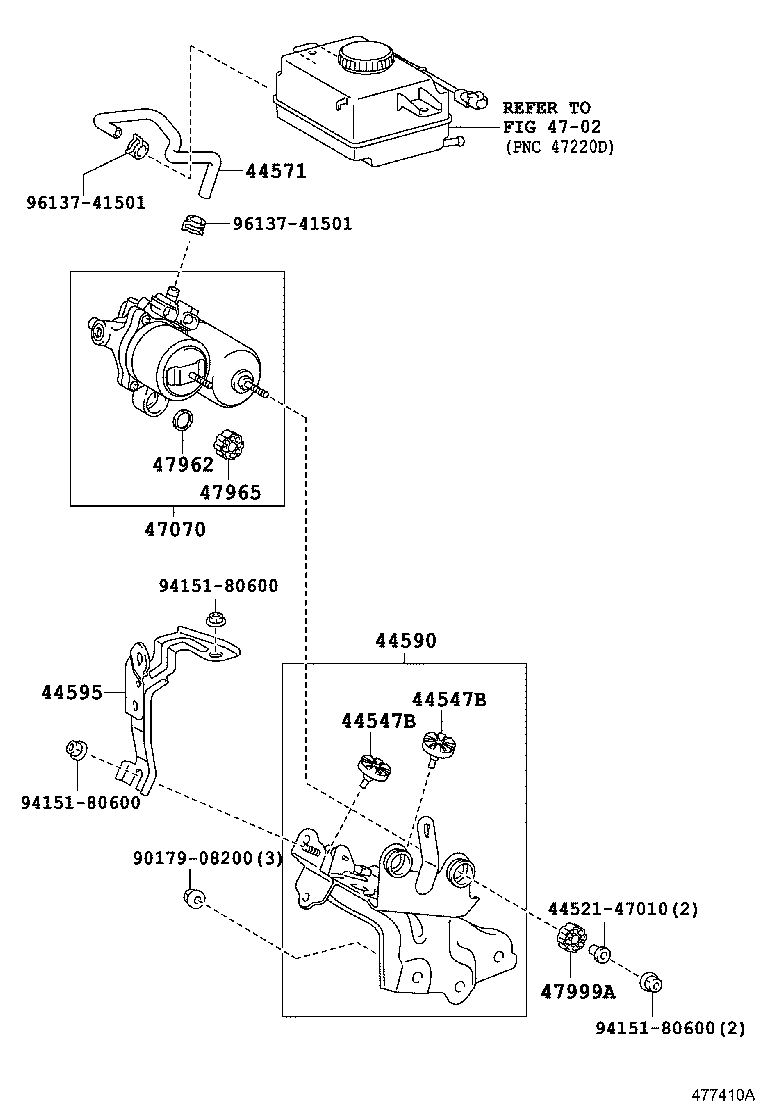

ILLUST NO. 2 OF 2(1012- )

Click highlighted areas on diagram

diagram 4452147010 44547B 44547B 44571 44590 44595 4702 47070 47962 47965 47999A 9017908200 9415180600 9415180600 9415180600 9613741501 9613741501
Part # Description Qty Price
44547B - CUSHION, BRAKE ACTUATOR BRACKET
47131-47080

ZWA10

 2
47131-47070

ZWA10

 2
47131-47070

ZWA10

 2
44547B - CUSHION, BRAKE ACTUATOR BRACKET
47131-47080

ZWA10

 2
47131-47070

ZWA10

 2
47131-47070

ZWA10

 2
44571 - HOSE, BRAKE ACTUATOR
44571-76010

ZWA10

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-47050

ZWA10

 1
44595 - BRACKET, BRAKE ACTUATOR, NO.5
44595-47010

ZWA10

 1
47070 - PUMP ASSY, BRAKE BOOSTER
47070-12020

ZWA10

 1
47962 - COLLAR, BRAKE BOOSTER PUMP
47962-60090

ZWA10

 1
47965 - BUSH, BRAKE BOOSTER PUMP
47965-30010

ZWA10

 1
47999A - BUSH(FOR BRAKE TRACTION ACTUATOR BRACKET)
47965-30010

ZWA10

 2
Common parts
44521-47010
90179-08200
94151-80600
96137-41501
Linked diagrams
4702

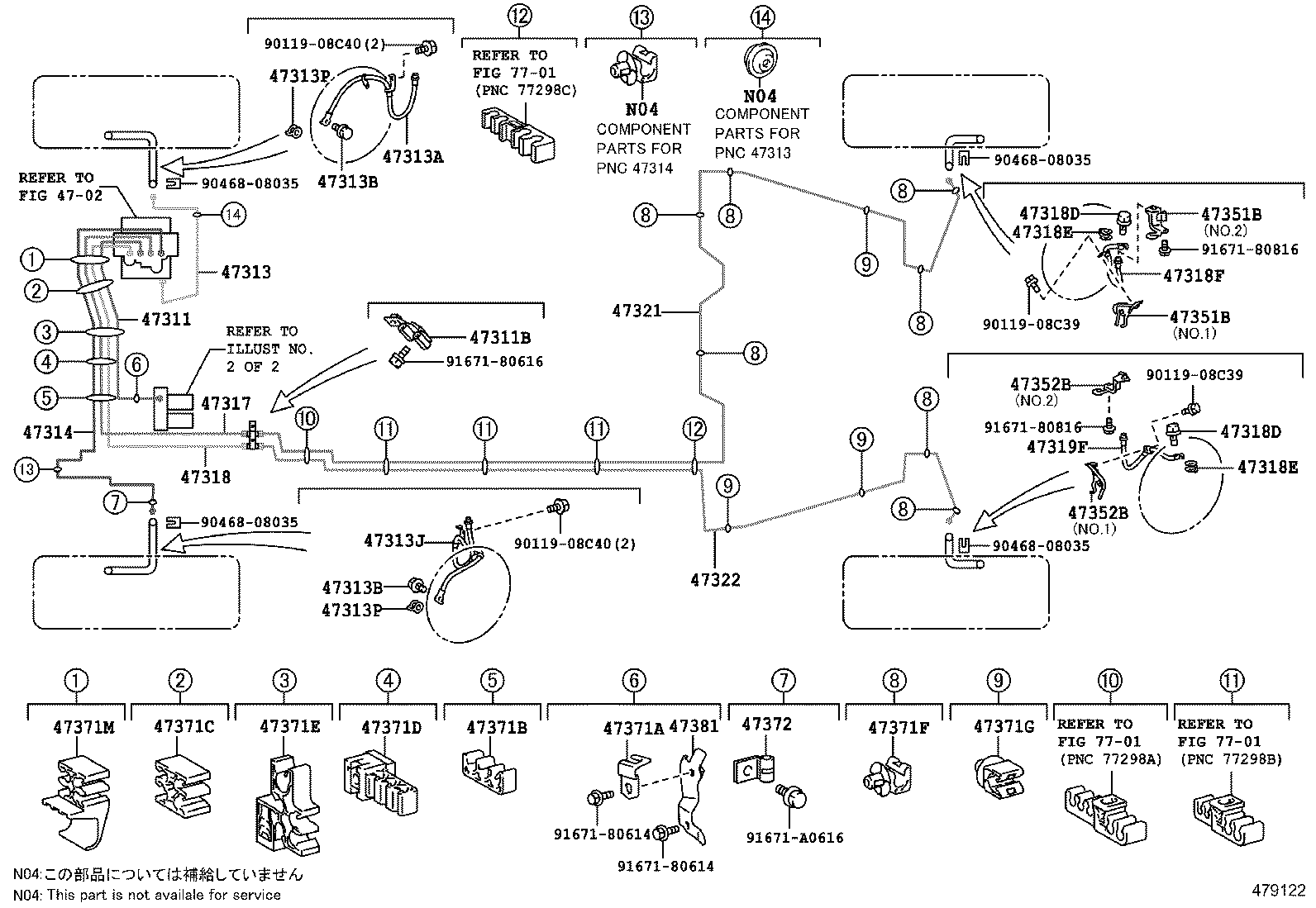

ILLUST NO. 1 OF 2(1012- )RHD

Click highlighted areas on diagram

diagram 4702 47311 47311B 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47351B 47351B 47352B 47352B 47371A 47371B 47371C 47371D 47371E 47371F 47371G 47371M 47372 47381 7701 7701 7701 9011908C39 9011908C39 9011908C40 9011908C40 9046808035 9046808035 9046808035 9046808035 9167180614 9167180614 9167180616 9167180816 9167180816 91671A0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-75010

ZWA10..RHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10279

ZWA10

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-75010

ZWA10..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02G21

ZWA10

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ZWA10

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ZWA10

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02G22

ZWA10

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ZWA10

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ZWA10

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-75010

ZWA10..RHD

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-75010

ZWA10..RHD

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-75010

ZWA10..RHD

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ZWA10

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ZWA10

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ZWA10

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ZWA10

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02G32

ZWA10

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02G33

ZWA10

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-76010

ZWA10

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-76010

ZWA10

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-12220

ZWA10

NO.2

 1
47351-12210

ZWA10

NO.1

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-12220

ZWA10

NO.2

 1
47351-12210

ZWA10

NO.1

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-12180

ZWA10

NO.1

 1
47352-12190

ZWA10

NO.2

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-12180

ZWA10

NO.1

 1
47352-12190

ZWA10

NO.2

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-47060

ZWA10

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90464-00857

ZWA10..RHD

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90464-00883

ZWA10..RHD

 1
47371D - CLAMP, BRAKE TUBE, NO.8
90949-01D08

ZWA10..RHD

 1
47371E - CLAMP, BRAKE TUBE, NO.9
90949-01D63

ZWA10..RHD

 1
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01D17

ZWA10

 7
47371G - CLAMP, BRAKE TUBE, NO.11
90949-01D29

ZWA10

 3
47371M - CLAMP, BRAKE TUBE, NO.13
90949-01D77

ZWA10..RHD

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90461-10781

ZWA10

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-75010

ZWA10

 1
Common parts
90119-08C39
90119-08C40
90468-08035
91671-80614
91671-80616
91671-80816
91671-A0616
Linked diagrams
4702
7701
