ZWA10R-AHXEBW (2010)
Toyota Lexus Ct200h
Production
Dec 2010
-
Dec 2013
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )RHD

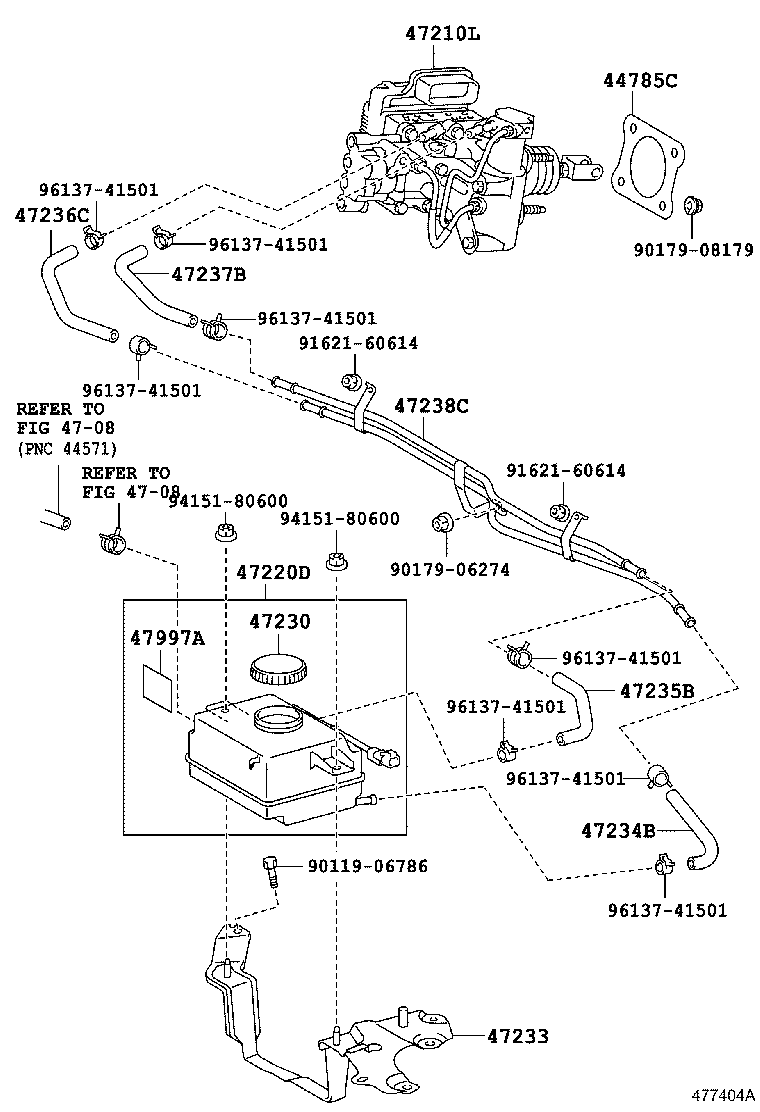

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44785C - GASKET, BRAKE BOOSTER | ||||
| 44785-12040 |
ZWA10 |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-76030 |
ZWA10..RHD..B |
1 | ||
| 47050-76010 |
ZWA10..RHD..E |
1 | ||
| 47050-76050 |
ZWA10..RHD..B F SPORT |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-76010 |
ZWA10 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-58010 |
ZWA10 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-76010 |
ZWA10 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-76010 |
ZWA10..RHD |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-76010 |
ZWA10..RHD |
1 | ||
| 47236C - HOSE, RESERVOIR TUBE | ||||
| 47236-76010 |
ZWA10..RHD |
1 | ||
| 47237B - HOSE, RESERVIOR TUBE | ||||
| 47237-76010 |
ZWA10..RHD |
1 | ||
| 47238C - TUBE, RESERVOIR | ||||
| 47238-76010 |
ZWA10..RHD |
1 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-76010 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90119-06786 | ||||
| 90179-06274 | ||||
| 90179-08179 | ||||
| 91621-60614 | ||||
| 94151-80600 | ||||
| 96137-41501 | ||||
| Linked diagrams | ||||
| 4708 | ||||
