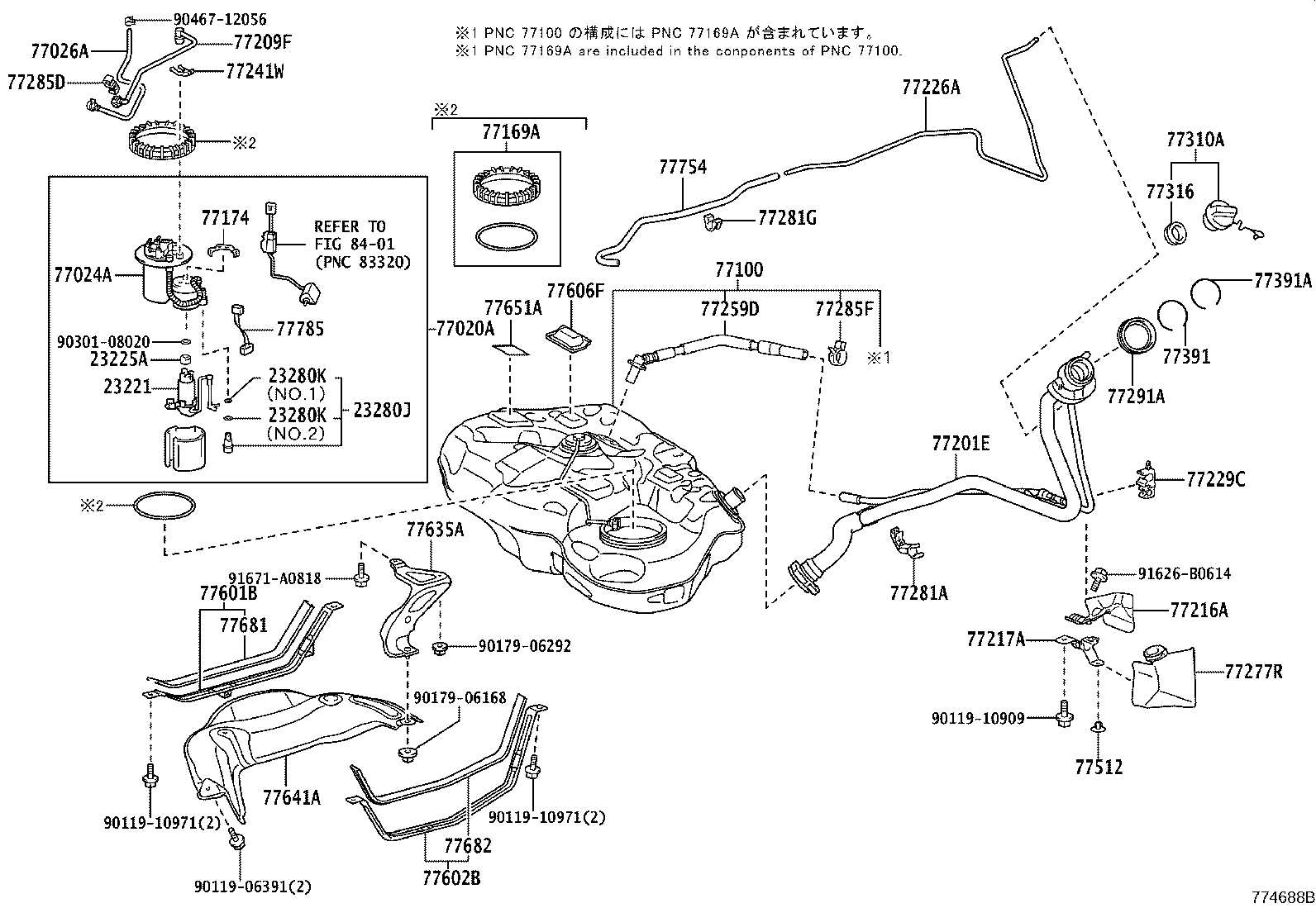

Toyota Lexus ct200h ZWA10 FUEL TANK & TUBE

Part #	Description	Period	Qty
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-47091	ZWA10	12/2013 - 02/2015	1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-47040	ZWA10	12/2013 - 02/2015	1
77100 - TANK ASSY, FUEL
77001-76061	ZWA10	03/2016 - 09/2018	1
77001-76061	ZWA10..RHD..B EXHAUST EMISSION CONTROL-JAPANESE EXHAUST EMISSION	09/2018 - 07/2020	1
77001-76061	ZWA10..RHD..E EXHAUST EMISSION CONTROL-EURO5	09/2018 - 04/2019	1
77001-76060	ZWA10	12/2013 - 02/2016	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-52040	ZWA10	12/2013 - 09/2018	1
77169-52040	ZWA10..RHD..E EXHAUST EMISSION CONTROL-EURO5	09/2018 - 04/2019	1
77169-52040	ZWA10..RHD..B EXHAUST EMISSION CONTROL-JAPANESE EXHAUST EMISSION	09/2018 - 07/2020	1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77201-76040	ZWA10	12/2013 - 09/2018	1
77201-76040	ZWA10..RHD..B EXHAUST EMISSION CONTROL-JAPANESE EXHAUST EMISSION	09/2018 - 07/2020	1
77201-76040	ZWA10..RHD..E EXHAUST EMISSION CONTROL-EURO5	09/2018 - 04/2019	1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-47060	ZWA10..RHD..E EXHAUST EMISSION CONTROL-EURO5	09/2018 - 04/2019	1
77209-47060	ZWA10	12/2013 - 09/2018	1
77209-47060	ZWA10..RHD..B EXHAUST EMISSION CONTROL-JAPANESE EXHAUST EMISSION	09/2018 - 07/2020	1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-76030	ZWA10..RHD..E EXHAUST EMISSION CONTROL-EURO5	09/2018 - 04/2019	1
77216-76030	ZWA10	12/2013 - 09/2018	1
77216-76030	ZWA10..RHD..B EXHAUST EMISSION CONTROL-JAPANESE EXHAUST EMISSION	09/2018 - 07/2020	1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-76030	ZWA10..RHD..B EXHAUST EMISSION CONTROL-JAPANESE EXHAUST EMISSION	09/2018 - 07/2020	1
77217-76030	ZWA10..RHD..E EXHAUST EMISSION CONTROL-EURO5	09/2018 - 04/2019	1
77217-76030	ZWA10	12/2013 - 09/2018	1
77226A - TUBE, FUEL TANK BREATHER, NO.6
77226-76030	ZWA10	12/2013 - 07/2018	1
77229C - CLAMP, BREATHER TUBE
77229-76010	ZWA10..RHD..E EXHAUST EMISSION CONTROL-EURO5	09/2018 - 04/2019	1
77229-76010	ZWA10..RHD..B EXHAUST EMISSION CONTROL-JAPANESE EXHAUST EMISSION	09/2018 - 07/2020	1
77229-76010	ZWA10	12/2013 - 09/2018	1
77259D - HOSE, FUEL, NO.1
77259-76010	ZWA10..RHD..B EXHAUST EMISSION CONTROL-EURO6B	09/2018 - 07/2020	1
77259-76010	ZWA10..RHD..E EXHAUST EMISSION CONTROL-EURO5	09/2018 - 04/2019	1
77259-76010	ZWA10..RHD..B EXHAUST EMISSION CONTROL-EURO5	09/2018 - 07/2020	1
77259-76010	ZWA10	01/2015 - 09/2018	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-12180	ZWA10..RHD..E EXHAUST EMISSION CONTROL-EURO5	09/2018 - 04/2019	1
77277-12180	ZWA10..RHD..B EXHAUST EMISSION CONTROL-JAPANESE EXHAUST EMISSION	09/2018 - 07/2020	1
77277-12180	ZWA10	12/2013 - 09/2018	1
77281A - CLAMP, FUEL FILLER PIPE
77281-75010	ZWA10..RHD..B EXHAUST EMISSION CONTROL-JAPANESE EXHAUST EMISSION	09/2018 - 07/2020	1
77281-75010	ZWA10	12/2013 - 09/2018	1
77281-75010	ZWA10..RHD..E EXHAUST EMISSION CONTROL-EURO5	09/2018 - 04/2019	1
77285F - CLAMP, FUEL TUBE, NO.1
90467-24002	ZWA10..RHD..E EXHAUST EMISSION CONTROL-EURO5	09/2018 - 04/2019	1
90467-24002	ZWA10..RHD..B EXHAUST EMISSION CONTROL-EURO5	09/2018 - 07/2020	1
90467-24002	ZWA10	01/2015 - 09/2018	1
90467-24002	ZWA10..RHD..B EXHAUST EMISSION CONTROL-EURO6B	09/2018 - 07/2020	1
77310A - CAP ASSY, FUEL TANK
77300-52030	ZWA10	12/2013 - 09/2018	1
77300-52030	ZWA10..RHD..B EXHAUST EMISSION CONTROL-JAPANESE EXHAUST EMISSION	09/2018 - 07/2020	1
77300-52030	ZWA10..RHD..E EXHAUST EMISSION CONTROL-EURO5	09/2018 - 04/2019	1
77316 - GASKET, FUEL TANK CAP
77316-52040	ZWA10..RHD..B EXHAUST EMISSION CONTROL-JAPANESE EXHAUST EMISSION	09/2018 - 07/2020	1
77316-52040	ZWA10	12/2013 - 09/2018	1
77316-52040	ZWA10..RHD..E EXHAUST EMISSION CONTROL-EURO5	09/2018 - 04/2019	1
77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH
77601-76010	ZWA10	12/2013 - 12/2014	1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-76010	ZWA10	12/2013 - 12/2014	1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-47030	ZWA10..RHD..B EXHAUST EMISSION CONTROL-JAPANESE EXHAUST EMISSION	09/2018 - 07/2020	1
77754-47030	ZWA10..RHD..E EXHAUST EMISSION CONTROL-EURO5	09/2018 - 04/2019	1
Common parts
90119-06391
90119-10909
90119-10971
90179-06168
90179-06292
90301-08020
90467-12056
91626-B0614
91671-A0818
Linked diagrams
8401

ZWA10R-AHXBBW (2013)

ILLUST NO. 1 OF 3(1809- )
