KDJ155R-GJFEYW (2009)
Toyota Land Cruiser Prado

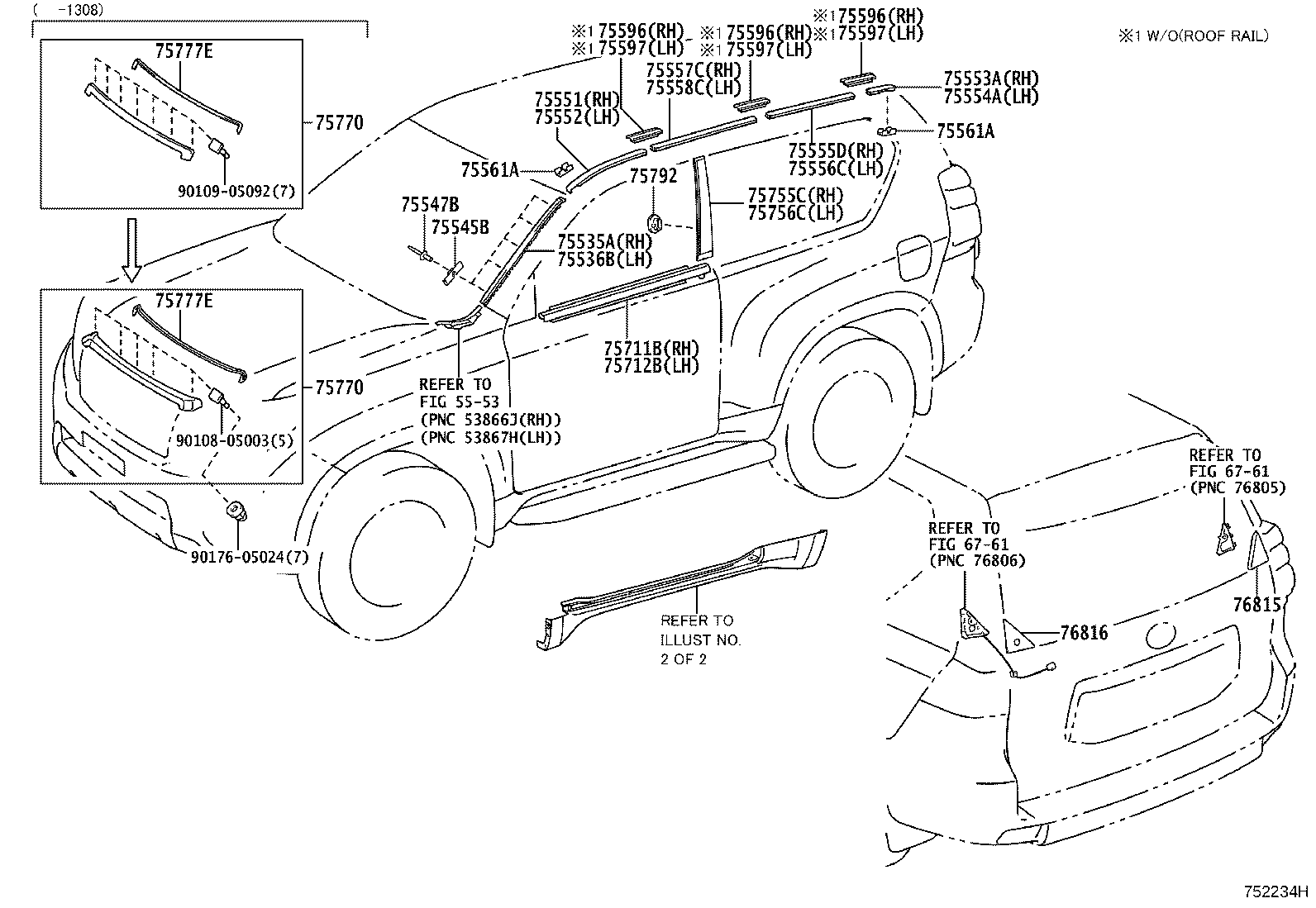

ILLUST NO. 1 OF 2(0908- )GDJ155,KDJ155
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75535A - MOULDING, WINDSHIELD, OUTSIDE LOWER | ||||
| 75535-60020 |
KDJ15#;GRJ150..LHD |
1 | ||
| 75536B - MOULDING, WINDSHIELD, OUTSIDE LOWER LH | ||||
| 75536-60010 |
KDJ15#;GRJ150..LHD |
1 | ||
| 75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1 | ||||
| 75545-53010 |
GRJ150,KDJ15# |
10 | ||
| 75545-53011 |
KDJ15#;GRJ150..LHD |
10 | ||
| 75547B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3 | ||||
| 75547-51021 |
KDJ15#;GRJ150..LHD |
10 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-60130 |
KDJ155 |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75551-60130 |
KDJ155 NO PAINT REQ. |
1 | ||
| 75553A - MOULDING, ROOF DRIP SIDE FINISH, REAR RH | ||||
| 75553-60050 |
KDJ15#;GRJ150..LHD |
1 | ||
| 75554A - MOULDING, ROOF DRIP SIDE FINISH, REAR LH | ||||
| 75554-60050 |
KDJ15#;GRJ150..LHD |
1 | ||
| 75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH | ||||
| 75555-60030 |
KDJ15#;GRJ150..LHD |
1 | ||
| 75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH | ||||
| 75555-60030 |
KDJ15#;GRJ150..LHD |
1 | ||
| 75557C - MOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH | ||||
| 75557-60060 |
KDJ155 |
1 | ||
| 75558C - MOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH | ||||
| 75557-60060 |
KDJ155 |
1 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-52020 |
KDJ15#;GRJ150..LHD |
4 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-52020 |
KDJ15#;GRJ150..LHD |
4 | ||
| 75596 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH | ||||
| 75596-35030 |
KDJ15#;GRJ150..LHD |
3 | ||
| 75596 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH | ||||
| 75596-35030 |
KDJ15#;GRJ150..LHD |
3 | ||
| 75596 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH | ||||
| 75596-35030 |
KDJ15#;GRJ150..LHD |
3 | ||
| 75597 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH | ||||
| 75596-35030 |
KDJ15#;GRJ150..LHD |
3 | ||
| 75597 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH | ||||
| 75596-35030 |
KDJ15#;GRJ150..LHD |
3 | ||
| 75597 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH | ||||
| 75596-35030 |
KDJ15#;GRJ150..LHD |
3 | ||
| 75711B - MOULDING, FRONT DOOR BELT, RH | ||||
| 75711-60070 |
GRJ150,KDJ15# |
1 | ||
| 75711-60071 |
KDJ15#;GRJ150..LHD |
1 | ||
| 75712B - MOULDING, FRONT DOOR BELT, LH | ||||
| 75712-60071 |
KDJ15#;GRJ150..LHD |
1 | ||
| 75712-60070 |
GRJ150,KDJ15# |
1 | ||
| 75755C - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH | ||||
| 75755-60050 |
KDJ15#;GRJ150..LHD |
1 | ||
| 75756C - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH | ||||
| 75756-60050 |
KDJ15#;GRJ150..LHD |
1 | ||
| 75770 - MOULDING ASSY, HOOD, FRONT | ||||
| 75770-60010 |
KDJ155 PLATED,TX-L PACKAGE&CHROME & COLORED |
1 | ||
| 75770-60010 |
KDJ155 PLATED,VX PACKAGE&CHROME & COLORED |
1 | ||
| 75770-60020 |
KDJ15#;GRJ150..LHD NO PAINT REQ. |
1 | ||
| 75770 - MOULDING ASSY, HOOD, FRONT | ||||
| 75770-60010 |
KDJ155 PLATED,TX-L PACKAGE&CHROME & COLORED |
1 | ||
| 75770-60010 |
KDJ155 PLATED,VX PACKAGE&CHROME & COLORED |
1 | ||
| 75770-60020 |
KDJ15#;GRJ150..LHD NO PAINT REQ. |
1 | ||
| 75777E - PAD, HOOD FRONT MOULDING | ||||
| 75777-60020 |
KDJ15#;GRJ150..LHD |
1 | ||
| 75777E - PAD, HOOD FRONT MOULDING | ||||
| 75777-60020 |
KDJ15#;GRJ150..LHD |
1 | ||
| 75792 - CLIP, DOOR WINDOW FRAME MOULDING | ||||
| 75792-47010 |
GRJ150,KDJ15# |
2 | ||
| 76815 - MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER RH | ||||
| 76813-60030 |
KDJ155 SPARE TIRE-WITHOUT |
1 | ||
| 76816 - MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER LH | ||||
| 76814-60020 |
KDJ155 SPARE TIRE-WITHOUT |
1 | ||
| Common parts | ||||
| 90108-05003 | ||||
| 90109-05092 | ||||
| 90176-05024 | ||||
| Linked diagrams | ||||
| 5553 | ||||
| 6761 | ||||
ILLUST NO. 2 OF 2(0908- )GDJ155,KDJ155
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75851 - MOULDING, ROCKER PANEL, RH | ||||
| 75805-60070A1 |
KDJ155 WHITE PEARL CS.,070 |
1 | ||
| 75805-60070B1 |
KDJ155 GRAY ME.,1G3 |
1 | ||
| 75805-60070B2 |
KDJ155 DK. STEEL MC.,1H2 |
1 | ||
| 75805-60070B0 |
KDJ155 SILVER ME.,1F7 |
1 | ||
| 75805-60070C0 |
KDJ155 BLACK,202 |
1 | ||
| 75805-60070A0 |
KDJ155 SUPER WHITE 2,040 |
1 | ||
| 75805-60070D0 |
KDJ155 BLACKISH RED MC.,3R0 |
1 | ||
| 75805-60070J0 |
KDJ155 GRAYISH BLUE ME.,8R3 |
1 | ||
| 75805-60080A1 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),WHITE PEARL CS.,070 |
1 | ||
| 75805-60080C0 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),BLACK,202 |
1 | ||
| 75805-60070E0 |
KDJ155 BEIGE ME.,4T8 |
1 | ||
| 75805-60080A0 |
KDJ155 SIDE STEP-WITH(STEP LAMP),SUPER WHITE 2,040 |
1 | ||
| 75805-60080B2 |
KDJ155 SIDE STEP-WITH(STEP LAMP),DK. STEEL MC.,1H2 |
1 | ||
| 75805-60070G0 |
KDJ155 GREEN M.M.,6V2 |
1 | ||
| 75805-60080B0 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),SILVER ME.,1F7 |
1 | ||
| 75805-60080B2 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),DK. STEEL MC.,1H2 |
1 | ||
| 75805-60080A1 |
KDJ155 SIDE STEP-WITH(STEP LAMP),WHITE PEARL CS.,070 |
1 | ||
| 75805-60080D0 |
KDJ155 SIDE STEP-WITH(STEP LAMP),BLACKISH RED MC.,3R0 |
1 | ||
| 75805-60080B1 |
KDJ155 SIDE STEP-WITH(STEP LAMP),GRAY ME.,1G3 |
1 | ||
| 75805-60080G0 |
KDJ155 SIDE STEP-WITH(STEP LAMP),GREEN M.M.,6V2 |
1 | ||
| 75805-60080C0 |
KDJ155 SIDE STEP-WITH(STEP LAMP),BLACK,202 |
1 | ||
| 75805-60080E0 |
KDJ155 SIDE STEP-WITH(STEP LAMP),BEIGE ME.,4T8 |
1 | ||
| 75805-60080D0 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),BLACKISH RED MC.,3R0 |
1 | ||
| 75805-60080J0 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),GRAYISH BLUE ME.,8R3 |
1 | ||
| 75805-60080E0 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),BEIGE ME.,4T8 |
1 | ||
| 75805-60080A0 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),SUPER WHITE 2,040 |
1 | ||
| 75805-60080J0 |
KDJ155 SIDE STEP-WITH(STEP LAMP),GRAYISH BLUE ME.,8R3 |
1 | ||
| 75805-60080B1 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),GRAY ME.,1G3 |
1 | ||
| 75805-60080B0 |
KDJ155 SIDE STEP-WITH(STEP LAMP),SILVER ME.,1F7 |
1 | ||
| 75805-60080G0 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),GREEN M.M.,6V2 |
1 | ||
| 75852 - MOULDING, ROCKER PANEL, LH | ||||
| 75806-60070A0 |
KDJ155 SUPER WHITE 2,040 |
1 | ||
| 75806-60070C0 |
KDJ155 BLACK,202 |
1 | ||
| 75806-60070D0 |
KDJ155 BLACKISH RED MC.,3R0 |
1 | ||
| 75806-60070B0 |
KDJ155 SILVER ME.,1F7 |
1 | ||
| 75806-60080A0 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),SUPER WHITE 2,040 |
1 | ||
| 75806-60070B2 |
KDJ155 DK. STEEL MC.,1H2 |
1 | ||
| 75806-60070E0 |
KDJ155 BEIGE ME.,4T8 |
1 | ||
| 75806-60070B1 |
KDJ155 GRAY ME.,1G3 |
1 | ||
| 75806-60070G0 |
KDJ155 GREEN M.M.,6V2 |
1 | ||
| 75806-60080A1 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),WHITE PEARL CS.,070 |
1 | ||
| 75806-60070A1 |
KDJ155 WHITE PEARL CS.,070 |
1 | ||
| 75806-60080B0 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),SILVER ME.,1F7 |
1 | ||
| 75806-60080B0 |
KDJ155 SIDE STEP-WITH(STEP LAMP),SILVER ME.,1F7 |
1 | ||
| 75806-60080B2 |
KDJ155 SIDE STEP-WITH(STEP LAMP),DK. STEEL MC.,1H2 |
1 | ||
| 75806-60080A0 |
KDJ155 SIDE STEP-WITH(STEP LAMP),SUPER WHITE 2,040 |
1 | ||
| 75806-60080B2 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),DK. STEEL MC.,1H2 |
1 | ||
| 75806-60080C0 |
KDJ155 SIDE STEP-WITH(STEP LAMP),BLACK,202 |
1 | ||
| 75806-60080C0 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),BLACK,202 |
1 | ||
| 75806-60080B1 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),GRAY ME.,1G3 |
1 | ||
| 75806-60080D0 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),BLACKISH RED MC.,3R0 |
1 | ||
| 75806-60080E0 |
KDJ155 SIDE STEP-WITH(STEP LAMP),BEIGE ME.,4T8 |
1 | ||
| 75806-60080J0 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),GRAYISH BLUE ME.,8R3 |
1 | ||
| 75806-60080D0 |
KDJ155 SIDE STEP-WITH(STEP LAMP),BLACKISH RED MC.,3R0 |
1 | ||
| 75806-60080E0 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),BEIGE ME.,4T8 |
1 | ||
| 75806-60070J0 |
KDJ155 GRAYISH BLUE ME.,8R3 |
1 | ||
| 75806-60080B1 |
KDJ155 SIDE STEP-WITH(STEP LAMP),GRAY ME.,1G3 |
1 | ||
| 75806-60080A1 |
KDJ155 SIDE STEP-WITH(STEP LAMP),WHITE PEARL CS.,070 |
1 | ||
| 75806-60080J0 |
KDJ155 SIDE STEP-WITH(STEP LAMP),GRAYISH BLUE ME.,8R3 |
1 | ||
| 75806-60080G0 |
KDJ155 SIDE STEP-WITH(STEP LAMP LESS),GREEN M.M.,6V2 |
1 | ||
| 75806-60080G0 |
KDJ155 SIDE STEP-WITH(STEP LAMP),GREEN M.M.,6V2 |
1 | ||
| 75861A - PROTECTOR, ROCKER PANEL MOULDING, NO.1 | ||||
| 75861-60040 |
KDJ15#;GRJ150..LHD |
1 | ||
| 75861D - PROTECTOR, ROCKER PANEL MOULDING, NO.1 | ||||
| 75861-60060 |
KDJ155 |
1 | ||
| 75862A - PROTECTOR, ROCKER PANEL MOULDING, NO.2 | ||||
| 75862-60040 |
KDJ15#;GRJ150..LHD |
1 | ||
| 75862C - PROTECTOR, ROCKER PANEL MOULDING, NO.2 | ||||
| 75862-60060 |
KDJ155 |
1 | ||
| 75863C - PROTECTOR, ROCKER PANEL MOULDING, NO.3 | ||||
| 53119-30140 |
KDJ155 |
2 | ||
| 75865B - RETAINER, ROCKER PANEL MOULDING, NO.2 | ||||
| 75865-60020 |
KDJ155 |
1 | ||
| 75866A - RETAINER, ROCKER PANEL MOULDING | ||||
| 75866-60030 |
KDJ155 |
1 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-12040 |
KDJ155 |
10 | ||
| 76924G - RETAINER, ROCKER PANEL MOULDING | ||||
| 76924-13020 |
KDJ155 |
12 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90159-60603 | ||||
| 90162-40035 | ||||
| 90189-04059 | ||||
| 90189-06006 | ||||
| 90189-06065 | ||||
| 90467-09234 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 5851 | ||||
| 7652 | ||||
