KDJ155R-GJFEYW (2009)
Toyota Land Cruiser Prado

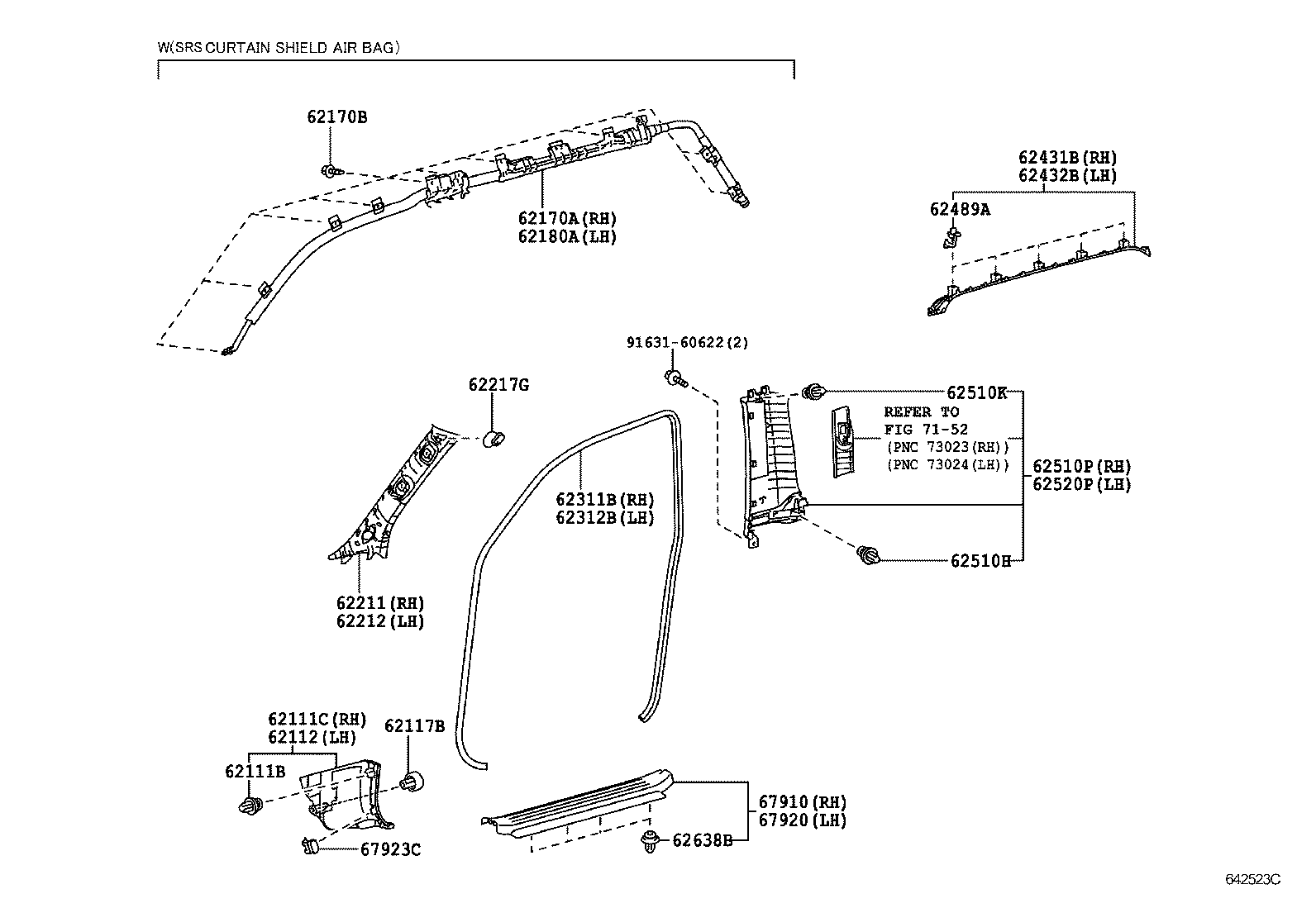

ILLUST NO. 1 OF 2(0908- )GDJ155,KDJ155
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 62217-13010 |
KDJ15#;GRJ150..LHD |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-60161A0 |
GRJ150,KDJ15# IVORY,TRIM0# |
1 | ||
| 62111-60161B0 |
GRJ150,KDJ15# MD.GRAY,TRIM1# |
1 | ||
| 62111-60160B0 |
KDJ15#;GRJ150..LHD MD.GRAY,TRIM1# |
1 | ||
| 62111-60160A0 |
KDJ15#;GRJ150..LHD IVORY,TRIM0# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-60250B0 |
KDJ15#;GRJ150..LHD MD.GRAY,TRIM1# |
1 | ||
| 62112-60250A0 |
KDJ15#;GRJ150..LHD IVORY,TRIM0# |
1 | ||
| 62112-60251A0 |
GRJ150,KDJ15# IVORY,TRIM0# |
1 | ||
| 62112-60251B0 |
GRJ150,KDJ15# MD.GRAY,TRIM1# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06183 |
KDJ15#;GRJ150..LHD |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-60120 |
KDJ155..6F;KDJ155..LHD..5FC REAR SEAT-WITHOUT(WITH/ANCHOR) |
1 | ||
| 62170-60120 |
KDJ155 |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
KDJ155 |
22 | ||
| 90119-06869 |
KDJ155..6F;KDJ155..LHD..5FC REAR SEAT-WITHOUT(WITH/ANCHOR) |
22 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-60100 |
KDJ155 |
1 | ||
| 62180-60100 |
KDJ155..6F;KDJ155..LHD..5FC REAR SEAT-WITHOUT(WITH/ANCHOR) |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-60200A0 |
GRJ150,KDJ15# IVORY,TRIM0# |
1 | ||
| 62210-60200B0 |
GRJ150,KDJ15# LT.GRAY,TRIM1# |
1 | ||
| 62210-60220A1 |
KDJ155 AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
1 | ||
| 62210-60220A1 |
GRJ150,KDJ15# AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,IVORY,TRIM0# |
1 | ||
| 62210-60220B1 |
GRJ150,KDJ15# AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62210-60220B1 |
KDJ155 AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,LT.GRAY,TRIM1# |
1 | ||
| 62210-60190A0 |
KDJ155..6F;KDJ155..LHD..5FC REAR SEAT-WITHOUT(WITH/ANCHOR),IVORY,TRIM0# |
1 | ||
| 62210-60201A0 |
KDJ15#;GRJ150..LHD IVORY,TRIM0# |
1 | ||
| 62210-60201B0 |
KDJ15#;GRJ150..LHD LT.GRAY,TRIM1# |
1 | ||
| 62210-60221A1 |
KDJ155 AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
1 | ||
| 62210-60190B0 |
KDJ155..6F;KDJ155..LHD..5FC REAR SEAT-WITHOUT(WITH/ANCHOR),LT.GRAY,TRIM1# |
1 | ||
| 62210-60221A1 |
KDJ155;GRJ150..LHD;KDJ150..RHD;KDJ150..LHD..6F AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,IVORY,TRIM0# |
1 | ||
| 62210-60221B1 |
KDJ155;GRJ150..LHD;KDJ150..RHD;KDJ150..LHD..6F AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62210-60221B1 |
KDJ155 AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,LT.GRAY,TRIM1# |
1 | ||
| 62210-60191A0 |
KDJ155..6F;KDJ155..LHD..5FC REAR SEAT-WITHOUT(WITH/ANCHOR),IVORY,TRIM0# |
1 | ||
| 62210-60191B0 |
KDJ155..6F;KDJ155..LHD..5FC REAR SEAT-WITHOUT(WITH/ANCHOR),LT.GRAY,TRIM1# |
1 | ||
| 62210-60202A0 |
GRJ150,KDJ15# IVORY,TRIM0# |
1 | ||
| 62210-60202B0 |
GRJ150,KDJ15# LT.GRAY,TRIM1# |
1 | ||
| 62210-60222A1 |
KDJ155 AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
1 | ||
| 62210-60222A1 |
KDJ150..RHD;GRJ150,KDJ155;KDJ150..LHD..6F AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,IVORY,TRIM0# |
1 | ||
| 62210-60222B1 |
KDJ150..RHD;GRJ150,KDJ155;KDJ150..LHD..6F AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62210-60222B1 |
KDJ155 AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,LT.GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-60220A1 |
GRJ150,KDJ15# AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,IVORY,TRIM0# |
1 | ||
| 62220-60220B1 |
GRJ150,KDJ15# AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62220-60200A0 |
GRJ150,KDJ15# IVORY,TRIM0# |
1 | ||
| 62220-60200B0 |
GRJ150,KDJ15# LT.GRAY,TRIM1# |
1 | ||
| 62220-60220B1 |
KDJ155 AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,LT.GRAY,TRIM1# |
1 | ||
| 62220-60220A1 |
KDJ155 AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
1 | ||
| 62220-60190B0 |
KDJ155..6F;KDJ155..LHD..5FC REAR SEAT-WITHOUT(WITH/ANCHOR),LT.GRAY,TRIM1# |
1 | ||
| 62220-60190A0 |
KDJ155..6F;KDJ155..LHD..5FC REAR SEAT-WITHOUT(WITH/ANCHOR),IVORY,TRIM0# |
1 | ||
| 62220-60201A0 |
KDJ15#;GRJ150..LHD IVORY,TRIM0# |
1 | ||
| 62220-60221B1 |
KDJ155;GRJ150..LHD;KDJ150..RHD;KDJ150..LHD..6F AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62220-60221A1 |
KDJ155;GRJ150..LHD;KDJ150..RHD;KDJ150..LHD..6F AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,IVORY,TRIM0# |
1 | ||
| 62220-60221A1 |
KDJ155 AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
1 | ||
| 62220-60201B0 |
KDJ15#;GRJ150..LHD LT.GRAY,TRIM1# |
1 | ||
| 62220-60221B1 |
KDJ155 AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,LT.GRAY,TRIM1# |
1 | ||
| 62220-60191B0 |
KDJ155..6F;KDJ155..LHD..5FC REAR SEAT-WITHOUT(WITH/ANCHOR),LT.GRAY,TRIM1# |
1 | ||
| 62220-60202B0 |
GRJ150,KDJ15# LT.GRAY,TRIM1# |
1 | ||
| 62220-60191A0 |
KDJ155..6F;KDJ155..LHD..5FC REAR SEAT-WITHOUT(WITH/ANCHOR),IVORY,TRIM0# |
1 | ||
| 62220-60222A1 |
KDJ155 AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
1 | ||
| 62220-60222A1 |
KDJ150..RHD;GRJ150,KDJ155;KDJ150..LHD..6F AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,IVORY,TRIM0# |
1 | ||
| 62220-60222B1 |
KDJ155 AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,LT.GRAY,TRIM1# |
1 | ||
| 62220-60202A0 |
GRJ150,KDJ15# IVORY,TRIM0# |
1 | ||
| 62220-60222B1 |
KDJ150..RHD;GRJ150,KDJ155;KDJ150..LHD..6F AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-60020 |
KDJ15#;GRJ150..LHD |
2 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-60150A0 |
KDJ15#;GRJ150..LHD IVORY,TRIM0# |
1 | ||
| 62311-60150B0 |
KDJ15#;GRJ150..LHD MD.GRAY,TRIM1# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-60150A0 |
KDJ15#;GRJ150..LHD IVORY,TRIM0# |
1 | ||
| 62312-60150B0 |
KDJ15#;GRJ150..LHD MD.GRAY,TRIM1# |
1 | ||
| 62431B - GARNISH, ROOF SIDE RAIL, NO.1 RH | ||||
| 62431-60070A0 |
KDJ155 IVORY,TRIM0# |
1 | ||
| 62431-60070B0 |
KDJ155 LT.GRAY,TRIM1# |
1 | ||
| 62432B - GARNISH, ROOF SIDE RAIL, NO.1 LH | ||||
| 62432-60050A0 |
KDJ155 IVORY,TRIM0# |
1 | ||
| 62432-60050B0 |
KDJ155 LT.GRAY,TRIM1# |
1 | ||
| 62489A - CLIP, ROOF SIDE INNER GARNISH | ||||
| 62489-60020 |
KDJ155 |
10 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90467-10161 |
KDJ15#;GRJ150..LHD |
2 | ||
| 62510K - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 63395-12150 |
KDJ155 |
2 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-60D00A1 |
KDJ155..6F;KDJ155..LHD..5FC VEHICLE CATEGORY-REAR SEAT LESS&SPECIAL UTILITY PACKAGE-REAR SEAT LESS&REAR SEAT-WITHOUT(WITH/ANCHOR),IVORY,TRIM0# |
1 | ||
| 62510-60D00B3 |
KDJ155..6F;KDJ155..LHD..5FC VEHICLE CATEGORY-REAR SEAT LESS&SPECIAL UTILITY PACKAGE-REAR SEAT LESS&REAR SEAT-WITHOUT(WITH/ANCHOR),LT.GRAY,TRIM1# |
1 | ||
| 62510-60D10B3 |
KDJ155 LT.GRAY,TRIM1# |
1 | ||
| 62510-60D10A1 |
KDJ155 IVORY,TRIM0# |
1 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-60B30A1 |
KDJ155..6F;KDJ155..LHD..5FC VEHICLE CATEGORY-REAR SEAT LESS&SPECIAL UTILITY PACKAGE-REAR SEAT LESS&REAR SEAT-WITHOUT(WITH/ANCHOR),IVORY,TRIM0# |
1 | ||
| 62520-60B30B3 |
KDJ155..6F;KDJ155..LHD..5FC VEHICLE CATEGORY-REAR SEAT LESS&SPECIAL UTILITY PACKAGE-REAR SEAT LESS&REAR SEAT-WITHOUT(WITH/ANCHOR),LT.GRAY,TRIM1# |
1 | ||
| 62520-60B40B3 |
KDJ155 LT.GRAY,TRIM1# |
1 | ||
| 62520-60B40A1 |
KDJ155 IVORY,TRIM0# |
1 | ||
| 62638B - CLIP | ||||
| 90467-10162 |
KDJ15#;GRJ150..LHD |
8 | ||
| 90467-09234 |
GRJ150,KDJ15# |
8 | ||
| 67910 - PLATE ASSY, DOOR SCUFF, RH | ||||
| 67910-60040B0 |
KDJ15#;GRJ150..LHD MD.GRAY,TRIM1# |
1 | ||
| 67910-60042A0 |
GRJ150,KDJ15# IVORY,TRIM0# |
1 | ||
| 67910-60042B0 |
GRJ150,KDJ15# MD.GRAY,TRIM1# |
1 | ||
| 67910-60040A0 |
KDJ15#;GRJ150..LHD IVORY,TRIM0# |
1 | ||
| 67920 - PLATE ASSY, DOOR SCUFF, LH | ||||
| 67920-60042B0 |
GRJ150,KDJ15# MD.GRAY,TRIM1# |
1 | ||
| 67920-60040B0 |
KDJ15#;GRJ150..LHD MD.GRAY,TRIM1# |
1 | ||
| 67920-60042A0 |
GRJ150,KDJ15# IVORY,TRIM0# |
1 | ||
| 67920-60040A0 |
KDJ15#;GRJ150..LHD IVORY,TRIM0# |
1 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-30030 |
KDJ15#;GRJ150..LHD |
2 | ||
| Common parts | ||||
| 91631-60622 | ||||
| Linked diagrams | ||||
| 7152 | ||||

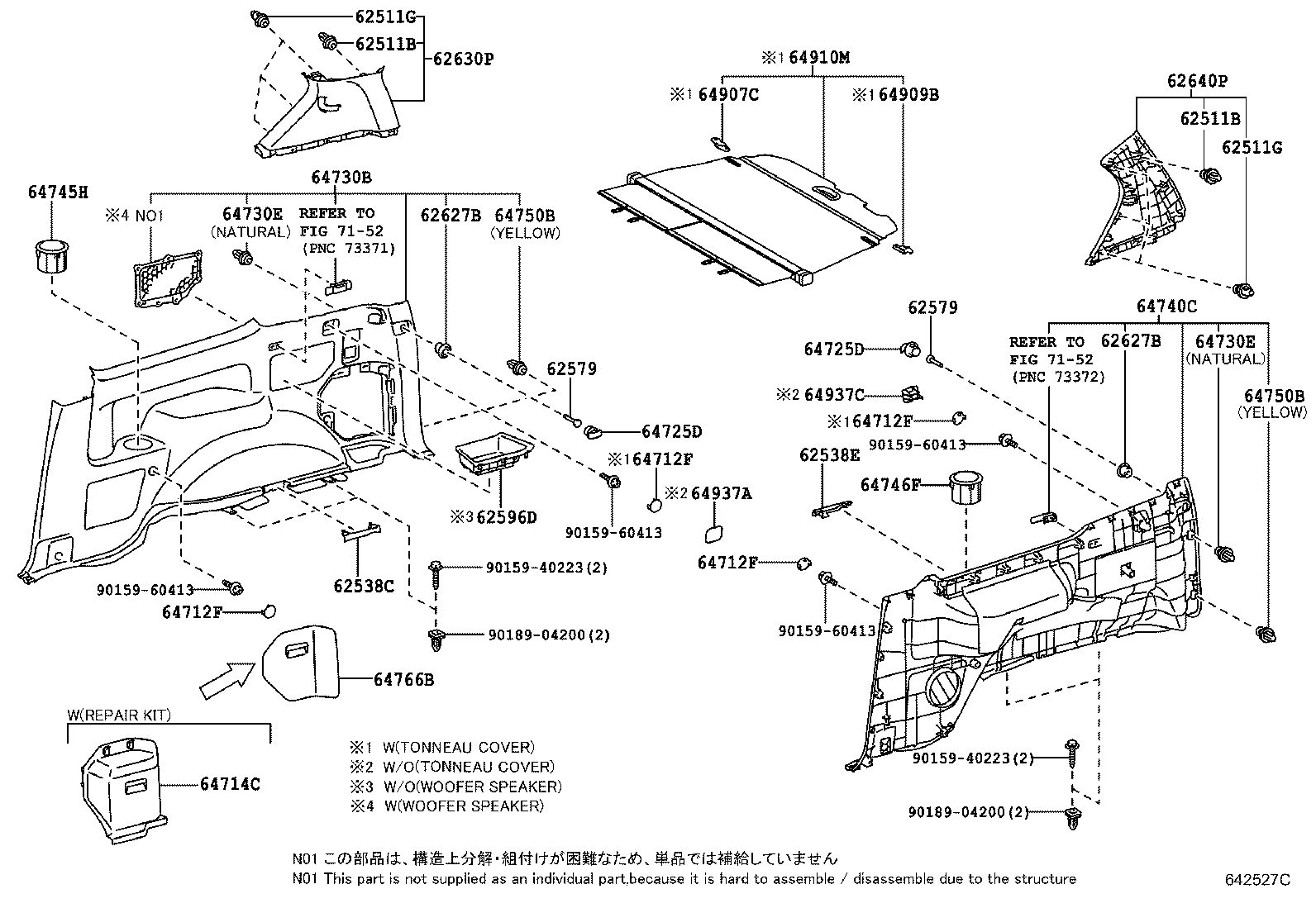

ILLUST NO. 2 OF 2(0908- )GDJ155,KDJ155
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
KDJ155 |
8 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
KDJ155 |
8 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 63395-12150 |
KDJ155 |
6 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 63395-12150 |
KDJ155 |
6 | ||
| 62538C - COVER, QUARTER TRIM, HOLE | ||||
| 62538-60070A0 |
KDJ155 IVORY,TRIM0# |
1 | ||
| 62538-60070B0 |
KDJ155 MD.GRAY,TRIM1# |
1 | ||
| 62538E - COVER, QUARTER TRIM, HOLE | ||||
| 62539-60060A0 |
KDJ155 IVORY,TRIM0# |
1 | ||
| 62539-60060B0 |
KDJ155 MD.GRAY,TRIM1# |
1 | ||
| 62579 - SPACER, QUARTER TRIM | ||||
| 62531-60020 |
KDJ15#;GRJ150..LHD |
2 | ||
| 62579 - SPACER, QUARTER TRIM | ||||
| 62531-60020 |
KDJ15#;GRJ150..LHD |
2 | ||
| 62596D - TRAY, QUARTER TRIM POCKET | ||||
| 62596-60040B0 |
KDJ155 MD.GRAY,TRIM1# |
1 | ||
| 62596-60040A0 |
KDJ155 IVORY,TRIM0# |
1 | ||
| 62627B - COVER, QUARTER TRIM | ||||
| 62627-60010A2 |
KDJ15#;GRJ150..LHD IVORY,TRIM0# |
2 | ||
| 62627-60010B0 |
KDJ15#;GRJ150..LHD MD.GRAY,TRIM1# |
2 | ||
| 62627B - COVER, QUARTER TRIM | ||||
| 62627-60010A2 |
KDJ15#;GRJ150..LHD IVORY,TRIM0# |
2 | ||
| 62627-60010B0 |
KDJ15#;GRJ150..LHD MD.GRAY,TRIM1# |
2 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-60220B1 |
KDJ155 AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,LT.GRAY,TRIM1# |
1 | ||
| 62630-60220A1 |
KDJ155 AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
1 | ||
| 62630-60210A0 |
KDJ155 IVORY,TRIM0# |
1 | ||
| 62630-60220B0 |
KDJ155 AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,LT.GRAY,TRIM1# |
1 | ||
| 62630-60220A0 |
KDJ155 AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
1 | ||
| 62630-60210B0 |
KDJ155 LT.GRAY,TRIM1# |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-60160A1 |
KDJ155 AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
1 | ||
| 62640-60160B1 |
KDJ155 AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,LT.GRAY,TRIM1# |
1 | ||
| 62640-60150B0 |
KDJ155 LT.GRAY,TRIM1# |
1 | ||
| 62640-60160B0 |
KDJ155 AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,LT.GRAY,TRIM1# |
1 | ||
| 62640-60160A0 |
KDJ155 AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
1 | ||
| 62640-60150A0 |
KDJ155 IVORY,TRIM0# |
1 | ||
| 64712F - COVER, DECK SIDE TRIM, FRONT RH | ||||
| 64712-60020A0 |
KDJ155 IVORY,TRIM0# |
2 | ||
| 64712-60020A0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH,IVORY,TRIM0# |
4 | ||
| 64712-60020A0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
4 | ||
| 64712-60020A0 |
KDJ155 PACKAGE TRAY TRIM & TONNEAU COVER-WITH,IVORY,TRIM0# |
4 | ||
| 64712-60020A0 |
KDJ155 PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
4 | ||
| 64712-60020B0 |
KDJ155 MD.GRAY,TRIM1# |
2 | ||
| 64712-60020B0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH,MD.GRAY,TRIM1# |
4 | ||
| 64712-60020B0 |
KDJ155 PACKAGE TRAY TRIM & TONNEAU COVER-WITH,MD.GRAY,TRIM1# |
4 | ||
| 64712-60020B0 |
KDJ155 PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,MD.GRAY,TRIM1# |
4 | ||
| 64712-60020B0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,MD.GRAY,TRIM1# |
4 | ||
| 64712F - COVER, DECK SIDE TRIM, FRONT RH | ||||
| 64712-60020A0 |
KDJ155 IVORY,TRIM0# |
2 | ||
| 64712-60020A0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH,IVORY,TRIM0# |
4 | ||
| 64712-60020A0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
4 | ||
| 64712-60020A0 |
KDJ155 PACKAGE TRAY TRIM & TONNEAU COVER-WITH,IVORY,TRIM0# |
4 | ||
| 64712-60020A0 |
KDJ155 PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
4 | ||
| 64712-60020B0 |
KDJ155 MD.GRAY,TRIM1# |
2 | ||
| 64712-60020B0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH,MD.GRAY,TRIM1# |
4 | ||
| 64712-60020B0 |
KDJ155 PACKAGE TRAY TRIM & TONNEAU COVER-WITH,MD.GRAY,TRIM1# |
4 | ||
| 64712-60020B0 |
KDJ155 PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,MD.GRAY,TRIM1# |
4 | ||
| 64712-60020B0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,MD.GRAY,TRIM1# |
4 | ||
| 64712F - COVER, DECK SIDE TRIM, FRONT RH | ||||
| 64712-60020A0 |
KDJ155 IVORY,TRIM0# |
2 | ||
| 64712-60020A0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH,IVORY,TRIM0# |
4 | ||
| 64712-60020A0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
4 | ||
| 64712-60020A0 |
KDJ155 PACKAGE TRAY TRIM & TONNEAU COVER-WITH,IVORY,TRIM0# |
4 | ||
| 64712-60020A0 |
KDJ155 PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
4 | ||
| 64712-60020B0 |
KDJ155 MD.GRAY,TRIM1# |
2 | ||
| 64712-60020B0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH,MD.GRAY,TRIM1# |
4 | ||
| 64712-60020B0 |
KDJ155 PACKAGE TRAY TRIM & TONNEAU COVER-WITH,MD.GRAY,TRIM1# |
4 | ||
| 64712-60020B0 |
KDJ155 PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,MD.GRAY,TRIM1# |
4 | ||
| 64712-60020B0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,MD.GRAY,TRIM1# |
4 | ||
| 64712F - COVER, DECK SIDE TRIM, FRONT RH | ||||
| 64712-60020A0 |
KDJ155 IVORY,TRIM0# |
2 | ||
| 64712-60020A0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH,IVORY,TRIM0# |
4 | ||
| 64712-60020A0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
4 | ||
| 64712-60020A0 |
KDJ155 PACKAGE TRAY TRIM & TONNEAU COVER-WITH,IVORY,TRIM0# |
4 | ||
| 64712-60020A0 |
KDJ155 PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
4 | ||
| 64712-60020B0 |
KDJ155 MD.GRAY,TRIM1# |
2 | ||
| 64712-60020B0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH,MD.GRAY,TRIM1# |
4 | ||
| 64712-60020B0 |
KDJ155 PACKAGE TRAY TRIM & TONNEAU COVER-WITH,MD.GRAY,TRIM1# |
4 | ||
| 64712-60020B0 |
KDJ155 PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,MD.GRAY,TRIM1# |
4 | ||
| 64712-60020B0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,MD.GRAY,TRIM1# |
4 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-60010A0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
1 | ||
| 64714-60010B0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH,MD.GRAY,TRIM1# |
1 | ||
| 64714-60010A0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH,IVORY,TRIM0# |
1 | ||
| 64714-60010A0 |
KDJ155 SPARE TIRE-WITHOUT&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
1 | ||
| 64714-60010A0 |
KDJ155 SPARE TIRE-WITHOUT,IVORY,TRIM0# |
1 | ||
| 64714-60010B0 |
KDJ155 SPARE TIRE-WITHOUT&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,MD.GRAY,TRIM1# |
1 | ||
| 64714-60010B0 |
KDJ155 SPARE TIRE-WITHOUT,MD.GRAY,TRIM1# |
1 | ||
| 64714-60010B0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,MD.GRAY,TRIM1# |
1 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-60020B0 |
KDJ15#;GRJ150..LHD MD.GRAY,TRIM1# |
2 | ||
| 64725-60020A0 |
KDJ15#;GRJ150..LHD IVORY,TRIM0# |
2 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-60020B0 |
KDJ15#;GRJ150..LHD MD.GRAY,TRIM1# |
2 | ||
| 64725-60020A0 |
KDJ15#;GRJ150..LHD IVORY,TRIM0# |
2 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-60050A0 |
KDJ155 IVORY,TRIM0# |
1 | ||
| 64730-60060A0 |
KDJ155 SPARE TIRE-WITHOUT,IVORY,TRIM0# |
1 | ||
| 64730-60050B0 |
KDJ155 MD.GRAY,TRIM1# |
1 | ||
| 64730-60060B0 |
KDJ155 SPARE TIRE-WITHOUT,MD.GRAY,TRIM1# |
1 | ||
| 64730-60110A0 |
KDJ155 AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
1 | ||
| 64730-60110B0 |
KDJ155 AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,MD.GRAY,TRIM1# |
1 | ||
| 64730-60120B0 |
KDJ155 SPARE TIRE-WITHOUT&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,MD.GRAY,TRIM1# |
1 | ||
| 64730-60120A0 |
KDJ155 SPARE TIRE-WITHOUT&AIR CONDITIONER-SINGLE(AUTO)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP,IVORY,TRIM0# |
1 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
KDJ155 |
22 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
KDJ155 |
22 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-60060B0 |
KDJ155 MD.GRAY,TRIM1# |
1 | ||
| 64740-60060A0 |
KDJ155 IVORY,TRIM0# |
1 | ||
| 64745H - HOLDER, DECK SIDE TRIM CUP, RH | ||||
| 64745-60030B0 |
KDJ155 MD.GRAY,TRIM1# |
1 | ||
| 64745-60030A0 |
KDJ155 IVORY,TRIM0# |
1 | ||
| 64746F - HOLDER, DECK SIDE TRIM CUP, LH | ||||
| 64746-60020A0 |
KDJ155 IVORY,TRIM0# |
1 | ||
| 64746-60020B0 |
KDJ155 MD.GRAY,TRIM1# |
1 | ||
| 64750B - RETAINER(FOR DECK SIDE TRIM PANEL) | ||||
| 67921-48050 |
KDJ155 |
2 | ||
| 64750B - RETAINER(FOR DECK SIDE TRIM PANEL) | ||||
| 67921-48050 |
KDJ155 |
2 | ||
| 64766B - COVER, QUARTER TRIM JACK | ||||
| 64766-60140A0 |
KDJ155 IVORY,TRIM0# |
1 | ||
| 64766-60140B0 |
KDJ155 MD.GRAY,TRIM1# |
1 | ||
| 64910M - COVER ASSY, TONNEAU | ||||
| 64910-60130A0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH,IVORY,TRIM0# |
1 | ||
| 64910-60170A0 |
KDJ155 PACKAGE TRAY TRIM & TONNEAU COVER-WITH,IVORY,TRIM0# |
1 | ||
| 64910-60130B0 |
KDJ155 SPARE TIRE-WITHOUT&PACKAGE TRAY TRIM & TONNEAU COVER-WITH,MD.GRAY,TRIM1# |
1 | ||
| 64910-60170B0 |
KDJ155 PACKAGE TRAY TRIM & TONNEAU COVER-WITH,MD.GRAY,TRIM1# |
1 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-60050A0 |
KDJ155 IVORY,TRIM0# |
1 | ||
| 64937-60050B0 |
KDJ155 MD.GRAY,TRIM1# |
1 | ||
| 64937C - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64938-60020A0 |
KDJ155 IVORY,TRIM0# |
1 | ||
| 64938-60020B0 |
KDJ155 MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-40223 | ||||
| 90159-60413 | ||||
| 90189-04200 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
