KDJ155R-GJAEYW (2009)

Toyota Land Cruiser Prado

Production Aug 2009 - Aug 2013
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )1KDFTV

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17420 17420X 17420X 17430 17430 17451 17451 17561B 17565 17565A 17565A 17565A 9010510388 9050135035 9050135035 9090105020 9090105020 91553E1035
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-30260

1KDFTV..KDJ15#

*114=TOYOTA/AG4/Y

 1
17410-30200

1KDFTV..KDJ15#..5FC

*114=TOYOTA/ZB9/Y,ENGINE-FOR EURO 5 CONFORMITY

 1
17410-30190

1KDFTV..KDJ15#..5FC

*114=TOYOTA/ZB1/Y,ENGINE-FOR EURO 5 CONFORMITY

 1
17410-30261

1KDFTV..KDJ15#

*114=TOYOTA/AG4/Y

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1KDFTV..KDJ15#

 3
17410B - GASKET, EXHAUST PIPE
90917-06090

1KDFTV..KDJ15#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-30190

1KDFTV..KDJ155

 1
17420-30260

1KDFTV..KDJ155

ENGINE-FOR EURO 5 CONFORMITY

 1
17420-30260

1KDFTV..KDJ155..RHD

IRELAND SPEC

 1
17420-30260

1KDFTV..KDJ155..RHD

ENGLAND SPEC

 1
17420-30260

1KDFTV..KDJ155..RHD

MALTA SPEC

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-30190

1KDFTV..KDJ155

 1
17420-30260

1KDFTV..KDJ155

ENGINE-FOR EURO 5 CONFORMITY

 1
17420-30260

1KDFTV..KDJ155..RHD

IRELAND SPEC

 1
17420-30260

1KDFTV..KDJ155..RHD

ENGLAND SPEC

 1
17420-30260

1KDFTV..KDJ155..RHD

MALTA SPEC

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06090

1KDFTV..KDJ15#;1GRFE..GRJ150..LHD

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06090

1KDFTV..KDJ15#;1GRFE..GRJ150..LHD

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-30150

1KDFTV..KDJ155

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-30150

1KDFTV..KDJ155

 1
17451 - GASKET, EXHAUST PIPE
17451-28070

1GRFE,1KDFTV..GRJ150,KDJ15#

 1
17451-31020

1KDFTV..KDJ15#;1GRFE..GRJ150..LHD

 1
17451 - GASKET, EXHAUST PIPE
17451-28070

1GRFE,1KDFTV..GRJ150,KDJ15#

 1
17451-31020

1KDFTV..KDJ15#;1GRFE..GRJ150..LHD

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-22040

1KDFTV..KDJ15#

ENGINE-FOR EURO 5 CONFORMITY

 2
17565-22040

1KDFTV..KDJ15#..RHD

ENGLAND SPEC

 2
17565-22040

1KDFTV..KDJ15#

 1
17565-22040

1KDFTV..KDJ15#..RHD

IRELAND SPEC

 2
17565-22040

1KDFTV..KDJ15#..RHD

MALTA SPEC

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74320

1KDFTV..KDJ15#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1KDFTV..KDJ155

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1KDFTV..KDJ155

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1KDFTV..KDJ155

 2
Common parts
90105-10388
90501-35035
90901-05020
91553-E1035

(1010- )1KDFTV..KDJ155

Click highlighted areas on diagram

FOR EURO 5 OR EURO 5+ CONFORMITY

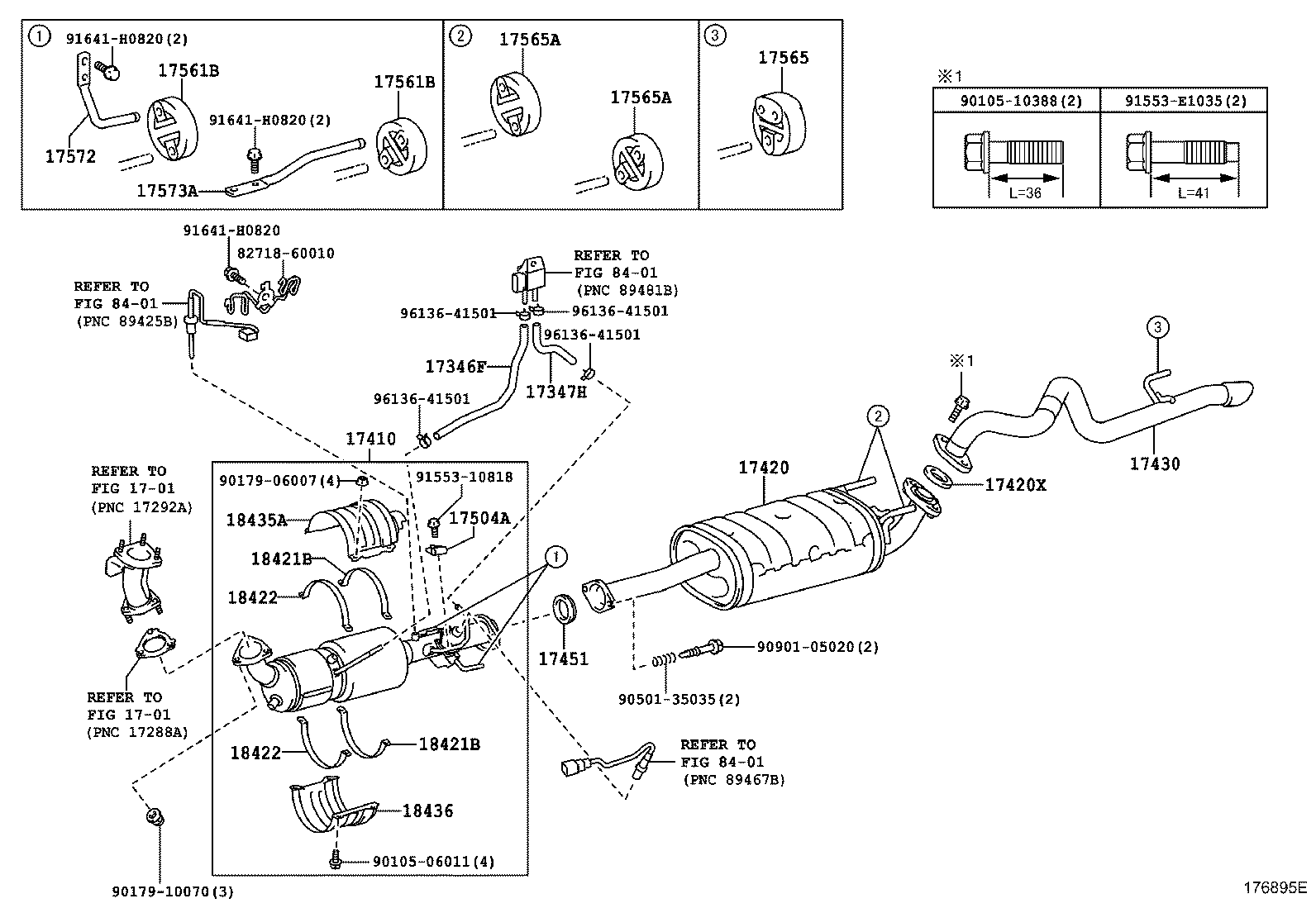

diagram 1701 1701 17346F 17347H 17410 17420 17420X 17430 17451 17504A 17561B 17561B 17565 17565A 17565A 17572 17573A 18421B 18421B 18422 18422 18435A 18436 8271860010 8401 8401 8401 9010506011 9010510388 9017906007 9017910070 9050135035 9090105020 9155310818 91553E1035 91641H0820 91641H0820 91641H0820 9613641501 9613641501 9613641501 9613641501
Part # Description Qty Price
17346F - HOSE, AIR, NO.6
17346-30010

1KDFTV..KDJ15#

ENGINE-FOR EURO 5 CONFORMITY

 1
17346-30010

1KDFTV..KDJ15#..RHD

IRELAND SPEC

 1
17346-30010

1KDFTV..KDJ15#..RHD

ENGLAND SPEC

 1
17346-30010

1KDFTV..KDJ15#..RHD

MALTA SPEC

 1
17347H - HOSE, AIR, NO.7
17347-30031

1KDFTV..KDJ15#..RHD

ENGLAND SPEC

 1
17347-30031

1KDFTV..KDJ15#

ENGINE-FOR EURO 5 CONFORMITY

 1
17347-30031

1KDFTV..KDJ15#..RHD

MALTA SPEC

 1
17347-30031

1KDFTV..KDJ15#..RHD

IRELAND SPEC

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-30260

1KDFTV..KDJ15#

*114=TOYOTA/AG4/Y

 1
17410-30200

1KDFTV..KDJ15#..5FC

*114=TOYOTA/ZB9/Y,ENGINE-FOR EURO 5 CONFORMITY

 1
17410-30190

1KDFTV..KDJ15#..5FC

*114=TOYOTA/ZB1/Y,ENGINE-FOR EURO 5 CONFORMITY

 1
17410-30261

1KDFTV..KDJ15#

*114=TOYOTA/AG4/Y

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-30190

1KDFTV..KDJ155

 1
17420-30260

1KDFTV..KDJ155

ENGINE-FOR EURO 5 CONFORMITY

 1
17420-30260

1KDFTV..KDJ155..RHD

IRELAND SPEC

 1
17420-30260

1KDFTV..KDJ155..RHD

ENGLAND SPEC

 1
17420-30260

1KDFTV..KDJ155..RHD

MALTA SPEC

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06090

1KDFTV..KDJ15#;1GRFE..GRJ150..LHD

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-30150

1KDFTV..KDJ155

 1
17451 - GASKET, EXHAUST PIPE
17451-28070

1GRFE,1KDFTV..GRJ150,KDJ15#

 1
17451-31020

1KDFTV..KDJ15#;1GRFE..GRJ150..LHD

 1
17504A - CLAMP SUB-ASSY, EXHAUST PIPE
17504-30040

1KDFTV..KDJ15#

ENGINE-FOR EURO 5 CONFORMITY

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-22040

1KDFTV..KDJ15#

ENGINE-FOR EURO 5 CONFORMITY

 2
17565-22040

1KDFTV..KDJ15#..RHD

ENGLAND SPEC

 2
17565-22040

1KDFTV..KDJ15#

 1
17565-22040

1KDFTV..KDJ15#..RHD

IRELAND SPEC

 2
17565-22040

1KDFTV..KDJ15#..RHD

MALTA SPEC

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-22040

1KDFTV..KDJ15#

ENGINE-FOR EURO 5 CONFORMITY

 2
17565-22040

1KDFTV..KDJ15#..RHD

ENGLAND SPEC

 2
17565-22040

1KDFTV..KDJ15#

 1
17565-22040

1KDFTV..KDJ15#..RHD

IRELAND SPEC

 2
17565-22040

1KDFTV..KDJ15#..RHD

MALTA SPEC

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74320

1KDFTV..KDJ15#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1KDFTV..KDJ155

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1KDFTV..KDJ155

 2
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-75290

1KDFTV..KDJ15#

ENGINE-FOR EURO 5 CONFORMITY

 1
17572-75290

1KDFTV..KDJ15#..RHD

IRELAND SPEC

 1
17572-75290

1KDFTV..KDJ15#..RHD

ENGLAND SPEC

 1
17572-75290

1KDFTV..KDJ15#..RHD

MALTA SPEC

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-30040

1KDFTV..KDJ15#

ENGINE-FOR EURO 5 CONFORMITY

 1
17573-30040

1KDFTV..KDJ15#..RHD

ENGLAND SPEC

 1
17573-30040

1KDFTV..KDJ15#..RHD

MALTA SPEC

 1
17573-30040

1KDFTV..KDJ15#..RHD

IRELAND SPEC

 1
18421B - STAY, CONVERTER PROTECTOR, NO.2
18421-30010

1KDFTV..KDJ15#

ENGINE-FOR EURO 5 CONFORMITY

 2
18421B - STAY, CONVERTER PROTECTOR, NO.2
18421-30010

1KDFTV..KDJ15#

ENGINE-FOR EURO 5 CONFORMITY

 2
18422 - STAY, CONVERTER PROTECTOR, NO.2
18422-30010

1KDFTV..KDJ15#

ENGINE-FOR EURO 5 CONFORMITY

 2
18422 - STAY, CONVERTER PROTECTOR, NO.2
18422-30010

1KDFTV..KDJ15#

ENGINE-FOR EURO 5 CONFORMITY

 2
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-30010

1KDFTV..KDJ15#

ENGINE-FOR EURO 5 CONFORMITY

 1
18436 - PROTECTOR, MONOLITHIC CONVERTER, NO.1
18445-30010

1KDFTV..KDJ15#

ENGINE-FOR EURO 5 CONFORMITY

 1
Common parts
82718-60010
90105-06011
90105-10388
90179-06007
90179-10070
90501-35035
90901-05020
91553-10818
91553-E1035
91641-H0820
96136-41501
