KDJ155L-GJFEYW (2013)

Toyota Land Cruiser Prado

Production Aug 2013 - Jun 2015
Engine 1KDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

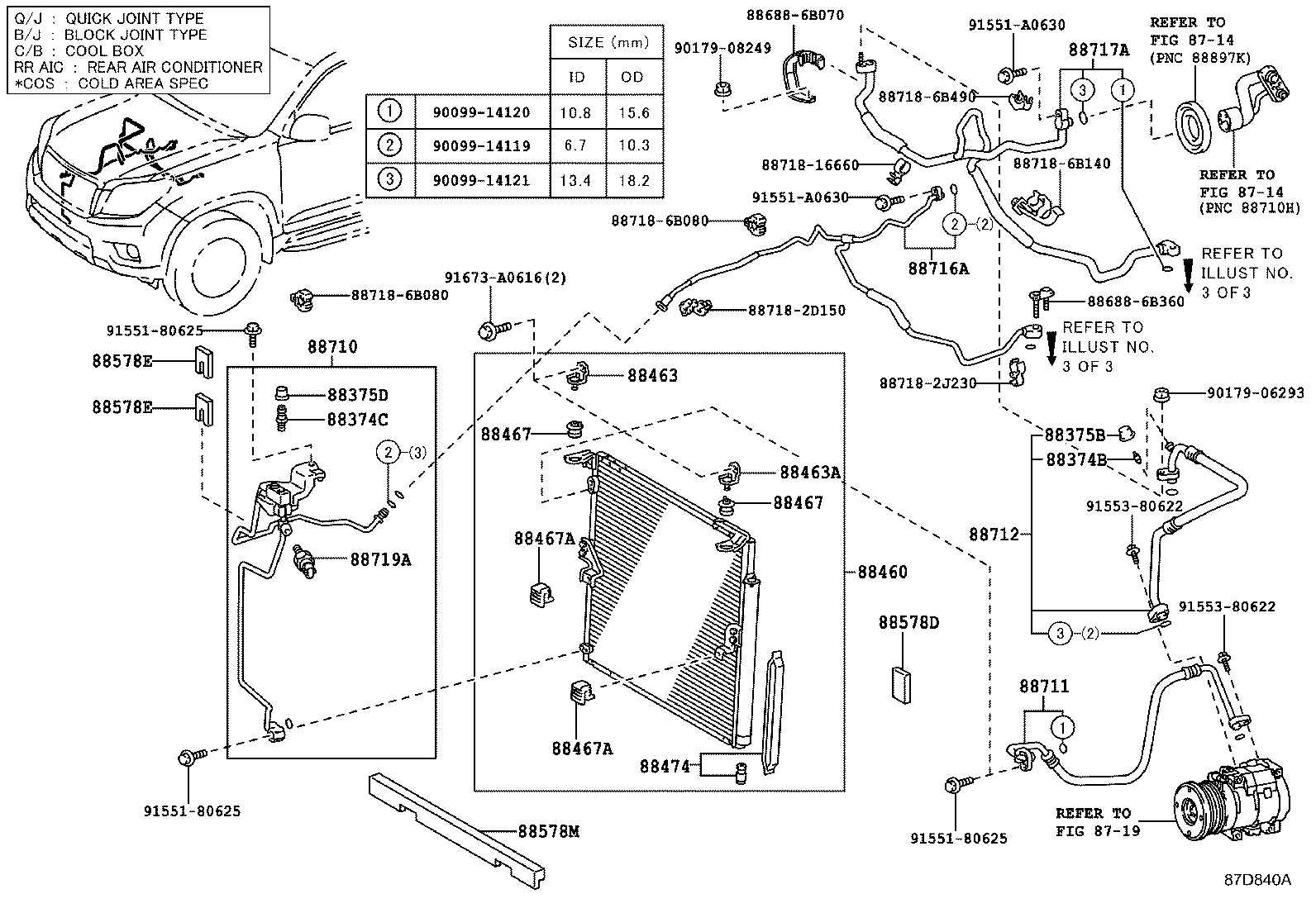

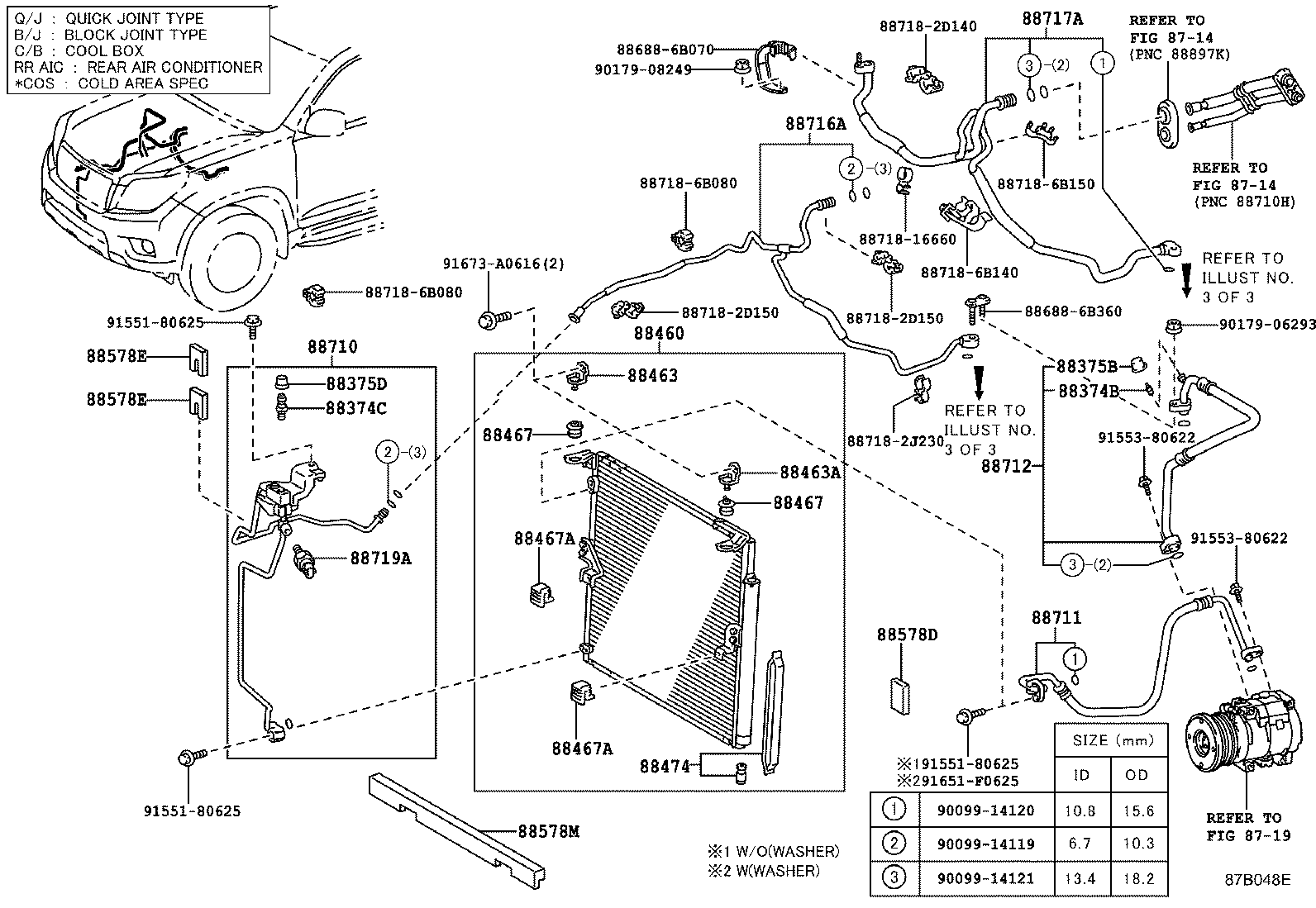

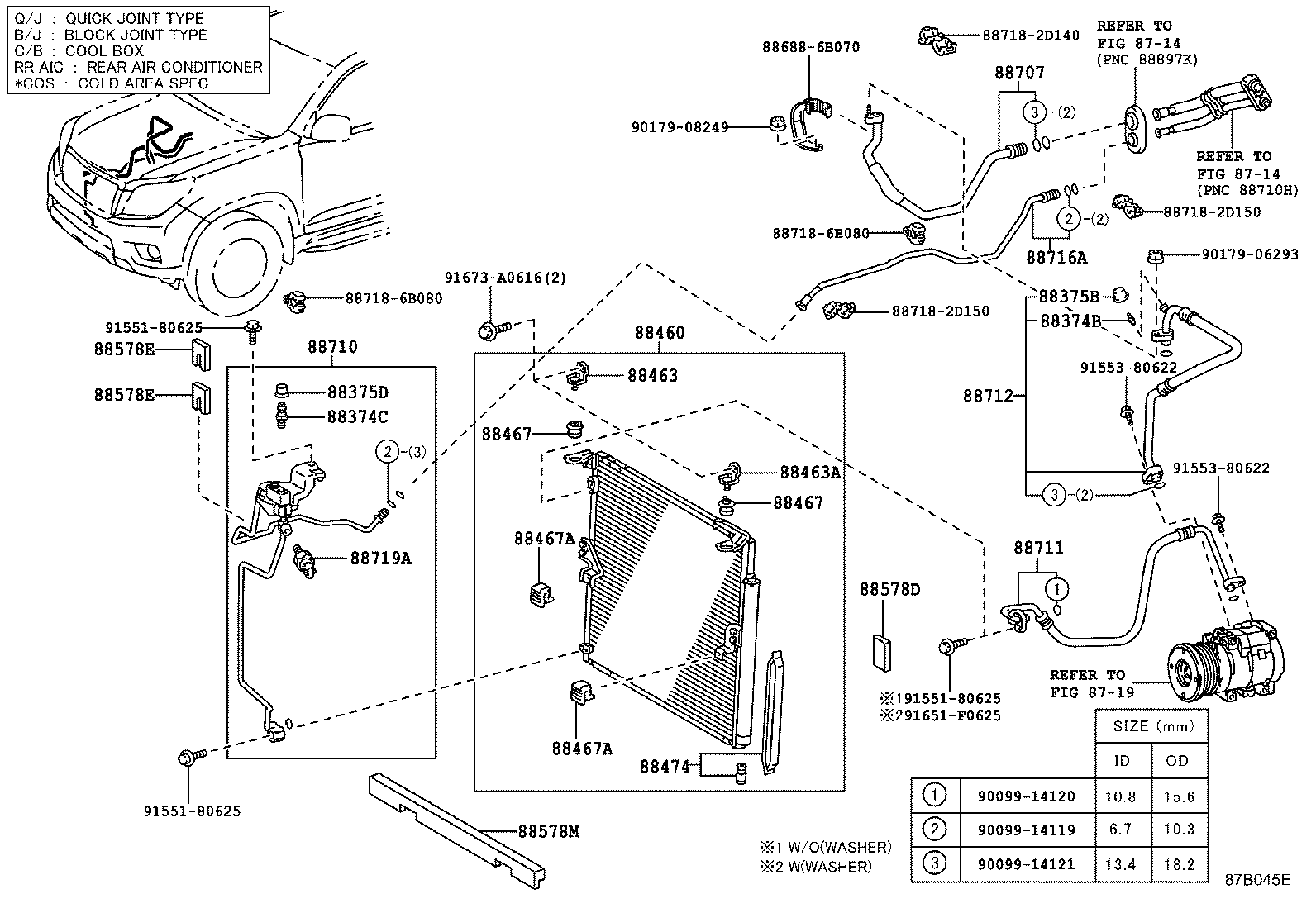

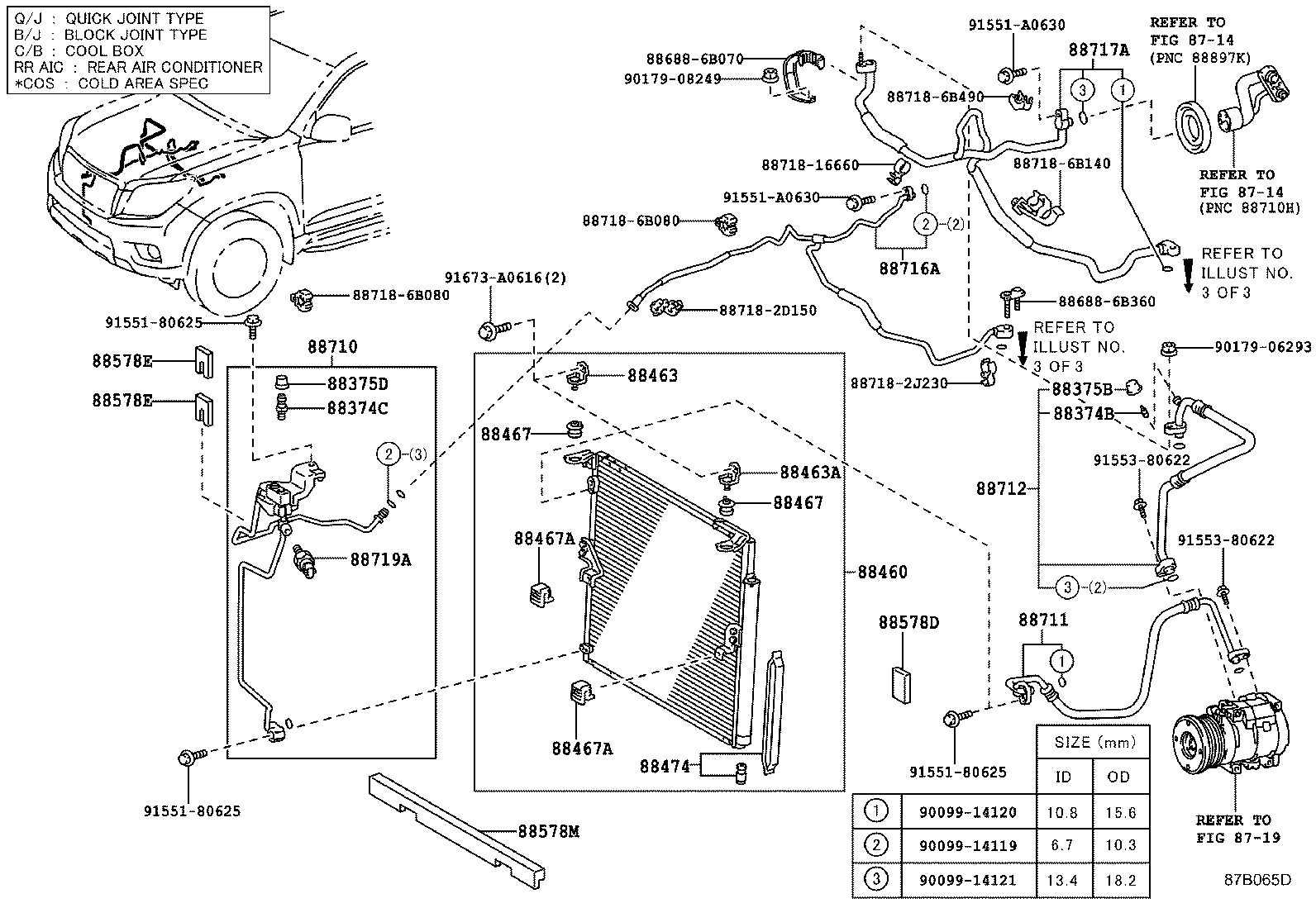

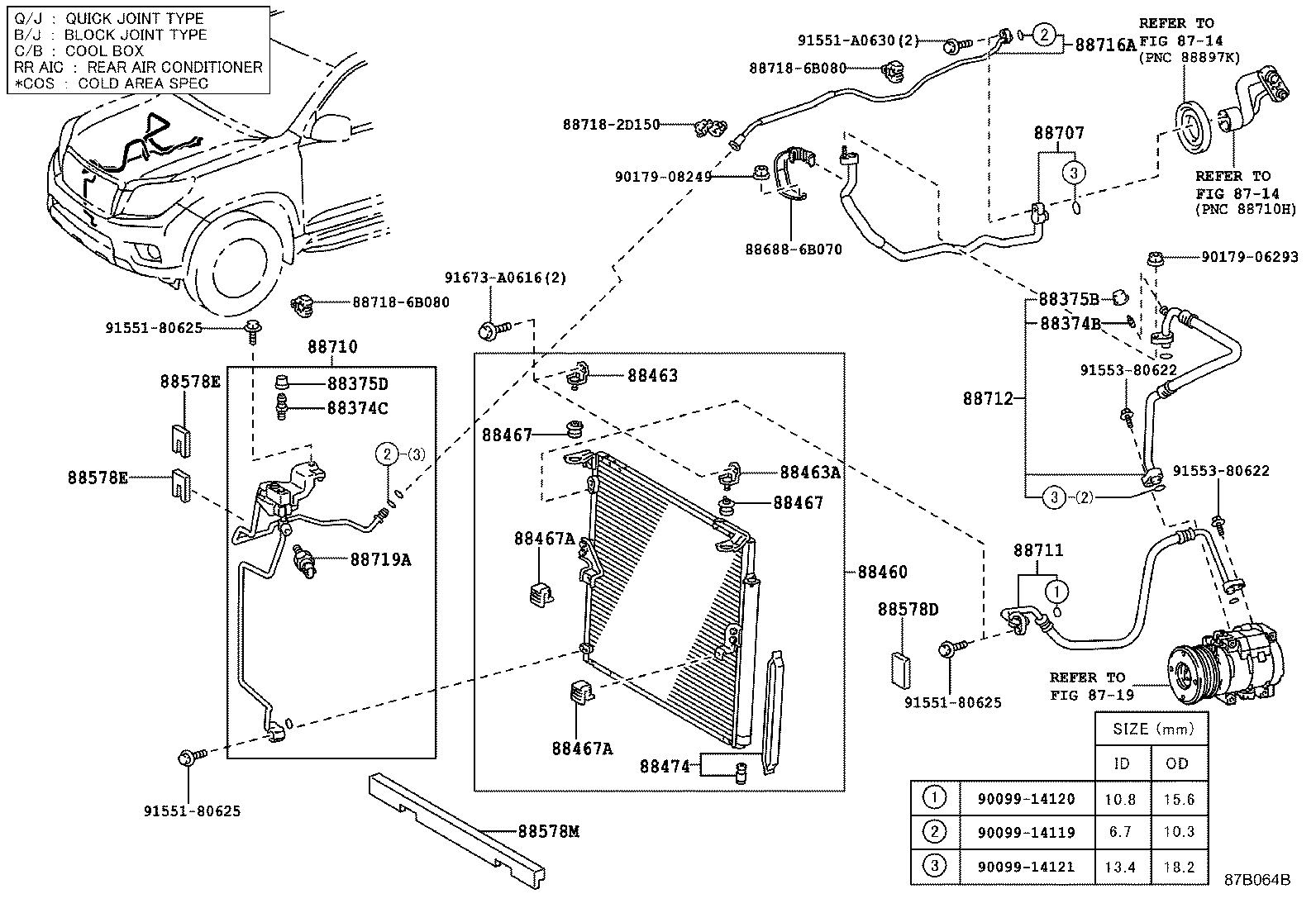

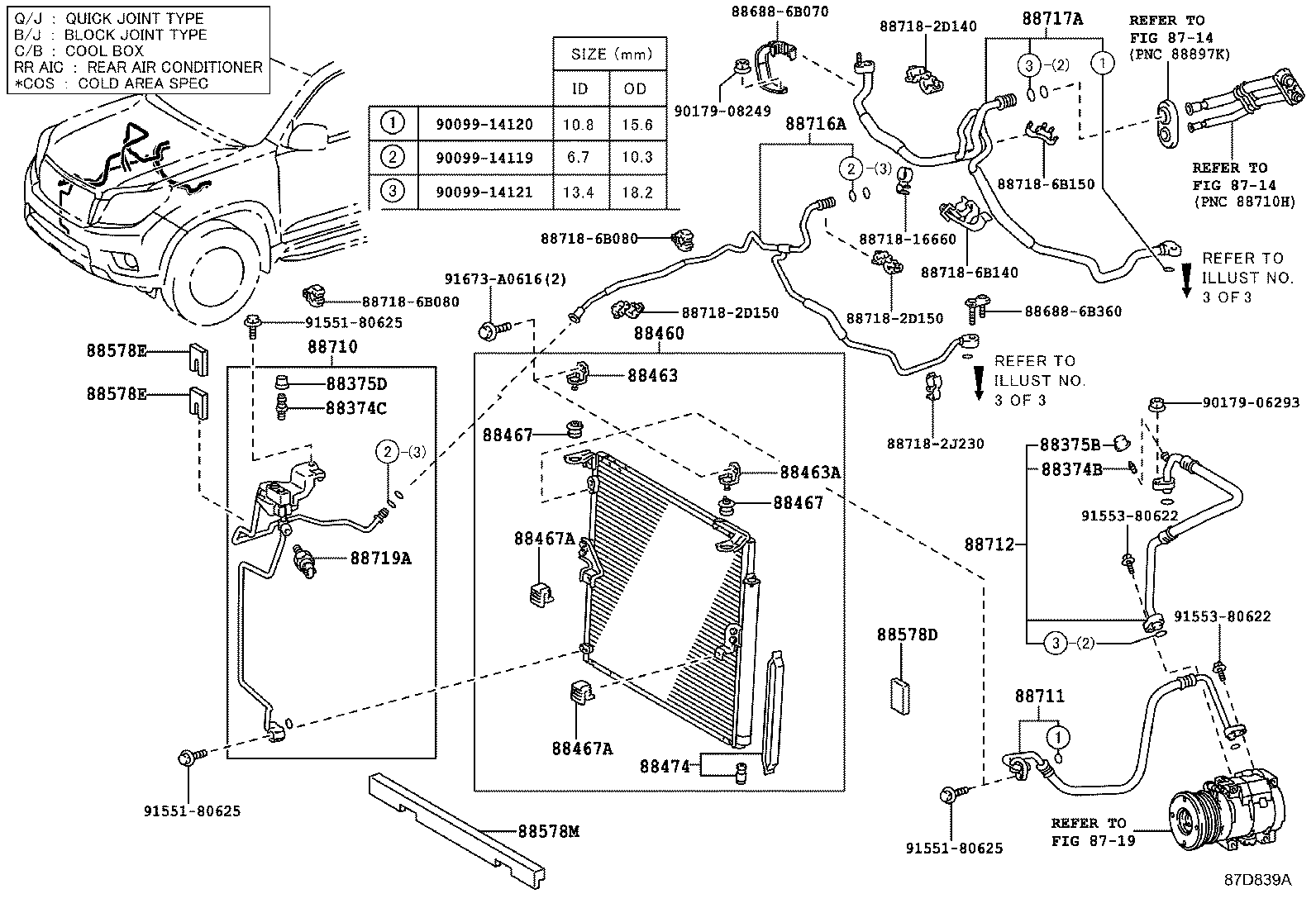

ILLUST NO. 2 OF 3(0908-1506)KDJ15# ; (1506- )KDJ15#..LHD

Click highlighted areas on diagram

FRONT(Q/J & W/O(REAR))

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88460B 88463 88463A 88467 88467 88467A 88467A 88474 88578D 88578E 88578E 88578M 88710 88711 88712 88716A 88717A 8871816660 887182D140 887182D150 887182D150 887186B080 887186B270 887186B490 88719A 9009914119 9009914120 9009914121 9017906293 9155180625 9155180625 9155180625 9155380622 9155380622 91651F0625 9167180612 91673A0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

KDJ15#

COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88374-30010

KDJ15#;GRJ150..LHD

AIR CONDITIONER-SINGLE(AUTO)

 1
88374-30010

KDJ15#

COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88374-30010

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

GRJ150,KDJ15#..LHD

ISRAEL SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88374-30010

GRJ150,KDJ15#..LHD

TURKEY SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88374-30010

KDJ15#;GRJ150..LHD

AIR CONDITIONER-SINGLE(AUTO)

 1
88374-30010

GRJ150,KDJ15#..LHD

ISRAEL SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88374-30010

GRJ150,KDJ15#..LHD

TURKEY SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88374-30010

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

KDJ15#;GRJ150..LHD

AIR CONDITIONER-SINGLE(AUTO)

 1
88375-30290

KDJ15#

COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88375-30290

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88375-30290

KDJ15#

COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

GRJ150,KDJ15#..LHD

ISRAEL SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88375-30280

GRJ150,KDJ15#..LHD

TURKEY SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88375-30280

KDJ15#;GRJ150..LHD

AIR CONDITIONER-SINGLE(AUTO)

 1
88375-30280

GRJ150,KDJ15#..LHD

TURKEY SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88375-30280

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88375-30280

GRJ150,KDJ15#..LHD

ISRAEL SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88460 - CONDENSER ASSY, COOLER
88460-60420

KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88460-60420

KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-6B140

KDJ15#;GRJ150..LHD

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88688-6B140

KDJ15#;GRJ150..LHD

AIR CONDITIONER-SINGLE(AUTO)

 1
88688-6B140

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88688-6B140

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010

KDJ15#;GRJ150..LHD

AIR CONDITIONER-SINGLE(AUTO)

 1
88463-60010

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020

KDJ15#;GRJ150..LHD

AIR CONDITIONER-SINGLE(AUTO)

 1
88463-60020

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

KDJ15#;GRJ150..LHD

AIR CONDITIONER-SINGLE(AUTO)

 2
88467-28050

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

KDJ15#;GRJ150..LHD

AIR CONDITIONER-SINGLE(AUTO)

 2
88467-28050

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 2
88467-35080

KDJ15#;GRJ150..LHD

AIR CONDITIONER-SINGLE(AUTO)

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 2
88467-35080

KDJ15#;GRJ150..LHD

AIR CONDITIONER-SINGLE(AUTO)

 2
88474 - DRYER, COOLER
88474-17010

KDJ15#;GRJ150..LHD

AIR CONDITIONER-SINGLE(AUTO)

 1
88474-17010

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-60461

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88578-60460

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88578-60550

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-60470

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 2
88578-60471

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 2
88578-60540

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 2
88578E - PACKING, COOLER PIPE, NO.2
88578-60470

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 2
88578-60471

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 2
88578-60540

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 2
88578M - PACKING, COOLING PIPE, NO.3
88578-60480

KDJ15#;GRJ150..LHD

AIR CONDITIONER-SINGLE(AUTO)

 1
88578-60480

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-60A60

KDJ15#..LHD

TURKEY SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88710-60A60

KDJ15#..LHD

ISRAEL SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88710-60C90

KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88710-60A60

KDJ15#..LHD

ISRAEL SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88710-60C90

KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88710-60A60

KDJ15#..LHD

TURKEY SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60890

KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88711-60840

KDJ15#

COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88711-60840

KDJ15#

COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88711-60890

KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-6A450

KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88712-6A450

KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88712-6A460

KDJ15#

COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88712-6A461

KDJ15#

COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6C330

KDJ15#..5FC;KDJ15#..LHD..6F

COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88716-6C470

KDJ15#..5FC;KDJ15#..LHD..6F

COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88716-6C530

GRJ150..LHD;KDJ15#..5FC;KDJ15#..LHD..6F

AIR CONDITIONER-SINGLE(AUTO)

 1
88716-60A10

KDJ15#..5FC;KDJ15#..LHD..6F

COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88716-6C330

KDJ15#..5FC;KDJ15#..LHD..6F

COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88716-6C530

KDJ15#..LHD..6F;GRJ150,KDJ15#..5FC

AIR CONDITIONER-SINGLE(AUTO)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-6B190

KDJ15#;GRJ150..LHD

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88717-6B200

KDJ15#..5FC;KDJ15#..LHD..6F

COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88717-60A10

KDJ15#..5FC;KDJ15#..LHD..6F

COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88717-6B220

GRJ150..LHD;KDJ15#..5FC;KDJ15#..LHD..6F

AIR CONDITIONER-SINGLE(AUTO)

 1
88717-6B190

GRJ150,KDJ15#

AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH

 1
88717-6B220

KDJ15#..LHD..6F;GRJ150,KDJ15#..5FC

AIR CONDITIONER-SINGLE(AUTO)

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

KDJ15#..LHD

TURKEY SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88719-33020

KDJ15#..LHD

ISRAEL SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88719-33020

KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
88719-33020

KDJ15#..LHD

TURKEY SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88719-33020

KDJ15#..LHD

ISRAEL SPEC&AIR CONDITIONER-SINGLE(AUTO)

 1
88719-33020

KDJ15#

AIR CONDITIONER-SINGLE(AUTO)

 1
Common parts
88718-16660
88718-2D140
88718-2D150
88718-6B080
88718-6B270
88718-6B490
90099-14119
90099-14120
90099-14121
90179-06293
91551-80625
91553-80622
91651-F0625
91671-80612
91673-A0616
