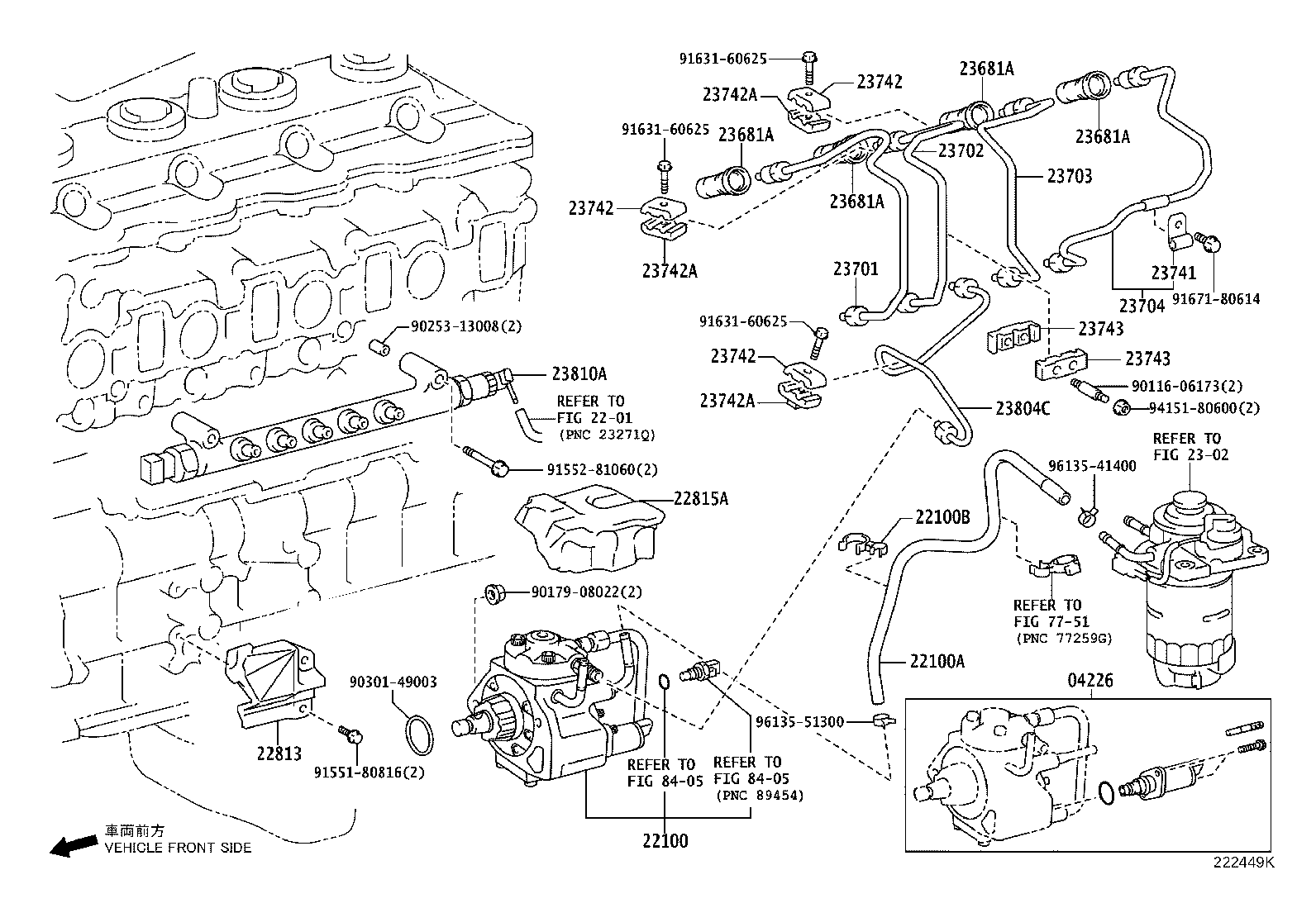

KDJ155L-GJAEYW (2009)
Toyota Land Cruiser Prado
(0908-1308)1KDFTV ; (1308- )1KDFTV..KDJ155..LHD ; (1308- )1KDFTV..KDJ150..5FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04226 - VALVE KIT, SUCTION CONTROL | ||||
| 04226-30020 |
1KDFTV..KDJ15# |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-30150 |
1KDFTV..KDJ15# ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 22100-30150 |
1KDFTV..KDJ15#..LHD *242 |
1 | ||
| 22100-30150 |
1KDFTV..KDJ15#..LHD ICELAND SPEC |
1 | ||
| 22100-30140 |
1KDFTV..KDJ15# |
1 | ||
| 22100-30150 |
1KDFTV..KDJ15#..LHD CZECHOSLOVAKIA SPEC |
1 | ||
| 22100-30150 |
1KDFTV..KDJ15#..LHD SWEDEN,FINLAND,NORWAY,DENMARK SPEC |
1 | ||
| 22100-30150 |
1KDFTV..KDJ15#..LHD PORTUGAL SPEC |
1 | ||
| 22100-30150 |
1KDFTV..KDJ15#..LHD HUNGARY,SLOVAKIA,POLAND SPEC |
1 | ||
| 22100-30150 |
1KDFTV..KDJ15#..LHD GREECE SPEC |
1 | ||
| 22100-30150 |
1KDFTV..KDJ15#..LHD BULGARIA SPEC |
1 | ||
| 22100-30150 |
1KDFTV..KDJ15#..LHD AZORES,MACEDONIA SPEC |
1 | ||
| 22100-30150 |
1KDFTV..KDJ15#..LHD GERMANY SPEC |
1 | ||
| 22100-30150 |
1KDFTV..KDJ15#..LHD SLOVENIA SPEC |
1 | ||
| 22100-30150 |
1KDFTV..KDJ15#..LHD ESTONIA,LATVIA,LITHUANIA SPEC |
1 | ||
| 22100-30150 |
1KDFTV..KDJ15#..LHD ISRAEL SPEC |
1 | ||
| 22100-30150 |
1KDFTV..KDJ15#..LHD TURKEY SPEC |
1 | ||
| 22100-30150 |
1KDFTV..KDJ15#..LHD RUMANIA SPEC |
1 | ||
| 22100-30150 |
1KDFTV..KDJ15#..LHD MONACO,GIBRALTAR,CANARY ISLANDS SPEC |
1 | ||
| 22100-30150 |
1KDFTV..KDJ15#..LHD REUNION,GUIANAN,GUADELOUPE,MARTINIQUE |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23271-30300 |
1KDFTV..KDJ15# |
1 | ||
| 23271-30300 |
1KDFTV..KDJ15# ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 23271-30260 |
1KDFTV..KDJ15# |
1 | ||
| 22100B - CLAMP, FUEL HOSE, NO.1 | ||||
| 90464-00836 |
1KDFTV..KDJ15# |
1 | ||
| 90464-00558 |
1KDFTV..KDJ15# ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 22813 - PROTECTOR, INJECTION PUMP, NO.1 | ||||
| 22813-30010 |
1KDFTV..KDJ15# |
1 | ||
| 22815A - INSULATOR, INJECTION PUMP | ||||
| 22815-30010 |
1KDFTV..KDJ15# |
1 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDJ15# |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDJ15# |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDJ15# |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-30010 |
1KDFTV..KDJ15# |
4 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-30060 |
1KDFTV..KDJ15# |
1 | ||
| 23701-30090 |
1KDFTV..KDJ15#..LHD MONACO,GIBRALTAR,CANARY ISLANDS SPEC |
1 | ||
| 23701-30090 |
1KDFTV..KDJ15#..LHD HUNGARY,SLOVAKIA,POLAND SPEC |
1 | ||
| 23701-30090 |
1KDFTV..KDJ15# ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 23701-30090 |
1KDFTV..KDJ15#..LHD PORTUGAL SPEC |
1 | ||
| 23701-30090 |
1KDFTV..KDJ15#..LHD *242 |
1 | ||
| 23701-30090 |
1KDFTV..KDJ15#..LHD SWEDEN,FINLAND,NORWAY,DENMARK SPEC |
1 | ||
| 23701-30090 |
1KDFTV..KDJ15#..LHD REUNION,GUIANAN,GUADELOUPE,MARTINIQUE |
1 | ||
| 23701-30090 |
1KDFTV..KDJ15#..LHD ESTONIA,LATVIA,LITHUANIA SPEC |
1 | ||
| 23701-30090 |
1KDFTV..KDJ15#..LHD RUMANIA SPEC |
1 | ||
| 23701-30090 |
1KDFTV..KDJ15#..LHD ICELAND SPEC |
1 | ||
| 23701-30090 |
1KDFTV..KDJ15#..LHD BULGARIA SPEC |
1 | ||
| 23701-30090 |
1KDFTV..KDJ15#..LHD GERMANY SPEC |
1 | ||
| 23701-30090 |
1KDFTV..KDJ15#..LHD CZECHOSLOVAKIA SPEC |
1 | ||
| 23701-30090 |
1KDFTV..KDJ15#..LHD TURKEY SPEC |
1 | ||
| 23701-30090 |
1KDFTV..KDJ15#..LHD GREECE SPEC |
1 | ||
| 23701-30090 |
1KDFTV..KDJ15#..LHD SLOVENIA SPEC |
1 | ||
| 23701-30090 |
1KDFTV..KDJ15#..LHD AZORES,MACEDONIA SPEC |
1 | ||
| 23701-30090 |
1KDFTV..KDJ15#..LHD ISRAEL SPEC |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-30060 |
1KDFTV..KDJ15# |
1 | ||
| 23702-30090 |
1KDFTV..KDJ15# ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 23702-30090 |
1KDFTV..KDJ15#..LHD GREECE SPEC |
1 | ||
| 23702-30090 |
1KDFTV..KDJ15#..LHD CZECHOSLOVAKIA SPEC |
1 | ||
| 23702-30090 |
1KDFTV..KDJ15#..LHD ICELAND SPEC |
1 | ||
| 23702-30090 |
1KDFTV..KDJ15#..LHD HUNGARY,SLOVAKIA,POLAND SPEC |
1 | ||
| 23702-30090 |
1KDFTV..KDJ15#..LHD MONACO,GIBRALTAR,CANARY ISLANDS SPEC |
1 | ||
| 23702-30090 |
1KDFTV..KDJ15#..LHD REUNION,GUIANAN,GUADELOUPE,MARTINIQUE |
1 | ||
| 23702-30090 |
1KDFTV..KDJ15#..LHD *242 |
1 | ||
| 23702-30090 |
1KDFTV..KDJ15#..LHD GERMANY SPEC |
1 | ||
| 23702-30090 |
1KDFTV..KDJ15#..LHD SWEDEN,FINLAND,NORWAY,DENMARK SPEC |
1 | ||
| 23702-30090 |
1KDFTV..KDJ15#..LHD RUMANIA SPEC |
1 | ||
| 23702-30090 |
1KDFTV..KDJ15#..LHD PORTUGAL SPEC |
1 | ||
| 23702-30090 |
1KDFTV..KDJ15#..LHD ESTONIA,LATVIA,LITHUANIA SPEC |
1 | ||
| 23702-30090 |
1KDFTV..KDJ15#..LHD ISRAEL SPEC |
1 | ||
| 23702-30090 |
1KDFTV..KDJ15#..LHD BULGARIA SPEC |
1 | ||
| 23702-30090 |
1KDFTV..KDJ15#..LHD SLOVENIA SPEC |
1 | ||
| 23702-30090 |
1KDFTV..KDJ15#..LHD TURKEY SPEC |
1 | ||
| 23702-30090 |
1KDFTV..KDJ15#..LHD AZORES,MACEDONIA SPEC |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-30090 |
1KDFTV..KDJ15# ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 23703-30090 |
1KDFTV..KDJ15#..LHD MONACO,GIBRALTAR,CANARY ISLANDS SPEC |
1 | ||
| 23703-30090 |
1KDFTV..KDJ15#..LHD *242 |
1 | ||
| 23703-30090 |
1KDFTV..KDJ15#..LHD HUNGARY,SLOVAKIA,POLAND SPEC |
1 | ||
| 23703-30060 |
1KDFTV..KDJ15# |
1 | ||
| 23703-30090 |
1KDFTV..KDJ15#..LHD CZECHOSLOVAKIA SPEC |
1 | ||
| 23703-30090 |
1KDFTV..KDJ15#..LHD GREECE SPEC |
1 | ||
| 23703-30090 |
1KDFTV..KDJ15#..LHD RUMANIA SPEC |
1 | ||
| 23703-30090 |
1KDFTV..KDJ15#..LHD REUNION,GUIANAN,GUADELOUPE,MARTINIQUE |
1 | ||
| 23703-30090 |
1KDFTV..KDJ15#..LHD GERMANY SPEC |
1 | ||
| 23703-30090 |
1KDFTV..KDJ15#..LHD ICELAND SPEC |
1 | ||
| 23703-30090 |
1KDFTV..KDJ15#..LHD SWEDEN,FINLAND,NORWAY,DENMARK SPEC |
1 | ||
| 23703-30090 |
1KDFTV..KDJ15#..LHD BULGARIA SPEC |
1 | ||
| 23703-30090 |
1KDFTV..KDJ15#..LHD AZORES,MACEDONIA SPEC |
1 | ||
| 23703-30090 |
1KDFTV..KDJ15#..LHD TURKEY SPEC |
1 | ||
| 23703-30090 |
1KDFTV..KDJ15#..LHD ESTONIA,LATVIA,LITHUANIA SPEC |
1 | ||
| 23703-30090 |
1KDFTV..KDJ15#..LHD ISRAEL SPEC |
1 | ||
| 23703-30090 |
1KDFTV..KDJ15#..LHD SLOVENIA SPEC |
1 | ||
| 23703-30090 |
1KDFTV..KDJ15#..LHD PORTUGAL SPEC |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-30090 |
1KDFTV..KDJ15# ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 23704-39055 |
1KDFTV..KDJ15# |
1 | ||
| 23704-30090 |
1KDFTV..KDJ15#..LHD MONACO,GIBRALTAR,CANARY ISLANDS SPEC |
1 | ||
| 23704-30090 |
1KDFTV..KDJ15#..LHD ICELAND SPEC |
1 | ||
| 23704-30090 |
1KDFTV..KDJ15#..LHD *242 |
1 | ||
| 23704-30090 |
1KDFTV..KDJ15#..LHD PORTUGAL SPEC |
1 | ||
| 23704-30090 |
1KDFTV..KDJ15#..LHD GERMANY SPEC |
1 | ||
| 23704-30090 |
1KDFTV..KDJ15#..LHD CZECHOSLOVAKIA SPEC |
1 | ||
| 23704-30090 |
1KDFTV..KDJ15#..LHD SWEDEN,FINLAND,NORWAY,DENMARK SPEC |
1 | ||
| 23704-30090 |
1KDFTV..KDJ15#..LHD REUNION,GUIANAN,GUADELOUPE,MARTINIQUE |
1 | ||
| 23704-30090 |
1KDFTV..KDJ15#..LHD BULGARIA SPEC |
1 | ||
| 23704-30090 |
1KDFTV..KDJ15#..LHD ISRAEL SPEC |
1 | ||
| 23704-30090 |
1KDFTV..KDJ15#..LHD TURKEY SPEC |
1 | ||
| 23704-30090 |
1KDFTV..KDJ15#..LHD RUMANIA SPEC |
1 | ||
| 23704-30090 |
1KDFTV..KDJ15#..LHD ESTONIA,LATVIA,LITHUANIA SPEC |
1 | ||
| 23704-30090 |
1KDFTV..KDJ15#..LHD GREECE SPEC |
1 | ||
| 23704-30090 |
1KDFTV..KDJ15#..LHD AZORES,MACEDONIA SPEC |
1 | ||
| 23704-30090 |
1KDFTV..KDJ15#..LHD HUNGARY,SLOVAKIA,POLAND SPEC |
1 | ||
| 23704-30090 |
1KDFTV..KDJ15#..LHD SLOVENIA SPEC |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-30010 |
1KDFTV..KDJ15# |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1KDFTV..KDJ15#..LHD MONACO,GIBRALTAR,CANARY ISLANDS SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD HUNGARY,SLOVAKIA,POLAND SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15# ENGINE-FOR EURO 5 CONFORMITY |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD *242 |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD CZECHOSLOVAKIA SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD TURKEY SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD AZORES,MACEDONIA SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD SWEDEN,FINLAND,NORWAY,DENMARK SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD ICELAND SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15# |
3 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD PORTUGAL SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD GERMANY SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD BULGARIA SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD ISRAEL SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD SLOVENIA SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD RUMANIA SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD REUNION,GUIANAN,GUADELOUPE,MARTINIQUE |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD GREECE SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD ESTONIA,LATVIA,LITHUANIA SPEC |
7 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1KDFTV..KDJ15#..LHD MONACO,GIBRALTAR,CANARY ISLANDS SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD HUNGARY,SLOVAKIA,POLAND SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15# ENGINE-FOR EURO 5 CONFORMITY |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD *242 |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD CZECHOSLOVAKIA SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD TURKEY SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD AZORES,MACEDONIA SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD SWEDEN,FINLAND,NORWAY,DENMARK SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD ICELAND SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15# |
3 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD PORTUGAL SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD GERMANY SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD BULGARIA SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD ISRAEL SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD SLOVENIA SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD RUMANIA SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD REUNION,GUIANAN,GUADELOUPE,MARTINIQUE |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD GREECE SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD ESTONIA,LATVIA,LITHUANIA SPEC |
7 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1KDFTV..KDJ15#..LHD MONACO,GIBRALTAR,CANARY ISLANDS SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD HUNGARY,SLOVAKIA,POLAND SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15# ENGINE-FOR EURO 5 CONFORMITY |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD *242 |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD CZECHOSLOVAKIA SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD TURKEY SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD AZORES,MACEDONIA SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD SWEDEN,FINLAND,NORWAY,DENMARK SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD ICELAND SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15# |
3 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD PORTUGAL SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD GERMANY SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD BULGARIA SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD ISRAEL SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD SLOVENIA SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD RUMANIA SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD REUNION,GUIANAN,GUADELOUPE,MARTINIQUE |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD GREECE SPEC |
7 | ||
| 23742-27010 |
1KDFTV..KDJ15#..LHD ESTONIA,LATVIA,LITHUANIA SPEC |
7 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-58020 |
1KDFTV..KDJ15# |
3 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-58020 |
1KDFTV..KDJ15# |
3 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-58020 |
1KDFTV..KDJ15# |
3 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23743-30011 |
1KDFTV..KDJ15# |
2 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23743-30011 |
1KDFTV..KDJ15# |
2 | ||
| 23804C - PIPE SUB-ASSY, FUEL INLET | ||||
| 23804-30060 |
1KDFTV..KDJ15# |
1 | ||
| 23804-30100 |
1KDFTV..KDJ15#..LHD PORTUGAL SPEC |
1 | ||
| 23804-30100 |
1KDFTV..KDJ15#..LHD *242 |
1 | ||
| 23804-30100 |
1KDFTV..KDJ15#..LHD GREECE SPEC |
1 | ||
| 23804-30100 |
1KDFTV..KDJ15#..LHD CZECHOSLOVAKIA SPEC |
1 | ||
| 23804-30100 |
1KDFTV..KDJ15#..LHD GERMANY SPEC |
1 | ||
| 23804-30100 |
1KDFTV..KDJ15#..LHD SWEDEN,FINLAND,NORWAY,DENMARK SPEC |
1 | ||
| 23804-30100 |
1KDFTV..KDJ15#..LHD BULGARIA SPEC |
1 | ||
| 23804-30100 |
1KDFTV..KDJ15# ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 23804-30100 |
1KDFTV..KDJ15#..LHD ICELAND SPEC |
1 | ||
| 23804-30100 |
1KDFTV..KDJ15#..LHD ESTONIA,LATVIA,LITHUANIA SPEC |
1 | ||
| 23804-30100 |
1KDFTV..KDJ15#..LHD HUNGARY,SLOVAKIA,POLAND SPEC |
1 | ||
| 23804-30100 |
1KDFTV..KDJ15#..LHD MONACO,GIBRALTAR,CANARY ISLANDS SPEC |
1 | ||
| 23804-30100 |
1KDFTV..KDJ15#..LHD SLOVENIA SPEC |
1 | ||
| 23804-30100 |
1KDFTV..KDJ15#..LHD REUNION,GUIANAN,GUADELOUPE,MARTINIQUE |
1 | ||
| 23804-30100 |
1KDFTV..KDJ15#..LHD RUMANIA SPEC |
1 | ||
| 23804-30100 |
1KDFTV..KDJ15#..LHD AZORES,MACEDONIA SPEC |
1 | ||
| 23804-30100 |
1KDFTV..KDJ15#..LHD TURKEY SPEC |
1 | ||
| 23804-30100 |
1KDFTV..KDJ15#..LHD ISRAEL SPEC |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-30120 |
1KDFTV..KDJ15# ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 23810-30120 |
1KDFTV..KDJ15#..LHD ICELAND SPEC |
1 | ||
| 23810-30100 |
1KDFTV..KDJ15# |
1 | ||
| 23810-30120 |
1KDFTV..KDJ15#..LHD SWEDEN,FINLAND,NORWAY,DENMARK SPEC |
1 | ||
| 23810-30120 |
1KDFTV..KDJ15#..LHD MONACO,GIBRALTAR,CANARY ISLANDS SPEC |
1 | ||
| 23810-30120 |
1KDFTV..KDJ15#..LHD HUNGARY,SLOVAKIA,POLAND SPEC |
1 | ||
| 23810-30120 |
1KDFTV..KDJ15#..LHD SLOVENIA SPEC |
1 | ||
| 23810-30120 |
1KDFTV..KDJ15#..LHD REUNION,GUIANAN,GUADELOUPE,MARTINIQUE |
1 | ||
| 23810-30120 |
1KDFTV..KDJ15#..LHD PORTUGAL SPEC |
1 | ||
| 23810-30120 |
1KDFTV..KDJ15#..LHD GREECE SPEC |
1 | ||
| 23810-30120 |
1KDFTV..KDJ15#..LHD RUMANIA SPEC |
1 | ||
| 23810-30120 |
1KDFTV..KDJ15#..LHD BULGARIA SPEC |
1 | ||
| 23810-30120 |
1KDFTV..KDJ15#..LHD AZORES,MACEDONIA SPEC |
1 | ||
| 23810-30120 |
1KDFTV..KDJ15#..LHD *242 |
1 | ||
| 23810-30120 |
1KDFTV..KDJ15#..LHD CZECHOSLOVAKIA SPEC |
1 | ||
| 23810-30120 |
1KDFTV..KDJ15#..LHD GERMANY SPEC |
1 | ||
| 23810-30120 |
1KDFTV..KDJ15#..LHD ISRAEL SPEC |
1 | ||
| 23810-30120 |
1KDFTV..KDJ15#..LHD TURKEY SPEC |
1 | ||
| 23810-30120 |
1KDFTV..KDJ15#..LHD ESTONIA,LATVIA,LITHUANIA SPEC |
1 | ||
| Common parts | ||||
| 90116-06173 | ||||
| 90179-08022 | ||||
| 90253-13008 | ||||
| 90301-49003 | ||||
| 91551-80816 | ||||
| 91552-81060 | ||||
| 91631-60625 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| 96135-41400 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 2302 | ||||
| 7751 | ||||
| 8405 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
