KDJ150R-GKAEYW (2009)
Toyota Land Cruiser Prado

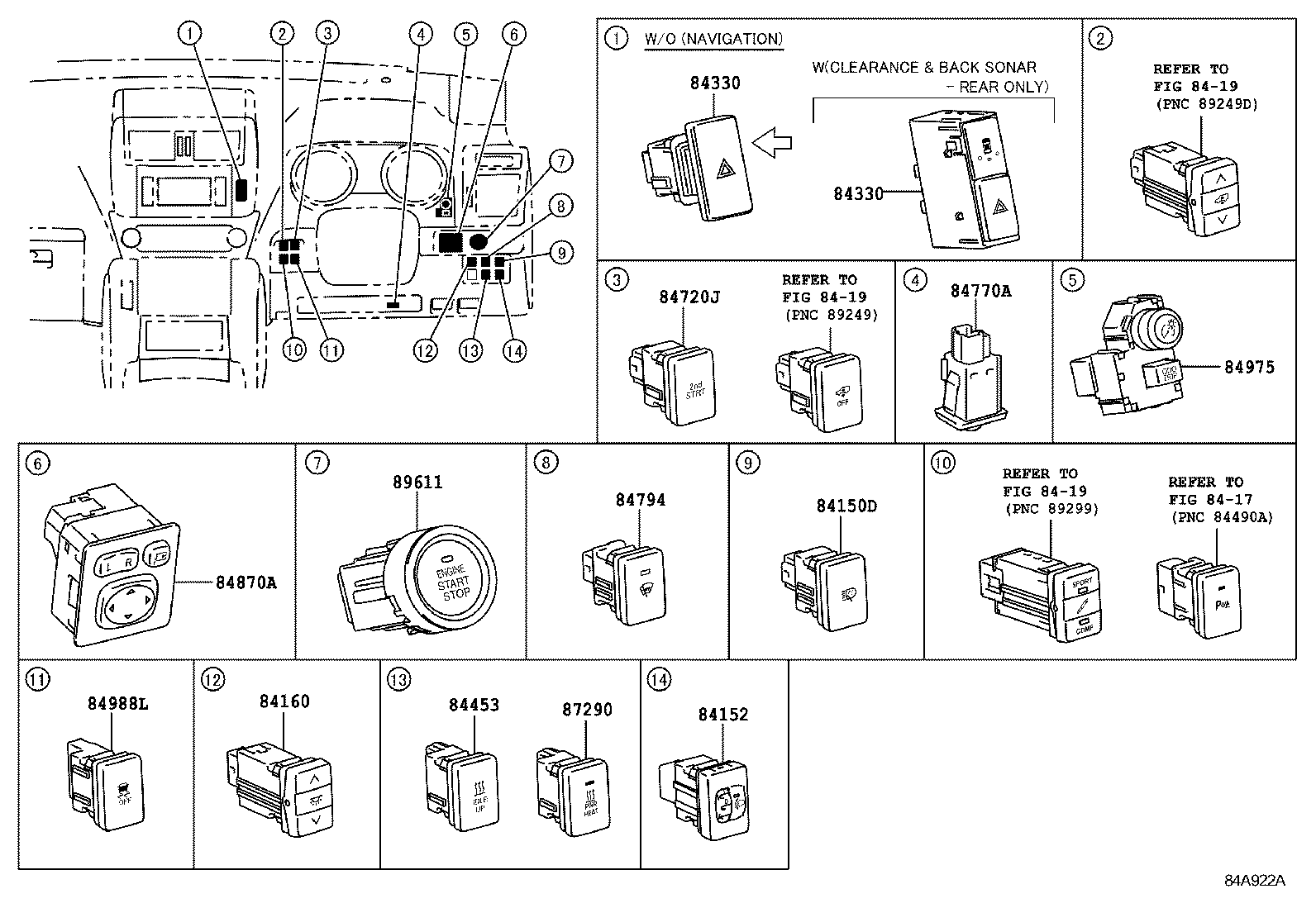

ILLUST NO. 5 OF10(0908-1308)RHD
INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-33050 |
KDJ15#;GRJ150..LHD HEAD LAMP CLEANER-WITH |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52100 |
KDJ15#;GRJ150..LHD |
1 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84170-60020 |
KDJ15#;GRJ150..LHD VX PACKAGE |
1 | ||
| 84170-60020 |
KDJ150;GRJ150..LHD VX-L PACKAGE |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 83160-60010 |
GRJ150,KDJ15#..RHD CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 84332-60290 |
GRJ150,KDJ150..RHD VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60290 |
GRJ150,KDJ15#..RHD |
1 | ||
| 84332-60290 |
GRJ150,KDJ150..RHD VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60310 |
GRJ150,KDJ15#..RHD VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60310 |
GRJ150,KDJ150..RHD VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 83160-60010 |
GRJ150,KDJ15#..RHD CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 84332-60290 |
GRJ150,KDJ150..RHD VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60290 |
GRJ150,KDJ15#..RHD |
1 | ||
| 84332-60290 |
GRJ150,KDJ150..RHD VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60310 |
GRJ150,KDJ15#..RHD VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60310 |
GRJ150,KDJ150..RHD VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-60070 |
KDJ15# |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84721-60020 |
GRJ150..LHD;KDJ150..5FC VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 84721-60020 |
GRJ150..LHD;KDJ15#..5FC |
1 | ||
| 84721-60020 |
GRJ150..LHD;KDJ150..5FC VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 84721-60020 |
GRJ150..LHD;KDJ150..5FC VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84721-60020 |
GRJ150..LHD;KDJ150..5FC VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 84721-60020 |
GRJ150..LHD;KDJ150..5FC VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 84721-60020 |
GRJ150..LHD;KDJ150..5FC VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 84721-60020 |
GRJ150..LHD;KDJ150..5FC VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 84721-60020 |
GRJ150..LHD;KDJ150..5FC VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 84721-60020 |
GRJ150..LHD;KDJ150..5FC VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 84721-60020 |
GRJ150..LHD;KDJ150..5FC VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 84721-60020 |
GRJ150..LHD;KDJ150..5FC VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-50010 |
GRJ150..LHD;KDJ15#..5FC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84871-48040 |
KDJ150;GRJ150..LHD;KDJ155..5FC;KDJ155..LHD..6F COLD AREA SPEC |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-60170 |
KDJ15#;GRJ150..LHD |
1 | ||
| 84870-60160 |
KDJ15#..RHD..5FC OUTSIDE REAR VIEW MIRROR-*57 & *RCM & W/HEATER & W/CAMERA(RH&LH) |
1 | ||
| 84870-60160 |
KDJ15#..RHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & *RCM |
1 | ||
| 84870-60160 |
KDJ15#..RHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & *RCM & W/HEATER |
1 | ||
| 84870-60160 |
KDJ15#..RHD OUTSIDE REAR VIEW MIRROR-*57 & *RCM & W/HEATER & W/CAMERA(LH) |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-60010 |
KDJ15#..RHD SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 84975-60030 |
KDJ15#..RHD |
1 | ||
| 84975-60010 |
KDJ15#..RHD SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-48070 |
KDJ15#;GRJ150..LHD |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-60080 |
KDJ15# COLD AREA SPEC |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30061 |
GRJ150,KDJ15# |
1 | ||
| 89611-30061 |
KDJ15#;GRJ150..LHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY) |
1 | ||
| 89611-30063 |
GRJ150,KDJ15# |
1 | ||
| 89611-30060 |
GRJ150,KDJ15# |
1 | ||
| 89611-30060 |
KDJ15#;GRJ150..LHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY) |
1 | ||
| 89611-30063 |
GRJ150,KDJ15# WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY) |
1 | ||
| 89611-30062 |
KDJ15#;GRJ150..LHD |
1 | ||
| 89611-30062 |
KDJ15#;GRJ150..LHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY) |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
| 8419 | ||||
ILLUST NO. 4 OF10(0908- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-12460 |
GRJ150,KDJ15# |
1 | ||
| 69065-53010 |
GRJ150,KDJ15# |
1 | ||
| 69065-47040 |
KDJ15#;GRJ150..LHD |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60140 |
KDJ15#..RHD |
1 | ||

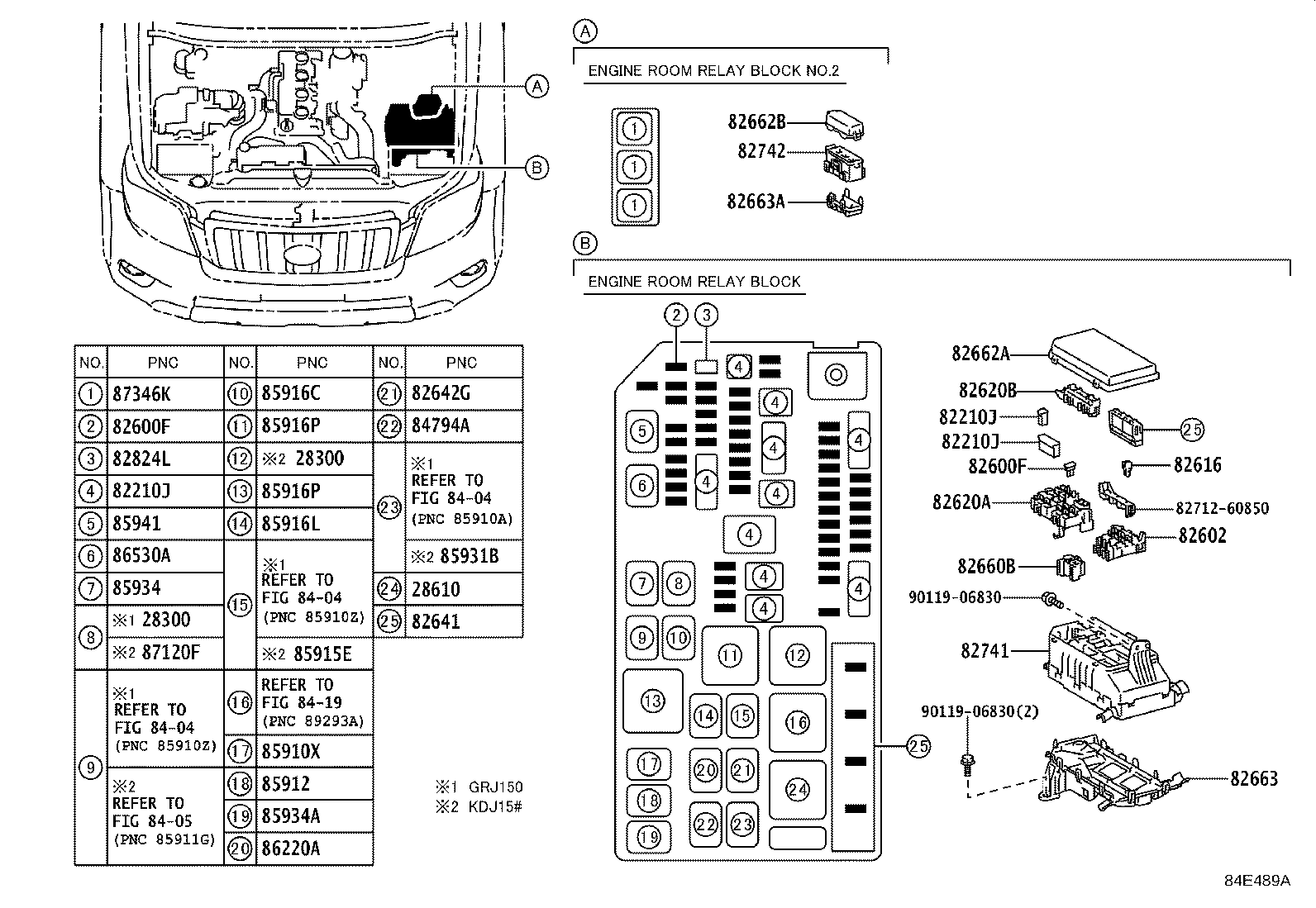

| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
KDJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08301 |
KDJ15#;GRJ150..LHD 50A-30A-40A,FEMALE |
1 | ||
| 90982-08274 |
GRJ150..LHD;KDJ15#..RHD 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08300 |
KDJ15#;GRJ150..LHD 50A-30A-30A,FEMALE |
1 | ||
| 90982-08305 |
KDJ15#;GRJ150..LHD 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08307 |
KDJ15#;GRJ150..LHD 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08302 |
KDJ15#;GRJ150..LHD 50A-30A-50A,FEMALE |
1 | ||
| 90982-08306 |
KDJ15#;GRJ150..LHD 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
KDJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08301 |
KDJ15#;GRJ150..LHD 50A-30A-40A,FEMALE |
1 | ||
| 90982-08274 |
GRJ150..LHD;KDJ15#..RHD 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08300 |
KDJ15#;GRJ150..LHD 50A-30A-30A,FEMALE |
1 | ||
| 90982-08305 |
KDJ15#;GRJ150..LHD 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08307 |
KDJ15#;GRJ150..LHD 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08302 |
KDJ15#;GRJ150..LHD 50A-30A-50A,FEMALE |
1 | ||
| 90982-08306 |
KDJ15#;GRJ150..LHD 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
KDJ15#;GRJ150..LHD 25A,MINI FUSE |
1 | ||
| 90982-09021 |
KDJ15#;GRJ150..LHD 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
KDJ15#;GRJ150..LHD 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
KDJ15#;GRJ150..LHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
KDJ15#;GRJ150..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
KDJ15#;GRJ150..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
KDJ15#;GRJ150..LHD 25A,MINI FUSE |
1 | ||
| 90982-09021 |
KDJ15#;GRJ150..LHD 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
KDJ15#;GRJ150..LHD 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
KDJ15#;GRJ150..LHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
KDJ15#;GRJ150..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
KDJ15#;GRJ150..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-48030 |
KDJ15#;GRJ150..LHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-60070 |
KDJ15#;GRJ150..LHD |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-60M40 |
KDJ15#..RHD |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-60170 |
GRJ150,KDJ15# |
1 | ||
| 82730-60160 |
KDJ15#;GRJ150..LHD |
1 | ||
| 82878 - BOX, COMPUTER INTEGRATION, LH | ||||
| 82878-60010 |
KDJ15#..RHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69075 |
KDJ15#;GRJ150..LHD |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
KDJ15#;GRJ150..LHD |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
KDJ15#..RHD |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-52020 |
GRJ150..LHD;KDJ15#..5FC |
1 | ||
| 85903-60030 |
GRJ150,KDJ15#..5FC |
1 | ||
| 85970A - RELAY ASSY, DOUBLE LOCK DOOR CONTROL | ||||
| 85970-60060 |
KDJ15#;GRJ150..LHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL |
1 | ||
| 85970-60060 |
KDJ15#..RHD ANTI-THEFT SYSTEM-*IM&(SIREN,INVASIONSENSOR,*GBS,*INC)&D/L |
1 | ||
| 859A1 - COMPUTER, DRIVING SUPPORT SWITCH CONTROL | ||||
| 859A1-60010 |
GRJ150,KDJ150 VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 859A1-60010 |
GRJ150,KDJ150 VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 859A1-60020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 859A1-60010 |
KDJ150;GRJ150..LHD VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 859A1-60010 |
KDJ15#;GRJ150..LHD VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 859A1-60010 |
GRJ150,KDJ150 TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&BACK MONITOR-WITH |
1 | ||
| 859A1-60010 |
KDJ15#;GRJ150..LHD TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&BACK MONITOR-WITH |
1 | ||
| 859A1-60010 |
KDJ150;GRJ150..LHD VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 859A1-60020 |
GRJ150..LHD;KDJ15#..5FC VX PACKAGE&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 859A1-60010 |
GRJ150,KDJ150 VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 859A1-60020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 859A1-60010 |
GRJ150,KDJ150 TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS |
1 | ||
| 859A1-60010 |
KDJ150..RHD..5FC VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 859A1-60010 |
GRJ150,KDJ150 VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 859A1-60010 |
KDJ15#;GRJ150..LHD VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 859A1-60010 |
GRJ150,KDJ150 VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 859A1-60010 |
GRJ150,KDJ150 VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 859A1-60020 |
GRJ150..LHD;KDJ150..5FC VX PACKAGE&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-HDDNAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 859A1-60020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&HEADLAMP-LO BEAM:DISCHARGE &AFS&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 859A1-60020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&HEADLAMP-LO BEAM:DISCHARGE &AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-60020 |
GRJ150..LHD;KDJ15#..5FC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
1 | ||
| 88150-60021 |
GRJ150,KDJ15#..5FC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-60260 |
KDJ150..RHD..5FC ENGLAND SPEC&VX PACKAGE&ANTI-THEFT SYSTEM-*IM&(SIREN,INVASIONSENSOR,*GBS,*INC)&D/L&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-60260 |
KDJ150..RHD..5FC ENGLAND SPEC&VX-L PACKAGE&ANTI-THEFT SYSTEM-*IM&(SIREN,INVASIONSENSOR,*GBS,*INC)&D/L&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-60280 |
KDJ150..RHD..5FC ENGLAND SPEC&ANTI-THEFT SYSTEM-*IM&(SIREN,INVASIONSENSOR,*GBS,*INC)&D/L&SPEEDOMETER-ANALOG(MPH & KM/H) |
1 | ||
| 89220-60S90 |
KDJ150..RHD..5FC INDIA SPEC&VX-L PACKAGE&ANTI-THEFT SYSTEM-*IM&ALARM(SIREN,INVASION SENSOR,*GBS)&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60T00 |
KDJ150..RHD..5FC INDIA SPEC&VX-L PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&SIDESTEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60S80 |
KDJ150..RHD..5FC INDIA SPEC&VX-L PACKAGE&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60U30 |
KDJ150..RHD..5FC VX PACKAGE&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-60U30 |
KDJ150..RHD..5FC VX PACKAGE&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60U30 |
KDJ150..RHD..5FC VX-L PACKAGE&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-60U30 |
KDJ150..RHD..5FC VX-L PACKAGE&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60V30 |
KDJ150..RHD..5FC SPEEDOMETER-ANALOG(MPH & KM/H) |
1 | ||
| 89220-60V50 |
KDJ15#..RHD..5FC |
1 | ||
| 89220-60X50 |
KDJ150..RHD..5FC VX PACKAGE&ANTI-THEFT SYSTEM-*IM&ALARM(SIREN,INVASION SENSOR,*GBS)&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60X50 |
KDJ150..RHD..5FC VX-L PACKAGE&ANTI-THEFT SYSTEM-*IM&ALARM(SIREN,INVASION SENSOR,*GBS)&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-60X50 |
KDJ150..RHD..5FC VX PACKAGE&ANTI-THEFT SYSTEM-*IM&ALARM(SIREN,INVASION SENSOR,*GBS)&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-60X50 |
KDJ150..RHD..5FC VX-L PACKAGE&ANTI-THEFT SYSTEM-*IM&ALARM(SIREN,INVASION SENSOR,*GBS)&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60Y50 |
KDJ150..RHD..5FC ANTI-THEFT SYSTEM-*IM&ALARM(SIREN,INVASION SENSOR,*GBS)&SPEEDOMETER-ANALOG(MPH & KM/H) |
1 | ||
| 89220-60Y70 |
KDJ15#..RHD..5FC ANTI-THEFT SYSTEM-*IM&ALARM(SIREN,INVASION SENSOR,*GBS) |
1 | ||
| 89220-6A010 |
KDJ150..RHD..5FC VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-6A010 |
KDJ150..RHD..5FC VX-L PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-6A010 |
KDJ150..RHD..5FC VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-6A010 |
KDJ150..RHD..5FC VX-L PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-6A060 |
KDJ150..RHD..5FC ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&SPEEDOMETER-ANALOG(MPH & KM/H) |
1 | ||
| 89220-6A080 |
KDJ15#..RHD..5FC ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL |
1 | ||
| 89220-60280 |
KDJ150..RHD..5FC ENGLAND SPEC&TX-L PACKAGE&ANTI-THEFT SYSTEM-*IM&(SIREN,INVASIONSENSOR,*GBS,*INC)&D/L&SIDE STEP-WITH(STEP LAMP LESS)&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-60Y50 |
KDJ150..RHD..5FC TX-L PACKAGE&ANTI-THEFT SYSTEM-*IM&ALARM(SIREN,INVASION SENSOR,*GBS)&SIDE STEP-WITH(STEP LAMP LESS)&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-60V30 |
KDJ150..RHD..5FC TX-L PACKAGE&SIDE STEP-WITH(STEP LAMP LESS)&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60Y50 |
KDJ150..RHD..5FC TX-L PACKAGE&ANTI-THEFT SYSTEM-*IM&ALARM(SIREN,INVASION SENSOR,*GBS)&SIDE STEP-WITH(STEP LAMP LESS)&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60V30 |
KDJ150..RHD..5FC TX-L PACKAGE&SIDE STEP-WITH(STEP LAMP LESS)&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-6A060 |
KDJ150..RHD..5FC TX-L PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&SIDE STEP-WITH(STEP LAMP LESS)&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-6A060 |
KDJ150..RHD..5FC TX-L PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&SIDE STEP-WITH(STEP LAMP LESS)&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-60261 |
KDJ150..RHD..5FC ENGLAND SPEC&VX-L PACKAGE&ANTI-THEFT SYSTEM-*IM&(SIREN,INVASIONSENSOR,*GBS,*INC)&D/L&SIDE STEP-WITH(STEP LAMP)&LIGHT CONTROL SYSTEM-WITH&SPEEDOMETER-OPTITRON(MPH &KM/H) |
1 | ||
| 89220-60261 |
KDJ150..RHD..5FC ENGLAND SPEC&VX PACKAGE&ANTI-THEFT SYSTEM-*IM&(SIREN,INVASIONSENSOR,*GBS,*INC)&D/L&SIDE STEP-WITH(STEP LAMP)&LIGHT CONTROL SYSTEM-WITH&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-60291 |
KDJ15#..RHD..5FC ENGLAND SPEC&ANTI-THEFT SYSTEM-*IM&(SIREN,INVASIONSENSOR,*GBS,*INC)&D/L&SPEEDOMETER-ANALOG(MPH & KM/H) |
1 | ||
| 89220-60281 |
KDJ150..RHD..5FC ENGLAND SPEC&TX-L PACKAGE&ANTI-THEFT SYSTEM-*IM&(SIREN,INVASIONSENSOR,*GBS,*INC)&D/L&SIDE STEP-WITH(STEP LAMP LESS)&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-60S91 |
KDJ150..RHD..5FC INDIA SPEC&VX-L PACKAGE&ANTI-THEFT SYSTEM-*IM&ALARM(SIREN,INVASION SENSOR,*GBS)&SIDE STEP-WITH(STEP LAMP)&LIGHT CONTROL SYSTEM-WITH&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60S81 |
KDJ150..RHD..5FC INDIA SPEC&VX-L PACKAGE&SIDE STEP-WITH(STEP LAMP)&LIGHT CONTROL SYSTEM-WITH&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60T01 |
KDJ150..RHD..5FC INDIA SPEC&VX-L PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&SIDESTEP-WITH(STEP LAMP)&LIGHT CONTROL SYSTEM-WITH&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60U31 |
KDJ150..RHD..5FC VX PACKAGE&SIDE STEP-WITH(STEP LAMP)&LIGHT CONTROL SYSTEM-WITH&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60U31 |
KDJ150..RHD..5FC VX-L PACKAGE&SIDE STEP-WITH(STEP LAMP)&LIGHT CONTROL SYSTEM-WITH&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60U31 |
KDJ150..RHD..5FC VX PACKAGE&SIDE STEP-WITH(STEP LAMP)&LIGHT CONTROL SYSTEM-WITH&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-60U31 |
KDJ150..RHD..5FC VX-L PACKAGE&SIDE STEP-WITH(STEP LAMP)&LIGHT CONTROL SYSTEM-WITH&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-60V51 |
KDJ15#..RHD..5FC |
1 | ||
| 89220-60V31 |
KDJ150..RHD..5FC TX-L PACKAGE&SIDE STEP-WITH(STEP LAMP LESS)&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-60V31 |
KDJ150..RHD..5FC TX-L PACKAGE&SIDE STEP-WITH(STEP LAMP LESS)&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60X51 |
KDJ150..RHD..5FC VX PACKAGE&ANTI-THEFT SYSTEM-*IM&ALARM(SIREN,INVASION SENSOR,*GBS)&SIDE STEP-WITH(STEP LAMP)&LIGHT CONTROL SYSTEM-WITH&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-60X51 |
KDJ150..RHD..5FC VX-L PACKAGE&ANTI-THEFT SYSTEM-*IM&ALARM(SIREN,INVASION SENSOR,*GBS)&SIDE STEP-WITH(STEP LAMP)&LIGHT CONTROL SYSTEM-WITH&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-60X51 |
KDJ150..RHD..5FC VX-L PACKAGE&ANTI-THEFT SYSTEM-*IM&ALARM(SIREN,INVASION SENSOR,*GBS)&SIDE STEP-WITH(STEP LAMP)&LIGHT CONTROL SYSTEM-WITH&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60X51 |
KDJ150..RHD..5FC VX PACKAGE&ANTI-THEFT SYSTEM-*IM&ALARM(SIREN,INVASION SENSOR,*GBS)&SIDE STEP-WITH(STEP LAMP)&LIGHT CONTROL SYSTEM-WITH&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60Y51 |
KDJ150..RHD..5FC TX-L PACKAGE&ANTI-THEFT SYSTEM-*IM&ALARM(SIREN,INVASION SENSOR,*GBS)&SIDE STEP-WITH(STEP LAMP LESS)&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-60Y71 |
KDJ15#..RHD..5FC ANTI-THEFT SYSTEM-*IM&ALARM(SIREN,INVASION SENSOR,*GBS) |
1 | ||
| 89220-60Y51 |
KDJ150..RHD..5FC TX-L PACKAGE&ANTI-THEFT SYSTEM-*IM&ALARM(SIREN,INVASION SENSOR,*GBS)&SIDE STEP-WITH(STEP LAMP LESS)&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-6A011 |
KDJ150..RHD..5FC VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&SIDE STEP-WITH(STEP LAMP)&LIGHT CONTROL SYSTEM-WITH&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-6A011 |
KDJ150..RHD..5FC VX-L PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&SIDE STEP-WITH(STEP LAMP)&LIGHT CONTROL SYSTEM-WITH&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-6A011 |
KDJ150..RHD..5FC VX-L PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&SIDE STEP-WITH(STEP LAMP)&LIGHT CONTROL SYSTEM-WITH&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-6A011 |
KDJ150..RHD..5FC VX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&SIDE STEP-WITH(STEP LAMP)&LIGHT CONTROL SYSTEM-WITH&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-6A061 |
KDJ150..RHD..5FC TX-L PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&SIDE STEP-WITH(STEP LAMP LESS)&SPEEDOMETER-OPTITRON(MPH & KM/H) |
1 | ||
| 89220-6A061 |
KDJ150..RHD..5FC TX-L PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL&SIDE STEP-WITH(STEP LAMP LESS)&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-6A081 |
KDJ15#..RHD..5FC ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS) & *DOL |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-60080 |
KDJ150;GRJ150..LHD VX-L PACKAGE |
1 | ||
| 89227-60080 |
KDJ15#;GRJ150..LHD VX PACKAGE |
1 | ||
| 89271A - COMPUTER, STABILIZER CONTROL | ||||
| 89271-60020 |
KDJ150..RHD STABILIZER-WITH(KDSS) |
1 | ||
| 89271-60020 |
GRJ150,KDJ150..RHD VX-L PACKAGE |
1 | ||
| 89271-60020 |
GRJ150,KDJ150..RHD VX PACKAGE |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-60370 |
KDJ15#..RHD..5FC |
1 | ||
| 89530-60420 |
KDJ15#..RHD..5FC ENGLAND SPEC&ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 89530-60420 |
KDJ15#..RHD..5FC MALTA SPEC&ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 89530-60410 |
KDJ150..RHD..5FC INDIA SPEC |
1 | ||
| 89530-60420 |
KDJ15#..RHD..5FC IRELAND SPEC&ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 89530-60440 |
KDJ15#..RHD..5FC ENGLAND SPEC&ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 89530-60440 |
KDJ15#..RHD..5FC IRELAND SPEC&ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 89530-60440 |
KDJ15#..RHD..5FC MALTA SPEC&ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 89530-60500 |
KDJ150..RHD..5FC INDIA SPEC |
1 | ||
| 89530-60460 |
KDJ15#..RHD..5FC |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-60271 |
GRJ150,KDJ15# |
1 | ||
| 89533-60270 |
KDJ15#;GRJ150..LHD |
1 | ||
| 895A0A - COMPUTER ASSY, STOP LAMP CONTROL | ||||
| 895A0-20020 |
KDJ150..RHD..5FC INDIA SPEC |
1 | ||
| 895A0-30010 |
KDJ15#;GRJ150..LHD |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-35030 |
KDJ15#;GRJ150..LHD |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89681-60020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&AVS-WITH(W/REAR AIR SUSPENSION)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&CLEARANCE & BACKSONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&AVS-WITH(W/REAR AIR SUSPENSION)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&CLEARANCE & BACKSONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH |
1 | ||
| 89681-60020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&CLEARANCE & BACKSONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..5FC VX PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&CLEARANCE & BACKSONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&CLEARANCE & BACKSONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&CLEARANCE & BACKSONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 89681-60020 |
GRJ150..LHD;KDJ150..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..5FC VX PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60020 |
KDJ150;GRJ150..LHD VX PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH |
1 | ||
| 89681-60020 |
KDJ150;GRJ150..LHD VX PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 89681-60020 |
KDJ150;GRJ150..LHD VX PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 89681-60020 |
KDJ150;GRJ150..LHD VX PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 89690-60010 |
KDJ15#;GRJ150..LHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY) |
1 | ||
| 89681-60020 |
GRJ150..LHD;KDJ150..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150 TX-L PACKAGE&STABILIZER-WITH(KDSS) |
1 | ||
| 89690-60010 |
KDJ15#;GRJ150..LHD |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE & AFS&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..5FC VX PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150 TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE & AFS&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE& AFS&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE& AFS&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE& AFS&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 89681-60060 |
GRJ150,KDJ150..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 89681-60020 |
KDJ150..RHD..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH |
1 | ||
| 89681-60020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE& AFS&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 89681-60060 |
GRJ150,KDJ150 VX PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE& AFS&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE & AFS&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE & AFS&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..5FC VX PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150 TX-L PACKAGE&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE & AFS |
1 | ||
| 89681-60060 |
GRJ150,KDJ150..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 89681-60060 |
GRJ150,KDJ150 VX PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 89681-60060 |
GRJ150,KDJ150 VX PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 89681-60060 |
GRJ150,KDJ150..5FC VX PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60060 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE & AFS&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60060 |
GRJ150,KDJ150 VX PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH |
1 | ||
| 89681-60060 |
GRJ150,KDJ150..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60060 |
GRJ150,KDJ150..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60060 |
GRJ150,KDJ150 TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS |
1 | ||
| 89681-60060 |
GRJ150,KDJ150..5FC VX PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60060 |
GRJ150,KDJ150..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE& AFS&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60060 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE & AFS&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 89681-60060 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE& AFS&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 89681-60060 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE & AFS&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60060 |
GRJ150,KDJ150 TX-L PACKAGE&STABILIZER-WITH(KDSS) |
1 | ||
| 89681-60060 |
KDJ150..RHD..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH |
1 | ||
| 89681-60060 |
GRJ150,KDJ150 TX-L PACKAGE&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE & AFS |
1 | ||
| 89681-60060 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE& AFS&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 89681-60060 |
GRJ150,KDJ150..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE& AFS&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 89681-60060 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE& AFS&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 89690-60030 |
GRJ150,KDJ15# |
1 | ||
| 89681-60060 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&HEADLAMP-LO BEAM:DISCHARGE & AFS&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 89690-60030 |
GRJ150,KDJ15# WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY) |
1 | ||
| 89815 - COMPUTER, SEAT BELT CONTROL | ||||
| 89810-60030 |
GRJ150,KDJ15#..5FC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
1 | ||
| 89810-60010 |
GRJ150..LHD;KDJ15#..5FC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
1 | ||
| 89940 - COMPUTER ASSY, HEADLAMP SWIVEL | ||||
| 89940-60030 |
GRJ150,KDJ150..RHD VX-L PACKAGE |
1 | ||
| 89940-60050 |
GRJ150,KDJ150..RHD VX PACKAGE |
1 | ||
| 89940-60050 |
KDJ150..RHD TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS |
1 | ||
| 89940-60030 |
KDJ150..RHD VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS |
1 | ||
| 89940-60050 |
KDJ150..RHD VX PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91631-B0616 | ||||
| 91673-80616 | ||||
| 93315-14012 | ||||
| 93381-15008 | ||||
| 94120-41000 | ||||
| 94150-80600 | ||||
ILLUST NO. 9 OF10(0908- )GDJ150,GRJ150,KDJ150
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33080 |
KDJ150..RHD |
1 | ||
| 84040-60200 |
KDJ150..RHD |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33080 |
KDJ150..RHD |
1 | ||
| 84040-60200 |
KDJ150..RHD |
1 | ||
| 84190A - SWITCH ASSY, FOLD SEAT, NO.1 | ||||
| 84190-60060A0 |
KDJ150;GRJ150..LHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84190-60060B0 |
KDJ150;GRJ150..LHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LT.GRAY,TRIM1# |
1 | ||
| 84190A - SWITCH ASSY, FOLD SEAT, NO.1 | ||||
| 84190-60060A0 |
KDJ150;GRJ150..LHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84190-60060B0 |
KDJ150;GRJ150..LHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LT.GRAY,TRIM1# |
1 | ||
| 84190B - SWITCH ASSY, FOLD SEAT, NO.2 | ||||
| 84190-60070A0 |
KDJ150..RHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84190-60070B0 |
KDJ150..RHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,MD.GRAY,TRIM1# |
1 | ||
| 84190B - SWITCH ASSY, FOLD SEAT, NO.2 | ||||
| 84190-60070A0 |
KDJ150..RHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84190-60070B0 |
KDJ150..RHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,MD.GRAY,TRIM1# |
1 | ||
| 84190B - SWITCH ASSY, FOLD SEAT, NO.2 | ||||
| 84190-60070A0 |
KDJ150..RHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84190-60070B0 |
KDJ150..RHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,MD.GRAY,TRIM1# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
KDJ15#;GRJ150..LHD |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
KDJ15#;GRJ150..LHD |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
KDJ150;GRJ150..LHD |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
KDJ150;GRJ150..LHD |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-60070 |
KDJ15#;GRJ150..LHD |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-60130A0 |
KDJ150..RHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84656-60130B0 |
KDJ150..RHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,MD.GRAY,TRIM1# |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-60130A0 |
KDJ150..RHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84656-60130B0 |
KDJ150..RHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,MD.GRAY,TRIM1# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
KDJ15#;GRJ150..LHD |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
KDJ15#;GRJ150..LHD |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
KDJ150;GRJ150..LHD |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
KDJ150;GRJ150..LHD |
2 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-60030C0 |
KDJ150;GRJ150..LHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK |
2 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-60030C0 |
KDJ150;GRJ150..LHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK |
2 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-60030C0 |
KDJ150;GRJ150..LHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK |
2 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-51010 |
KDJ150..RHD VX-L PACKAGE |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-51010 |
KDJ150..RHD VX-L PACKAGE |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-51010 |
KDJ150..RHD VX-L PACKAGE |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-42010 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-60160A0 |
KDJ15#;GRJ150..LHD ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),IVORY,TRIM0# |
1 | ||
| 85530-60160B0 |
KDJ15#;GRJ150..LHD ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),MD.GRAY,TRIM1# |
1 | ||
| 85535F - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-35080A0 |
KDJ15#;GRJ150..LHD IVORY,TRIM0# |
1 | ||
| 85535-35080B2 |
KDJ15#;GRJ150..LHD MD.GRAY,TRIM1# |
1 | ||
| 85536 - BEZEL, POWER OUTLET SOCKET | ||||
| 85536-60060A0 |
GRJ150,KDJ150 ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),IVORY,TRIM0# |
1 | ||
| 85536-60060B0 |
GRJ150,KDJ150 ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),MD.GRAY,TRIM1# |
1 | ||
| 85536-60040A0 |
KDJ150;GRJ150..LHD IVORY,TRIM0# |
1 | ||
| 85536-60040B0 |
KDJ150;GRJ150..LHD MD.GRAY,TRIM1# |
1 | ||
| 85536-60100A0 |
KDJ150;GRJ150..LHD ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),IVORY,TRIM0# |
1 | ||
| 85536-60100B0 |
KDJ150;GRJ150..LHD ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),MD.GRAY,TRIM1# |
1 | ||
| 85536 - BEZEL, POWER OUTLET SOCKET | ||||
| 85536-60060A0 |
GRJ150,KDJ150 ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),IVORY,TRIM0# |
1 | ||
| 85536-60060B0 |
GRJ150,KDJ150 ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),MD.GRAY,TRIM1# |
1 | ||
| 85536-60040A0 |
KDJ150;GRJ150..LHD IVORY,TRIM0# |
1 | ||
| 85536-60040B0 |
KDJ150;GRJ150..LHD MD.GRAY,TRIM1# |
1 | ||
| 85536-60100A0 |
KDJ150;GRJ150..LHD ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),IVORY,TRIM0# |
1 | ||
| 85536-60100B0 |
KDJ150;GRJ150..LHD ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),MD.GRAY,TRIM1# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
KDJ15#;GRJ150..LHD |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-60110 |
KDJ150;GRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86210-60070 |
KDJ150;GRJ150..LHD ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86210-60110 |
KDJ150;GRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORYCONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-60110 |
KDJ150;GRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86210-60070 |
KDJ150;GRJ150..LHD ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86210-60110 |
KDJ150;GRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORYCONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90901-48003 | ||||
ILLUST NO. 8 OF10(0908- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60040A0 |
KDJ15#..RHD IVORY,TRIM0# |
1 | ||
| 84920-60090C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1# |
1 | ||
| 84920-60040B1 |
KDJ15#..RHD MD.GRAY,TRIM10 |
1 | ||
| 84920-60040C0 |
KDJ15#..RHD BLACK,TRIM11 |
1 | ||
| 84920-60090C0 |
KDJ150;GRJ150..LHD VX PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1# |
1 | ||
| 84920-60090A0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0# |
1 | ||
| 84920-60090A0 |
KDJ150;GRJ150..LHD VX PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0# |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60040A0 |
KDJ15#..RHD IVORY,TRIM0# |
1 | ||
| 84920-60090C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1# |
1 | ||
| 84920-60040B1 |
KDJ15#..RHD MD.GRAY,TRIM10 |
1 | ||
| 84920-60040C0 |
KDJ15#..RHD BLACK,TRIM11 |
1 | ||
| 84920-60090C0 |
KDJ150;GRJ150..LHD VX PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1# |
1 | ||
| 84920-60090A0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0# |
1 | ||
| 84920-60090A0 |
KDJ150;GRJ150..LHD VX PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0# |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60040A0 |
KDJ15#..RHD IVORY,TRIM0# |
1 | ||
| 84920-60090C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1# |
1 | ||
| 84920-60040B1 |
KDJ15#..RHD MD.GRAY,TRIM10 |
1 | ||
| 84920-60040C0 |
KDJ15#..RHD BLACK,TRIM11 |
1 | ||
| 84920-60090C0 |
KDJ150;GRJ150..LHD VX PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1# |
1 | ||
| 84920-60090A0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0# |
1 | ||
| 84920-60090A0 |
KDJ150;GRJ150..LHD VX PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0# |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60040A0 |
KDJ15#..RHD IVORY,TRIM0# |
1 | ||
| 84920-60090C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1# |
1 | ||
| 84920-60040B1 |
KDJ15#..RHD MD.GRAY,TRIM10 |
1 | ||
| 84920-60040C0 |
KDJ15#..RHD BLACK,TRIM11 |
1 | ||
| 84920-60090C0 |
KDJ150;GRJ150..LHD VX PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1# |
1 | ||
| 84920-60090A0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0# |
1 | ||
| 84920-60090A0 |
KDJ150;GRJ150..LHD VX PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-60170C0 |
KDJ150;GRJ150..LHD VX PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1#,RH |
1 | ||
| 84921-60170C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1#,RH |
1 | ||
| 84921-60170A0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0#,RH |
1 | ||
| 84921-60180A0 |
KDJ150;GRJ150..LHD VX PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0#,LH |
1 | ||
| 84921-60180C0 |
KDJ150;GRJ150..LHD VX PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1#,LH |
1 | ||
| 84921-60170A0 |
KDJ150;GRJ150..LHD VX PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0#,RH |
1 | ||
| 84921-60180C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1#,LH |
1 | ||
| 84921-60180A0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0#,LH |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-60170C0 |
KDJ150;GRJ150..LHD VX PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1#,RH |
1 | ||
| 84921-60170C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1#,RH |
1 | ||
| 84921-60170A0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0#,RH |
1 | ||
| 84921-60180A0 |
KDJ150;GRJ150..LHD VX PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0#,LH |
1 | ||
| 84921-60180C0 |
KDJ150;GRJ150..LHD VX PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1#,LH |
1 | ||
| 84921-60170A0 |
KDJ150;GRJ150..LHD VX PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0#,RH |
1 | ||
| 84921-60180C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1#,LH |
1 | ||
| 84921-60180A0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0#,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-60150C0 |
KDJ150..RHD VX PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1#,RH |
1 | ||
| 84921-60150A0 |
KDJ150..RHD VX PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0#,RH |
1 | ||
| 84921-60150A0 |
KDJ150..RHD VX-L PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0#,RH |
1 | ||
| 84921-60150C0 |
KDJ150..RHD VX-L PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1#,RH |
1 | ||
| 84921-60200A0 |
KDJ150..RHD VX PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0#,LH |
1 | ||
| 84921-60200A0 |
KDJ150..RHD VX-L PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0#,LH |
1 | ||
| 84921-60200C0 |
KDJ150..RHD VX PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1#,LH |
1 | ||
| 84921-60200C0 |
KDJ150..RHD VX-L PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1#,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-60150C0 |
KDJ150..RHD VX PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1#,RH |
1 | ||
| 84921-60150A0 |
KDJ150..RHD VX PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0#,RH |
1 | ||
| 84921-60150A0 |
KDJ150..RHD VX-L PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0#,RH |
1 | ||
| 84921-60150C0 |
KDJ150..RHD VX-L PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1#,RH |
1 | ||
| 84921-60200A0 |
KDJ150..RHD VX PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0#,LH |
1 | ||
| 84921-60200A0 |
KDJ150..RHD VX-L PACKAGE&LEATHER SEAT PACKAGE,IVORY,TRIM0#,LH |
1 | ||
| 84921-60200C0 |
KDJ150..RHD VX PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1#,LH |
1 | ||
| 84921-60200C0 |
KDJ150..RHD VX-L PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM1#,LH |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-60190 |
KDJ150..RHD VX PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 84070-60040 |
KDJ150..RHD VX-L PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-60170 |
KDJ150..RHD VX-L PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 84922-60170 |
KDJ150..RHD VX PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 89715 - COMPUTER, FOLD SEAT CONTROL | ||||
| 89715-60030 |
GRJ150,KDJ150 REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
2 | ||
| 89715-60031 |
KDJ150;GRJ150..LHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
2 | ||
| 89715 - COMPUTER, FOLD SEAT CONTROL | ||||
| 89715-60030 |
GRJ150,KDJ150 REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
2 | ||
| 89715-60031 |
KDJ150;GRJ150..LHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
2 | ||
| Common parts | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7151 | ||||

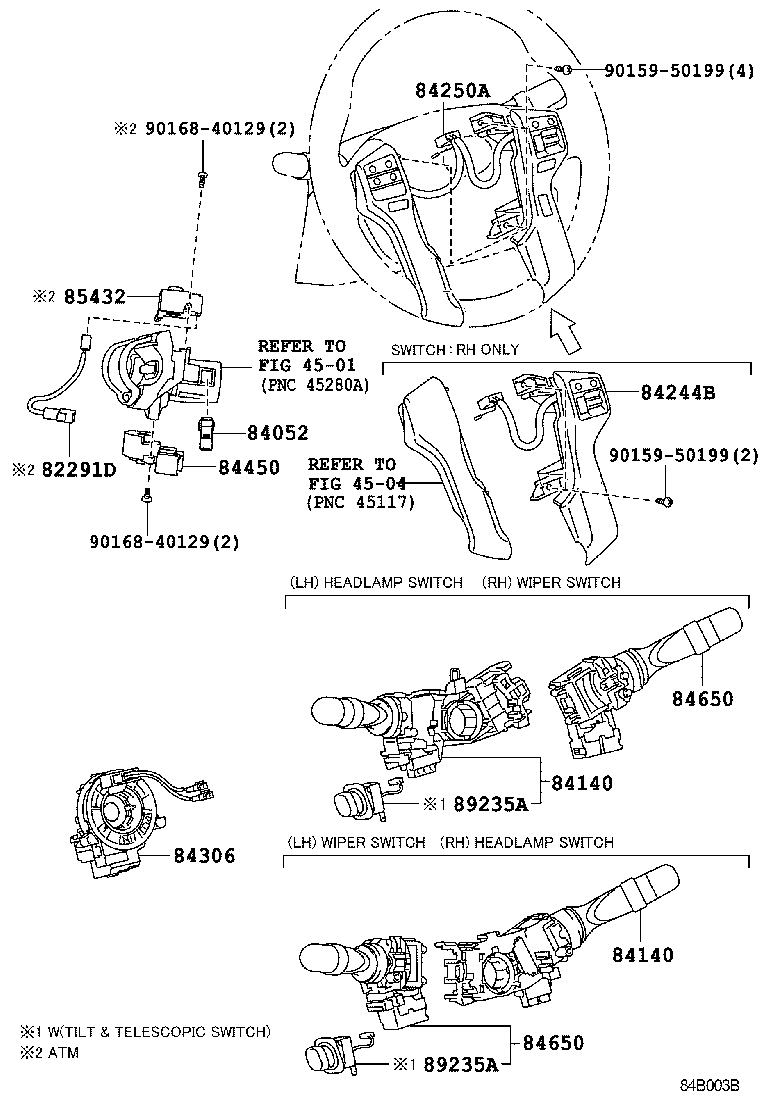

ILLUST NO. 7 OF10(0908-1308)
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-30311 |
KDJ15#;GRJ150..LHD VX PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 84140-30311 |
KDJ150;GRJ150..LHD VX-L PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 84140-42080 |
KDJ150..RHD..5FC INDIA SPEC&VX-L PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 84140-60290 |
KDJ15#;GRJ150..LHD |
1 | ||
| 84140-60250 |
KDJ15#;GRJ150..LHD FRONT FOG LAMP-WITH |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-30311 |
KDJ15#;GRJ150..LHD VX PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 84140-30311 |
KDJ150;GRJ150..LHD VX-L PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 84140-42080 |
KDJ150..RHD..5FC INDIA SPEC&VX-L PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 84140-60290 |
KDJ15#;GRJ150..LHD |
1 | ||
| 84140-60250 |
KDJ15#;GRJ150..LHD FRONT FOG LAMP-WITH |
1 | ||
| 84244B - SWITCH, STEERING PAD, RH | ||||
| 84244-60070B0 |
KDJ150..RHD TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(MPH & KM/H),GRAY,TRIM0#,1# |
1 | ||
| 84244-60070B0 |
KDJ150..RHD TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(KM/H),GRAY,TRIM0#,1# |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-60150B1 |
KDJ150..RHD VX-L PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE),SILVER,TRIM00,01,10,11 |
1 | ||
| 84250-60150B1 |
KDJ150..RHD VX-L PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH,SILVER,TRIM00,01,10,11 |
1 | ||
| 84250-60150B1 |
KDJ150..RHD VX-L PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE),SILVER,TRIM00,01,10,11 |
1 | ||
| 84250-60160B1 |
GRJ150,KDJ150..RHD VX-L PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
GRJ150,KDJ150..RHD..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
GRJ150,KDJ150..RHD..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
GRJ150,KDJ150..RHD VX-L PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
GRJ150,KDJ150..RHD VX-L PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
GRJ150,KDJ150..RHD VX-L PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
GRJ150,KDJ150..RHD..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
GRJ150,KDJ150..RHD..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
GRJ150,KDJ150..RHD..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
GRJ150,KDJ150..RHD..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
GRJ150,KDJ150..RHD..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
GRJ150,KDJ150..RHD..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60150B1 |
KDJ150..RHD VX PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE),SILVER,TRIM00,01,10,11 |
1 | ||
| 84250-60150B1 |
KDJ150..RHD VX PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH,SILVER,TRIM00,01,10,11 |
1 | ||
| 84250-60150B1 |
KDJ150..RHD VX PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE),SILVER,TRIM00,01,10,11 |
1 | ||
| 84250-60150B1 |
KDJ150..RHD VX PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH,SILVER,TRIM00,01,10,11 |
1 | ||
| 84250-60160B1 |
KDJ150..RHD..5FC VX PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60150B1 |
KDJ150..RHD..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH,SILVER,TRIM00,01,10,11 |
1 | ||
| 84250-60160B1 |
KDJ15#..RHD..5FC VX PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
KDJ150..RHD VX PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUNDMONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
KDJ150..RHD VX PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
KDJ15#..RHD VX PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
KDJ15#..RHD VX PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
KDJ15#..RHD..5FC VX PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
KDJ150..RHD..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUNDMONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60180B0 |
KDJ15#;GRJ150..LHD TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&BACK MONITOR-WITH,GRAY,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
KDJ150..RHD..5FC VX PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
KDJ150..RHD..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
KDJ15#..RHD..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60150B0 |
KDJ150..RHD TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&BACK MONITOR-WITH,GRAY,TRIM00,10,11 |
1 | ||
| 84250-60180B0 |
KDJ15#;GRJ150..LHD AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+MULTI+6SPEAKER,GRAY,TRIM0#,1# |
1 | ||
| 84250-60150B0 |
KDJ150..RHD TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+MULTI+6SPEAKER,GRAY,TRIM00,10,11 |
1 | ||
| 84250-60160B1 |
KDJ150..RHD..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60150B0 |
KDJ150..RHD TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&BACK MONITOR-WITH,GRAY,TRIM00,10,11 |
1 | ||
| 84250-60150B1 |
KDJ150..RHD VX-L PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH,SILVER,TRIM00,01,10,11 |
1 | ||
| 84250-60150B1 |
KDJ150..RHD VX-L PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE),SILVER,TRIM00,01,10,11 |
1 | ||
| 84250-60160B1 |
KDJ150..RHD..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60150B1 |
KDJ150..RHD VX-L PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE),SILVER,TRIM00,01,10,11 |
1 | ||
| 84250-60160B1 |
KDJ150..RHD VX-L PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
KDJ150..RHD VX-L PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
KDJ150..RHD..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
KDJ150..RHD VX-L PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
KDJ15#..RHD..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-CDCHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
KDJ150..RHD VX-L PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60150B0 |
KDJ150..RHD TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+MULTI+6SPEAKER,GRAY,TRIM00,10,11 |
1 | ||
| 84250-60160B1 |
KDJ150..RHD..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
KDJ150..RHD..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
KDJ15#..RHD..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-CDCHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
KDJ15#..RHD..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
KDJ150..RHD..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
KDJ150..RHD..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
KDJ150..RHD..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
KDJ150..RHD..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
KDJ150..RHD..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
KDJ150..RHD..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
KDJ150..RHD..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
KDJ150..RHD..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60170B0 |
KDJ150..RHD..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&HEADLAMP-LO BEAM:DISCHARGE & AFS&SPEEDOMETER-OPTITRON(MPH & KM/H)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84307-47020 |
GRJ150,KDJ150..5FC VX PACKAGE&CRUISE CONTROL-WITH&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX PACKAGE&CRUISE CONTROL-WITH&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE &AROUND MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 84307-47020 |
GRJ150..LHD;KDJ15#..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84307-47020 |
GRJ150..LHD;KDJ150..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 84307-47020 |
KDJ150;GRJ150..LHD VX PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 84307-47020 |
KDJ150;GRJ150..LHD VX PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 84307-47020 |
KDJ15#;GRJ150..LHD VX PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 84307-47020 |
GRJ150,KDJ150 TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS |
1 | ||
| 84307-47020 |
KDJ15#;GRJ150..LHD AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+MULTI+6SPEAKER |
1 | ||
| 84307-47020 |
KDJ15#;GRJ150..LHD VX PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84307-47020 |
KDJ15#;GRJ150..LHD TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&BACK MONITOR-WITH |
1 | ||
| 84307-47020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150 TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+MULTI+6SPEAKER |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOROVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
KDJ150..RHD..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150 TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&BACK MONITOR-WITH |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOROVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84307-60070 |
GRJ150,KDJ150..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-60070 |
GRJ150,KDJ150 VX PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 84307-60070 |
GRJ150,KDJ15# VX PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-60070 |
GRJ150,KDJ150 TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS |
1 | ||
| 84307-60070 |
GRJ150,KDJ15#..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84307-60070 |
GRJ150,KDJ150 VX PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 84307-60070 |
GRJ150,KDJ15# VX PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84307-60070 |
GRJ150,KDJ15# TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&BACK MONITOR-WITH |
1 | ||
| 84307-60070 |
GRJ150,KDJ15# AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+MULTI+6SPEAKER |
1 | ||
| 84307-60070 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOROVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-60070 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84307-60070 |
GRJ150,KDJ150 TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+MULTI+6SPEAKER |
1 | ||
| 84307-60070 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOROVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-60070 |
GRJ150,KDJ150 TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&BACK MONITOR-WITH |
1 | ||
| 84307-60070 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 84307-60070 |
GRJ150,KDJ150..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-60070 |
GRJ150,KDJ150..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-60070 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 84307-60070 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 84307-60070 |
KDJ150..RHD..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 84307-60070 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84307-60070 |
GRJ150,KDJ150..5FC VX PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-60070 |
GRJ150,KDJ150..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ15#..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84307-60070 |
GRJ150,KDJ150..5FC VX PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-60070 |
GRJ150,KDJ150..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150 VX PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150 VX PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ15# VX PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 84307-60020 |
KDJ15#;GRJ150..LHD |
1 | ||
| 84307-47020 |
GRJ150,KDJ150 TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+MULTI+6SPEAKER |
1 | ||
| 84307-47020 |
GRJ150,KDJ15# VX PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150 TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&BACK MONITOR-WITH |
1 | ||
| 84307-47020 |
GRJ150,KDJ150 TX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOROVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ15# TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&BACK MONITOR-WITH |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ15# AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+MULTI+6SPEAKER |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX-L PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH (MILLIMETER WAVE RADAR CRUISE)&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOROVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
GRJ150,KDJ150..5FC VX PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&W(VSC & CRAWL CONTROL & TERRAIN SELECT)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 84307-47020 |
KDJ150..RHD..5FC VX-L PACKAGE&CRUISE CONTROL-WITH&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-48170 |
KDJ150;GRJ150..LHD VX-L PACKAGE |
1 | ||
| 84652-48150 |
KDJ150..RHD..5FC INDIA SPEC&VX-L PACKAGE |
1 | ||
| 84652-48180 |
KDJ15#;GRJ150..LHD |
1 | ||
| 84652-48170 |
KDJ15#;GRJ150..LHD VX PACKAGE |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-48170 |
KDJ150;GRJ150..LHD VX-L PACKAGE |
1 | ||
| 84652-48150 |
KDJ150..RHD..5FC INDIA SPEC&VX-L PACKAGE |
1 | ||
| 84652-48180 |
KDJ15#;GRJ150..LHD |
1 | ||
| 84652-48170 |
KDJ15#;GRJ150..LHD VX PACKAGE |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-48010 |
KDJ15#;GRJ150..LHD VX PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 89235-48010 |
KDJ150;GRJ150..LHD VX-L PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 89235-30120 |
KDJ150..RHD..5FC INDIA SPEC&VX-L PACKAGE |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-48010 |
KDJ15#;GRJ150..LHD VX PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 89235-48010 |
KDJ150;GRJ150..LHD VX-L PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 89235-30120 |
KDJ150..RHD..5FC INDIA SPEC&VX-L PACKAGE |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 4504 | ||||
ILLUST NO. 6 OF10(0908-1308)RHD
INSTRUMENT PANEL 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84223A - SWITCH, TRANSFER POSITION | ||||
| 84223-60020 |
KDJ15#;GRJ150..LHD |
1 | ||
| 84725 - SWITCH, CENTER DIFFERENTIAL LOCK | ||||
| 84725-60170 |
KDJ15#;GRJ150..LHD |
1 | ||
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84223-60040 |
GRJ150..LHD;KDJ15#..5FC W(VSC & CRAWL CONTROL & TERRAIN SELECT) |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-60240 |
KDJ15#;GRJ150..LHD SEAT HEATER-WITH (DRIVER & PASSENGER),RH |
1 | ||
| 84751-60250 |
KDJ15#;GRJ150..LHD SEAT HEATER-WITH (DRIVER & PASSENGER),LH |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-60240 |
KDJ15#;GRJ150..LHD SEAT HEATER-WITH (DRIVER & PASSENGER),RH |
1 | ||
| 84751-60250 |
KDJ15#;GRJ150..LHD SEAT HEATER-WITH (DRIVER & PASSENGER),LH |
1 | ||
| 84970D - SWITCH ASSY, CRAWL CONTROL | ||||
| 84970-60050 |
KDJ15#..RHD..5FC W(VSC & CRAWL CONTROL & TERRAIN SELECT) |
1 | ||
| 84988H - SWITCH, DOWNHILL ASSIST CONTROL | ||||
| 84988-48080 |
GRJ150..LHD;KDJ15#..5FC W(VSC & CRAWL CONTROL & TERRAIN SELECT) |
1 | ||
| 84988-48080 |
GRJ150..LHD;KDJ15#..5FC |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-60150 |
GRJ150,KDJ150 REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85530-60140 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85530-60150 |
GRJ150,KDJ150 ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-33060 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-50020 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
KDJ15#;GRJ150..LHD |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 82711-48040 | ||||
ILLUST NO. 1 OF10(0908-1506)KDJ15#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60060 |
KDJ15#..RHD IRELAND SPEC |
1 | ||
| 83520-60060 |
KDJ15#..RHD ENGLAND SPEC |
1 | ||
| 83520-60060 |
KDJ15#..RHD MALTA SPEC |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
KDJ15#..RHD IRELAND SPEC |
1 | ||
| 83530-60010 |
KDJ15# |
1 | ||
| 83530-60010 |
KDJ15#..RHD ENGLAND SPEC |
1 | ||
| 83530-60010 |
KDJ15# ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 83530-60010 |
KDJ15#..RHD MALTA SPEC |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-71010 |
KDJ15#..5FC |
1 | ||
| 84540-35060 |
KDJ15#..5FC |
1 | ||
| 84540-71010 |
KDJ15#..5FC |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-60120 |
KDJ15# ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-60130 |
KDJ15#..5FC ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3 | ||||
| 89425-60140 |
KDJ15# ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-60120 |
KDJ15#..RHD..5FC ENGLAND SPEC |
1 | ||
| 89439-60120 |
KDJ15#..RHD..5FC IRELAND SPEC |
1 | ||
| 89439-60120 |
KDJ15#..RHD..5FC MALTA SPEC |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-60120 |
KDJ15#..RHD..5FC ENGLAND SPEC |
1 | ||
| 89439-60120 |
KDJ15#..RHD..5FC IRELAND SPEC |
1 | ||
| 89439-60120 |
KDJ15#..RHD..5FC MALTA SPEC |
1 | ||
| 89439D - BRACKET, SENSOR, NO.1 | ||||
| 89439-60130 |
KDJ15#..RHD..5FC ENGLAND SPEC |
1 | ||
| 89439-60130 |
KDJ15#..RHD..5FC IRELAND SPEC |
1 | ||
| 89439-60130 |
KDJ15#..RHD..5FC MALTA SPEC |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-60040 |
KDJ15#..RHD ENGLAND SPEC |
1 | ||
| 89467-60040 |
KDJ15#..RHD IRELAND SPEC |
1 | ||
| 89467-60040 |
KDJ15#..RHD MALTA SPEC |
1 | ||
| 89467-60040 |
KDJ15#..RHD ENGLAND SPEC&ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 89467-60040 |
KDJ15#..RHD IRELAND SPEC&ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 89467-60040 |
KDJ15#..RHD MALTA SPEC&ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 89480A - SENSOR ASSY, DIFFERENTIAL PRESSURE | ||||
| 89480-60010 |
KDJ15#..RHD IRELAND SPEC |
1 | ||
| 89480-60010 |
KDJ15#..RHD ENGLAND SPEC |
1 | ||
| 89480-60010 |
KDJ15#..RHD MALTA SPEC |
1 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-12050 |
KDJ15#..RHD ENGLAND SPEC |
1 | ||
| 89481-12050 |
KDJ15#..RHD IRELAND SPEC |
1 | ||
| 89481-12050 |
KDJ15#..RHD MALTA SPEC |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-60080 |
KDJ15# |
1 | ||
| 89491-60150 |
KDJ15#..RHD ENGLAND SPEC |
1 | ||
| 89491-60150 |
KDJ15#..RHD IRELAND SPEC |
1 | ||
| 89491-60150 |
KDJ15#..RHD MALTA SPEC |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
KDJ15#;GRJ150..LHD |
1 | ||
| Common parts | ||||
| 90119-08C62 | ||||
| 90119-A0406 | ||||
| 90430-18008 | ||||
| 91511-60612 | ||||
| 91621-B0616 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 1702 | ||||
| 3609 | ||||
ILLUST NO. 3 OF10(0908-1308)
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1KDFTV..KDJ15# |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1KDFTV..KDJ15# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-27010 |
1KDFTV..KDJ15# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
KDJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08301 |
KDJ15#;GRJ150..LHD 50A-30A-40A,FEMALE |
1 | ||
| 90982-08274 |
GRJ150..LHD;KDJ15#..RHD 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08300 |
KDJ15#;GRJ150..LHD 50A-30A-30A,FEMALE |
1 | ||
| 90982-08305 |
KDJ15#;GRJ150..LHD 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08307 |
KDJ15#;GRJ150..LHD 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08302 |
KDJ15#;GRJ150..LHD 50A-30A-50A,FEMALE |
1 | ||
| 90982-08306 |
KDJ15#;GRJ150..LHD 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
KDJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08301 |
KDJ15#;GRJ150..LHD 50A-30A-40A,FEMALE |
1 | ||
| 90982-08274 |
GRJ150..LHD;KDJ15#..RHD 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08300 |
KDJ15#;GRJ150..LHD 50A-30A-30A,FEMALE |
1 | ||
| 90982-08305 |
KDJ15#;GRJ150..LHD 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08307 |
KDJ15#;GRJ150..LHD 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08302 |
KDJ15#;GRJ150..LHD 50A-30A-50A,FEMALE |
1 | ||
| 90982-08306 |
KDJ15#;GRJ150..LHD 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
KDJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08301 |
KDJ15#;GRJ150..LHD 50A-30A-40A,FEMALE |
1 | ||
| 90982-08274 |
GRJ150..LHD;KDJ15#..RHD 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08300 |
KDJ15#;GRJ150..LHD 50A-30A-30A,FEMALE |
1 | ||
| 90982-08305 |
KDJ15#;GRJ150..LHD 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08307 |
KDJ15#;GRJ150..LHD 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08302 |
KDJ15#;GRJ150..LHD 50A-30A-50A,FEMALE |
1 | ||
| 90982-08306 |
KDJ15#;GRJ150..LHD 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
KDJ15#;GRJ150..LHD 25A,MINI FUSE |
1 | ||
| 90982-09021 |
KDJ15#;GRJ150..LHD 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
KDJ15#;GRJ150..LHD 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
KDJ15#;GRJ150..LHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
KDJ15#;GRJ150..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
KDJ15#;GRJ150..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
KDJ15#;GRJ150..LHD 25A,MINI FUSE |
1 | ||
| 90982-09021 |
KDJ15#;GRJ150..LHD 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
KDJ15#;GRJ150..LHD 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
KDJ15#;GRJ150..LHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
KDJ15#;GRJ150..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
KDJ15#;GRJ150..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-60090 |
GRJ150,KDJ15# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GRJ150,KDJ15# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60060 |
GRJ150,KDJ15# |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60070 |
GRJ150,KDJ15# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-60070 |
KDJ15# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
GRJ150,KDJ15# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-60490 |
KDJ15#..RHD ENGINE-FOR EURO 5 CONFORMITY |
1 | ||
| 82662-60370 |
KDJ15#..RHD |
1 | ||
| 82662-60490 |
KDJ15#..RHD ENGLAND SPEC |
1 | ||
| 82662-60490 |
KDJ15#..RHD MALTA SPEC |
1 | ||
| 82662-60570 |
KDJ15#..RHD ENGLAND SPEC |
1 | ||
| 82662-60550 |
KDJ15# |
1 | ||
| 82662-60490 |
KDJ15#..RHD IRELAND SPEC |
1 | ||
| 82662-60570 |
KDJ15#..RHD MALTA SPEC |
1 | ||
| 82662-60570 |
KDJ15#..RHD IRELAND SPEC |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-60380 |
GRJ150..LHD;KDJ15#..RHD |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-60080 |
GRJ150,KDJ15# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-60100 |
GRJ150..LHD;KDJ15#..RHD |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-60040 |
GRJ150,KDJ15# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-60030 |
GRJ150..LHD;KDJ15#..RHD |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
GRJ150,KDJ15# |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
KDJ150;GRJ150..LHD;KDJ155..5FC;KDJ155..LHD..6F COLD AREA SPEC |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02027 |
KDJ15#..RHD..5FC OUTSIDE REAR VIEW MIRROR-*57 & *RCM & W/HEATER & W/CAMERA(RH&LH) |
1 | ||
| 90987-02027 |
KDJ15#..RHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & *RCM & W/HEATER |
1 | ||
| 90987-02027 |
KDJ15#..RHD OUTSIDE REAR VIEW MIRROR-*57 & *RCM & W/HEATER & W/CAMERA(LH) |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85915E - RELAY | ||||
| 90987-02028 |
KDJ15#..RHD ENGLAND SPEC |
1 | ||
| 90987-02028 |
KDJ15#..RHD IRELAND SPEC |
1 | ||
| 90987-02028 |
KDJ15#..RHD MALTA SPEC |
1 | ||
| 85916C - RELAY, BACK UP LAMP | ||||
| 90987-02027 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
KDJ15#;GRJ150..LHD |
2 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
KDJ15#;GRJ150..LHD |
2 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02027 |
KDJ15# |
1 | ||
| 90987-02027 |
KDJ150..RHD..5FC INDIA SPEC |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
KDJ15#;GRJ150..LHD AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 90987-02028 |
KDJ150;GRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 85934A - RELAY CONDENSER FAN | ||||
| 90987-02027 |
KDJ15# AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 90987-02027 |
KDJ150;GRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 85941 - RELAY, WINDSHIELD WASHER | ||||
| 90987-02027 |
KDJ15#;GRJ150..LHD |
1 | ||
| 86220A - RELAY, INVERTER | ||||
| 90987-02027 |
KDJ150;GRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORYCONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 90987-02027 |
KDJ150;GRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 90987-02027 |
KDJ15#;GRJ150..LHD ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 87120F - RELAY, VISCOUS HEATER | ||||
| 90987-02027 |
KDJ15#..RHD;KDJ15#..LHD..6F COLD AREA SPEC |
1 | ||
| Common parts | ||||
| 82712-60850 | ||||
| 90119-06830 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||
| 8419 | ||||
ILLUST NO.10 OF10(0908- )GDJ150,GRJ150,KDJ150
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-60520 |
KDJ150;GRJ150..LHD |
1 | ||
| 84222E - SWITCH, DIFFERENTIAL LOCK INDICATOR | ||||
| 84222-12010 |
GRJ150..LHD;KDJ15#..5FC W(VSC & CRAWL CONTROL & TERRAIN SELECT) |
1 | ||
| 84840F - SWITCH ASSY, GLASS HATCH OPENER | ||||
| 84840-60010 |
KDJ150;GRJ150..LHD |
1 | ||
| 84947B - COVER, SWITCH | ||||
| 84947-60020 |
KDJ150;GRJ150..LHD |
1 | ||
| Common parts | ||||
| 90119-08A33 | ||||
| 90153-50015 | ||||
| 90178-06012 | ||||
| 90430-18008 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 6761 | ||||
ILLUST NO. 2 OF10(0908-1506)
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28551 - CONTROLLER, GLOW PLUG | ||||
| 28551-30010 |
1KDFTV..KDJ15#..RHD IRELAND SPEC |
1 | ||
| 28551-30010 |
1KDFTV..KDJ15#..RHD ENGLAND SPEC |
1 | ||
| 28551-30010 |
1KDFTV..KDJ15#..RHD MALTA SPEC |
1 | ||
| 28559 - BRACKET, GLOW PLUG CONTROLLER, NO.1 | ||||
| 28559-30080 |
1KDFTV..KDJ15#..RHD ENGLAND SPEC |
1 | ||
| 28559-30080 |
1KDFTV..KDJ15#..RHD IRELAND SPEC |
1 | ||
| 28559-30080 |
1KDFTV..KDJ15#..RHD MALTA SPEC |
1 | ||
| 28559A - BRACKET, GLOW PLUG CONTROLLER, NO.2 | ||||
| 28559-30090 |
1KDFTV..KDJ15#..RHD IRELAND SPEC |
1 | ||
| 28559-30090 |
1KDFTV..KDJ15#..RHD ENGLAND SPEC |
1 | ||
| 28559-30090 |
1KDFTV..KDJ15#..RHD MALTA SPEC |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-58010 |
KDJ15#;GRJ150..LHD HEAD LAMP CLEANER-WITH |
1 | ||
| 85942-48020 |
GRJ150,KDJ15# HEAD LAMP CLEANER-WITH |
1 | ||
| Common parts | ||||
| 90159-50386 | ||||
| 94150-80600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
