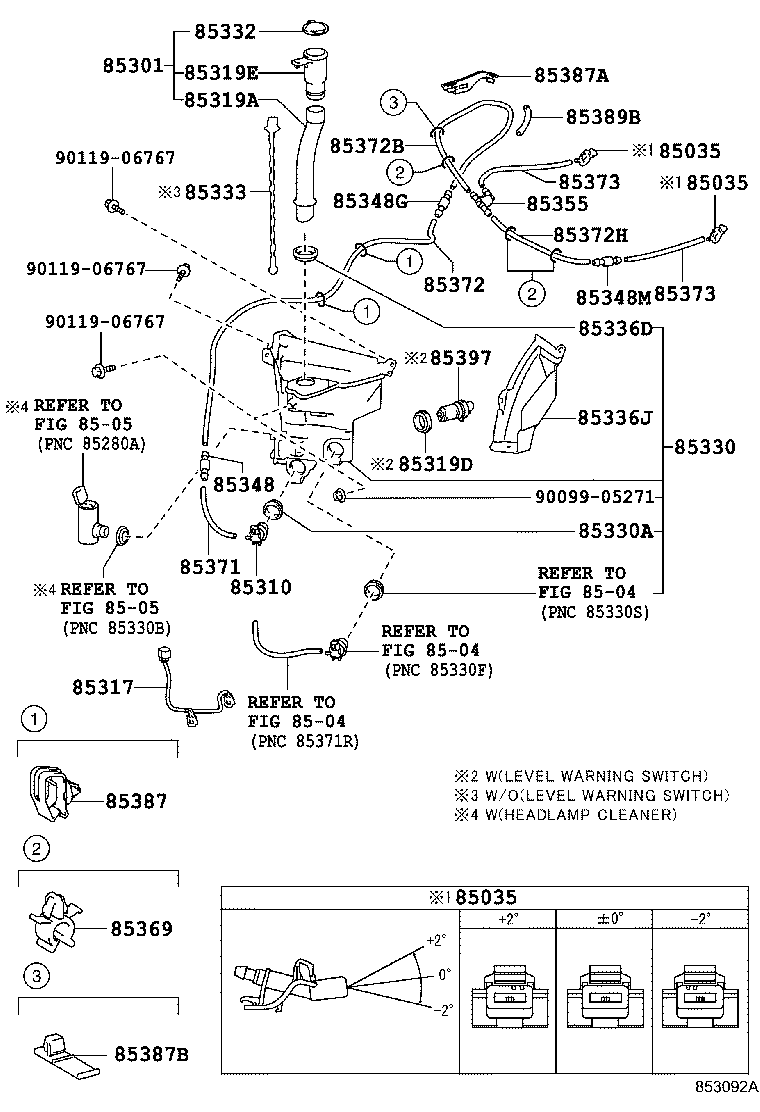

KDJ150R-GKAEYW (2013)
Toyota Land Cruiser Prado
(1308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12300 |
KDJ15#;GRJ150..LHD ANGLE 0 |
2 | ||
| 85381-12310 |
KDJ15#;GRJ150..LHD ANGLE -2 |
2 | ||
| 85381-12300 |
GRJ150,KDJ15# ANGLE 0 |
2 | ||
| 85381-12320 |
KDJ15#;GRJ150..LHD ANGLE +2 |
2 | ||
| 85381-12320 |
GRJ150,KDJ15# ANGLE +2 |
2 | ||
| 85381-12310 |
GRJ150,KDJ15# ANGLE -2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12300 |
KDJ15#;GRJ150..LHD ANGLE 0 |
2 | ||
| 85381-12310 |
KDJ15#;GRJ150..LHD ANGLE -2 |
2 | ||
| 85381-12300 |
GRJ150,KDJ15# ANGLE 0 |
2 | ||
| 85381-12320 |
KDJ15#;GRJ150..LHD ANGLE +2 |
2 | ||
| 85381-12320 |
GRJ150,KDJ15# ANGLE +2 |
2 | ||
| 85381-12310 |
GRJ150,KDJ15# ANGLE -2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12300 |
KDJ15#;GRJ150..LHD ANGLE 0 |
2 | ||
| 85381-12310 |
KDJ15#;GRJ150..LHD ANGLE -2 |
2 | ||
| 85381-12300 |
GRJ150,KDJ15# ANGLE 0 |
2 | ||
| 85381-12320 |
KDJ15#;GRJ150..LHD ANGLE +2 |
2 | ||
| 85381-12320 |
GRJ150,KDJ15# ANGLE +2 |
2 | ||
| 85381-12310 |
GRJ150,KDJ15# ANGLE -2 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-60090 |
GRJ150,KDJ15# |
1 | ||
| 85301-60080 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-71010 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85330-71010 |
GRJ150,KDJ15# |
1 | ||
| 85317 - WIRING ASSY, WASHER | ||||
| 85317-60390 |
GRJ150,KDJ15# |
1 | ||
| 85317-60390 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85317-60400 |
GRJ150,KDJ15# COLD AREA SPEC&HEADLAMP CLEANER-WITH |
1 | ||
| 85317-60400 |
GRJ150,KDJ15# COLD AREA SPEC |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-60090 |
GRJ150,KDJ15# |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-33230 |
GRJ150,KDJ15# COLD AREA SPEC |
1 | ||
| 85319-33230 |
GRJ150,KDJ15# COLD AREA SPEC&HEADLAMP CLEANER-WITH |
1 | ||
| 85319E - INLET WASHER | ||||
| 85318-60090 |
GRJ150,KDJ15# |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-60390 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85355-60250 |
GRJ150,KDJ15# COLD AREA SPEC&HEADLAMP CLEANER-WITH |
1 | ||
| 85315-60390 |
GRJ150,KDJ15# |
1 | ||
| 85355-60260 |
GRJ150,KDJ15# HEADLAMP CLEANER-WITH |
1 | ||
| 85355-60190 |
KDJ15#;GRJ150..LHD HEAD LAMP CLEANER-WITH |
1 | ||
| 85315-35340 |
GRJ150,KDJ15# COLD AREA SPEC |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85336-60300 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85336-60300 |
GRJ150,KDJ15# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-33320 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85316-60090 |
GRJ150,KDJ15# |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85312-48010 |
GRJ150,KDJ15# |
1 | ||
| 85312-48010 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-42190 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85336-42190 |
GRJ150,KDJ15# |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 85336-60390 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85336-60390 |
GRJ150,KDJ15# |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-10260 |
GRJ150,KDJ15# |
1 | ||
| 85375-10260 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85349-89122 |
GRJ150,KDJ15# |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-10260 |
GRJ150,KDJ15# |
1 | ||
| 85375-10260 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85321-28020 |
GRJ150,KDJ15# |
1 | ||
| 85369 - CLAMP | ||||
| 85371-50020 |
GRJ150,KDJ15# |
3 | ||
| 85371-50020 |
KDJ15#;GRJ150..LHD |
3 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
GRJ150,KDJ15# *H,L=160,COLD AREA SPEC&HEADLAMP CLEANER-WITH |
1 | ||
| 90099-33080 |
KDJ15#;GRJ150..LHD *H,L=160 |
1 | ||
| 90099-33080 |
GRJ150,KDJ15# *H,L=160 |
1 | ||
| 90099-33080 |
KDJ15#;GRJ150..LHD *H,L=160,HEAD LAMP CLEANER-WITH |
1 | ||
| 90099-33080 |
GRJ150,KDJ15# *H,L=160,HEADLAMP CLEANER-WITH |
1 | ||
| 90099-33080 |
GRJ150,KDJ15# *H,L=160,COLD AREA SPEC |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
KDJ15#;GRJ150..LHD *H,L=1130 |
1 | ||
| 90099-33080 |
GRJ150,KDJ15# *H,L=1130 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
KDJ15#;GRJ150..LHD *H,L=1010 |
1 | ||
| 90099-33080 |
GRJ150,KDJ15# *H,L=1010 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
GRJ150,KDJ15# *H,L=470 |
1 | ||
| 90099-33080 |
KDJ15#;GRJ150..LHD *H,L=470 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
KDJ15#;GRJ150..LHD *H,L=270 |
2 | ||
| 90099-33080 |
GRJ150,KDJ15# *H,L=270 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
KDJ15#;GRJ150..LHD *H,L=270 |
2 | ||
| 90099-33080 |
GRJ150,KDJ15# *H,L=270 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-35520 |
KDJ15#;GRJ150..LHD |
2 | ||
| 82711-35520 |
GRJ150,KDJ15# |
2 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 85371-48010 |
GRJ150,KDJ15# |
1 | ||
| 85371-48010 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85387B - CLAMP, WASHER, NO.3 | ||||
| 85387-22540 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85387-22540 |
GRJ150,KDJ15# |
1 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-60830 |
KDJ15#;GRJ150..LHD |
1 | ||
| 85389-60830 |
GRJ150,KDJ15# |
1 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-52100 |
GRJ150,KDJ15# COLD AREA SPEC |
1 | ||
| 85397-52100 |
GRJ150,KDJ15# COLD AREA SPEC&HEADLAMP CLEANER-WITH |
1 | ||
| Common parts | ||||
| 90099-05271 | ||||
| 90119-06767 | ||||
| Linked diagrams | ||||
| 8504 | ||||
| 8505 | ||||
