KDJ150R-GKAEYW (2013)

Toyota Land Cruiser Prado

Production Aug 2013 - Jun 2015
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )

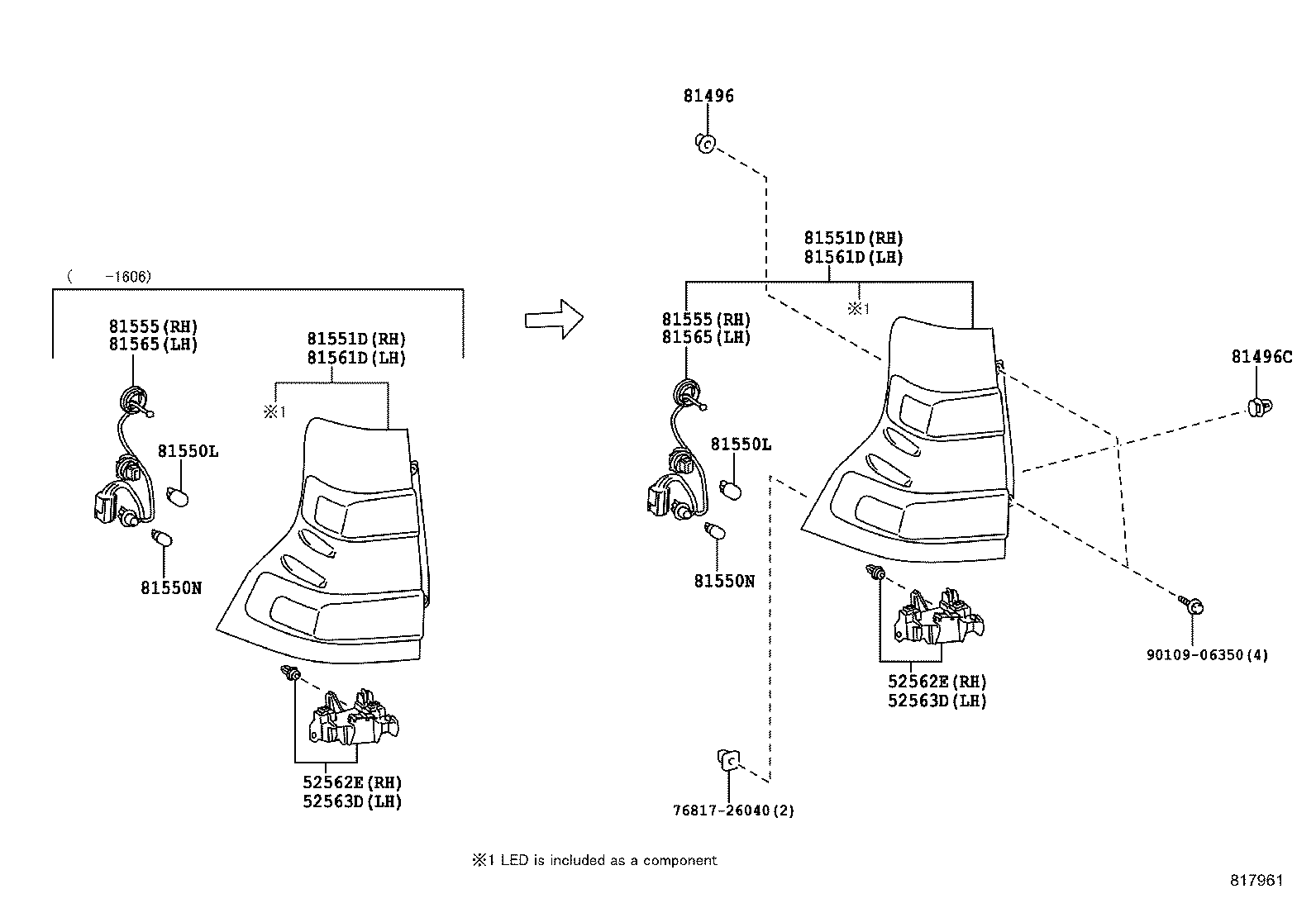

Click highlighted areas on diagram

diagram 52562E 52562E 52563D 52563D 7681726040 81496 81496C 81550L 81550L 81550N 81550N 81551D 81551D 81555 81555 81561D 81561D 81565 81565 9010906350
Part # Description Qty Price
52562E - RETAINER, REAR BUMPER, UPPER RH
52562-60060

GRJ150,KDJ15#

 1
52562-60060

GRJ150,KDJ15#

 1
52562E - RETAINER, REAR BUMPER, UPPER RH
52562-60060

GRJ150,KDJ15#

 1
52562-60060

GRJ150,KDJ15#

 1
52563D - RETAINER, REAR BUMPER, UPPER LH
52563-60060

GRJ150,KDJ15#

 1
52563-60060

GRJ150,KDJ15#

 1
52563D - RETAINER, REAR BUMPER, UPPER LH
52563-60060

GRJ150,KDJ15#

 1
52563-60060

GRJ150,KDJ15#

 1
81496 - GUIDE, REAR COMBINATION LAMP
81496-52020

GRJ150,KDJ15#

 2
81496-52020

KDJ15#;GRJ150..LHD

 2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-60010

GRJ150,KDJ15#

 2
81496-60010

KDJ15#;GRJ150..LHD

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011

GRJ150,KDJ15#

12V 21W,AMBER

 2
90981-15011

KDJ15#;GRJ150..LHD

12V 21W,AMBER

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011

GRJ150,KDJ15#

12V 21W,AMBER

 2
90981-15011

KDJ15#;GRJ150..LHD

12V 21W,AMBER

 2
81550N - BULB, BACK UP LAMP
90981-11059

GRJ150,KDJ15#

12V 16W

 2
90981-11059

KDJ15#;GRJ150..LHD

12V 16W

 2
81550N - BULB, BACK UP LAMP
90981-11059

GRJ150,KDJ15#

12V 16W

 2
90981-11059

KDJ15#;GRJ150..LHD

12V 16W

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-60B50

GRJ150,KDJ15#

 1
81551-60890

KDJ15#;GRJ150..LHD

 1
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-60B50

GRJ150,KDJ15#

 1
81551-60890

KDJ15#;GRJ150..LHD

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-60890

KDJ15#;GRJ150..LHD

 1
81555-60B50

GRJ150,KDJ15#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-60890

KDJ15#;GRJ150..LHD

 1
81555-60B50

GRJ150,KDJ15#

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-60830

KDJ15#;GRJ150..LHD

 1
81561-60B30

GRJ150,KDJ15#

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-60830

KDJ15#;GRJ150..LHD

 1
81561-60B30

GRJ150,KDJ15#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-60890

KDJ15#;GRJ150..LHD

 1
81555-60B50

GRJ150,KDJ15#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-60890

KDJ15#;GRJ150..LHD

 1
81555-60B50

GRJ150,KDJ15#

 1
Common parts
76817-26040
90109-06350
