KDJ150R-GKAEYW (2013)

Toyota Land Cruiser Prado

Production Aug 2013 - Jun 2015
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )RHD

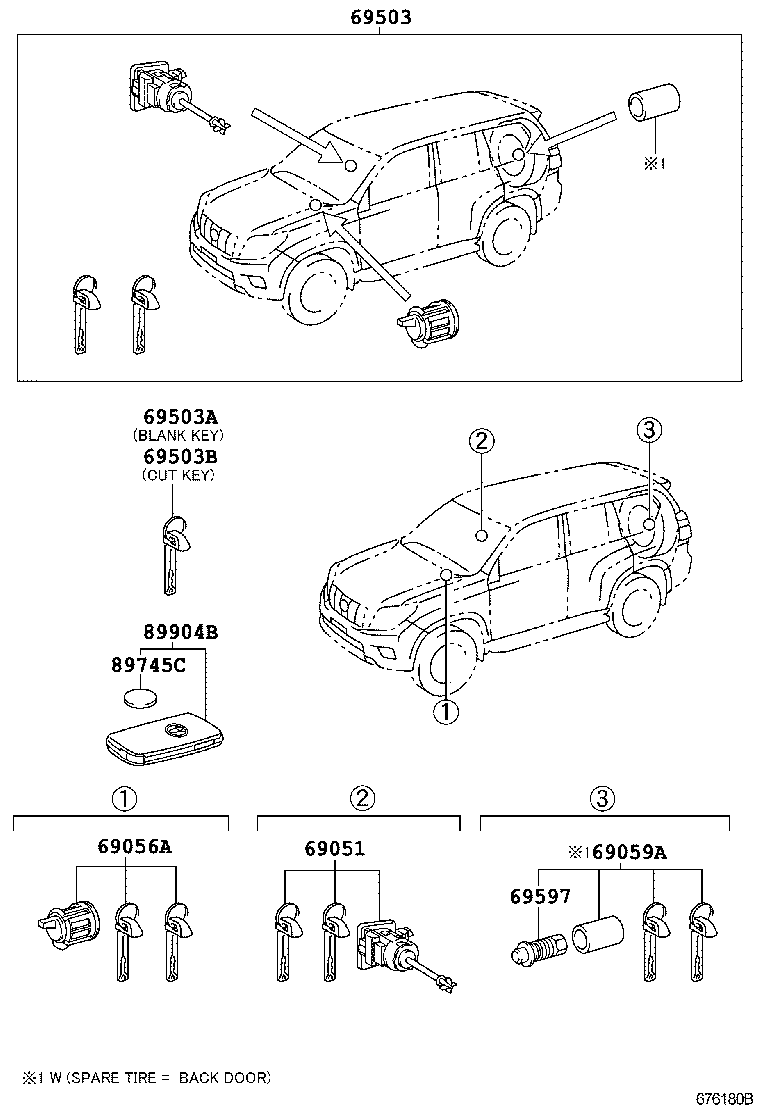

Click highlighted areas on diagram

W(SMART ENTRY)

diagram 69051 69056A 69059A 69503 69503A 69503B 69597 89745C 89904B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-60340

KDJ15#..RHD

 1
69051-60340

KDJ15#..RHD

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-60200

KDJ15#;GRJ150..LHD

 1
69056-60200

GRJ150,KDJ15#

 1
69503 - CYLINDER SET, LOCK
69005-60A10

KDJ150..RHD

 1
69005-60A10

KDJ150..RHD

 1
69503A - KEY, BLANK
69515-30320

GRJ150,KDJ15#

MASTER KEY,W(*68)

 1
69515-30320

KDJ15#;GRJ150..LHD

MASTER KEY,W(*68)

 1
69503B - KEY, CUT
69515-30310

KDJ15#;GRJ150..LHD

MASTER KEY,W(*68)

 2
69515-30310

GRJ150,KDJ15#

MASTER KEY,W(*68)

 2
89745C - BATTERY, TRANSMITTER
89745-52030

KDJ15#;GRJ150..LHD

CR1632

 1
89745-52030

KDJ150..RHD

ENGLAND SPEC&WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)

 1
89745-52030

KDJ15#..RHD

IRELAND SPEC&WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)

 1
89745-52030

KDJ15#..RHD

MALTA SPEC&WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)

 1
89745-52030

GRJ150,KDJ15#

CR1632

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-60540

KDJ150..RHD

ENGLAND SPEC&WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)

 2
89904-60540

KDJ150..RHD

IRELAND SPEC&WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)

 2
89904-60540

KDJ150;GRJ150..LHD

 2
89904-60540

KDJ150..RHD

MALTA SPEC&WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY)

 2
89904-60540

GRJ150,KDJ150

 2
