KDJ150R-GKAEYW (2013)
Toyota Land Cruiser Prado
ILLUST NO. 1 OF 3(0908- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-53040 |
GRJ150,KDJ15# |
2 | ||
| 55315-53040 |
KDJ15#;GRJ150..LHD |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-60260 |
KDJ150..RHD VX-L PACKAGE |
1 | ||
| 55330-60300 |
KDJ15#..RHD |
1 | ||
| 55330-60261 |
KDJ15#..RHD VX PACKAGE |
1 | ||
| 55330-60261 |
KDJ150..RHD..5FC VX-L PACKAGE |
1 | ||
| 55330-60300 |
KDJ15#..RHD |
1 | ||
| 55330-60260 |
KDJ15#..RHD VX PACKAGE |
1 | ||
| 55330-60260 |
KDJ15#..RHD VX PACKAGE |
1 | ||
| 55330-60301 |
KDJ15#..RHD |
1 | ||
| 55330-60260 |
KDJ150..RHD..5FC VX-L PACKAGE |
1 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55348-60120 |
KDJ15#;GRJ150..LHD RH |
1 | ||
| 55347-60110 |
KDJ15#;GRJ150..LHD LH |
1 | ||
| 55347-60110 |
GRJ150,KDJ15# LH |
1 | ||
| 55348-60120 |
GRJ150,KDJ15# RH |
1 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55348-60120 |
KDJ15#;GRJ150..LHD RH |
1 | ||
| 55347-60110 |
KDJ15#;GRJ150..LHD LH |
1 | ||
| 55347-60110 |
GRJ150,KDJ15# LH |
1 | ||
| 55348-60120 |
GRJ150,KDJ15# RH |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-60100 |
KDJ15#;GRJ150..LHD |
1 | ||
| 55349-60100 |
GRJ150,KDJ15# |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-60110 |
KDJ15#;GRJ150..LHD |
1 | ||
| 55374-60110 |
GRJ150,KDJ15# |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-60110 |
KDJ15#;GRJ150..LHD |
1 | ||
| 55375-60110 |
GRJ150,KDJ15# |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-48050 |
KDJ15#;GRJ150..LHD |
3 | ||
| 55394-48050 |
GRJ150,KDJ15# |
3 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-48060 |
KDJ15#;GRJ150..LHD |
2 | ||
| 55394-48060 |
GRJ150,KDJ15# |
2 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-60450C0 |
KDJ15#..RHD BLACK,TRIM1# |
1 | ||
| 55401-60450C0 |
KDJ15#..RHD BLACK,TRIM2# |
1 | ||
| 55401-60450E1 |
KDJ15#..RHD ORCHID BROWN,TRIM0# |
1 | ||
| 55401-60450E0 |
KDJ15#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55401-60451E1 |
KDJ15#..RHD ORCHID BROWN,TRIM0# |
1 | ||
| 55401-60451C0 |
KDJ15#..RHD BLACK,TRIM2# |
1 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
KDJ15#;GRJ150..LHD |
5 | ||
| 55458-50100 |
GRJ150,KDJ15# |
5 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
KDJ15#;GRJ150..LHD |
5 | ||
| 55458-50100 |
GRJ150,KDJ15# |
5 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-60030C0 |
KDJ15#;GRJ150..LHD BLACK,TRIM1# |
1 | ||
| 55981-60030E0 |
KDJ15#;GRJ150..LHD DK. BROWN,TRIM0# |
1 | ||
| 55981-60030C0 |
GRJ150,KDJ15# BLACK,TRIM2# |
1 | ||
| 55981-60030E2 |
GRJ150,KDJ15# ORCHID BROWN,TRIM0# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-60040E0 |
KDJ15#..RHD DK. BROWN,TRIM0# |
1 | ||
| 73900-60040C0 |
KDJ15#..RHD BLACK,TRIM1# |
1 | ||
| 73900-60040C0 |
KDJ15#..RHD BLACK,TRIM2# |
1 | ||
| 73900-60040A0 |
KDJ15#..RHD FLAXEN,TRIM0# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-60210 |
KDJ15#..RHD |
1 | ||
| 73960-60210 |
KDJ15#..RHD |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90105-08460 | ||||
| 90119-06951 | ||||
| 90179-06278 | ||||
| 90183-05033 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| 94150-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 8202 | ||||
ILLUST NO. 3 OF 3(1308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-60130 |
GRJ150,KDJ15# |
1 | ||
| 55420-60100 |
KDJ15#..RHD |
1 | ||
| 55420-60070 |
KDJ15#..RHD CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
KDJ15#;GRJ150..LHD |
1 | ||
| 55522-52020 |
KDJ15#;GRJ150..LHD AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER |
1 | ||
| 55522-52020 |
KDJ15#;GRJ150..LHD AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+MULTI+6SPEAKER |
1 | ||
| 55522-52020 |
KDJ15# AUDIO(FOR OVERSEAS MARKET)-CD & 6SPEAKER |
1 | ||
| 55522-52020 |
KDJ15#;GRJ150..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER |
1 | ||
| 55522-52020 |
GRJ150,KDJ15# AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER |
1 | ||
| 55522-52020 |
GRJ150,KDJ15# |
1 | ||
| 55522-52020 |
KDJ150;GRJ150..LHD AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 55522-52020 |
GRJ150,KDJ150 AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55522-52020 |
GRJ150,KDJ15# AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-60230 |
KDJ15#..RHD |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-60230 |
KDJ15#..RHD |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8603 | ||||

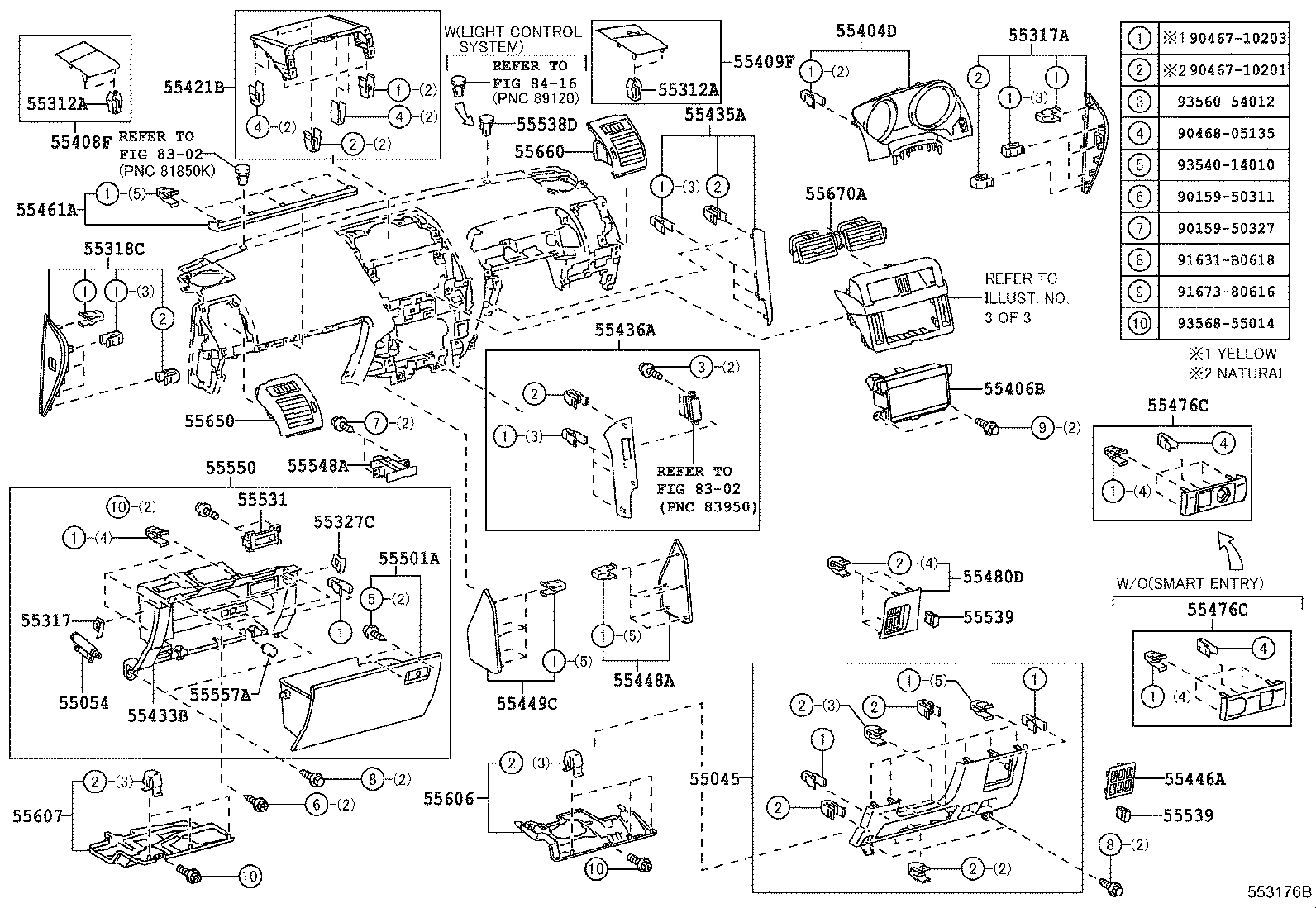

ILLUST NO. 2 OF 3(1308- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-60030E0 |
KDJ15#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55045-60030C0 |
KDJ15#..RHD BLACK,TRIM1# |
1 | ||
| 55045-60030C0 |
KDJ15#..RHD BLACK,TRIM2# |
1 | ||
| 55045-60030A0 |
KDJ15#..RHD FLAXEN,TRIM0# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-33060 |
GRJ150,KDJ15# CAP COLLER = YELLOW |
1 | ||
| 55054-22030 |
GRJ150,KDJ15# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
KDJ15#;GRJ150..LHD MELLOW WHITE |
4 | ||
| 90467-13082A0 |
GRJ150,KDJ15# MELLOW WHITE |
4 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
KDJ15#;GRJ150..LHD MELLOW WHITE |
4 | ||
| 90467-13082A0 |
GRJ150,KDJ15# MELLOW WHITE |
4 | ||
| 55317 - PATCH, INSTRUMENT PANEL | ||||
| 55316-60050C0 |
GRJ150,KDJ15# BLACK,TRIM2# |
1 | ||
| 55316-60050A0 |
GRJ150,KDJ15# FLAXEN,TRIM0# |
1 | ||
| 55316-60050 |
GRJ150,KDJ15# |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-60040E0 |
KDJ15#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55317-60040C0 |
KDJ15#..RHD BLACK,TRIM1# |
1 | ||
| 55317-60040C0 |
KDJ15#..RHD BLACK,TRIM2# |
1 | ||
| 55317-60040E1 |
KDJ15#..RHD ORCHID BROWN,TRIM0# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-60140C0 |
KDJ15#..RHD BLACK,TRIM1# |
1 | ||
| 55318-60140E0 |
KDJ15#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55318-60140E1 |
KDJ15#..RHD ORCHID BROWN,TRIM0# |
1 | ||
| 55318-60140C0 |
KDJ15#..RHD BLACK,TRIM2# |
1 | ||
| 55327C - PATCH, INSTRUMENT PANEL, UPPER RH | ||||
| 55315-60120 |
GRJ150,KDJ15# |
1 | ||
| 55315-60120A0 |
GRJ150,KDJ15# FLAXEN,TRIM0# |
1 | ||
| 55315-60120C0 |
GRJ150,KDJ15# BLACK,TRIM2# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-60270E0 |
KDJ15#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55404-60270C0 |
KDJ15#..RHD BLACK,TRIM1# |
1 | ||
| 55404-60280E0 |
KDJ150..RHD VX-L PACKAGE,DK. BROWN,TRIM0# |
1 | ||
| 55404-60280C0 |
KDJ15#..RHD VX PACKAGE,BLACK,TRIM1# |
1 | ||
| 55404-60350C0 |
KDJ15#..RHD BLACK,TRIM2# |
1 | ||
| 55404-60350E0 |
KDJ15#..RHD ORCHID BROWN,TRIM0# |
1 | ||
| 55404-60280C0 |
KDJ150..RHD VX-L PACKAGE,BLACK,TRIM1# |
1 | ||
| 55404-60280E0 |
KDJ15#..RHD VX PACKAGE,DK. BROWN,TRIM0# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-60190 |
KDJ15#;GRJ150..LHD VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER |
1 | ||
| 55406-60190 |
KDJ15#;GRJ150..LHD TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER |
1 | ||
| 55406-60190 |
KDJ150;GRJ150..LHD VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER |
1 | ||
| 55406-60190 |
KDJ150;GRJ150..LHD VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 55406-60190 |
KDJ150;GRJ150..LHD VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 55406-60190 |
KDJ15#;GRJ150..LHD |
1 | ||
| 55406-60380 |
GRJ150,KDJ150..5FC LEATHER SEAT PACKAGE&*351 |
1 | ||
| 55406-60380 |
GRJ150,KDJ15# |
1 | ||
| 55406-60380 |
GRJ150,KDJ150..5FC VX COLOR LEATHER + COSM.PACK&*351 |
1 | ||
| 55406-60380 |
GRJ150,KDJ150..5FC LEATHER PACKAGE(STEERING & SHIFT KNOB)&*351 |
1 | ||
| 55406-60380 |
GRJ150,KDJ150..5FC LEATHER SEAT PACKAGE&*351 |
1 | ||
| 55406-60380 |
GRJ150,KDJ150..5FC VX-L COLOR LEATHER + COSM.PACKAGE&*351 |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-60190C0 |
GRJ150,KDJ15# BLACK,TRIM1# |
1 | ||
| 55408-60190E0 |
GRJ150,KDJ15# DK. BROWN,TRIM0# |
1 | ||
| 55408-60190E1 |
GRJ150,KDJ150 AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM0# |
1 | ||
| 55408-60190C0 |
GRJ150,KDJ150 AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 55472-60180C0 |
GRJ150,KDJ15# BLACK,TRIM2# |
1 | ||
| 55472-60180E1 |
GRJ150,KDJ15# ORCHID BROWN,TRIM0# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-60070C0 |
GRJ150,KDJ15# BLACK,TRIM1# |
1 | ||
| 55409-60070E0 |
GRJ150,KDJ15# DK. BROWN,TRIM0# |
1 | ||
| 55409-60070C0 |
GRJ150,KDJ150 AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 55473-60130E1 |
GRJ150,KDJ15# ORCHID BROWN,TRIM0# |
1 | ||
| 55473-60130C0 |
GRJ150,KDJ15# BLACK,TRIM2# |
1 | ||
| 55409-60070E1 |
GRJ150,KDJ150 AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM0# |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-60100E0 |
KDJ150;GRJ150..LHD AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP,DK. BROWN,TRIM0# |
1 | ||
| 55421-60100C0 |
KDJ150;GRJ150..LHD AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP,BLACK,TRIM1# |
1 | ||
| 55421-60110E0 |
KDJ15#;GRJ150..LHD DK. BROWN,TRIM0# |
1 | ||
| 55421-60130C0 |
GRJ150,KDJ15# AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 55421-60130E0 |
GRJ150,KDJ15# AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM0# |
1 | ||
| 55421-60110C0 |
KDJ15#;GRJ150..LHD BLACK,TRIM1# |
1 | ||
| 55421-60130E0 |
GRJ150,KDJ150 AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM0# |
1 | ||
| 55421-60180E0 |
GRJ150,KDJ15# ORCHID BROWN,TRIM0# |
1 | ||
| 55421-60130C0 |
GRJ150,KDJ150 AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 55421-60100E0 |
KDJ15#;GRJ150..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,DK. BROWN,TRIM0# |
1 | ||
| 55421-60180C0 |
GRJ150,KDJ15# BLACK,TRIM2# |
1 | ||
| 55421-60100C0 |
KDJ15#;GRJ150..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER,BLACK,TRIM1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-60140C0 |
GRJ150,KDJ15#..RHD BLACK,TRIM1# |
1 | ||
| 55433-60140A0 |
KDJ15#..RHD FLAXEN,TRIM0# |
1 | ||
| 55433-60140C0 |
KDJ15#..RHD BLACK,TRIM2# |
1 | ||
| 55433-60140E0 |
GRJ150,KDJ15#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-60190 |
GRJ150,KDJ150..RHD VX PACKAGE |
1 | ||
| 55435-60190 |
GRJ150,KDJ150..RHD VX-L PACKAGE |
1 | ||
| 55435-60250 |
KDJ15#..RHD |
1 | ||
| 55435-60180 |
KDJ15#..RHD |
1 | ||
| 55435-60270 |
KDJ150..RHD..5FC VX-L PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 55435-60270 |
KDJ15#..RHD VX PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 55435-60270 |
KDJ15#..RHD VX PACKAGE&LEATHER PACKAGE(STEERING & SHIFT KNOB) |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-60240 |
GRJ150,KDJ150..RHD VX PACKAGE |
1 | ||
| 55436-60230 |
KDJ15#..RHD |
1 | ||
| 55436-60240 |
GRJ150,KDJ150..RHD VX-L PACKAGE |
1 | ||
| 55436-60350 |
KDJ150..RHD..5FC VX-L PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 55436-60340 |
KDJ15#..RHD |
1 | ||
| 55436-60350 |
KDJ15#..RHD VX PACKAGE&LEATHER PACKAGE(STEERING & SHIFT KNOB) |
1 | ||
| 55436-60350 |
KDJ15#..RHD VX PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-60130E0 |
KDJ15#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55446-60131A0 |
KDJ15#..RHD FLAXEN,TRIM0# |
1 | ||
| 55446-60130A0 |
KDJ15#..RHD FLAXEN,TRIM0# |
1 | ||
| 55446-60130C0 |
KDJ15#..RHD BLACK,TRIM2# |
1 | ||
| 55446-60130C0 |
KDJ15#..RHD BLACK,TRIM1# |
1 | ||
| 55446-60131C0 |
KDJ15#..RHD BLACK,TRIM2# |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-60040C0 |
KDJ15#;GRJ150..LHD BLACK,TRIM1# |
1 | ||
| 55448-60040C0 |
GRJ150,KDJ15# BLACK,TRIM2# |
1 | ||
| 55448-60040E1 |
GRJ150,KDJ15# ORCHID BROWN,TRIM0# |
1 | ||
| 55448-60040E0 |
KDJ15#;GRJ150..LHD DK. BROWN,TRIM0# |
1 | ||
| 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55449-60050E0 |
KDJ15#;GRJ150..LHD DK. BROWN,TRIM0# |
1 | ||
| 55449-60050C0 |
KDJ15#;GRJ150..LHD BLACK,TRIM1# |
1 | ||
| 55449-60050E1 |
GRJ150,KDJ15# ORCHID BROWN,TRIM0# |
1 | ||
| 55449-60050C0 |
GRJ150,KDJ15# BLACK,TRIM2# |
1 | ||
| 55461A - ORNAMENT, INSTRUMENT PANEL | ||||
| 55461-60220 |
KDJ150..RHD VX-L PACKAGE |
1 | ||
| 55461-60230 |
KDJ150..RHD VX PACKAGE |
1 | ||
| 55461-60240 |
KDJ15#..RHD |
1 | ||
| 55461-60310 |
KDJ15#..RHD VX PACKAGE&VX COLOR LEATHER + COSM.PACK |
1 | ||
| 55461-60320 |
KDJ15#..RHD |
1 | ||
| 55461-60330 |
KDJ150..RHD..5FC VX-L PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 55461-60310 |
KDJ150..RHD..5FC VX-L PACKAGE&VX-L COLOR LEATHER + COSM.PACKAGE |
1 | ||
| 55461-60330 |
KDJ15#..RHD VX PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 55461-60330 |
KDJ15#..RHD VX PACKAGE&LEATHER PACKAGE(STEERING & SHIFT KNOB) |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-60100E0 |
KDJ15#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55476-60100A0 |
KDJ15#..RHD FLAXEN,TRIM0# |
1 | ||
| 55476-60100C0 |
KDJ15#..RHD BLACK,TRIM1# |
1 | ||
| 55476-60100C0 |
KDJ15#..RHD BLACK,TRIM2# |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-60100E0 |
KDJ15#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55476-60100A0 |
KDJ15#..RHD FLAXEN,TRIM0# |
1 | ||
| 55476-60100C0 |
KDJ15#..RHD BLACK,TRIM1# |
1 | ||
| 55476-60100C0 |
KDJ15#..RHD BLACK,TRIM2# |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-60270E0 |
KDJ15#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55480-60270C0 |
KDJ15#..RHD BLACK,TRIM2# |
1 | ||
| 55480-60270C0 |
KDJ15#..RHD BLACK,TRIM1# |
1 | ||
| 55480-60270A0 |
KDJ15#..RHD FLAXEN,TRIM0# |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-60240E0 |
GRJ150,KDJ15#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55501-60240A0 |
KDJ15#..RHD FLAXEN,TRIM0# |
1 | ||
| 55501-60240C0 |
KDJ15#..RHD BLACK,TRIM2# |
1 | ||
| 55501-60240C0 |
GRJ150,KDJ15#..RHD BLACK,TRIM1# |
1 | ||
| 55531 - PANEL, GLOVE COMPARTMENT | ||||
| 55531-60050E0 |
GRJ150,KDJ15#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55531-60050 |
KDJ15#..RHD |
1 | ||
| 55531-60050C0 |
GRJ150,KDJ15#..RHD BLACK,TRIM1# |
1 | ||
| 55538D - COVER, SUNSHINE SENSOR HOLE | ||||
| 55538-48010 |
KDJ15#;GRJ150..LHD |
1 | ||
| 55538-48010 |
GRJ150,KDJ15# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-58060C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),BLACK |
1 | ||
| 55539-58060C0 |
KDJ15#;GRJ150..LHD BLACK |
1 | ||
| 55539-58060C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,BLACK |
1 | ||
| 55539-58060C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),BLACK |
1 | ||
| 55539-58060C0 |
GRJ150..LHD;KDJ150..5FC VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),BLACK |
1 | ||
| 55539-58060C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),BLACK |
1 | ||
| 55539-58060C0 |
GRJ150..LHD;KDJ150..5FC VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),BLACK |
1 | ||
| 55539-58060C0 |
GRJ150..LHD;KDJ150..5FC VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),BLACK |
1 | ||
| 55539-58060C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),BLACK |
1 | ||
| 55539-58060C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),BLACK |
1 | ||
| 55539-58060C0 |
GRJ150..LHD;KDJ150..5FC VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),BLACK |
1 | ||
| 55539-58060C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),BLACK |
1 | ||
| 55539-58060C0 |
GRJ150,KDJ15# BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-58060C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),BLACK |
1 | ||
| 55539-58060C0 |
KDJ15#;GRJ150..LHD BLACK |
1 | ||
| 55539-58060C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH,BLACK |
1 | ||
| 55539-58060C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),BLACK |
1 | ||
| 55539-58060C0 |
GRJ150..LHD;KDJ150..5FC VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),BLACK |
1 | ||
| 55539-58060C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),BLACK |
1 | ||
| 55539-58060C0 |
GRJ150..LHD;KDJ150..5FC VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),BLACK |
1 | ||
| 55539-58060C0 |
GRJ150..LHD;KDJ150..5FC VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),BLACK |
1 | ||
| 55539-58060C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),BLACK |
1 | ||
| 55539-58060C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE),BLACK |
1 | ||
| 55539-58060C0 |
GRJ150..LHD;KDJ150..5FC VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),BLACK |
1 | ||
| 55539-58060C0 |
KDJ150;GRJ150..LHD VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LO BEAM:DISCHARGE & AFS&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR),BLACK |
1 | ||
| 55539-58060C0 |
GRJ150,KDJ15# BLACK |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-47020E0 |
GRJ150,KDJ15#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55548-47020C0 |
GRJ150,KDJ15#..RHD BLACK,TRIM1# |
1 | ||
| 55548-47020C0 |
KDJ15#..RHD BLACK |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-60220E0 |
GRJ150,KDJ15#..RHD DK. BROWN,TRIM0# |
1 | ||
| 55550-60220A0 |
KDJ15#..RHD FLAXEN,TRIM0# |
1 | ||
| 55550-60220C0 |
GRJ150,KDJ15#..RHD BLACK,TRIM1# |
1 | ||
| 55550-60220C0 |
KDJ15#..RHD BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
GRJ150,KDJ15# |
2 | ||
| 55557-60050 |
GRJ150,KDJ15# |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-60110 |
KDJ15#..RHD |
1 | ||
| 55606-60130 |
KDJ15#..RHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-60140 |
KDJ15#..RHD |
1 | ||
| 55607-60140 |
KDJ15#..RHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-60180C0 |
GRJ150,KDJ15# BLACK,TRIM1# |
1 | ||
| 55650-60180E0 |
GRJ150,KDJ15# DK. BROWN,TRIM0# |
1 | ||
| 55650-60250C0 |
GRJ150,KDJ15# VX PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 55650-60181E1 |
GRJ150,KDJ15# ORCHID BROWN,TRIM0# |
1 | ||
| 55650-60250C0 |
GRJ150,KDJ15# VX PACKAGE&LEATHER PACKAGE(STEERING & SHIFT KNOB),BLACK,TRIM2# |
1 | ||
| 55650-60250C0 |
GRJ150,KDJ150..5FC VX-L PACKAGE&VX-L COLOR LEATHER + COSM.PACKAGE,BLACK,TRIM2# |
1 | ||
| 55650-60250C0 |
GRJ150,KDJ15# VX PACKAGE&VX COLOR LEATHER + COSM.PACK,BLACK,TRIM2# |
1 | ||
| 55650-60181C0 |
GRJ150,KDJ15# BLACK,TRIM2# |
1 | ||
| 55650-60250E0 |
GRJ150,KDJ150..5FC VX-L PACKAGE&LEATHER SEAT PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 55650-60250C0 |
GRJ150,KDJ150..5FC VX-L PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 55650-60251C0 |
GRJ150,KDJ150..5FC VX-L PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 55650-60251C0 |
GRJ150,KDJ150..5FC VX-L PACKAGE&VX-L COLOR LEATHER + COSM.PACKAGE,BLACK,TRIM2# |
1 | ||
| 55650-60251C0 |
GRJ150,KDJ15# VX PACKAGE&LEATHER PACKAGE(STEERING & SHIFT KNOB),BLACK,TRIM2# |
1 | ||
| 55650-60250E0 |
GRJ150,KDJ150..5FC VX-L PACKAGE&VX-L COLOR LEATHER + COSM.PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 55650-60182E1 |
GRJ150,KDJ15# ORCHID BROWN,TRIM0# |
1 | ||
| 55650-60250E0 |
GRJ150,KDJ15# VX PACKAGE&LEATHER SEAT PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 55650-60251C0 |
GRJ150,KDJ15# VX PACKAGE&VX COLOR LEATHER + COSM.PACK,BLACK,TRIM2# |
1 | ||
| 55650-60250E0 |
GRJ150,KDJ15# VX PACKAGE&LEATHER PACKAGE(STEERING & SHIFT KNOB),ORCHID BROWN,TRIM0# |
1 | ||
| 55650-60250E0 |
GRJ150,KDJ15# VX PACKAGE&VX COLOR LEATHER + COSM.PACK,ORCHID BROWN,TRIM0# |
1 | ||
| 55650-60251C0 |
GRJ150,KDJ15# VX PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 55650-60251E0 |
GRJ150,KDJ15# VX PACKAGE&LEATHER SEAT PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 55650-60251E0 |
GRJ150,KDJ15# VX PACKAGE&LEATHER PACKAGE(STEERING & SHIFT KNOB),ORCHID BROWN,TRIM0# |
1 | ||
| 55650-60251E0 |
GRJ150,KDJ150..5FC VX-L PACKAGE&LEATHER SEAT PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 55650-60182C0 |
GRJ150,KDJ15# BLACK,TRIM2# |
1 | ||
| 55650-60251E0 |
GRJ150,KDJ150..5FC VX-L PACKAGE&VX-L COLOR LEATHER + COSM.PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 55650-60251E0 |
GRJ150,KDJ15# VX PACKAGE&VX COLOR LEATHER + COSM.PACK,ORCHID BROWN,TRIM0# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-60290C0 |
GRJ150,KDJ15# BLACK,TRIM1# |
1 | ||
| 55660-60291E1 |
GRJ150,KDJ15# ORCHID BROWN,TRIM0# |
1 | ||
| 55660-60290E0 |
GRJ150,KDJ15# DK. BROWN,TRIM0# |
1 | ||
| 55660-60440E0 |
GRJ150,KDJ15# VX PACKAGE&VX COLOR LEATHER + COSM.PACK,ORCHID BROWN,TRIM0# |
1 | ||
| 55660-60440C0 |
GRJ150,KDJ150..5FC VX-L PACKAGE&VX-L COLOR LEATHER + COSM.PACKAGE,BLACK,TRIM2# |
1 | ||
| 55660-60440C0 |
GRJ150,KDJ15# VX PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 55660-60441C0 |
GRJ150,KDJ15# VX PACKAGE&LEATHER PACKAGE(STEERING & SHIFT KNOB),BLACK,TRIM2# |
1 | ||
| 55660-60440C0 |
GRJ150,KDJ150..5FC VX-L PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 55660-60292C0 |
GRJ150,KDJ15# BLACK,TRIM2# |
1 | ||
| 55660-60441C0 |
GRJ150,KDJ15# VX PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 55660-60440C0 |
GRJ150,KDJ15# VX PACKAGE&VX COLOR LEATHER + COSM.PACK,BLACK,TRIM2# |
1 | ||
| 55660-60292E1 |
GRJ150,KDJ15# ORCHID BROWN,TRIM0# |
1 | ||
| 55660-60291C0 |
GRJ150,KDJ15# BLACK,TRIM2# |
1 | ||
| 55660-60441C0 |
GRJ150,KDJ15# VX PACKAGE&VX COLOR LEATHER + COSM.PACK,BLACK,TRIM2# |
1 | ||
| 55660-60440E0 |
GRJ150,KDJ15# VX PACKAGE&LEATHER PACKAGE(STEERING & SHIFT KNOB),ORCHID BROWN,TRIM0# |
1 | ||
| 55660-60441E0 |
GRJ150,KDJ15# VX PACKAGE&VX COLOR LEATHER + COSM.PACK,ORCHID BROWN,TRIM0# |
1 | ||
| 55660-60441E0 |
GRJ150,KDJ15# VX PACKAGE&LEATHER PACKAGE(STEERING & SHIFT KNOB),ORCHID BROWN,TRIM0# |
1 | ||
| 55660-60440E0 |
GRJ150,KDJ150..5FC VX-L PACKAGE&LEATHER SEAT PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 55660-60441E0 |
GRJ150,KDJ15# VX PACKAGE&LEATHER SEAT PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 55660-60440C0 |
GRJ150,KDJ15# VX PACKAGE&LEATHER PACKAGE(STEERING & SHIFT KNOB),BLACK,TRIM2# |
1 | ||
| 55660-60440E0 |
GRJ150,KDJ150..5FC VX-L PACKAGE&VX-L COLOR LEATHER + COSM.PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 55660-60441C0 |
GRJ150,KDJ150..5FC VX-L PACKAGE&LEATHER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 55660-60440E0 |
GRJ150,KDJ15# VX PACKAGE&LEATHER SEAT PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 55660-60441E0 |
GRJ150,KDJ150..5FC VX-L PACKAGE&VX-L COLOR LEATHER + COSM.PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 55660-60441E0 |
GRJ150,KDJ150..5FC VX-L PACKAGE&LEATHER SEAT PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 55660-60441C0 |
GRJ150,KDJ150..5FC VX-L PACKAGE&VX-L COLOR LEATHER + COSM.PACKAGE,BLACK,TRIM2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-60220 |
GRJ150,KDJ15# |
1 | ||
| 55670-60290 |
GRJ150,KDJ15# |
1 | ||
| 55670-60300 |
GRJ150,KDJ15# VX PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60300 |
GRJ150,KDJ15# VX PACKAGE&LEATHER PACKAGE(STEERING & SHIFT KNOB)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60300 |
GRJ150,KDJ150 VX PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60300 |
GRJ150,KDJ15# VX PACKAGE&VX COLOR LEATHER + COSM.PACK&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60301 |
GRJ150,KDJ15# VX PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60300 |
GRJ150,KDJ150..5FC VX-L PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60300 |
GRJ150,KDJ150 VX PACKAGE&LEATHER PACKAGE(STEERING & SHIFT KNOB)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60291 |
GRJ150,KDJ15# |
1 | ||
| 55670-60300 |
GRJ150,KDJ150..5FC VX-L PACKAGE&VX-L COLOR LEATHER + COSM.PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60301 |
GRJ150,KDJ15# VX PACKAGE&LEATHER PACKAGE(STEERING & SHIFT KNOB)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60301 |
GRJ150,KDJ150 VX PACKAGE&LEATHER PACKAGE(STEERING & SHIFT KNOB)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60300 |
GRJ150,KDJ150 VX PACKAGE&VX COLOR LEATHER + COSM.PACK&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60300 |
GRJ150,KDJ150..5FC VX-L PACKAGE&VX-L COLOR LEATHER + COSM.PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60301 |
GRJ150,KDJ15# VX PACKAGE&VX COLOR LEATHER + COSM.PACK&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60301 |
GRJ150,KDJ150 VX PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60300 |
GRJ150,KDJ150..5FC VX-L PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60301 |
GRJ150,KDJ150..5FC VX-L PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60301 |
GRJ150,KDJ150 VX PACKAGE&VX COLOR LEATHER + COSM.PACK&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60301 |
GRJ150,KDJ150..5FC VX-L PACKAGE&VX-L COLOR LEATHER + COSM.PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 55670-60301 |
GRJ150,KDJ150..5FC VX-L PACKAGE&VX-L COLOR LEATHER + COSM.PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 55670-60301 |
GRJ150,KDJ150..5FC VX-L PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90159-50327 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 91631-B0618 | ||||
| 91673-80616 | ||||
| 93540-14010 | ||||
| 93560-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8416 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
