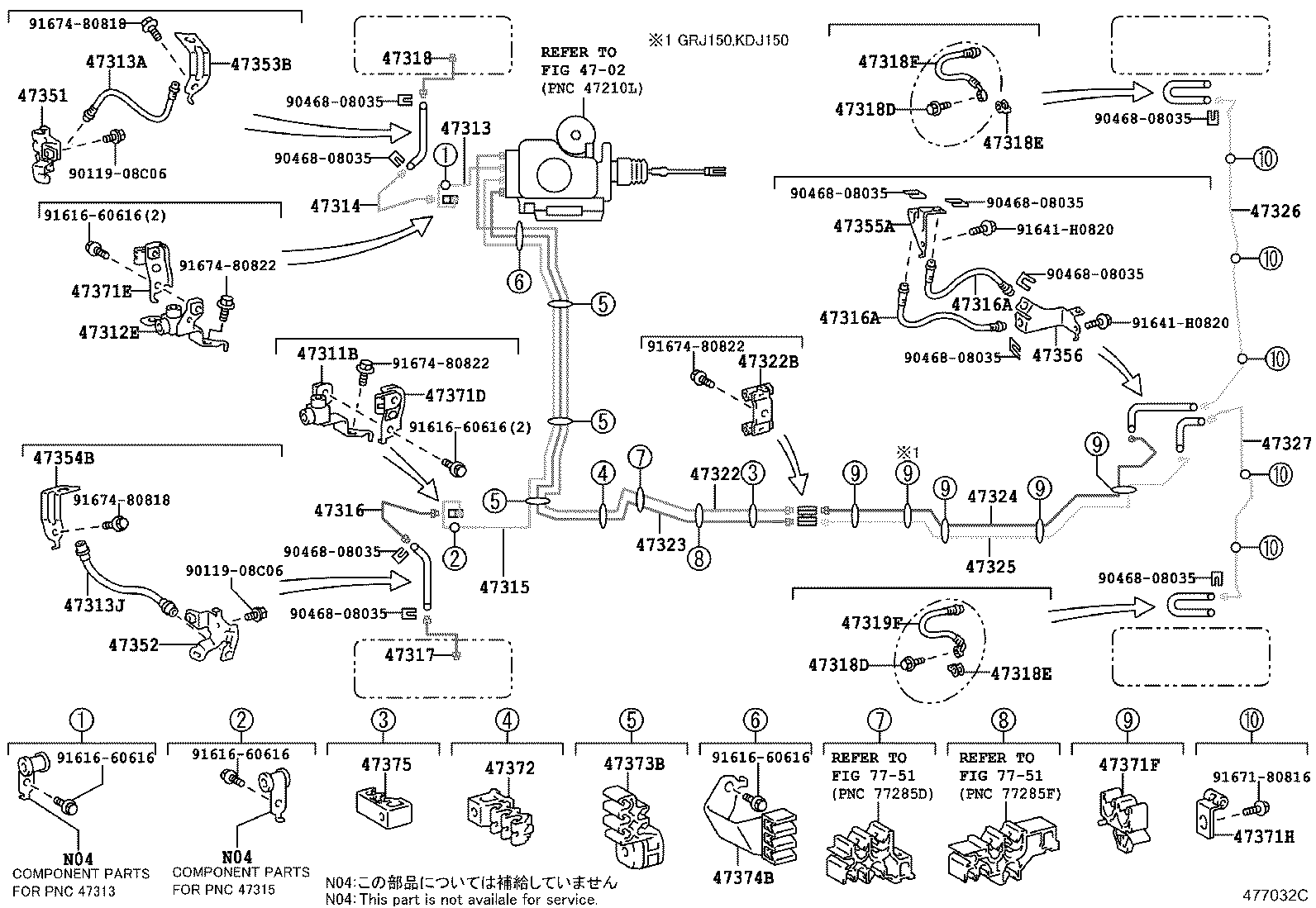

KDJ150R-GKAEYW (2013)
Toyota Land Cruiser Prado
(0908- )GRJ150,KDJ15#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10281 |
KDJ15#;GRJ150..LHD |
1 | ||
| 90412-10281 |
GRJ150,KDJ15# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10282 |
GRJ150,KDJ15# |
1 | ||
| 90412-10282 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-60460 |
KDJ15#..RHD |
1 | ||
| 47313-60460 |
KDJ15#..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02G20 |
KDJ15#;GRJ150..LHD |
1 | ||
| 90947-02G20 |
GRJ150,KDJ15# |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02G20 |
GRJ150,KDJ15# |
1 | ||
| 90947-02G20 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-60300 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47314-60300 |
GRJ150,KDJ15# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-60550 |
KDJ15#..RHD |
1 | ||
| 47315-60550 |
KDJ15#..RHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-60630 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47316-60630 |
GRJ150,KDJ15# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02G18 |
KDJ150;GRJ150..LHD |
2 | ||
| 90947-02H20 |
GRJ150,KDJ15# |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02G18 |
KDJ150;GRJ150..LHD |
2 | ||
| 90947-02H20 |
GRJ150,KDJ15# |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-60130 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47317-60130 |
GRJ150,KDJ15# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47314-60310 |
GRJ150,KDJ15# |
1 | ||
| 47314-60310 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
KDJ15#;GRJ150..LHD |
2 | ||
| 90401-10058 |
GRJ150,KDJ15# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
KDJ15#;GRJ150..LHD |
2 | ||
| 90401-10058 |
GRJ150,KDJ15# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GRJ150,KDJ15# |
2 | ||
| 47389-50020 |
KDJ15#;GRJ150..LHD |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GRJ150,KDJ15# |
2 | ||
| 47389-50020 |
KDJ15#;GRJ150..LHD |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02G15 |
KDJ15#;GRJ150..LHD |
1 | ||
| 90947-02H17 |
GRJ150,KDJ15# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02H18 |
GRJ150,KDJ15# |
1 | ||
| 90947-02G16 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-60A80 |
KDJ15#..RHD |
1 | ||
| 47322-60A80 |
KDJ15#..RHD |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90412-10283 |
KDJ15#;GRJ150..LHD |
1 | ||
| 90412-10283 |
GRJ150,KDJ15# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-60840 |
KDJ15#..RHD |
1 | ||
| 47323-60840 |
KDJ15#..RHD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-60380 |
KDJ150;GRJ150..LHD |
1 | ||
| 47324-60420 |
GRJ150,KDJ150 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-60340 |
KDJ150;GRJ150..LHD |
1 | ||
| 47325-60380 |
GRJ150,KDJ150 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-60360 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47326-60370 |
GRJ150,KDJ15# |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-60210 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47327-60230 |
GRJ150,KDJ15# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35350 |
GRJ150,KDJ15# |
1 | ||
| 47351-35350 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-35390 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47352-35390 |
GRJ150,KDJ15# |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-60150 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47353-60150 |
GRJ150,KDJ15# |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-60140 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47354-60140 |
GRJ150,KDJ15# |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-35130 |
KDJ150;GRJ150..LHD |
1 | ||
| 47355-60200 |
GRJ150,KDJ150 |
1 | ||
| 47356 - BRACKET, FLEXIBLE HOSE, NO.6 | ||||
| 47356-35010 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47356-60030 |
GRJ150,KDJ15# |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47371-60160 |
GRJ150,KDJ15# |
1 | ||
| 47371-60160 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 47371-60170 |
GRJ150,KDJ15# |
1 | ||
| 47371-60170 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90469-07019 |
KDJ150;GRJ150..LHD |
5 | ||
| 90469-07019 |
GRJ150,KDJ150 |
5 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90461-08639 |
KDJ15#;GRJ150..LHD |
5 | ||
| 90461-08639 |
GRJ150,KDJ15# |
5 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01C95 |
GRJ150,KDJ15# |
1 | ||
| 90949-01C95 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-04024 |
KDJ15#..RHD |
3 | ||
| 90949-04024 |
KDJ15#..RHD |
3 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-04034 |
KDJ15#..RHD |
1 | ||
| 90949-04034 |
KDJ15#..RHD |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 77299-32030 |
KDJ15#;GRJ150..LHD |
1 | ||
| 77299-32030 |
GRJ150,KDJ15# |
1 | ||
| Common parts | ||||
| 90119-08C06 | ||||
| 90468-08035 | ||||
| 91616-60616 | ||||
| 91641-H0820 | ||||
| 91671-80816 | ||||
| 91674-80818 | ||||
| 91674-80822 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||
