KDJ150R-GKAEYW (2013)
Toyota Land Cruiser Prado

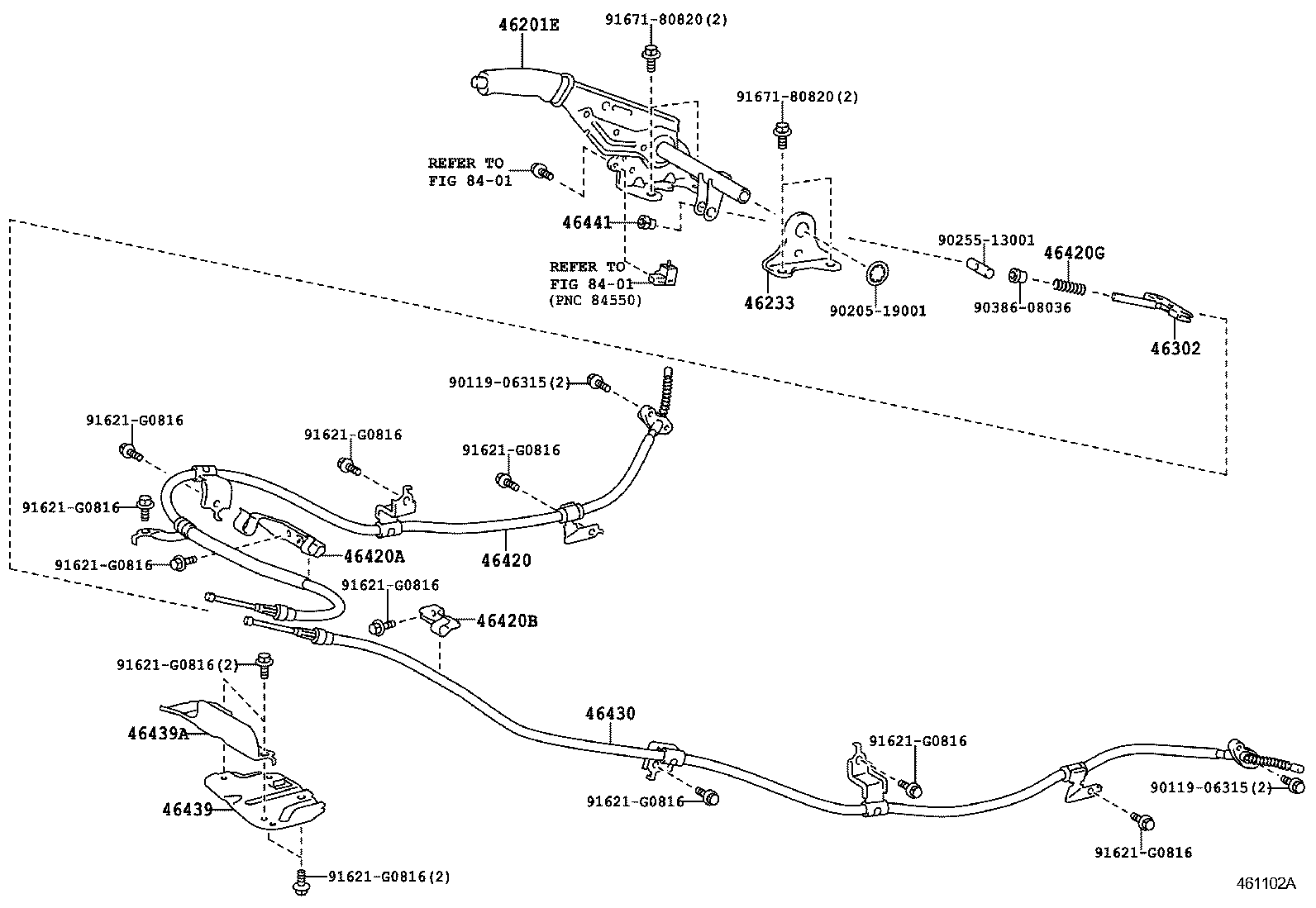

ILLUST NO. 1 OF 2(0908- )GDJ150,GRJ150,KDJ150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-60130C0 |
KDJ15#..RHD BLACK,TRIM1# |
1 | ||
| 46201-60140C0 |
KDJ15#..RHD LEATHER SEAT PACKAGE,BLACK,TRIM1# |
1 | ||
| 46201-60130E0 |
KDJ15#..RHD DK. BROWN,TRIM0# |
1 | ||
| 46201-60140C0 |
KDJ15#..RHD LEATHER SEAT PACKAGE,BLACK,TRIM1# |
1 | ||
| 46201-60140C0 |
KDJ15#..RHD LEATHER SEAT PACKAGE,BLACK,TRIM1# |
1 | ||
| 46201-60140C0 |
KDJ15#..RHD LEATHER PACKAGE (STEERING & SHIFT KNOB),BLACK,TRIM1# |
1 | ||
| 46201-60140E0 |
KDJ15#..RHD LEATHER SEAT PACKAGE,DK. BROWN,TRIM0# |
1 | ||
| 46201-60140E0 |
KDJ15#..RHD LEATHER PACKAGE (STEERING & SHIFT KNOB),DK. BROWN,TRIM0# |
1 | ||
| 46201-60140E0 |
KDJ15#..RHD LEATHER SEAT PACKAGE,DK. BROWN,TRIM0# |
1 | ||
| 46201-60140E0 |
KDJ15#..RHD LEATHER PACKAGE (STEERING & SHIFT KNOB),DK. BROWN,TRIM0# |
1 | ||
| 46201-60140E0 |
KDJ15#..RHD LEATHER SEAT PACKAGE,DK. BROWN,TRIM0# |
1 | ||
| 46201-60130C0 |
KDJ15#..RHD BLACK,TRIM2# |
1 | ||
| 46201-60140C0 |
KDJ15#..RHD LEATHER PACKAGE (STEERING & SHIFT KNOB),BLACK,TRIM1# |
1 | ||
| 46201-60140C0 |
KDJ15#..RHD LEATHER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 46201-60140C0 |
KDJ15#..RHD LEATHER PACKAGE(STEERING & SHIFT KNOB),BLACK,TRIM2# |
1 | ||
| 46201-60140C0 |
KDJ150..RHD..5FC LEATHER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 46201-60140C0 |
KDJ15#..RHD VX COLOR LEATHER + COSM.PACK,BLACK,TRIM2# |
1 | ||
| 46201-60140C0 |
KDJ15#..RHD LEATHER SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 46201-60140C0 |
KDJ150..RHD..5FC VX-L COLOR LEATHER + COSM.PACKAGE,BLACK,TRIM2# |
1 | ||
| 46201-60140E1 |
KDJ15#..RHD LEATHER SEAT PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 46201-60140E1 |
KDJ150..RHD..5FC LEATHER SEAT PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 46201-60130E1 |
KDJ15#..RHD ORCHID BROWN,TRIM0# |
1 | ||
| 46201-60140C0 |
KDJ15#..RHD LEATHER PACKAGE(STEERING & SHIFT KNOB),BLACK,TRIM2# |
1 | ||
| 46201-60140E1 |
KDJ15#..RHD LEATHER PACKAGE(STEERING & SHIFT KNOB),ORCHID BROWN,TRIM0# |
1 | ||
| 46201-60140E1 |
KDJ15#..RHD LEATHER PACKAGE(STEERING & SHIFT KNOB),ORCHID BROWN,TRIM0# |
1 | ||
| 46201-60140E1 |
KDJ15#..RHD VX COLOR LEATHER + COSM.PACK,ORCHID BROWN,TRIM0# |
1 | ||
| 46201-60140E1 |
KDJ150..RHD..5FC VX-L COLOR LEATHER + COSM.PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 46201-60140E1 |
KDJ15#..RHD LEATHER SEAT PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 46233 - SUPPORT, PARKING BRAKE CENTER | ||||
| 46233-60040 |
KDJ15#;GRJ150..LHD |
1 | ||
| 46233-60040 |
GRJ150,KDJ15# |
1 | ||
| 46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1 | ||||
| 46302-60010 |
GRJ150,KDJ15# |
1 | ||
| 46302-60010 |
KDJ15#;GRJ150..LHD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-60112 |
GRJ150,KDJ150 |
1 | ||
| 46420-60110 |
GRJ150,KDJ150 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46421-60060 |
GRJ150,KDJ150 |
1 | ||
| 46421-60060 |
KDJ150;GRJ150..LHD |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46431-60060 |
GRJ150,KDJ150 |
1 | ||
| 46431-60060 |
KDJ150;GRJ150..LHD |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-10239 |
GRJ150,KDJ15# |
1 | ||
| 90501-10239 |
KDJ15#;GRJ150..LHD |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-60042 |
GRJ150,KDJ150 |
1 | ||
| 46430-60040 |
GRJ150,KDJ150 |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46439-60020 |
KDJ150;GRJ150..LHD |
1 | ||
| 46439-60020 |
GRJ150,KDJ150 |
1 | ||
| 46439A - INSULATOR, PARKING BRAKE CABLE HEAT, NO.2 | ||||
| 4643A-60010 |
KDJ150;GRJ150..LHD |
1 | ||
| 4643A-60010 |
GRJ150,KDJ150 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-60010 |
GRJ150,KDJ15# |
1 | ||
| 46441-60010 |
KDJ15#;GRJ150..LHD |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90205-19001 | ||||
| 90255-13001 | ||||
| 90386-08036 | ||||
| 91621-G0816 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-60131 |
GRJ150,KDJ15# |
1 | ||
| 46503-60131 |
KDJ15#;GRJ150..LHD |
1 | ||
| 46503A - BOLT(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING) | ||||
| 90114-12045 |
KDJ15#;GRJ150..LHD |
8 | ||
| 90114-12045 |
GRJ150,KDJ15# |
8 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-60091 |
KDJ15#;GRJ150..LHD |
1 | ||
| 46504-60091 |
GRJ150,KDJ15# |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46580-60060 |
GRJ150,KDJ15# |
1 | ||
| 46580-60060 |
KDJ15#;GRJ150..LHD |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-60070 |
GRJ150,KDJ15# |
1 | ||
| 46550-60070 |
KDJ15#;GRJ150..LHD |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12061 |
GRJ150,KDJ15# |
2 | ||
| 90506-12061 |
KDJ15#;GRJ150..LHD |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
KDJ15#;GRJ150..LHD |
2 | ||
| 90213-07018 |
GRJ150,KDJ15# |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
GRJ150,KDJ15# |
2 | ||
| 90507-20016 |
KDJ15#;GRJ150..LHD |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-23014 |
KDJ15#;GRJ150..LHD |
2 | ||
| 90507-23014 |
GRJ150,KDJ15# |
2 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09003 |
KDJ15#;GRJ150..LHD T=0.5 |
1 | ||
| 90564-09185 |
KDJ15#;GRJ150..LHD T=0.6 |
1 | ||
| 90564-09184 |
KDJ15#;GRJ150..LHD T=0.3 |
1 | ||
| 90564-09186 |
KDJ15#;GRJ150..LHD T=0.9 |
1 | ||
| 90564-09186 |
GRJ150,KDJ15# T=0.9 |
1 | ||
| 90564-09002 |
KDJ15#;GRJ150..LHD T=0.4 |
1 | ||
| 90564-09184 |
GRJ150,KDJ15# T=0.3 |
1 | ||
| 90564-09002 |
GRJ150,KDJ15# T=0.4 |
1 | ||
| 90564-09185 |
GRJ150,KDJ15# T=0.6 |
1 | ||
| 90564-09003 |
GRJ150,KDJ15# T=0.5 |
1 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-60060 |
KDJ15#;GRJ150..LHD |
1 | ||
| 46540-60060 |
GRJ150,KDJ15# |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46550-60070 |
KDJ15#;GRJ150..LHD |
1 | ||
| 46550-60070 |
GRJ150,KDJ15# |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-60010 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47405-60010 |
GRJ150,KDJ15# |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-60010 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47406-60010 |
GRJ150,KDJ15# |
1 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-50010 |
KDJ15#;GRJ150..LHD |
2 | ||
| 47447-50010 |
GRJ150,KDJ15# |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-30020 |
KDJ15#;GRJ150..LHD |
2 | ||
| 47447-30020 |
GRJ150,KDJ15# |
2 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16053 |
GRJ150,KDJ15# |
4 | ||
| 90501-16053 |
KDJ15#;GRJ150..LHD |
4 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16053 |
GRJ150,KDJ15# |
4 | ||
| 90501-16053 |
KDJ15#;GRJ150..LHD |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
KDJ15#;GRJ150..LHD |
4 | ||
| 47449-30030 |
GRJ150,KDJ15# |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
KDJ15#;GRJ150..LHD |
4 | ||
| 47449-30030 |
GRJ150,KDJ15# |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-40010 |
GRJ150,KDJ15# |
4 | ||
| 47449-40010 |
KDJ15#;GRJ150..LHD |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-40010 |
GRJ150,KDJ15# |
4 | ||
| 47449-40010 |
KDJ15#;GRJ150..LHD |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-35010 |
GRJ150,KDJ15# |
2 | ||
| 47456-35010 |
KDJ15#;GRJ150..LHD |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
GRJ150,KDJ15# |
2 | ||
| 47459-30010 |
KDJ15#;GRJ150..LHD |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47612-60020 |
GRJ150,KDJ15# |
1 | ||
| 47612-60020 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47611-60020 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47611-60020 |
GRJ150,KDJ15# |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
KDJ15#;GRJ150..LHD |
2 | ||
| 90504-14002 |
GRJ150,KDJ15# |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-60020 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47613-60020 |
GRJ150,KDJ15# |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47613-60020 |
KDJ15#;GRJ150..LHD |
1 | ||
| 47613-60020 |
GRJ150,KDJ15# |
1 | ||
| Common parts | ||||
| 94151-21201 | ||||
