KDJ150R-GKAEYW (2013)

Toyota Land Cruiser Prado

Production Aug 2013 - Jun 2015
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )1KDFTV

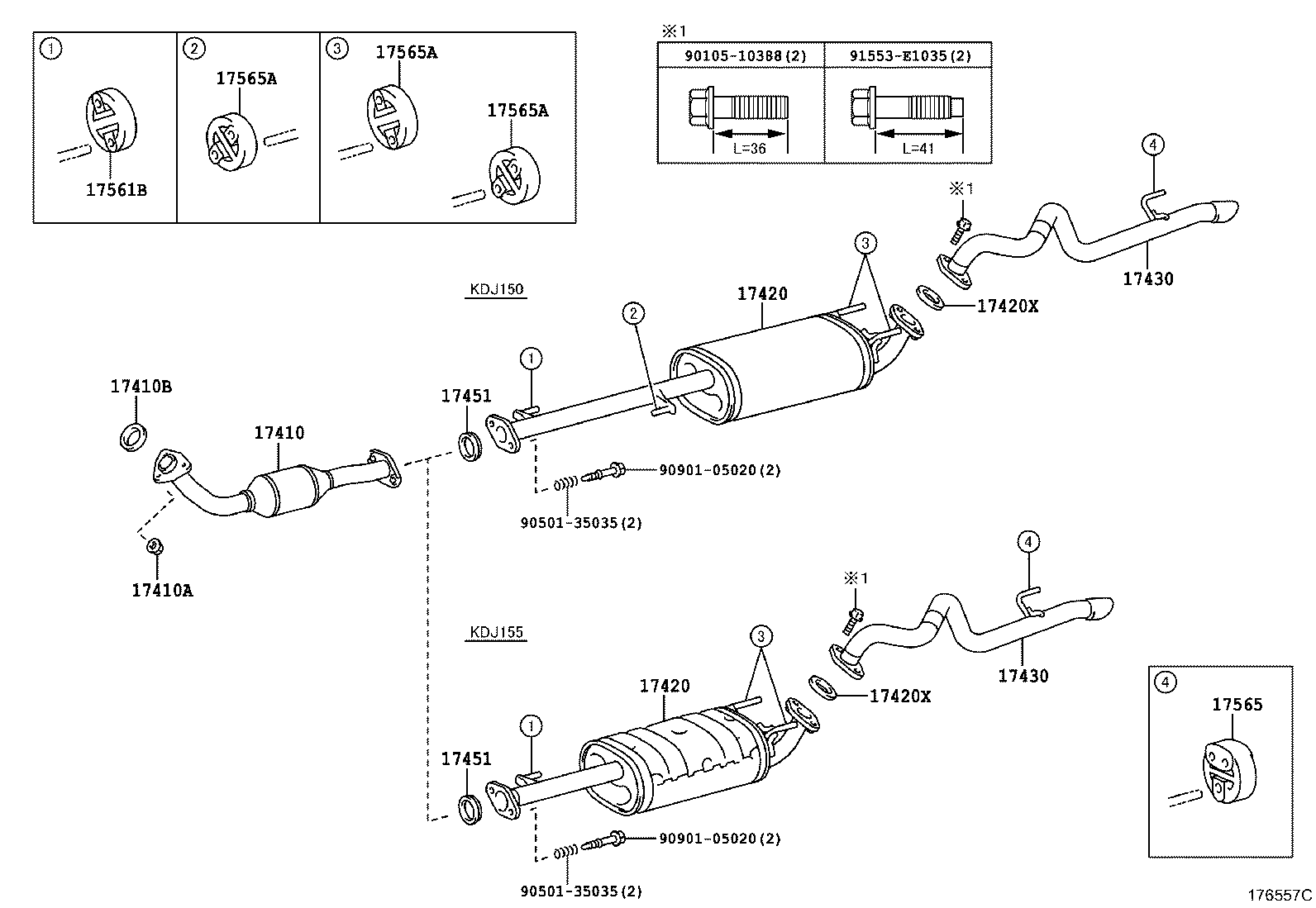

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17420 17420X 17420X 17430 17430 17451 17451 17561B 17565 17565A 17565A 17565A 9010510388 9050135035 9050135035 9090105020 9090105020 91553E1035
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-30260

1KDFTV..KDJ15#

*114=TOYOTA/AG4/Y

 1
17410-30200

1KDFTV..KDJ15#..RHD..5FC

*114=TOYOTA/ZB9/Y

 1
17410-30261

1KDFTV..KDJ150..RHD..5FC

*114=TOYOTA/AG4/Y,ENGINE-FOR EURO 4 CONFORMITY

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1KDFTV..KDJ15#

 3
90179-10070

1KDFTV..KDJ150..RHD..5FC

ENGINE-FOR EURO 4 CONFORMITY

 3
17410B - GASKET, EXHAUST PIPE
90917-06090

1KDFTV..KDJ150..RHD..5FC

ENGINE-FOR EURO 4 CONFORMITY

 1
90917-06090

1KDFTV..KDJ15#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-30180

1KDFTV..KDJ150

 1
17420-30250

1KDFTV..KDJ150..RHD

 1
17420-30180

1KDFTV..KDJ150..RHD..5FC

ENGINE-FOR EURO 4 CONFORMITY

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-30180

1KDFTV..KDJ150

 1
17420-30250

1KDFTV..KDJ150..RHD

 1
17420-30180

1KDFTV..KDJ150..RHD..5FC

ENGINE-FOR EURO 4 CONFORMITY

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06090

1KDFTV..KDJ15#;1GRFE..GRJ150..LHD

 1
90917-06090

1GRFE,1KDFTV..GRJ150,KDJ15#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06090

1KDFTV..KDJ15#;1GRFE..GRJ150..LHD

 1
90917-06090

1GRFE,1KDFTV..GRJ150,KDJ15#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31870

1GRFE,1KDFTV..GRJ150,KDJ150

 1
17430-31870

1KDFTV..KDJ150;1GRFE..GRJ150..LHD

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31870

1GRFE,1KDFTV..GRJ150,KDJ150

 1
17430-31870

1KDFTV..KDJ150;1GRFE..GRJ150..LHD

 1
17451 - GASKET, EXHAUST PIPE
17451-28070

1GRFE,1KDFTV..GRJ150,KDJ15#

 1
17451-31020

1GRFE,1KDFTV..GRJ150,KDJ15#

 1
17451 - GASKET, EXHAUST PIPE
17451-28070

1GRFE,1KDFTV..GRJ150,KDJ15#

 1
17451-31020

1GRFE,1KDFTV..GRJ150,KDJ15#

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-22040

1KDFTV..KDJ15#

 1
17565-22040

1GRFE..GRJ150;1KDFTV..KDJ15#..RHD

 2
17565-22040

1KDFTV..KDJ150..RHD..5FC

ENGINE-FOR EURO 4 CONFORMITY

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74320

1KDFTV..KDJ15#

 1
17565-74320

1KDFTV..KDJ15#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1KDFTV..KDJ150;1GRFE..GRJ150..LHD

 3
17565-22040

1GRFE,1KDFTV..GRJ150,KDJ150

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1KDFTV..KDJ150;1GRFE..GRJ150..LHD

 3
17565-22040

1GRFE,1KDFTV..GRJ150,KDJ150

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1KDFTV..KDJ150;1GRFE..GRJ150..LHD

 3
17565-22040

1GRFE,1KDFTV..GRJ150,KDJ150

 3
Common parts
90105-10388
90501-35035
90901-05020
91553-E1035
