KDJ150L-GKFEYW (2009)

Toyota Land Cruiser Prado

Production Aug 2009 - Aug 2013
Engine 1KDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

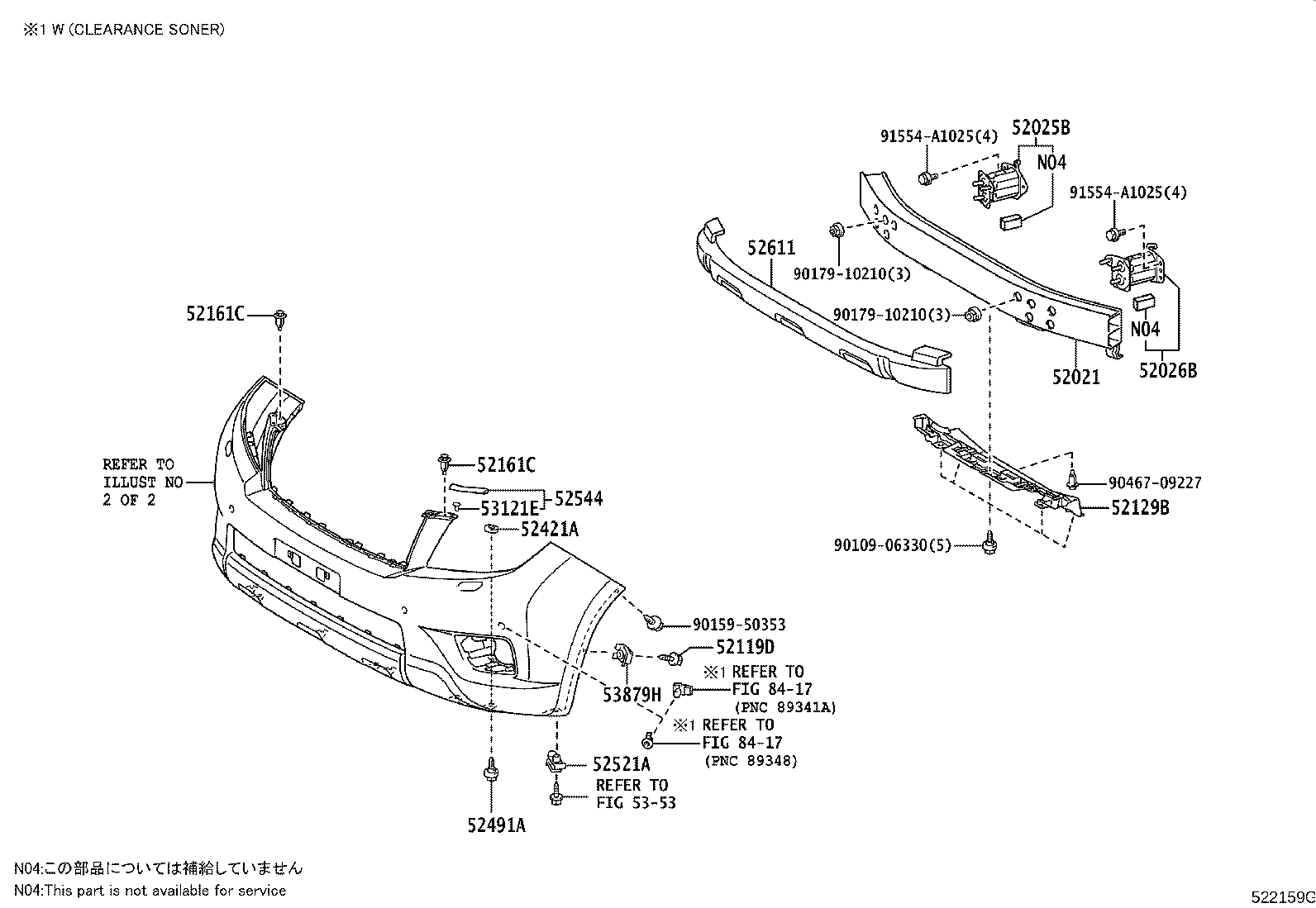

ILLUST NO. 1 OF 2(0908-1308)

Click highlighted areas on diagram

diagram 52021 52025B 52026B 52119D 52129B 52161C 52161C 52421A 52491A 52521A 52544 52611 53121E 5353 53879H 8417 8417 9010906330 9015950353 9017910210 9017910210 9046709227 91554A1025 91554A1025
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-60160

KDJ15#;GRJ150..LHD

 1
52025B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH
52025-60040

KDJ15#;GRJ150..LHD

 1
52026B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH
52026-60040

KDJ15#;GRJ150..LHD

 1
52119D - SCREW, NO.1
90159-60603

GRJ150,KDJ15#

 2
52129B - COVER, FRONT BUMPER, LOWER
52129-60020

KDJ15#;GRJ150..LHD

 1
52161C - PIECE, FRONT BUMPER
52161-16010

KDJ15#;GRJ150..LHD

 6
52161C - PIECE, FRONT BUMPER
52161-16010

KDJ15#;GRJ150..LHD

 6
52421A - PAD, FRONT BUMPER
52421-60191

KDJ15#;GRJ150..LHD

 2
52491A - BOLT, BUMPER PAD
52491-60010

GRJ150,KDJ15#

 2
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05138

KDJ15#;GRJ150..LHD

 2
52544 - SEAL, FRONT BUMPER SIDE, LH
53396-60060

KDJ15#;GRJ150..LHD

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-60070

KDJ15#;GRJ150..LHD

 1
53121E - CLIP(FOR FRONT BUMPER), NO.1
53145-60030

KDJ15#;GRJ150..LHD

 8
53879H - RETAINER, FRONT FENDER LINER
53879-58010

KDJ15#;GRJ150..LHD

 2
Common parts
90109-06330
90159-50353
90179-10210
90467-09227
91554-A1025
Linked diagrams
5353
8417

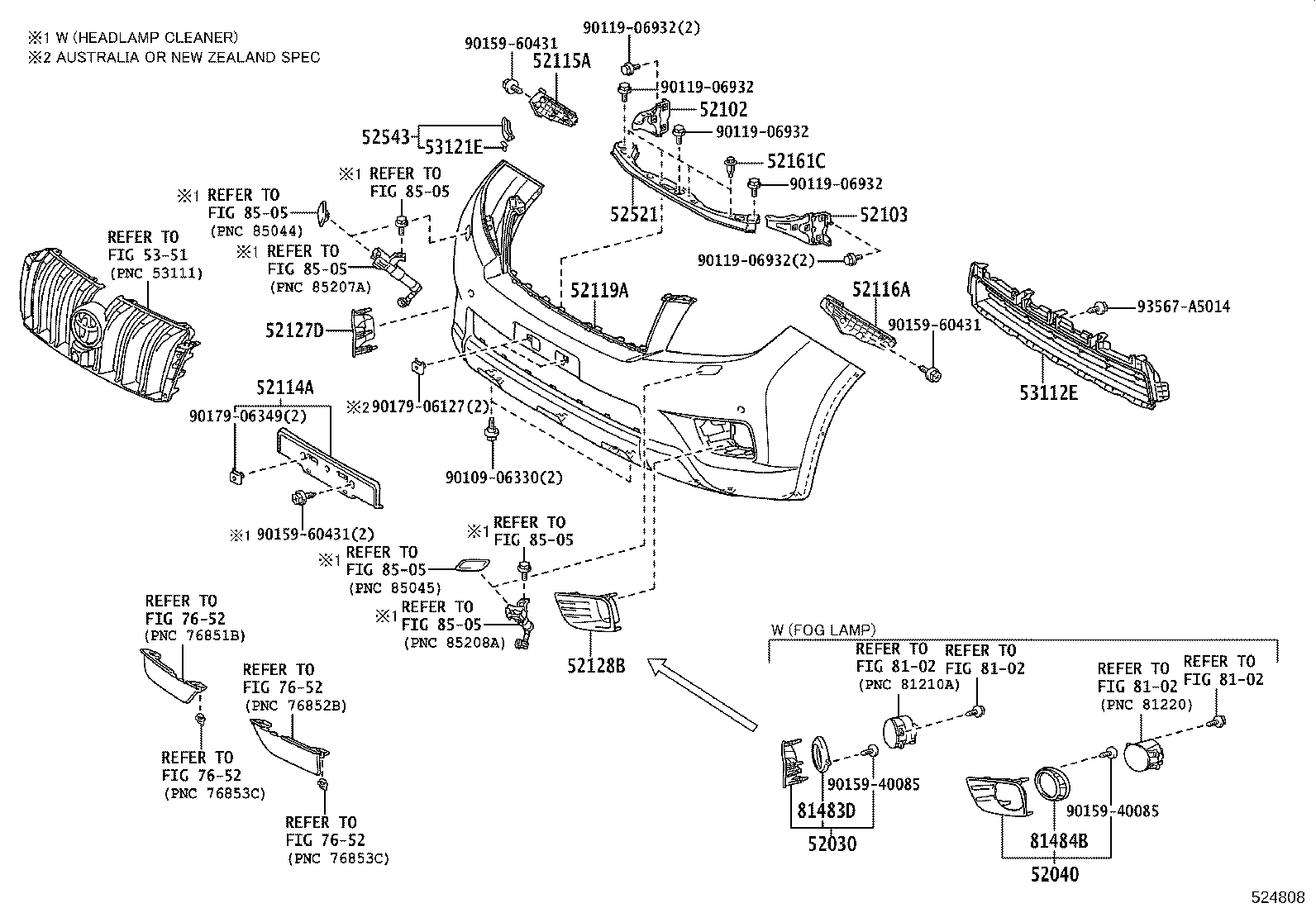

ILLUST NO. 2 OF 2(0908-1308)

Click highlighted areas on diagram

diagram 52030 52040 52102 52103 52114A 52115A 52116A 52119A 52127D 52128B 52161C 52521 52543 53112E 53121E 5351 7652 7652 7652 7652 8102 8102 8102 8102 81483D 81484B 8505 8505 8505 8505 8505 8505 9010906330 9011906932 9011906932 9011906932 9011906932 9011906932 9015940085 9015940085 9015960431 9015960431 9015960431 9017906127 9017906349 93567A5014
Part # Description Qty Price
52030 - COVER ASSY, FRONT BUMPER HOLE, RH
52030-60020

GRJ150,KDJ150..LHD

PLATED,RUSSIA SPEC&FRONT FOG LAMP-WITH

 1
52030-60010

KDJ15#;GRJ150..LHD

PLATED,FRONT FOG LAMP-WITH

 1
52040 - COVER ASSY, FRONT BUMPER HOLE, LH
52040-60020

GRJ150,KDJ150..LHD

PLATED,RUSSIA SPEC&FRONT FOG LAMP-WITH

 1
52040-60010

KDJ15#;GRJ150..LHD

PLATED,FRONT FOG LAMP-WITH

 1
52102 - BRACKET SUB-ASSY, FRONT BUMPER, RH
52102-60260

KDJ15#;GRJ150..LHD

 1
52103 - BRACKET SUB-ASSY, FRONT BUMPER, LH
52103-60250

KDJ15#;GRJ150..LHD

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-60100

KDJ15#;GRJ150..LHD

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-60160

KDJ15#;GRJ150..LHD

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-60200

KDJ15#;GRJ150..LHD

 1
52119A - COVER, FRONT BUMPER
52119-6A900

GRJ150,KDJ15#

PAINT REQ.

 1
52119-6A921

GRJ150,KDJ150..LHD

PAINT REQ.,RUSSIA SPEC&HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

 1
52119-6A921

GRJ150,KDJ15#

PAINT REQ.,HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

 1
52119-6A946

GRJ150,KDJ150..LHD

PAINT REQ.,RUSSIA SPEC&HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH

 1
52119-6A923

GRJ150,KDJ150..LHD

PAINT REQ.,RUSSIA SPEC&HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH

 1
52119-6A923

GRJ150,KDJ15#

PAINT REQ.,HEAD LAMP CLEANER-WITH

 1
52119-6A944

GRJ150,KDJ15#

HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

 1
52119-6A941

GRJ150,KDJ15#

 1
52119-6A946

GRJ150,KDJ15#

HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH

 1
52119-6A944

GRJ150,KDJ150..LHD

PAINT REQ.,RUSSIA SPEC&HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

 1
52119-6A923

GRJ150,KDJ15#

PAINT REQ.,HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH

 1
52119-6A946

GRJ150,KDJ15#

HEAD LAMP CLEANER-WITH

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-60080

KDJ15#;GRJ150..LHD

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-60080

KDJ15#;GRJ150..LHD

 1
52161C - PIECE, FRONT BUMPER
52161-16010

KDJ15#;GRJ150..LHD

 6
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-60110

KDJ15#;GRJ150..LHD

 1
52543 - SEAL, FRONT BUMPER SIDE, RH
53395-60060

KDJ15#;GRJ150..LHD

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-60090

KDJ15#;GRJ150..LHD

NO PAINT REQ.

 1
53121E - CLIP(FOR FRONT BUMPER), NO.1
53145-60030

KDJ15#;GRJ150..LHD

 8
81483D - PROTECTOR, FOG LAMP, RH
81483-60030

GRJ150,KDJ150..LHD

RUSSIA SPEC&FRONT FOG LAMP-WITH

 1
81483-60020

KDJ15#;GRJ150..LHD

FRONT FOG LAMP-WITH

 1
81484B - PROTECTOR, FOG LAMP, LH
81484-60030

GRJ150,KDJ150..LHD

RUSSIA SPEC&FRONT FOG LAMP-WITH

 1
81484-60020

KDJ15#;GRJ150..LHD

FRONT FOG LAMP-WITH

 1
Common parts
90109-06330
90119-06932
90159-40085
90159-60431
90179-06127
90179-06349
93567-A5014
Linked diagrams
5351
7652
8102
8505
