KDJ125R-GJPEYW (2002)

Toyota Land Cruiser Prado

Production Sep 2002 - Aug 2004
Engine 1KDFTV
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

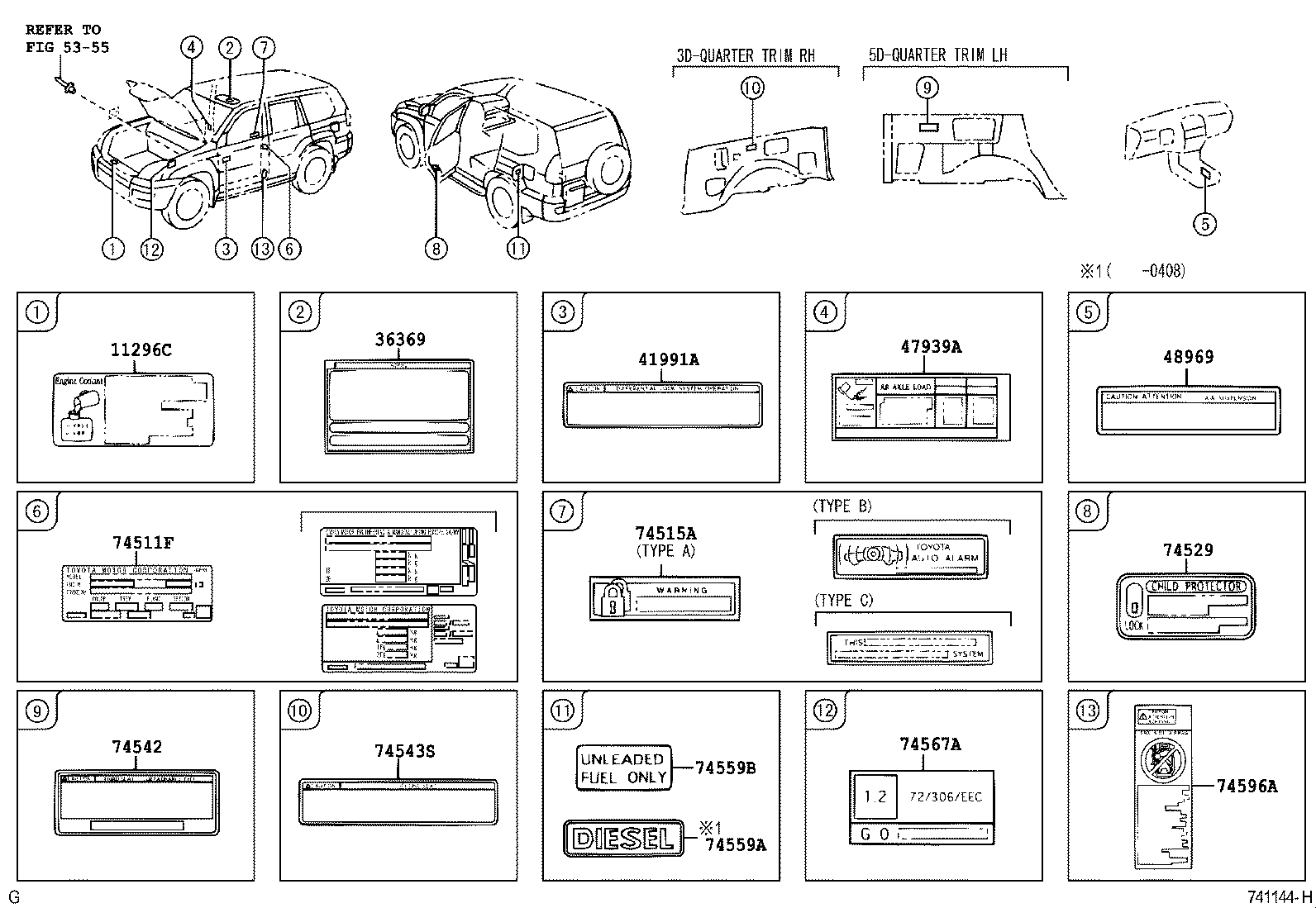

ILLUST NO. 1 OF 2(0209- )

Click highlighted areas on diagram

diagram 11296C 36369 41991A 47939A 48969 5355 74511F 74515A 74529 74542 74543S 74559A 74559B 74567A 74596A
Part # Description Qty Price
36369 - LABEL, TRANSFER INFORMATION
36369-60560

GRJ12#,KDJ12#

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

 1
36369-60580

GRJ12#,KDJ12#

 1
41991A - PLATE, CAUTION
41991-60081

GRJ12#,KDJ12#

DIFFERENTIAL LOCK-WITH

 1
74515A - PLATE, THEFT WARNING
74515-47010

GRJ120,KDJ12#..RHD

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,TYPE B

 2
74515-50040

GRJ12#,KDJ12#

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

 2
74515-20010

GRJ120,KDJ12#..RHD

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,TYPE A

 2
74543S - LABEL, AUTOMATIC BELT CAUTION, NO.3
74543-60290

GRJ125,KDJ125

 1
74559A - PLATE, FUEL CAUTION
74559-89101

KDJ12#

 1
74567A - PLATE, E.C.E APPROVED NUMBER
74567-26250

KDJ12#

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-12020

GRJ125,KDJ125

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

 2
Linked diagrams
5355

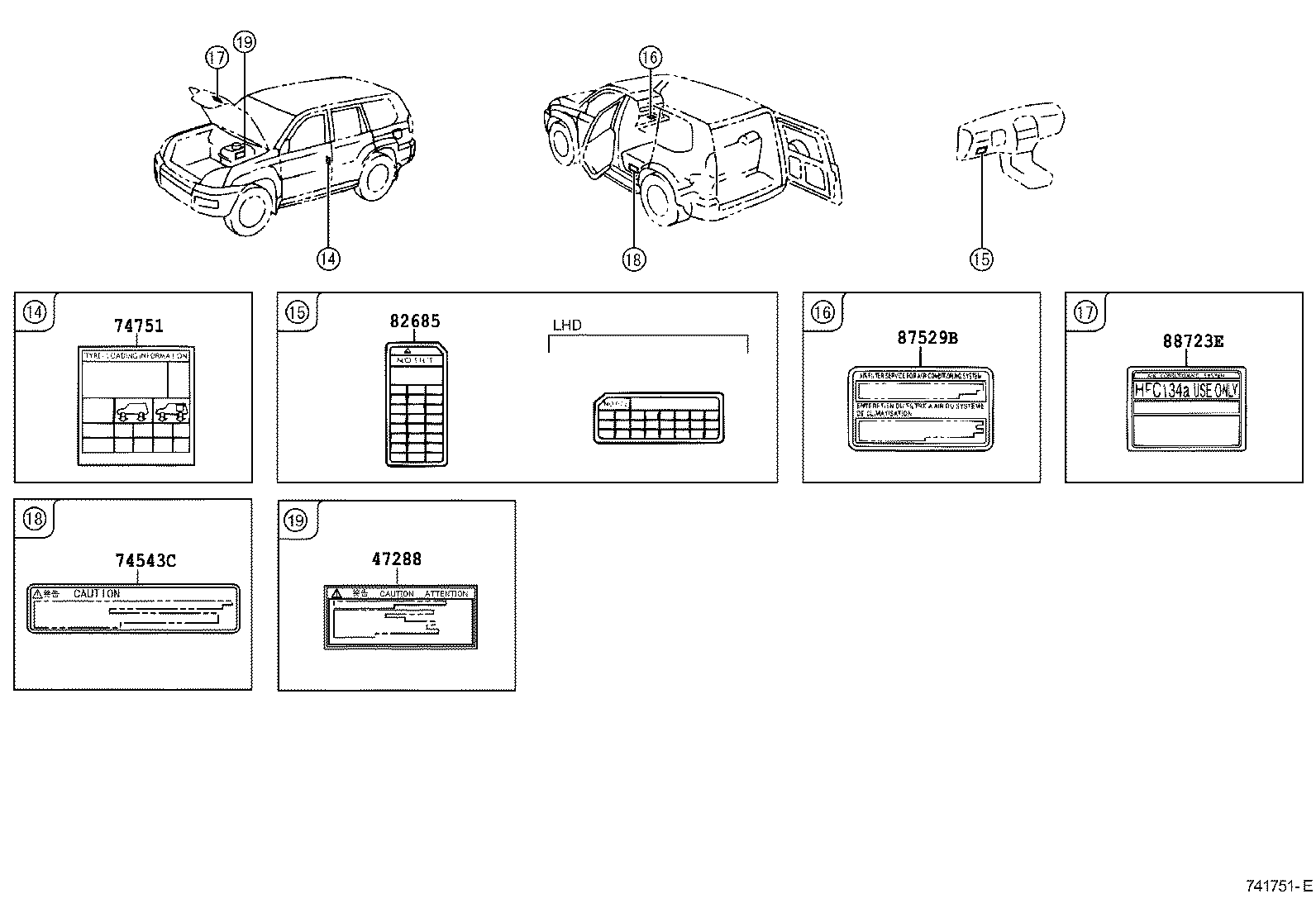

ILLUST NO. 2 OF 2(0209- )

Click highlighted areas on diagram

diagram 47288 74543C 74751 82685 87529B 88723E
Part # Description Qty Price
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-60161

GRJ120,KDJ12#..RHD

TYPE D:REFER ILLUST.

 1
82685 - PLATE, CAUTION
82683-60180

GRJ120,KDJ12#..RHD

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50010

GRJ12#,KDJ12#

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-28220

KDJ12#

COLD SPEC&AIR CONDITIONER-SINGLE MANUAL AFTER SET

 1
88723-28220

GRJ12#,KDJ12#

AIR CONDITIONER-SINGLE MANUAL AFTER SET

 1
88723-28220

GRJ12#,KDJ12#

AIR CONDITIONER-SINGLE AUTO

 1
88723-28220

GRJ12#,KDJ12#

AIR CONDITIONER-SINGLE MANUAL

 1
